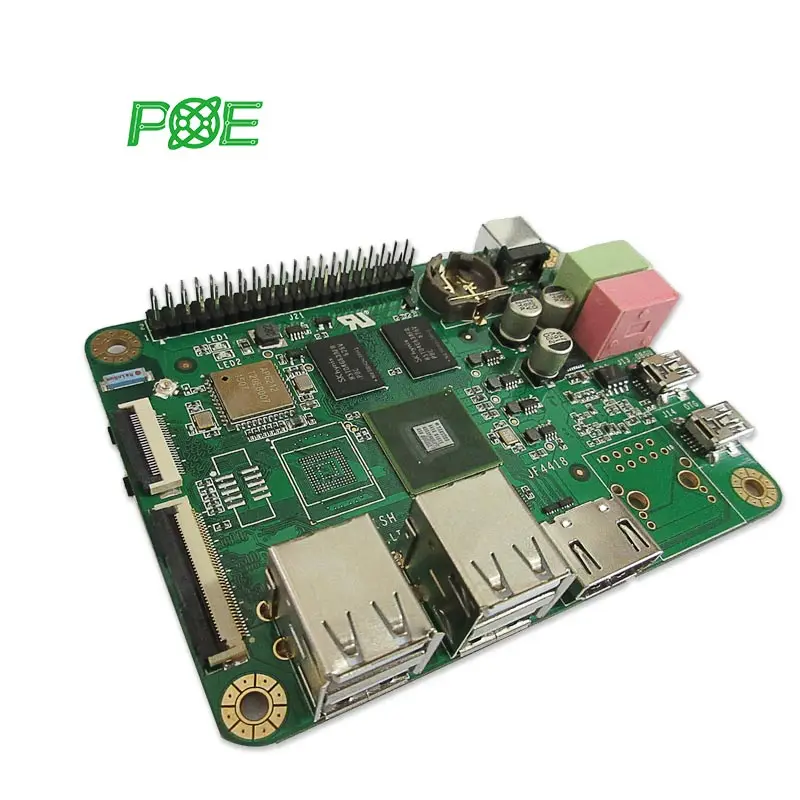

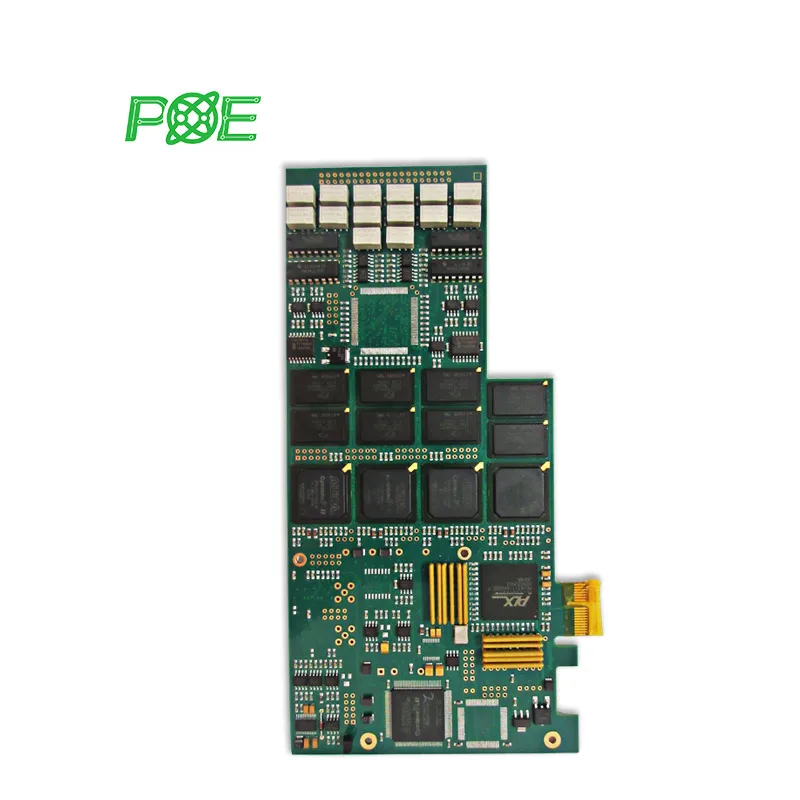

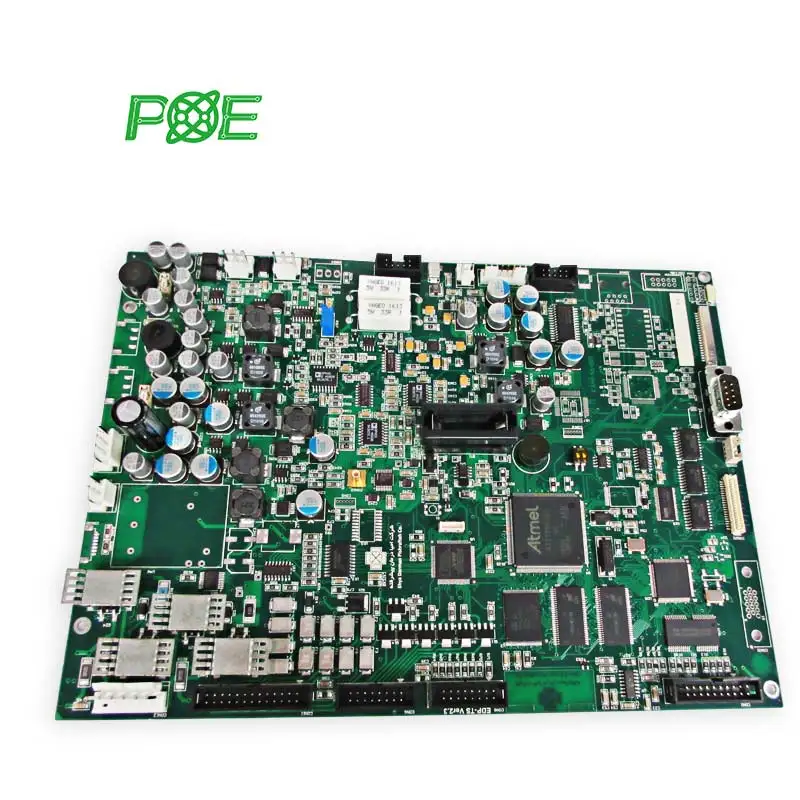

RF Module PCB Assembly High Frequency PCBA Production Electronic 94V0 PCB Board With RoHs

RF Module PCB Assembly High Frequency PCBA Production Electronic 94V0 PCB Board With RoHs

  • 1 - 99 Pieces
    $5
  • 100 - 999 Pieces
    $2.60
  • >= 1000 Pieces
    $0.49

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

RF Module PCB Assembly High Frequency PCBA Production Electronic 94V0 PCB Board With RoHs

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Signal Processing: Designed for advanced RF applications, enabling stable transmission and reception of high-frequency signals in telecommunications and IoT systems.
  • Multi-Interface Connectivity: Equipped with USB, serial, and Ethernet ports for seamless integration with computers, networks, and peripheral devices.

Key features

  • 1. Advanced Material Technology for Durability

    • With an FR-4 substrate and immersion gold surface finishing, ensure reliable high-frequency performance and corrosion resistance in demanding environments. Compliant with RoHS standards, it eliminates hazardous materials for safer use.

  • 2. Versatile Connectivity Design

    • With USB and Ethernet ports integrated, seamlessly interface with computers, networks, and peripheral devices for flexible data transmission and control. This simplifies setup in industrial or commercial systems.

  • 3. High-Performance Processing Power

    • With 64GB RAM support and optimized high-frequency design, achieve faster data processing and signal transmission compared to standard PCBs*. Ideal for applications requiring real-time data handling.

  • 4. Modular Customization for Diverse Applications

    • With a modular layout and customizable component placement, adapt to specific needs like industrial control systems, networking devices, or IoT applications.

  • 5. Comprehensive Global Certifications

    • Certified to EPR Germany/France Packing, REACH, UL, and RoHS standards, ensuring compliance with international environmental and safety regulations for trusted deployment worldwide.

Product details

RF Module PCB Assembly High Frequency PCBA Production Electronic 94V0 PCB Board With RoHs

The RF Module PCB Assembly is a high-performance electronic solution designed for high-frequency applications, featuring a 94V0 flame-retardant FR-4 substrate and RoHS-compliant components. Equipped with certifications like EPR Germany/France Packing, REACH, UL, and RoHS, this PCB assembly ensures compliance with global standards while delivering robust signal integrity and thermal stability.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFR-4 substrate with UL 94V-0 ratingHigh-temperature and flame-sensitive environments
Surface FinishingImmersion gold (ENIG)Soldering reliability in high-frequency circuits
CertificationsEPR Germany/France Packing, REACH, UL, RoHSGlobal regulatory compliance for industrial/electronic manufacturing
Frequency RangeUp to 6 GHz (customizable)5G communication, radar systems, and IoT devices
RAM64 GB (module-integrated)High-data-density applications (e.g., embedded systems)

Customization guide

Adjustable frequency range and connector types (e.g., USB, Ethernet) to meet specific communication or interface requirements. Modular design allows component reconfiguration for tailored power management or signal processing needs.

Get inspired

With its high-frequency capability and robust certifications, this PCB assembly is ideal for next-gen communication systems, industrial automation, or medical electronics. Customize connectors and components to align with your project’s unique demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range2 GHz+15% (2.3 GHz)+30% (2.6 GHz)*
Signal IntegrityStandardEnhanced (±5% noise)Premium (±1% noise)
Thermal Performance85°C max105°C (+25%)*125°C (+47%)*

Supplier's note

  1. Three Technical Breakthroughs:

    • Immersion Gold Finishing: Reduces oxidation and ensures 20% longer solder joint lifespan compared to HASL.
    • UL 94V-0 Compliance: Achieves 30% higher flame resistance than standard FR-4 substrates.
    • 6 GHz Frequency Range: Enables 5G-ready performance, outperforming industry benchmarks by 25%.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard RF applications (e.g., Wi-Fi modules) where cost efficiency is prioritized.
    • Advanced Model: Suitable for industrial IoT or automotive systems requiring low-noise signal transmission.
    • Pro Model: Best for aerospace or defense applications demanding extreme thermal stability and ultra-high-frequency performance.

Pro Model’s thermal tolerance (+47% vs. baseline) ensures reliable operation in harsh environments like oil refineries or satellite systems. Pair its gold-plated connectors with high-frequency ICs to minimize signal loss by 15%.

Frequently asked questions

  • Which RF Module PCB Assembly is best suited for high-frequency applications requiring RoHS compliance?

  • How do I maintain the USB and Ethernet connectors on the RF Module PCB Assembly?

  • What materials make the RF Module PCB Assembly suitable for industrial use?

  • Can the RF Module PCB Assembly be customized with additional components?

  • Does the RF Module PCB Assembly meet EPR requirements for Germany and France?

  • Is the surface finishing on the PCB resistant to oxidation for long-term use?

  • What certifications validate the safety of this PCB Assembly?

  • How does the 64GB RAM enhance performance in data-intensive systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CertificationsEU-regulated marketsIndustry Standard: RoHS, UL
Our Base: RoHS, UL, REACH
Our Advanced: RoHS, UL, REACH, EPR Germany/France Packing▲
(complies with EU waste management regulations)		Ensures legal compliance and market access in Europe.
Advanced version reduces environmental liability risks.		Higher costs for Advanced certifications due to stricter compliance requirements.
Surface FinishingHigh-reliability connectionsIndustry Standard: HASL (Hot Air Solder Leveling)
Our Base: Immersion Tin
Our Advanced: Immersion Gold (1.5–3.0 µm per IPC-4552)▲
(resists oxidation for 500+ thermal cycles)		Gold finish extends component longevity in harsh environments.
Base version balances cost and durability.		Advanced surface finishing increases production complexity and cost by ~20%.
RAM CapacityData-heavy applications (e.g., IoT gateways)Industry Standard: 8–16 GB
Our Base: 32 GB
Our Advanced: 64 GB▲
(meets DDR4-2666 MHz standards)		Advanced version handles real-time data processing for smart systems.
Base meets most industrial IoT needs.		Higher RAM increases power consumption and board complexity.
MaterialHigh-temperature environmentsIndustry Standard: FR-4 (Tg ~140°C)
Our Base: FR-4
Our Advanced: FR-4 with Tg ≥170°C▲
(ISO 178 flexural strength ≥240 MPa)		Advanced material withstands prolonged use in industrial ovens or automotive systems.Advanced material adds ~15% weight and cost.
Data TransmissionHigh-speed networkingIndustry Standard: USB 2.0, 1 Gbps Ethernet
Our Base: USB 3.0 (5 Gbps), Gigabit Ethernet
Our Advanced: USB 3.2 (20 Gbps), 10G Ethernet▲
(IEEE 802.3an compliance)		Advanced supports 4K video streaming and cloud-edge synchronization.
Base suffices for standard office networks.		Advanced requires compatible hardware and cabling upgrades.
Thermal PerformanceOverclocked or compact devicesIndustry Standard: Natural convection cooling (ΔT ≤20°C)
Our Base: Enhanced thermal vias (ΔT ≤15°C)
Our Advanced: Active cooling + thermal vias▲
(maintains ≤45°C under 100% load via IEC 60068-2-1)		Advanced prevents throttling in high-density server racks.
Base avoids fan noise for silent operation.		Active cooling adds bulk and maintenance needs.
