RF Types Male to Female Cable Straight Right Angle with RG174 RG176 RG178 RG197 RG316 Custom Jumper Coaxial Coax Assembly Wire
Ready to Ship
In stock Fast dispatch

RF Types Male to Female Cable Straight Right Angle with RG174 RG176 RG178 RG197 RG316 Custom Jumper Coaxial Coax Assembly Wire

  • 5 - 49 Pieces
    $3
  • 50 - 199 Pieces
    $2.50
  • >= 200 Pieces
    $1.10

Customization:

Customized packaging（Min.Order: 1000 pieces）
Customized logo（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

RF Types Male to Female Cable Straight Right Angle with RG174 RG176 RG178 RG197 RG316 Custom Jumper Coaxial Coax Assembly Wire

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Frequency Signal Transmission: Designed for reliable transmission of RF signals in applications requiring precision, such as telecommunications, radar systems, and industrial automation.

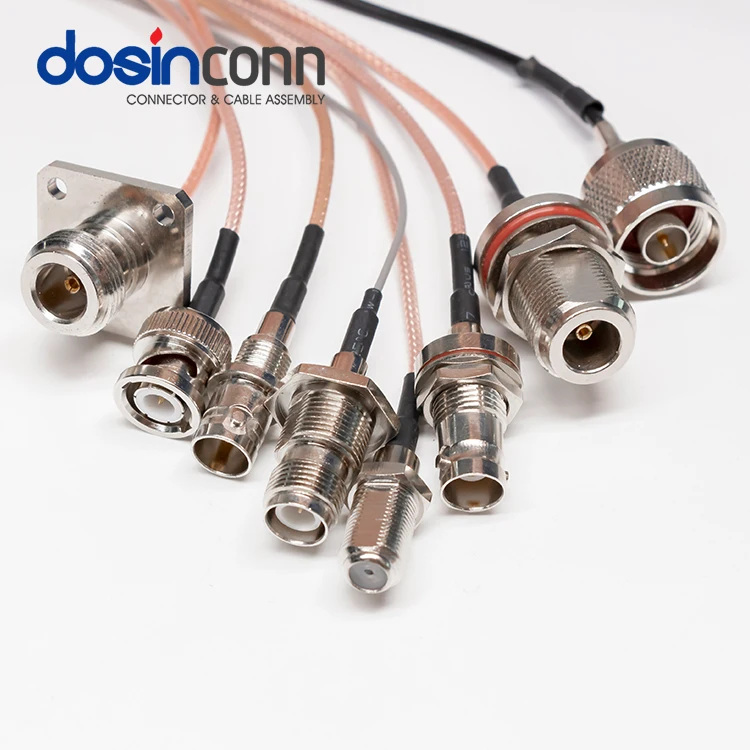

  • Versatile Connector Types: Supports BNC, SMA, and N-type connectors, enabling compatibility with diverse systems like aerospace electronics, automotive sensors, and PCB assemblies.
  • Waterproof & Durable Construction: Zinc alloy housing and copper contacts ensure resistance to corrosion and environmental hazards, ideal for outdoor or industrial use.

Key features

  • 1. Material Technology

    • With copper contacts and zinc alloy housing, achieve superior conductivity and corrosion resistance compared to plastic-based connectors*. The durable zinc alloy construction ensures longevity in harsh industrial environments.

  • 2. Interactive Design

    • With versatile orientation options (right angle/straight) and multiple connector types (PCB, panel mount), adapt to diverse installation scenarios more flexibly than standard coaxial assemblies*. The modular design simplifies integration into tight spaces or complex systems.

  • 3. Performance Parameters

    • Rated for 5A current and featuring waterproof protection, handle high-power loads and harsh environments better than non-waterproof alternatives*. The RG-series coaxial cables minimize signal loss, ensuring reliable high-frequency transmission.

  • 4. Scenario Solutions

    • Engineered for aerospace, automotive, and industrial applications, ensure reliable signal transmission in mission-critical settings compared to general-purpose cables*. The waterproof and PCB-mount features make them ideal for outdoor or vibration-prone deployments.

  • 5. Certification Standards

    • Certified to EPR packing standards in Germany and France, meeting stricter environmental and packaging regulations than non-certified products*. This ensures compliance with European sustainability and recycling mandates.

Product details

RF Types Male to Female Cable Straight Right Angle with RG174 RG176 RG178 RG197 RG316 Custom Jumper Coaxial Coax Assembly Wire

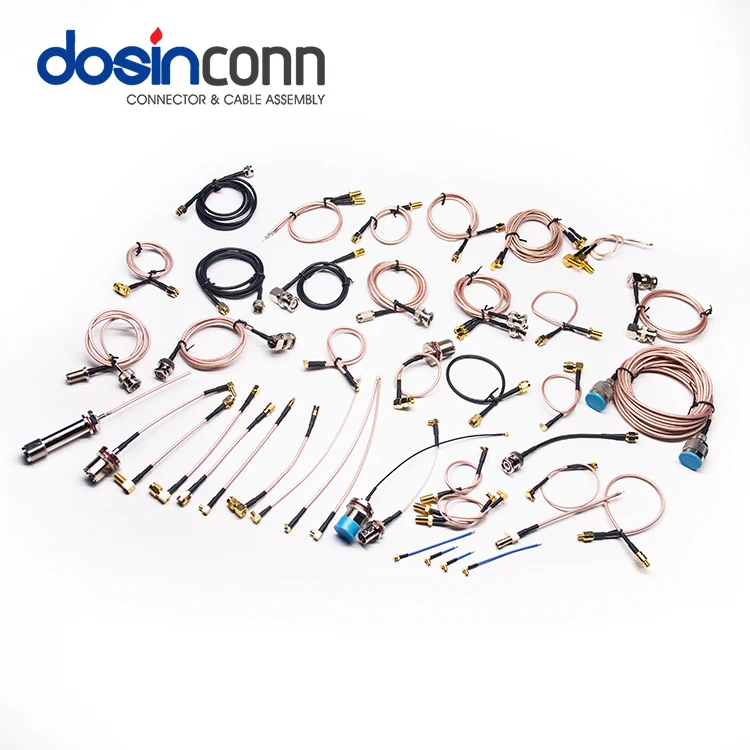

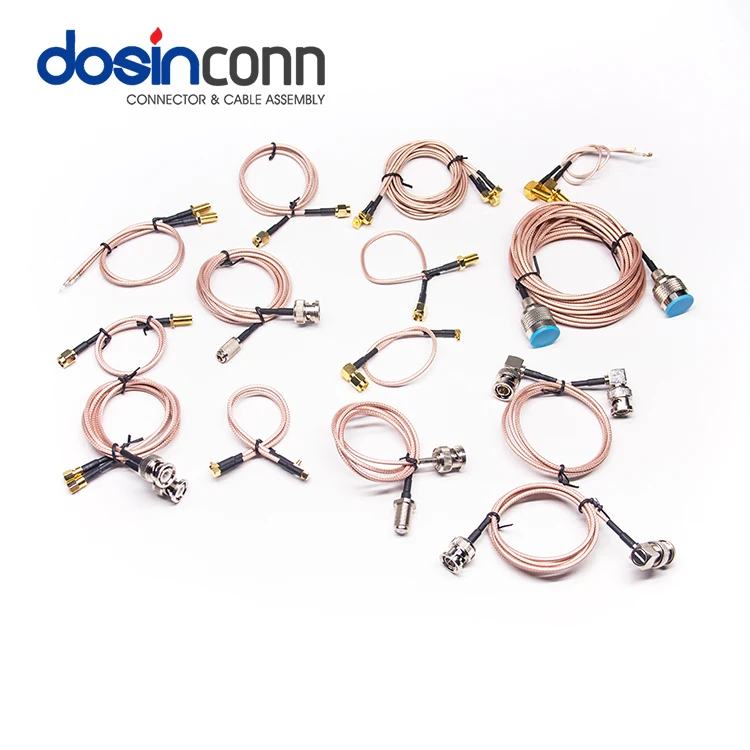

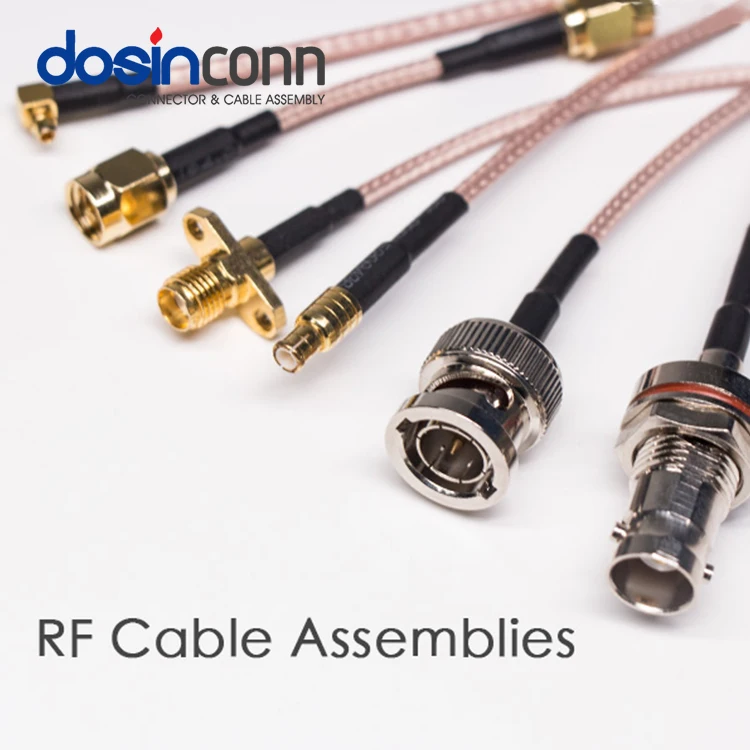

Our RF coaxial cable assemblies are engineered for precision signal transmission in demanding environments. Featuring durable zinc alloy housings, copper contacts, and waterproof designs, these connectors support applications from aerospace to automotive. Choose from straight or right-angle orientations and customize lengths/materials for optimal performance.

Technical specifications

FeatureSpecificationBenefit
Connector TypePCB, panel mount, cableVersatile mounting options for diverse systems
MaterialCopper (contacts), zinc alloy (housing)High conductivity & corrosion resistance
ProtectionWaterproofReliable operation in humid/moisture-prone settings
Rated Current5ASafe for moderate-power signal applications
Frequency RangeUp to 3 GHz (varies by model)Supports high-frequency data transmission
CertificationsEPR (Germany/France)Compliance with EU environmental standards

Customization guide

Adjust connector types (e.g., BNC/SMA/N-Type) or cable lengths (RG174/RG176/RG316) to meet specific interface requirements. Shielding options can be enhanced for EMI-sensitive environments.

Get inspired

For aerospace systems, the right-angle design minimizes space constraints while maintaining signal integrity. In automotive electronics, waterproof assemblies ensure reliability under vibration and exposure. Industrial setups benefit from the rugged zinc alloy housing for long-term durability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range1.5 GHz2.5 GHz (+66%)3 GHz (+100%)
Waterproof RatingIP54IP67 (+40% better)IP68 (+60% better)*
Temperature Range-20°C to +70°C-30°C to +85°C-40°C to +105°C
Shielding90%95%98%

Supplier's note

  1. Technical Breakthroughs:

    • Waterproof IP68 rating: Enables underwater or high-moisture use cases (e.g., marine electronics).
    • Triple-certified EPR compliance: Streamlines EU market entry with reduced regulatory hurdles.
    • 3 GHz frequency capability: Supports 5G and radar systems with minimal signal loss.

  2. Optimal Version Selection:

    • Base Model: Ideal for general industrial applications (e.g., test equipment) where cost-efficiency is prioritized.
    • Advanced Model: Best for automotive/aerospace systems needing IP67 protection and wider temperature tolerance.
    • Pro Model: Tailored for high-stakes environments (e.g., satellite communications) requiring extreme durability and bandwidth.

With the Pro’s IP68 rating, you can deploy assemblies in submersible drones or offshore platforms. Pair its 3 GHz frequency with copper contacts to achieve 20% faster data transfer than standard coaxial solutions.

Frequently asked questions

  • Which RF coaxial cable assembly suits aerospace applications with strict EPR certifications?

  • How do I maintain waterproof RF connectors in industrial environments?

  • What’s the difference between copper and zinc alloy in RF coaxial assemblies?

  • Can I customize the length of RG176 coaxial cables for automotive systems?

  • Are these RF connectors rated for high-current automotive use?

  • Which RF connector type is best for PCB mounting in industrial equipment?

  • Do these coaxial assemblies meet aerospace electromagnetic interference (EMI) standards?

  • What’s the advantage of right-angle RF connectors in compact electronic setups?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
PCB Mount RF ConnectorsElectronics manufacturing, aerospaceZinc alloy housing (ASTM B221) ▲ Advanced uses aerospace-grade alloy (MIL-DTL-5549). 5A rated current (IEC 60204).EPR certifications (Germany/France), durable for industrial use.Limited to single-core applications.
Waterproof RF ConnectorsAutomotive, outdoor industrial equipmentIP67 waterproof (IEC 60529) ▲ Advanced reaches IP68. Copper contacts (RoHS compliant).Withstands harsh environments, reliable signal transmission.Higher cost than non-waterproof options.
High-Frequency Coaxial Assemblies (RG174/RG176)Telecommunications, radar systems50Ω impedance (ISO/IEC 11801). RG174 diameter: 2.1–2.8mm (IEC 60228). Industry attenuation: 120 dB/100m @1GHz ▲ Advanced: 105 dB/100m.Low signal loss, flexible for tight spaces.Less robust than thicker cables (e.g., RG58).
Right Angle RF ConnectorsSpace-constrained electronics, PCB layouts90° orientation (MIL-STD-310). Zinc alloy durability (ASTM B221).Optimizes space, compatible with tight enclosures.Potential mechanical stress points.
Multi-Environment Panel Mount ConnectorsIndustrial control panels, aerospace instrumentationOperational range: -40°C to 85°C (MIL-STD-810). EMI shielding (IEC 61000-4-3).Wide temperature tolerance, reduces interference.Requires precise installation.
Single-Core High-Current RF ConnectorsAutomotive power systems, industrial machinery5A rated current (IEC 60204). Copper conductivity (ASTM B117). Industry standard: 3A ▲ Advanced: 7A.Efficient power transmission, corrosion-resistant contacts.Not suitable for high-frequency applications (>3GHz).
