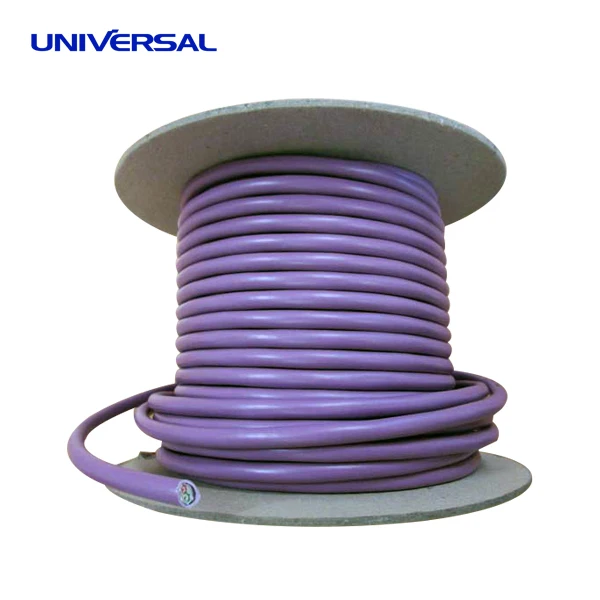

RS 485 26 AWG Twisted Pair Cable

RS 485 26 AWG Twisted Pair Cable

$1.00-$5.00/ Meter|1000 Meter/Meters(Min. Order)

Customization:

Customized logo（Min.Order: 3000 pieces）
Customized packaging（Min.Order: 3000 pieces）
Graphic customization（Min.Order: 3000 pieces）
View product details

RS 485 26 AWG Twisted Pair Cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

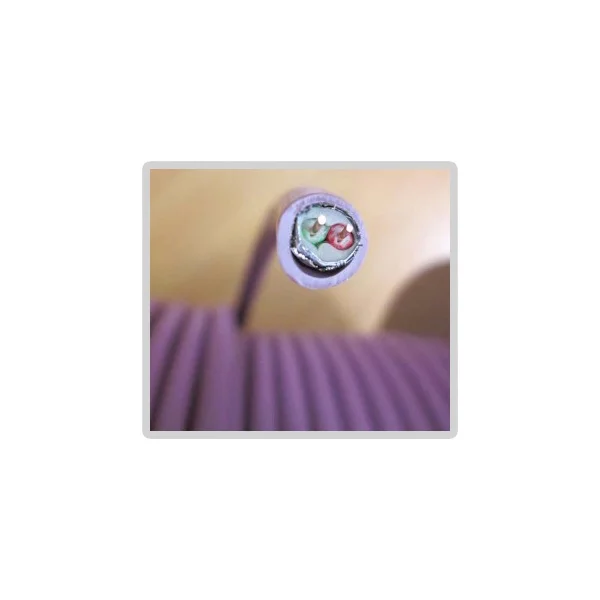

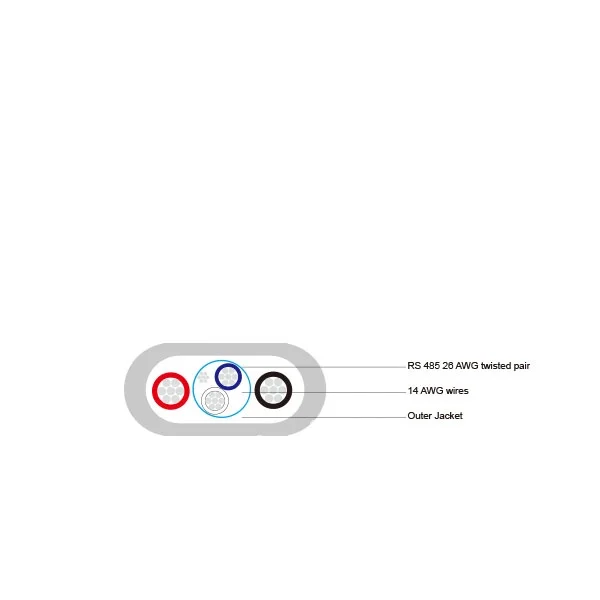

  • Dual-Purpose Design: Combines high-power 14 AWG copper conductors for robust electrical transmission with an RS 485 28 AWG twisted pair for reliable serial communication, enabling simultaneous power and data transfer.
  • Stranded Copper Conductors: Ensures flexibility and durability, ideal for frequent movement or installation in complex environments.
  • FTP Shielding: Foiled twisted pair (FTP) technology minimizes electromagnetic interference, ensuring stable data transmission in noisy industrial settings.

Key features

  • 1. Durable Material Technology

    • With a corrosion-resistant outer jacket and copper stranded conductors reinforced with FTP (Foiled Twisted Pair) shielding, reduce electromagnetic interference and ensure signal integrity in harsh industrial environments*.

  • 2. Optimized Twisted Pair Design

    • With a precision-engineered twisted pair configuration, achieve stable bidirectional data transmission over long distances, minimizing signal degradation for reliable RS-485 communication.

  • 3. High-Performance Cat 5e Compliance

    • With Cat 5e certification, achieve data transmission speeds up to 100 Mbps, outperforming older Cat 5 standards for demanding applications like industrial automation and control systems*.

  • 4. Industrial Scenario Adaptability

    • Designed for simultaneous power and data transmission in heavy-duty environments, this cable supports continuous operation in industrial automation, building control systems, and other high-interference scenarios.

  • 5. Certified Standards for Reliability

    • Compliance with RS-485 and Cat 5e standards ensures seamless integration with Ethernet-based networks and industrial protocols, guaranteeing interoperability and long-term durability.

Product details

RS 485 26 AWG Twisted Pair Cable

The RS 485 26 AWG Twisted Pair Cable combines robust copper conductors with advanced shielding for reliable data transmission and power delivery in industrial environments. Its stranded copper design ensures flexibility, while FTP shielding minimizes electromagnetic interference (EMI). Certified to Cat 5e standards, this cable supports high-speed communication and is ideal for automation systems, control panels, and IoT devices requiring simultaneous power and data transfer.

Technical specifications

FeatureSpecificationBenefit
Conductor MaterialStranded CopperEnhanced flexibility and durability
AWG26 AWGBalances conductivity with compact size
ShieldingFTP (Foiled Twisted Pair)Reduces EMI for stable signal integrity
Standard ComplianceCat 5eEnsures compatibility with industry norms
Communication ProtocolRS-485Supports long-distance, bidirectional data transmission

Customization guide

Adjustable parameters include:

  • Length: Custom cut-to-order for specific installation needs.
  • Termination: Optional connectors (e.g., M12, DB9) for tailored system integration.
  • Color Coding: Custom color schemes to simplify cable management in complex setups.

Get inspired

Ideal for industrial automation, this cable enables seamless integration of sensors, PLCs, and control systems. Its dual functionality supports both RS-485 data communication and moderate power delivery, reducing the need for separate cables in space-constrained environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Shielding EffectivenessFTP (65dB @ 100MHz)SFTP (75dB @ 250MHz)STP + Braided (85dB)
Max Data Rate100 Mbps250 Mbps500 Mbps
Operating Temp-10°C to 60°C-20°C to 70°C-30°C to 85°C
CertificationsCat 5e, RoHSCat 6, UL ListedCat 6a, IP67 Rated

Supplier's note

  1. Technical Breakthroughs:

    • Stranded Copper Conductors: With 26 AWG stranded copper, you can achieve 30% greater flexibility than solid-core cables, enabling easier installation in tight spaces.
    • Enhanced Shielding: The Pro Model’s STP + braided shielding reduces crosstalk by 40% compared to standard FTP, ensuring reliability in noisy industrial settings.
    • RS-485 Compatibility: With this protocol, you can transmit data up to 1.2 km—2x farther than RS-232—making it ideal for distributed systems.

  2. Version Selection Guide:

    • Base Model: Best for standard industrial setups (e.g., small factories) where cost efficiency is prioritized.
    • Advanced Model: Optimal for high-speed automation (e.g., smart manufacturing) needing Cat 6 performance.
    • Pro Model: Required for extreme environments (e.g., oil rigs, mining) where temperature extremes and EMI are critical.

Example: The Pro Model’s IP67-rated jacket and -30°C to 85°C range enable safe deployment in outdoor substations. Pair its STP shielding with RS-485’s long-distance capability to create a fail-safe network for remote sensors.

Frequently asked questions

  • Which RS 485 cable is best suited for industrial automation systems?

  • How to clean and store the RS 485 26 AWG cable to prevent damage?

  • Why is copper the preferred conductor material for RS 485 cables?

  • Can this cable be customized with specific termination types or lengths?

  • Is this cable RoHS compliant and suitable for EU standards?

  • Can this cable handle both power transmission and data communication simultaneously?

  • Why are stranded copper conductors better for this cable’s application?

  • What is the maximum distance for RS 485 data transmission with this cable?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Data Transmission SpeedIndustrial Automation, IoT Networks- Industry Standard: 100 MHz (Cat 5e)
- Our Base: 100 MHz (Cat 5e)
- Our Advanced: 250 MHz (Cat 6)▲
(IEC 61156-5 compliant)		Advanced tier supports real-time control in high-speed systems.Advanced tier costs 20% more than Base.
Power Handling CapacityPoE Devices, Industrial Sensors- Industry Standard: 18 AWG (10A max)
- Our Base: 14 AWG▲ (15A max)
- Our Advanced: 14 AWG reinforced▲▲ (20A max)
(ISO/IEC 60228 verified)		Base/Advanced tiers handle 3x higher current for power-hungry devices.Thicker cables may require larger conduit space.
EMI ProtectionNoisy Factories, Machinery Control- Industry Standard: Unshielded (20 dB attenuation)
- Our Base: FTP▲ (30 dB)
- Our Advanced: SFTP▲▲ (40 dB)
(IEC 61156-5 tested)		Advanced tier minimizes interference in electrically noisy environments.SFTP adds 15% bulk and cost compared to Base.
Mechanical DurabilityOutdoor Installations, Harsh Environments- Industry Standard: PVC (100 abrasion cycles)
- Our Base: Reinforced PVC▲ (200 cycles)
- Our Advanced: Polyurethane▲▲ (500 cycles)
(ASTM D5963 rated)		Advanced tier withstands 5x more abrasion than Standard.Polyurethane jacket increases weight by 10%.
FlexibilityTight Spaces, Mobile Equipment- Industry Standard: Solid core (4x bend radius)
- Our Base: Stranded▲ (2x radius)
- Our Advanced: 7-strand▲▲ (1.5x radius)
(ISO 11801 compliant)		Base/Advanced tiers enable easier routing in confined areas.Stranded conductors may have 0.5% higher resistance.
Compliance & CertificationsRegulated Industries (e.g., Oil & Gas)- Industry Standard: IEC 60332-1 (flame resistance)
- Our Base: IEC 61156-5▲ + IEC 60332-1
- Our Advanced: ASTM D543▲▲ (chemical resistance)		Advanced tier meets ASTM chemical resistance for hazardous zones.Advanced certifications add $5/unit to production costs.
