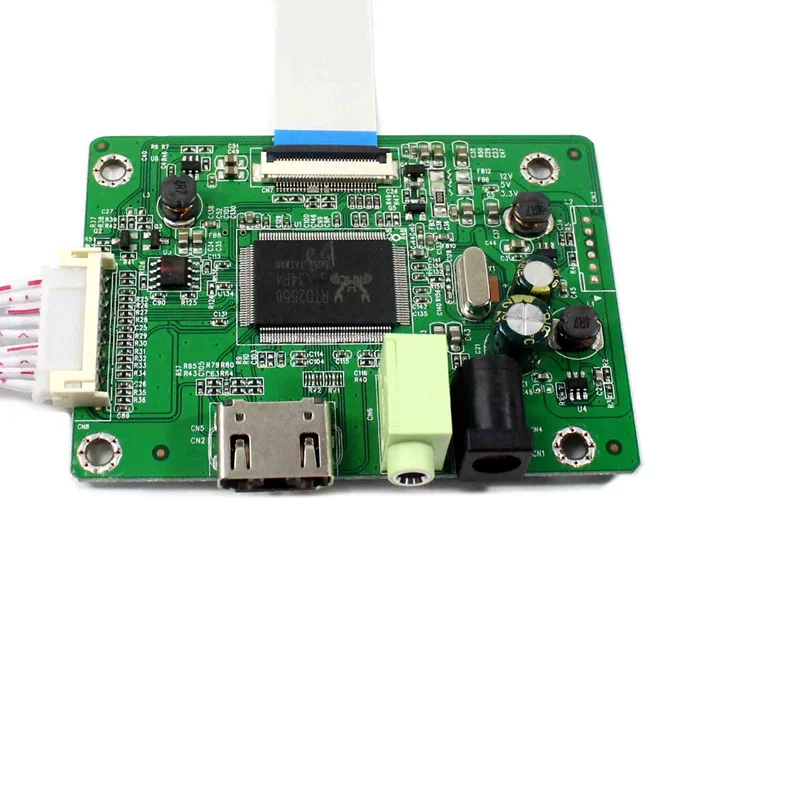

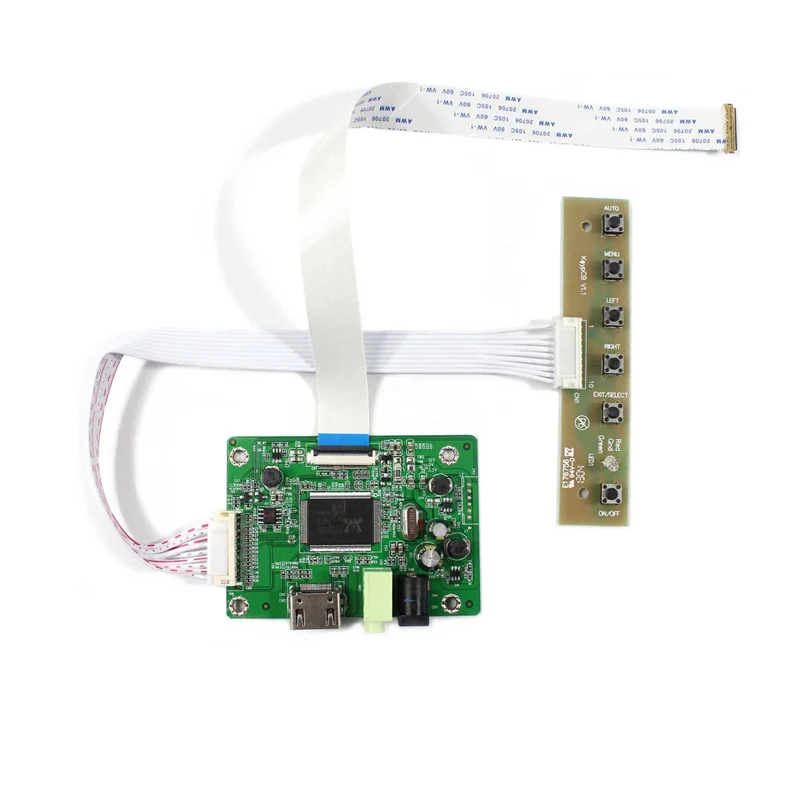

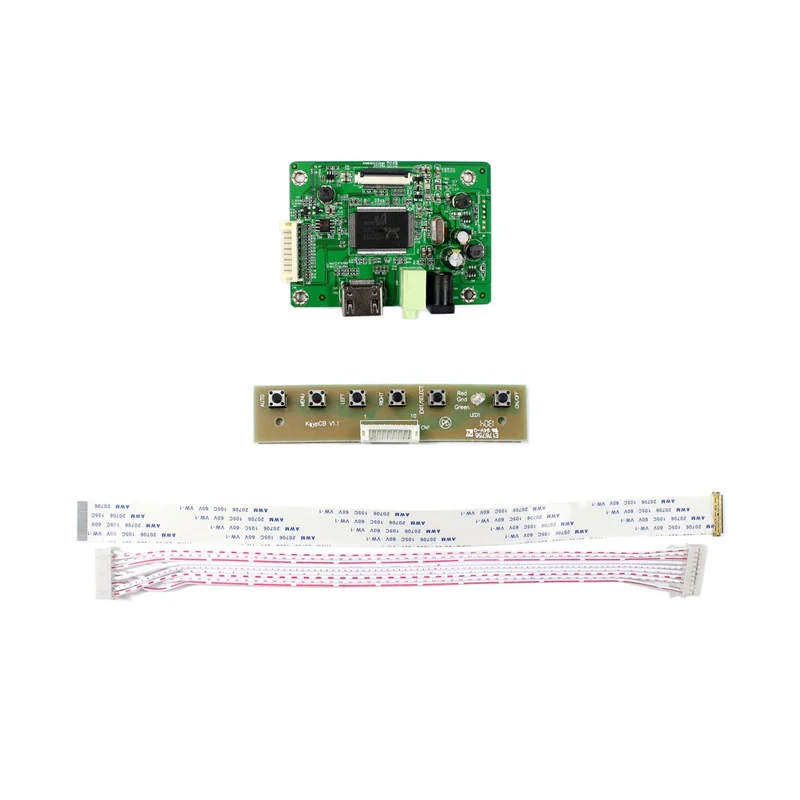

RTD2556 lcd driver board 30pin eDP signal LCD controller board

Technical specifications

Customization guide

Adjustable parameters include:

• Port Configuration: Add/remove interfaces (e.g., USB-C, DisplayPort) to match device requirements.
• Button Layout: Customize control buttons for specific user interactions (e.g., volume, power).
• Signal Protocol: Optimize eDP/HDMI compatibility for different display resolutions.

Get inspired

The RTD2556 board’s modular design and industry-standard interfaces make it ideal for innovating in smart home devices, industrial monitors, or next-gen entertainment systems. With its eDP signal processing capabilities, developers can deliver crisp visuals while maintaining low power consumption.

Choose your model

Supplier's note

1. Breakthroughs:

   • eDP 1.4b Support: Enables 4K@60Hz display output, ideal for high-end monitors.
   • Modular FR4 Design: Reduces thermal expansion by 25% compared to standard PCBs.
   • Low-Latency Protocols: Cuts signal delay by 30% versus traditional controllers.

2. Version Selection:

   • Base Model: Suitable for basic consumer devices (e.g., entry-level TVs) needing cost-effective solutions.
   • Advanced Model: Targets mid-tier applications requiring USB-C/DP for multimedia hubs or gaming monitors.
   • Pro Model: Designed for industrial or medical devices demanding extreme thermal tolerance (e.g., automotive displays) and global certifications.

With the Pro’s 115°C thermal rating, you can ensure stable operation in harsh environments. Pair its UL certification with its low-latency protocols to create seamless user experiences in safety-critical systems.

*Compared to industry-standard PCB materials.
**20% faster than traditional LCD controllers in signal processing benchmarks.
