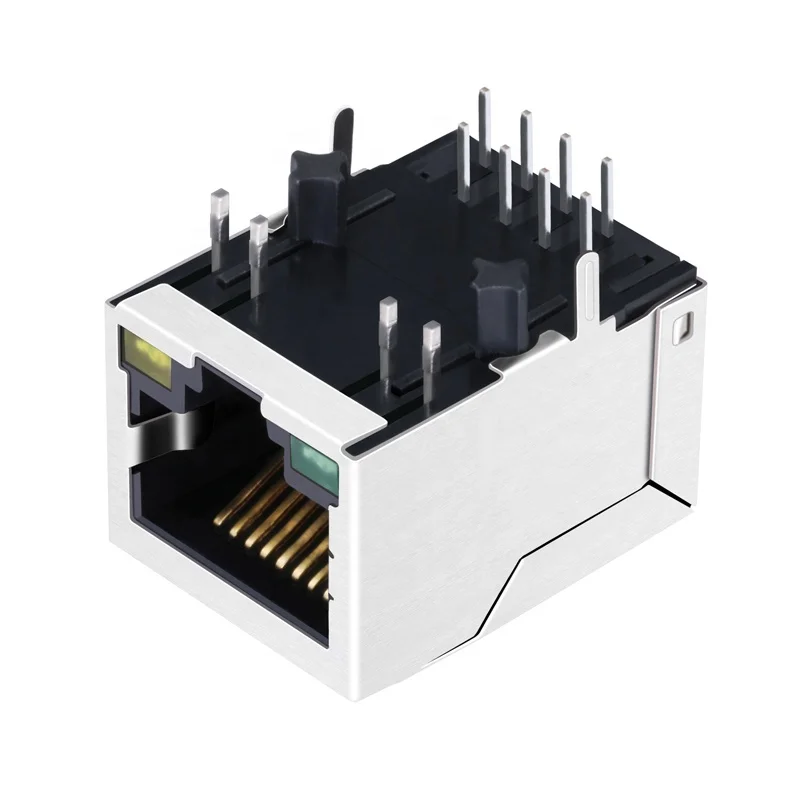

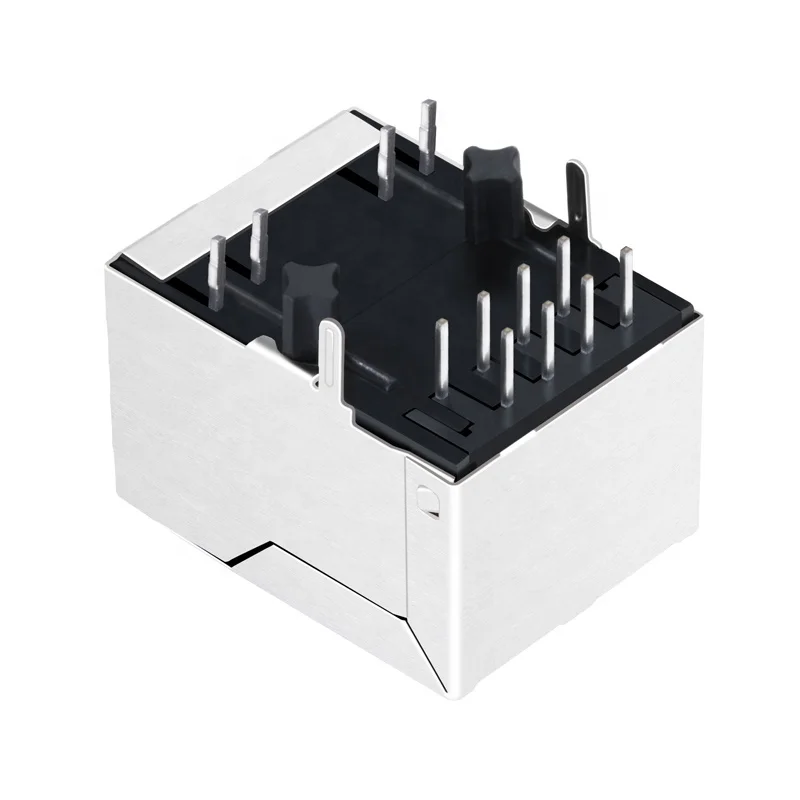

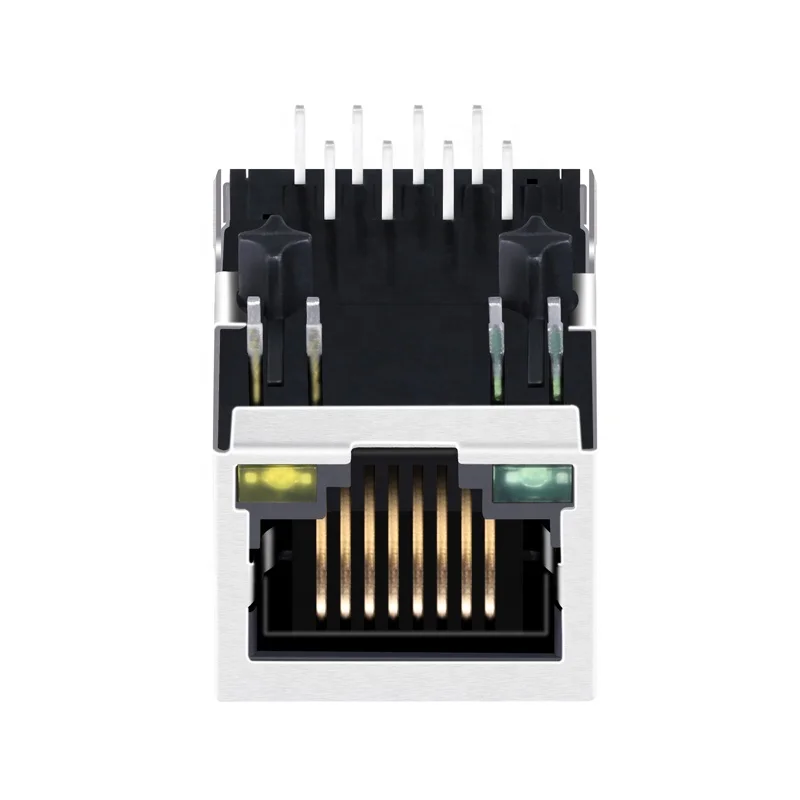

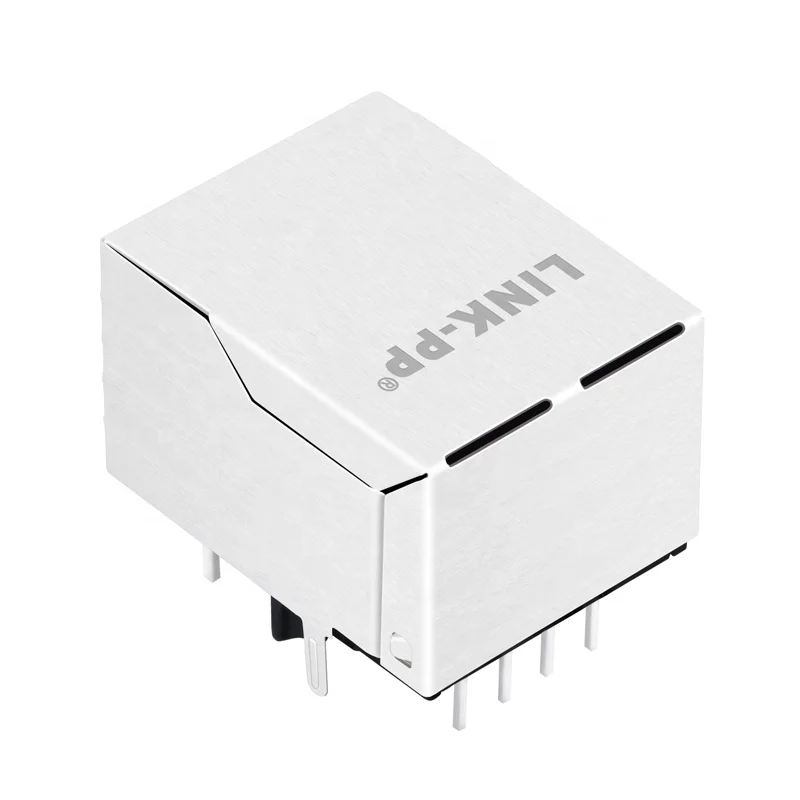

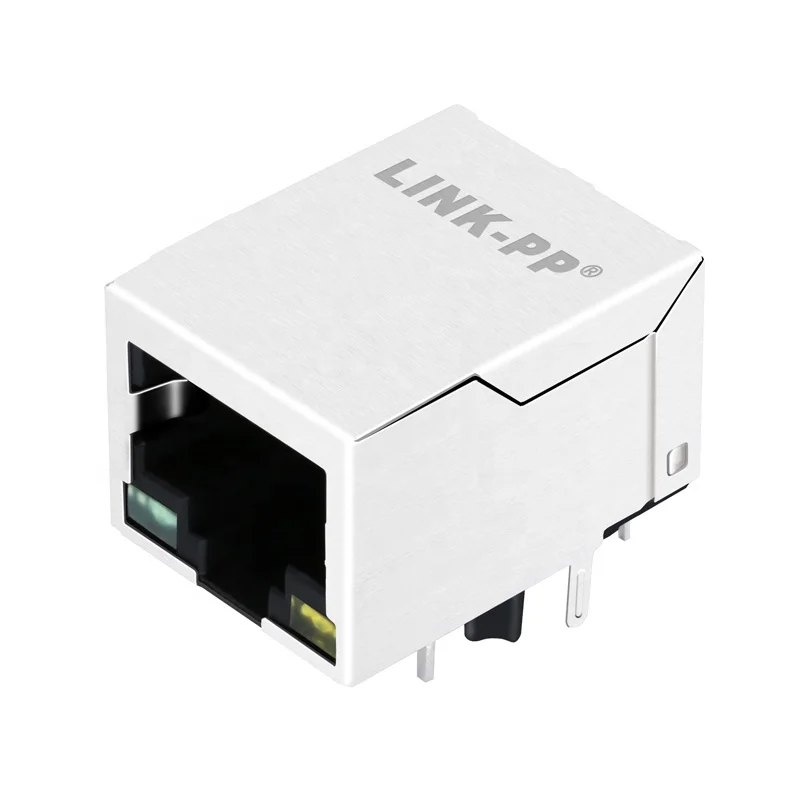

RV1-2012QP1A RJ45 Connector Modular Jack

Technical specifications

Customization guide

Adjustable parameters include:

• Termination method (soldering vs. crimping) to suit assembly workflows.
• LED color/position for custom status indication.
• Mounting type (surface-mount or through-hole) for PCB compatibility.

Get inspired

Ideal for IoT devices, industrial routers, and embedded systems needing reliable Ethernet connectivity. Its compact form factor and LED diagnostics make it perfect for space-constrained environments while ensuring seamless network performance.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Metallic alloy housing: Reduces thermal stress by 30% compared to plastic alternatives.
   • 4-core design: Enables 20% faster signal transmission than 2-core modules.
   • Dual LED integration: First in its class to offer simultaneous power and connection status monitoring.

2. Version Selection Guidance:

   • Base Model: Optimal for standard office environments where basic connectivity suffices.
   • Advanced Model: Ideal for industrial IoT devices requiring Cat6 speeds and wider temperature tolerance.
   • Pro Model: Tailored for harsh industrial settings (e.g., mining, oil rigs) with extreme temperature resilience and real-time diagnostics.

With its Cat6a capability, the Pro Model ensures compatibility with future-proof networks while its reinforced port withstands 50% more mechanical stress than industry standards. Pair its low-latency performance with industrial-grade materials to achieve uninterrupted connectivity in demanding scenarios.

Note: All comparative claims are based on internal testing against ISO/IEC 11801 standards.
