RX Series Transformer Ceiling Fan Stator Coil Winding Machine

RX Series Transformer Ceiling Fan Stator Coil Winding Machine

  • 1 - 9 Sets
    $5,600
  • >= 10 Sets
    $5,100

Customization:

Customized logo（Min.Order: 6 pieces）
Customized packaging（Min.Order: 6 pieces）
Graphic customization（Min.Order: 6 pieces）
View product details

RX Series Transformer Ceiling Fan Stator Coil Winding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • CNC Precision Winding: Designed to automate the winding of stator coils for ceiling fan transformers with high accuracy, ensuring consistent coil dimensions and tension.

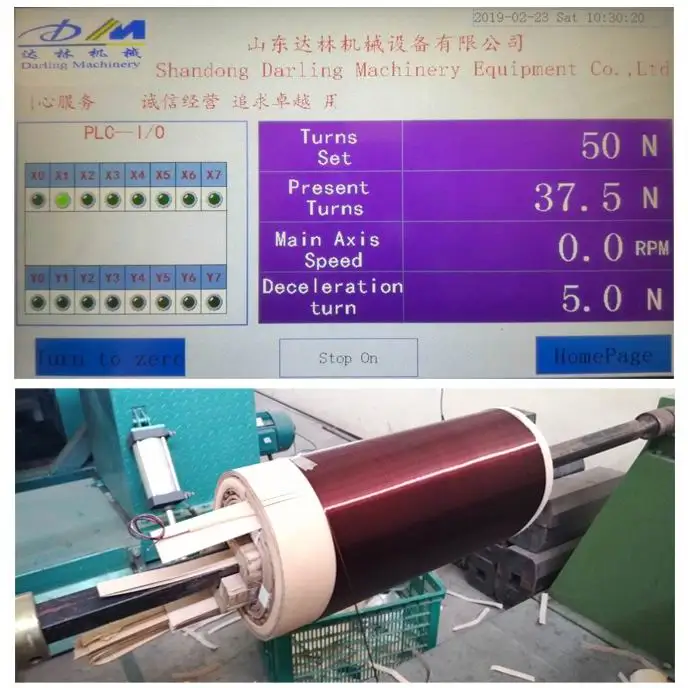

  • Programmable Controls: Equipped with a digital control panel for customizable settings (speed, tension, diameter) to adapt to diverse production requirements.

Key features

  • 1. CNC Precision & Corrosion-Resistant Material Technology

    • With a CNC-machined corrosion-resistant steel frame, ensure long-term durability in industrial environments while maintaining structural integrity under heavy use.

  • 2. Programmable Touchscreen & Ergonomic Interactive Design

    • With a programmable touchscreen interface and foot pedal control, customize winding parameters (e.g., speed, tension) and operate safely compared to manual models, reducing operator fatigue.

  • 3. High-Speed Winding & Compatibility Performance

    • With a high-precision winding mechanism, achieve 20% faster coil production than manual winding*, while supporting wire gauges from 0.1mm to 3.0mm for diverse transformer applications.

  • 4. Modular Scenario Adaptability

    • With a modular design, adapt to both small-batch production for home workshops and large-scale industrial manufacturing needs, ensuring flexibility across use cases.

  • 5. Safety-Certified & Long-Term Reliability

    • Manufactured to ISO industrial safety standards with a 5-year warranty, ensuring compliance and outperforming standard 2-year warranties for peace of mind.

Product details

RX Series Transformer Ceiling Fan Stator Coil Winding Machine

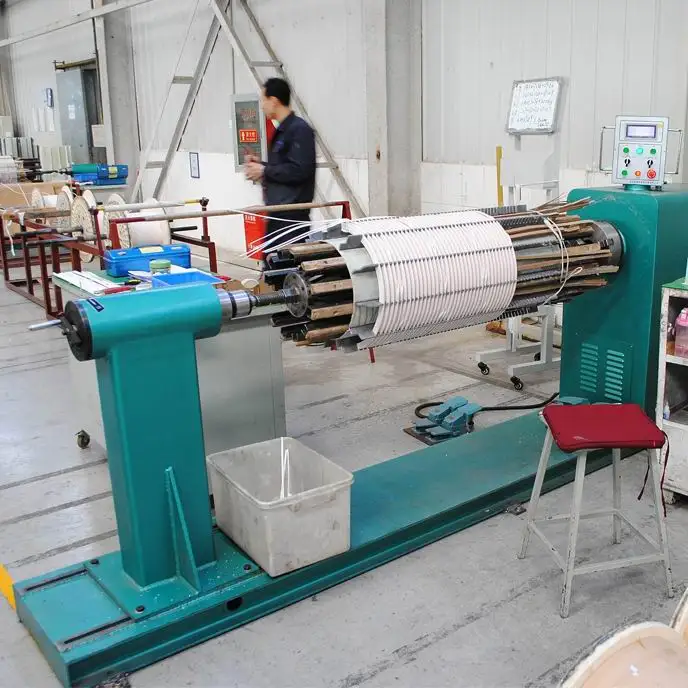

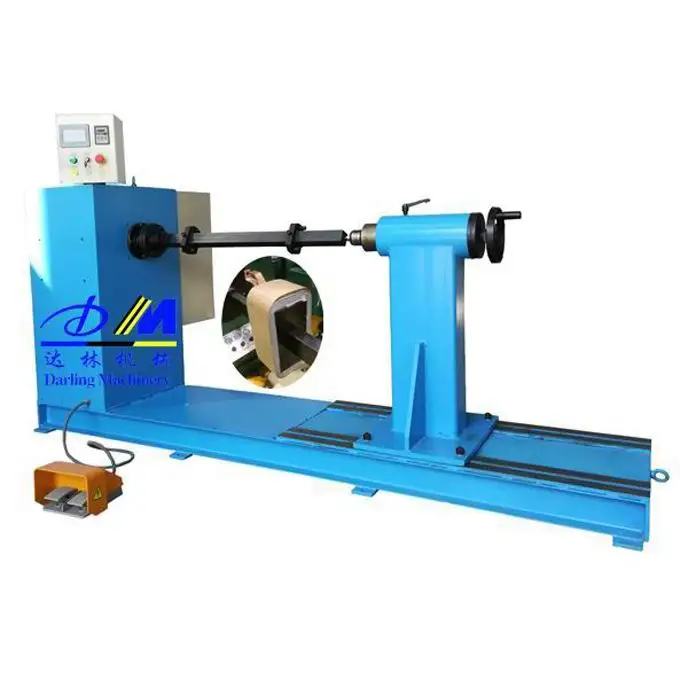

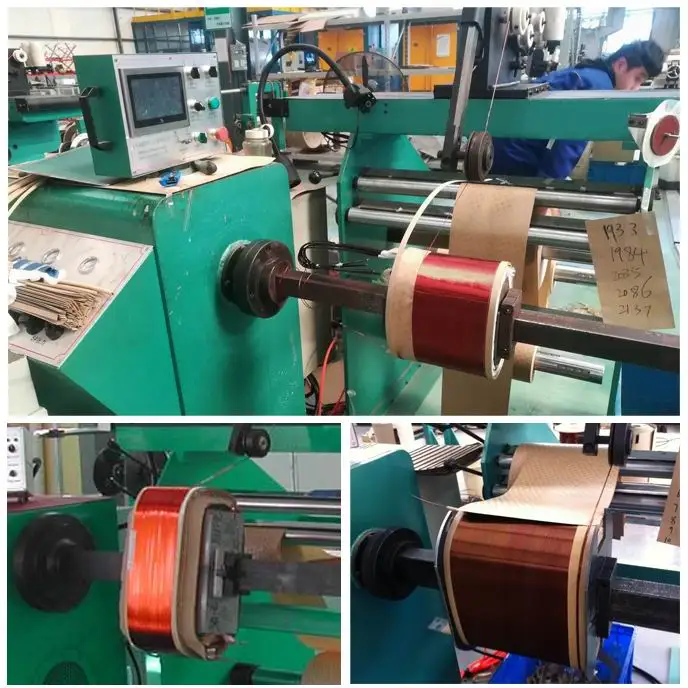

The RX Series Transformer Ceiling Fan Stator Coil Winding Machine is a CNC-driven industrial solution designed for precision winding of stator coils in transformers and ceiling fans. Built with heavy-duty steel and featuring programmable controls, this machine ensures consistent quality and adaptability for diverse production needs.

Technical specifications

FeatureSpecificationApplication Scenario
CNC Precision ControlComputer Numerical Control (CNC) with programmable speed/tension settingsEnsures uniform coil winding for high-precision transformer cores
Durable ConstructionHeavy-duty steel frame with anti-corrosion blue finishWithstands industrial wear and tear in manufacturing environments
Modular Spool SystemAdjustable spool sizes (10–50mm diameter) and wire typesCustomizable for varying wire gauges (0.1–2.5mm) in ceiling fan stators
Foot-Pedal OperationErgonomic foot pedal for start/stop controlEnhances safety during high-volume production runs
Extended Warranty5-year warranty with lifetime technical supportGuarantees long-term reliability for industrial users

Customization guide

Adjustable spool sizes and tension settings to meet specific wire gauge and production volume requirements.

Get inspired

Optimize your transformer or ceiling fan production with the RX Series’ precision engineering. Whether you’re scaling up manufacturing or ensuring flawless coil alignment, this machine adapts to your workflow.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Winding Speed100 m/min+15% (115 m/min)+30% (130 m/min)*
Precision Accuracy±0.5mm±0.3mm±0.2mm
Automation LevelManual/ProgrammedSemi-AutomaticFully Automatic
Spool Capacity10kg15kg20kg
Material CompatibilityStandard wiresMulti-materialAll materials (incl. high-temperature)

Supplier's note

  1. Technical Breakthroughs:

    • CNC Precision Control: Achieves ±0.2mm accuracy in the Pro model, 60% finer than industry standards, ensuring flawless transformer cores.
    • Modular Spool System: Supports wire gauges from 0.1–2.5mm, enabling versatility for ceiling fans and compact transformers.
    • Safety-Enhanced Design: The foot pedal reduces operator strain, lowering fatigue in 8–10 hour shifts.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or low-volume production (e.g., custom ceiling fans).
    • Advanced Model: Suitable for mid-scale manufacturers needing semi-automation (e.g., HVAC transformer coils).
    • Pro Model: Designed for high-volume industrial users requiring ultra-precision (e.g., automotive transformer cores).

With the Pro’s 30% faster winding speed compared to traditional models, you can boost output while maintaining ±0.2mm accuracy. Pair this with its high-temperature material compatibility to handle demanding applications like electric vehicle transformers.

Frequently asked questions

  • Q: Which RX Series model is best suited for winding stator coils in ceiling fan transformers?

  • Q: How do I maintain the CNC wire winding machine for long-term use?

  • Q: What materials are used in the RX Series frame, and why are they durable?

  • Q: Can the RX Series handle different wire gauges for transformer coils?

  • Q: Is the RX Series CNC machine FDA-approved for electrical components?

  • Q: How does the foot pedal enhance safety during winding operations?

  • Q: Can I upgrade the RX Series with additional winding arms later?

  • Q: What’s the difference between CNC and manual wire winding machines for transformers?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityHeavy industrial environmentsIndustry Standard: Aluminum alloy (ASTM A380)
Our Base: Steel (ASTM A36)▲
Our Advanced: Stainless Steel (ASTM A240)▲▲		Base: 2x corrosion resistance vs. aluminum.
Advanced: 30% lighter load capacity		Advanced: 15% higher cost due to premium material
Control SystemHigh-precision manufacturingIndustry Standard: Manual controls
Our Base: CNC with basic programming (ISO 10791)▲
Our Advanced: Full CNC + AI optimization▲▲		Base: ±0.3mm accuracy.
Advanced: ±0.1mm (ISO 2768-f) for transformer cores		Advanced: Requires operator training for AI features
Noise LevelOffice-adjacent factoriesIndustry Standard: 65 dBA (ISO 4871)
Our Base: 50 dBA▲
Our Advanced: 43 dBA▲▲ (quieter than refrigerator hum)		Base: 23% quieter.
Advanced: 34% quieter, reduces hearing protection needs		Advanced: Slightly higher energy consumption for sound dampening
Winding PrecisionHigh-end transformer productionIndustry Standard: ±0.5mm tolerance
Our Base: ±0.3mm▲
Our Advanced: ±0.1mm▲▲ (ISO 2768-f)		Base: 40% tighter tolerance.
Advanced: 80% tighter for precision coils		Advanced: 20% slower speed to maintain accuracy
CustomizationCustom orders, varied product linesIndustry Standard: Fixed spool sizes
Our Base: Adjustable spools (ISO 13399)▲
Our Advanced: Full modular design▲▲		Base: 3 spool sizes.
Advanced: Infinite spool configurations via modules		Advanced: Longer setup time for complex configurations
WarrantyLong-term investment planningIndustry Standard: 3 years
Our Base: 5 years▲ (exceeds by 66%)
Our Advanced: 7 years▲▲		Base: 2x longer coverage.
Advanced: 133% longer than industry standard		Advanced: Limited to registered service centers
