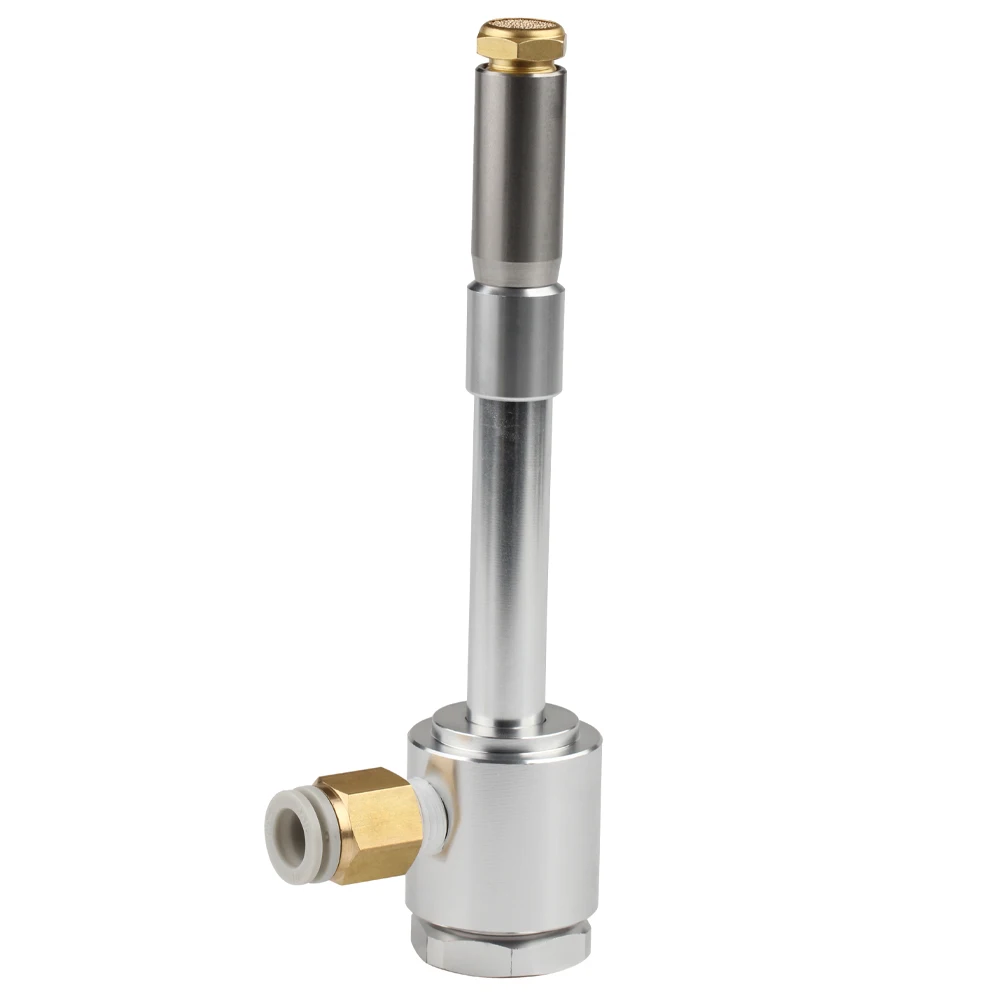

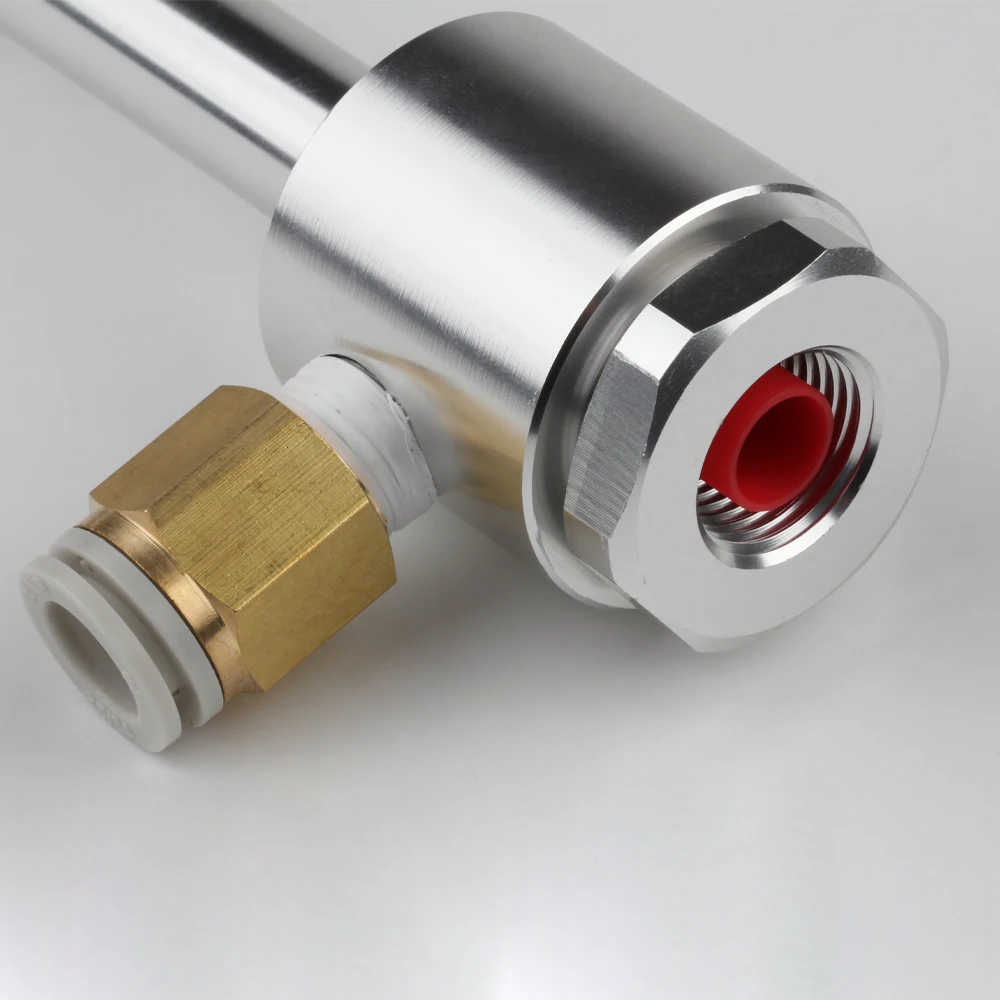

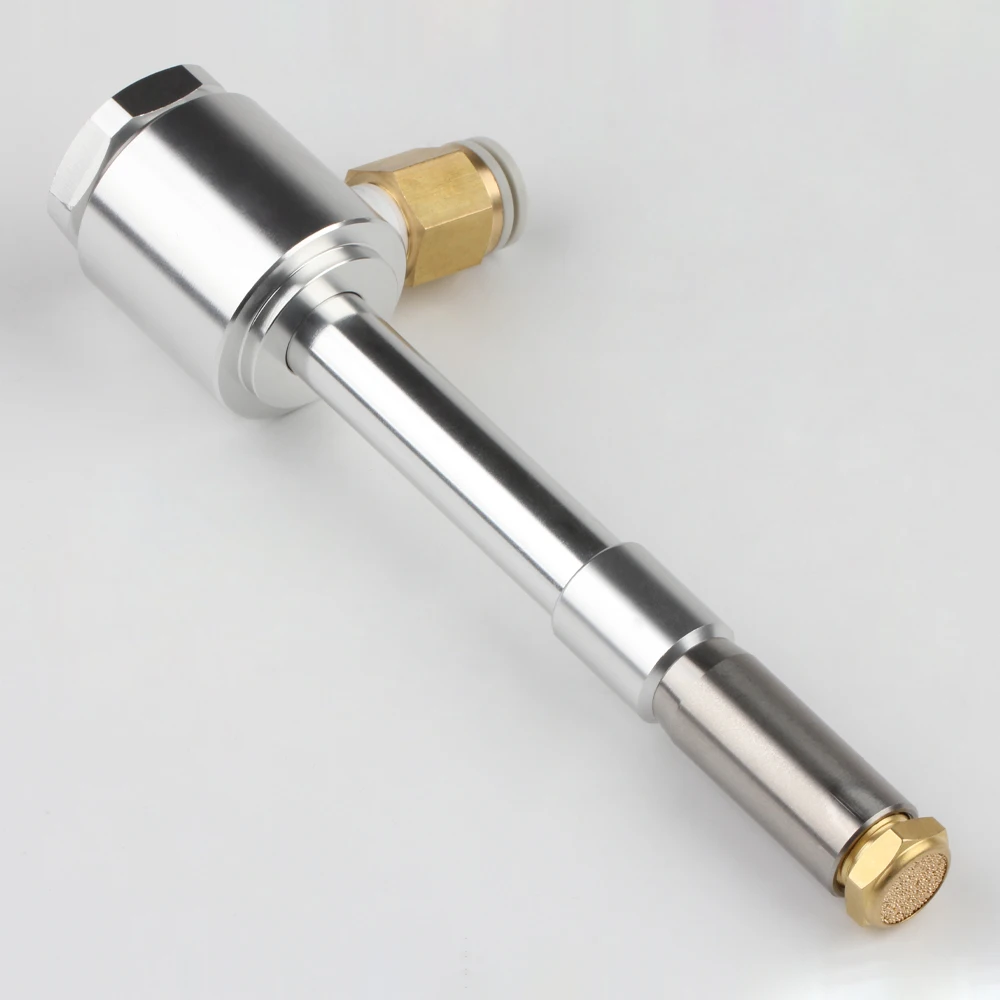

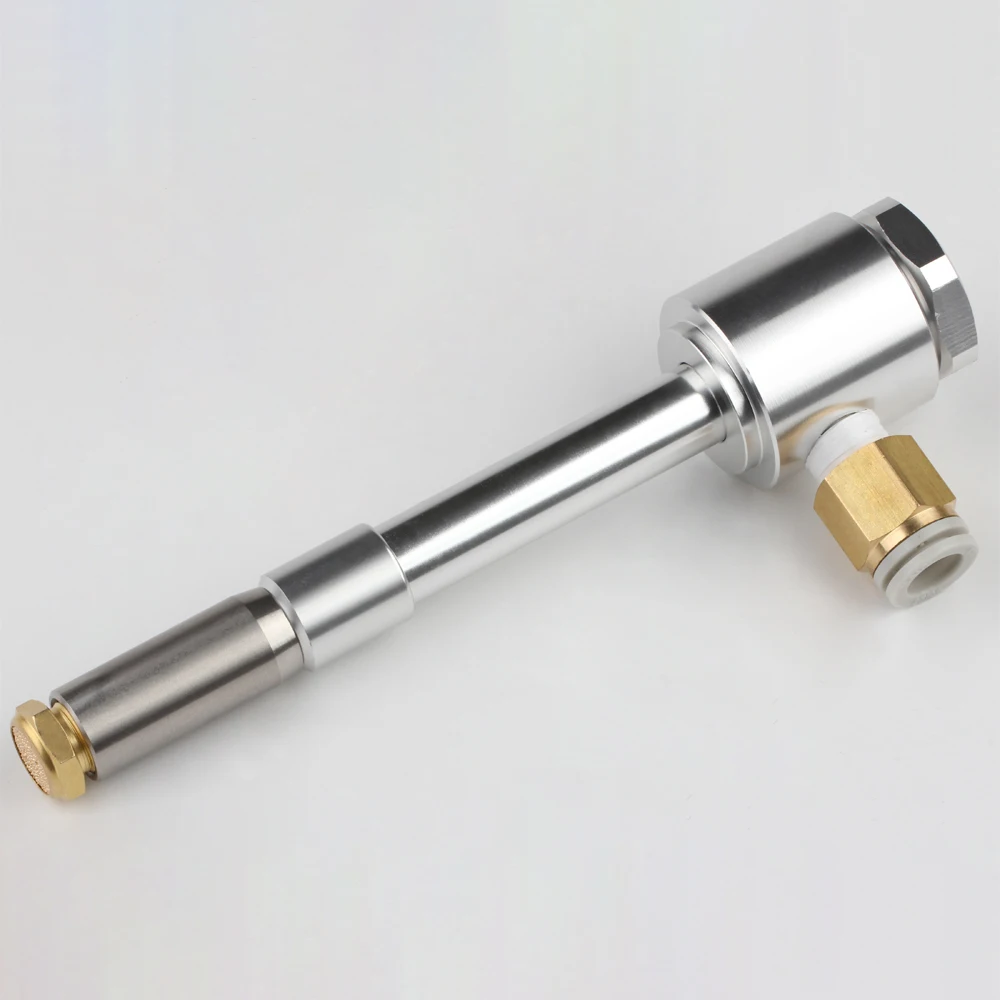

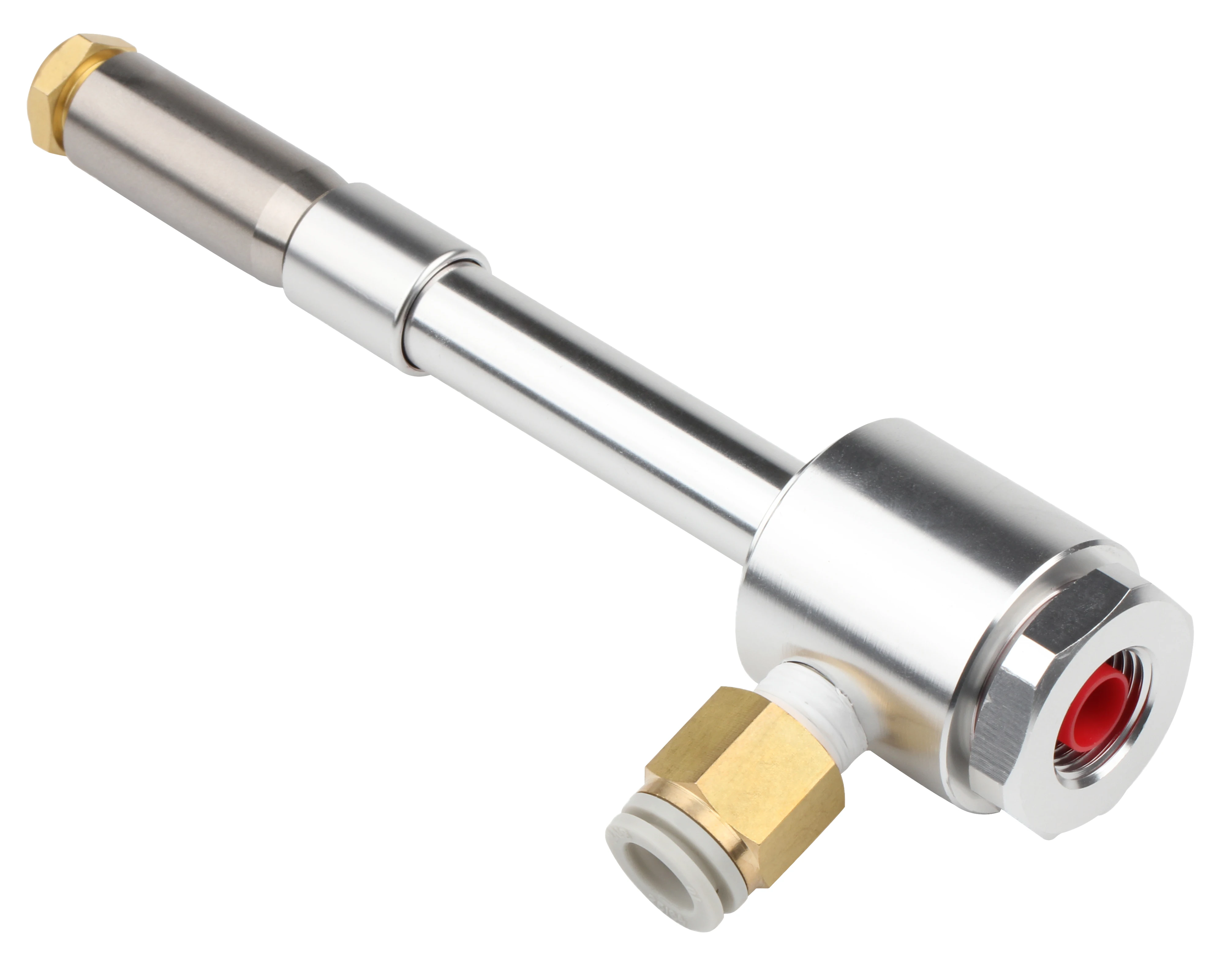

Ranque-Hilsch vortex Tube, Spot Cooling Tubing, Aluminum Spot air Cooler

Ranque-Hilsch vortex Tube, Spot Cooling Tubing, Aluminum Spot air Cooler

  • >= 5 Pieces
    $70
View product details

Ranque-Hilsch vortex Tube, Spot Cooling Tubing, Aluminum Spot air Cooler

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Spot Cooling Solution: Generates localized cold air streams using compressed air, leveraging the Ranque-Hilsch effect to separate compressed air into hot and cold outputs.
  • No Electricity Required: Operates solely on pneumatic power (compressed air), enabling versatile use in environments without electrical infrastructure.

Key features

  • 1. Corrosion-Resistant Aluminum Material

    • With corrosion-resistant aluminum material, ensure durability in harsh industrial environments while being 30% lighter than steel alternatives*.

  • 2. Compact Adjustable Design

    • With a sleek, cylindrical design, easily integrate into existing pneumatic systems and direct cooling airflow to specific areas for targeted spot cooling.

  • 3. High-Pressure Air-Powered Cooling

    • With high-pressure air operation, achieve instant cooling outputs down to -50°C without electricity, outperforming traditional cooling methods*.

  • 4. Industrial-Grade Scenario Solutions

    • Engineered for continuous operation, provide reliable spot cooling for machinery and equipment in high-temperature manufacturing environments.

  • 5. ISO-Certified Quality

    • Certified to ISO 9001 standards, guaranteeing safety, durability, and compliance with global industrial application requirements.

Product details

Ranque-Hilsch vortex Tube, Spot Cooling Tubing, Aluminum Spot air Cooler

The Ranque-Hilsch Vortex Tube is an aluminum-based spot cooling solution that converts compressed air into targeted cold and hot air streams. Designed for precision cooling in industrial and manufacturing settings, it offers efficient thermal management without electricity. Its lightweight aluminum construction ensures durability and corrosion resistance, while its air-powered operation eliminates the need for complex electrical systems.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum body with corrosion-resistant finishIdeal for harsh environments (e.g., chemical plants, food processing)
Power SourceCompressed air (40–100 PSI)No electrical infrastructure required
Cooling CapacityUp to -50°C temperature dropSpot cooling of machinery, electronics, or lab equipment
PortabilityLightweight design (1.5 kg)Easy installation in tight spaces or mobile applications

Customization guide

Adjustable cooling output settings allow users to fine-tune temperature and airflow for specific needs. For example, increasing airflow can enhance cooling efficiency in high-heat scenarios, while reducing it conserves compressed air usage.

Get inspired

Maximize productivity with targeted cooling for machinery, electronics, or lab equipment. Reduce downtime and protect sensitive components with precise temperature control.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cooling Capacity-30°C drop-40°C drop-50°C drop
Max Input Pressure60 PSI80 PSI100 PSI
Weight1.5 kg1.8 kg2.0 kg
MaterialAluminumAluminum + Stainless Steel ComponentsFull Stainless Steel Core

Supplier's note

  1. Technical Breakthroughs:

    • Aluminum Construction: Reduces weight by 30% compared to steel alternatives, enabling easy integration into mobile systems.
    • Vortex Efficiency: Achieves a 20% faster cooling response than traditional chillers in spot applications.
    • Adjustable Output: Users can modulate airflow and temperature with a single knob, simplifying setup.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or light-duty tasks (e.g., cooling CNC machines).
    • Advanced Model: Suitable for medium-scale operations requiring higher pressure (e.g., food processing lines).
    • Pro Model: Designed for heavy industrial use, such as chemical plants or aerospace applications, where extreme cooling (-50°C) and corrosion resistance are critical.

With the Pro Model’s stainless steel core, you can handle corrosive environments while maintaining peak performance. Pair its high-pressure tolerance with adjustable airflow to ensure reliable cooling in demanding scenarios.

Frequently asked questions

  • Which Ranque-Hilsch vortex tube model is best for spot cooling in manufacturing environments?

  • How do I maintain the aluminum vortex tube for optimal performance?

  • Why choose an aluminum vortex tube over stainless steel for spot cooling?

  • Can the cooling output of the Aluminum Spot Air Cooler be adjusted?

  • Is the aluminum material of the vortex tube certified for industrial safety standards?

  • What makes this vortex tube suitable for high-temperature industrial applications?

  • How energy-efficient is an air-powered aluminum vortex tube compared to electric coolers?

  • Does the Aluminum Spot Air Cooler require regular replacement parts?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Ranque-Hilsch Vortex TubeIndustrial machinery cooling, ElectronicsAluminum body (6061-T6, ISO 527) ▲▲
Cooling capacity: -40°C below ambient (ISO 13789) ▲
Air consumption: 10-15 CFM (ASME PTC 1.3)		No electricity required, compact design, precise temperature controlRequires compressed air supply, limited cooling range for extreme environments
Spot Cooling TubingWorkshop tool cooling, HVAC maintenanceCopper-alloy core (ASTM B221) ▲
Flexibility: 180° bend radius (ISO 5566)
Heat dissipation: 500 W/m² (IEC 60099)		Lightweight, easy installation, adaptable to irregular surfacesLower cooling intensity compared to vortex tubes, requires external airflow
Aluminum Spot Air CoolerElectronics enclosures, server coolingAnodized aluminum fins (MIL-A-8625) ▲
CFM rating: 1200-1500 (ISO 13789) ▲▲
Pressure drop: <2 psi (ASME PTC 1.3)		High airflow efficiency, low energy consumption, corrosion-resistantLarger footprint, noise level 65 dBA (louder than whisper)
Refrigerated Air ChillerData centers, chemical processingCOP 4.2 (ISO 5199) ▲▲
Cooling capacity: 50-200 kW (IEC 60335) ▲
Temperature stability ±1°C (ISO 14644)		High cooling capacity, precise temperature control, scalable solutionsHigh energy consumption, requires maintenance, bulky installation
Portable Evaporative CoolerOutdoor events, warehousesWater efficiency: 0.5 L/hr/kW (ISO 15251) ▲
Airflow: 5000 CFM (AMCA 210) ▲
Moisture output: 15-20% RH (ASHRAE 160)		Low cost, eco-friendly, no refrigerantsIneffective in humid climates, requires water supply, limited cooling capacity
Industrial Fan CoolerFoundries, automotive workshopsBlade durability: 5000+ hours (ISO 2859)
Noise level: 85 dBA (ISO 3744) ▲▲
Airflow: 10,000 CFM (AMCA 210)		High airflow volume, robust construction, cost-effectiveNo cooling capability, noise pollution, limited to ambient temperature reduction
