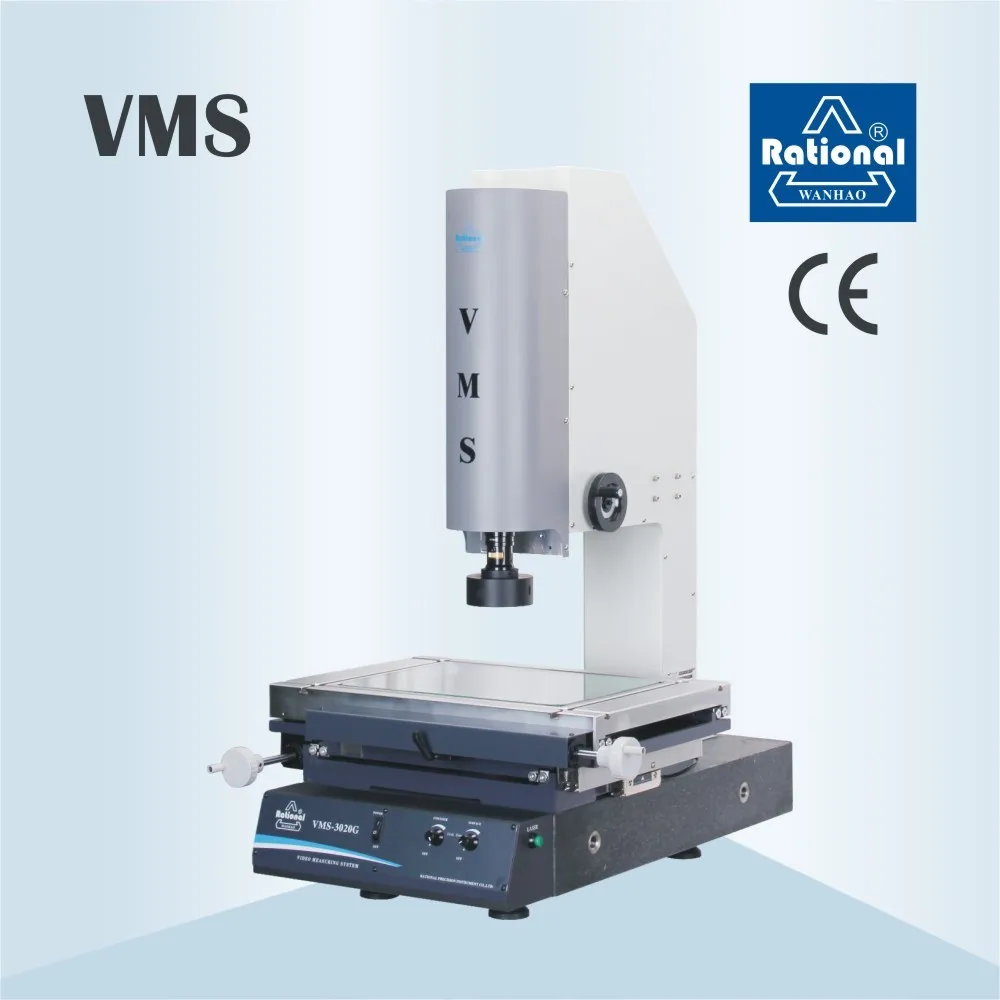

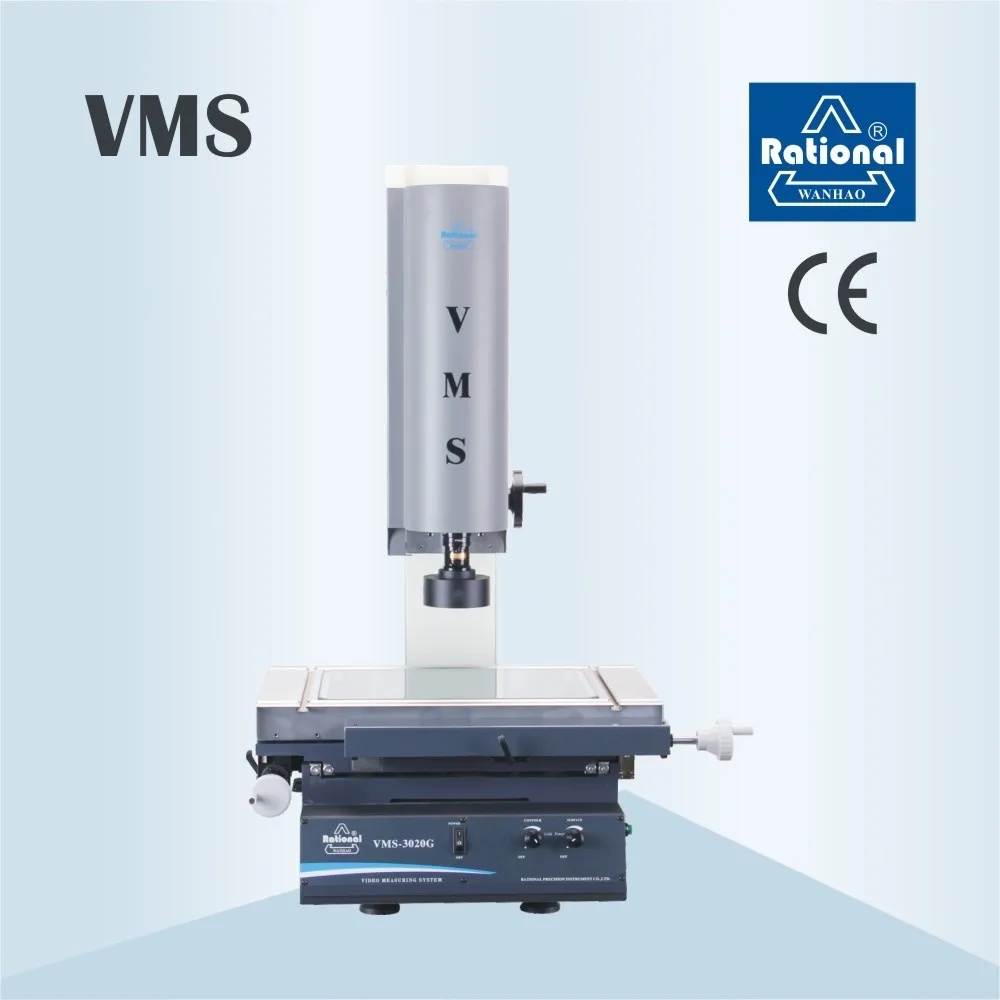

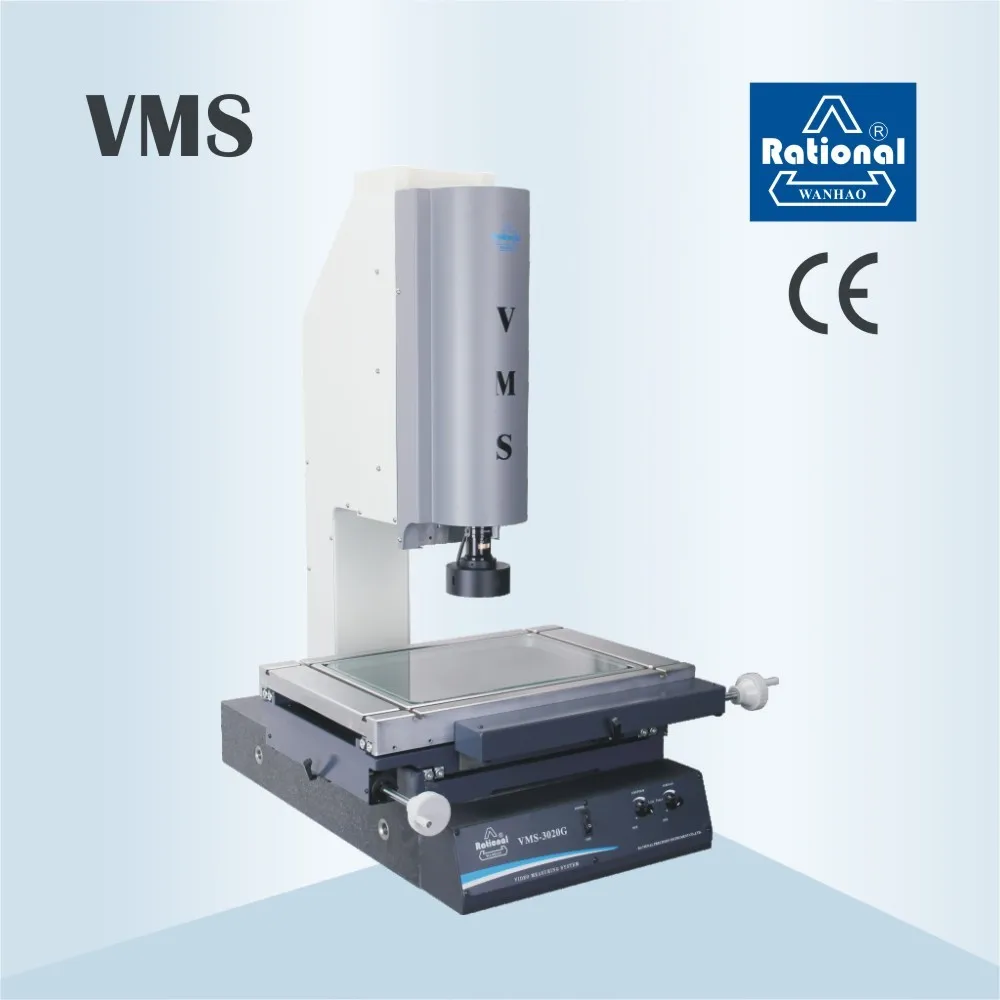

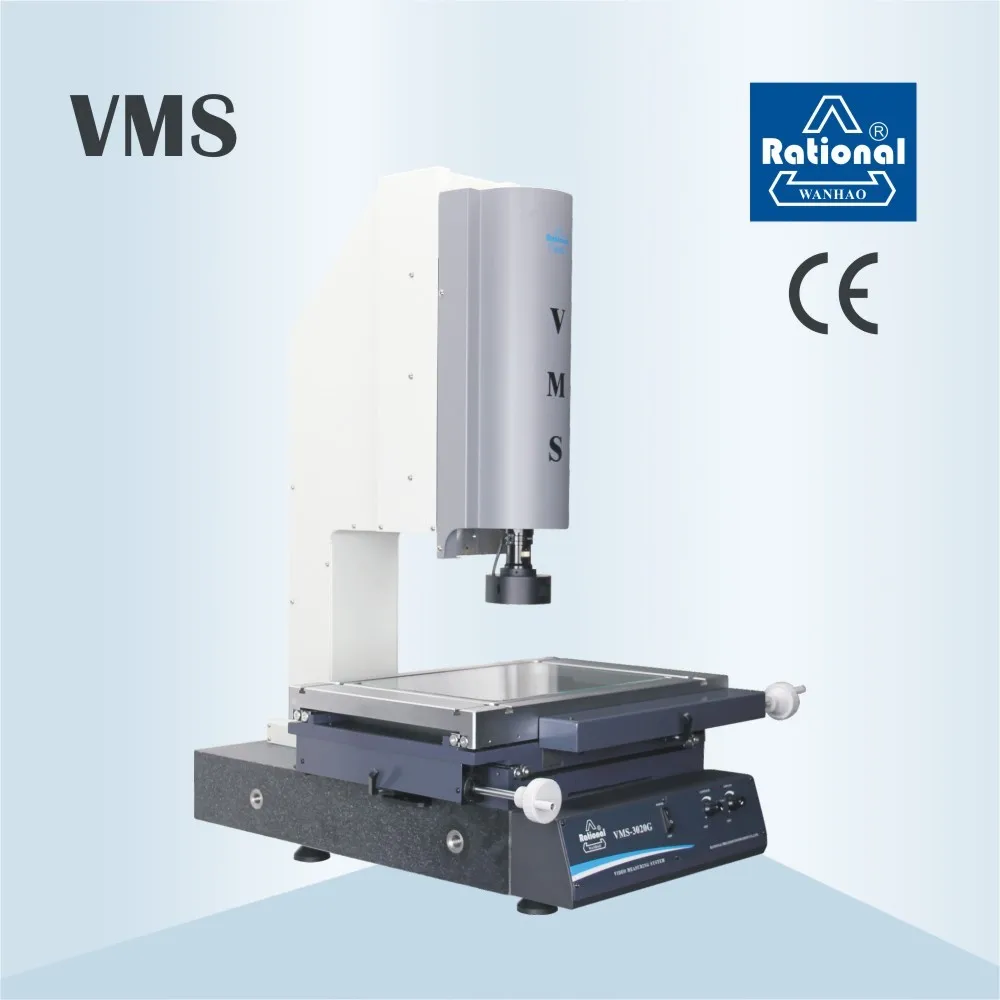

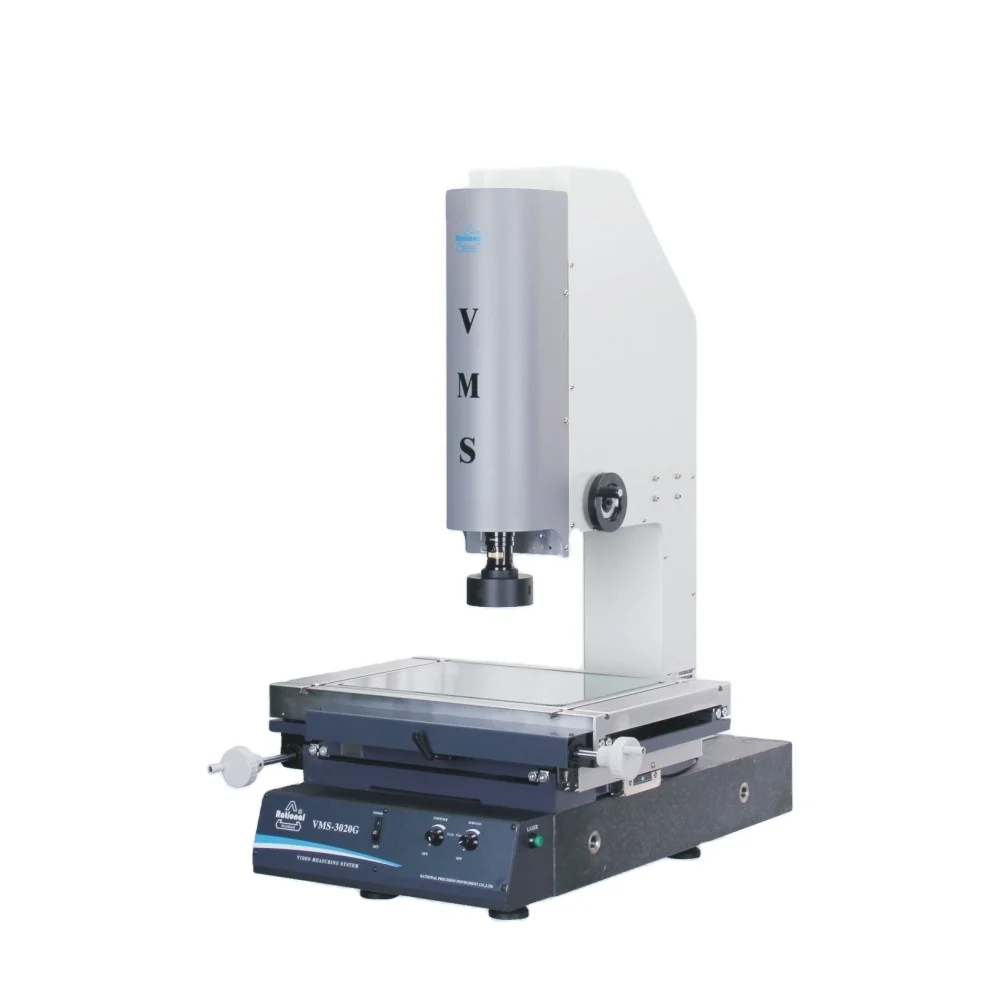

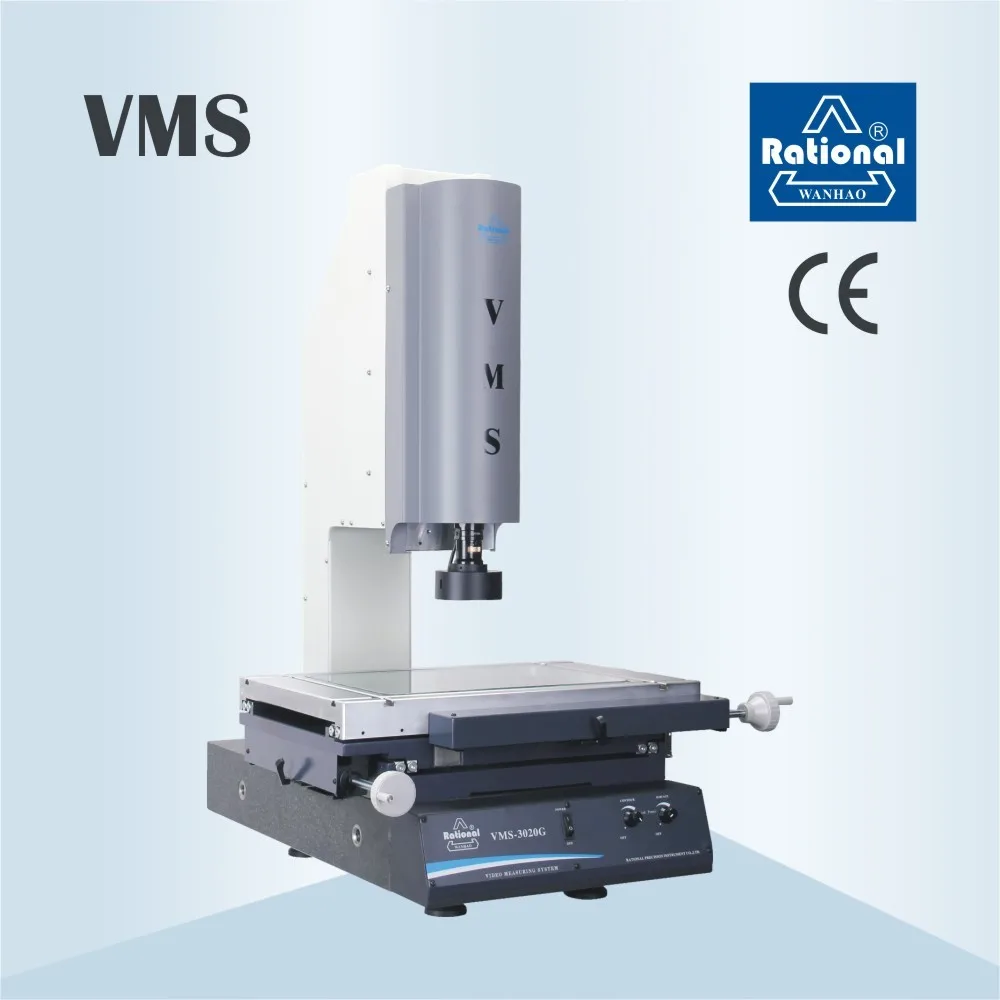

Rational Manual VMS3020 Video Measuring Machine

Technical specifications

Customization guide

Adjustable parameters include measurement range (via modular extensions) and software interfaces to meet specific workflow needs. For example, customize the software to integrate with existing CAD systems for seamless design verification.

Get inspired

With the VMS3020’s high-precision video measurement, you can ensure accuracy in critical applications like semiconductor component inspection or medical device calibration. Its manual operation paired with advanced imaging makes it ideal for labs or small-scale production environments requiring precise, hands-on control.

Choose your model

Supplier's note

1. Three Technical Breakthroughs:

   • High-precision measurement: ±3.2 µm accuracy meets ISO 10360 standards for dimensional metrology.
   • 3D Visualization: Enables multi-angle analysis of complex geometries, critical for automotive part validation.
   • Modular Design: Adjustable measurement platforms accommodate parts up to 300x200mm, expanding application flexibility.

2. Optimal Version Selection:

   • Base Model: Ideal for SMEs needing manual precision without automation costs.
   • Advanced Model: Targets mid-tier manufacturers requiring semi-automated workflows for repetitive tasks.
   • Pro Model: Best for high-volume industries (e.g., aerospace) where speed and sub-micron accuracy are paramount.

With the Pro’s AI-driven defect detection, you can reduce inspection time by 40% compared to traditional methods. Pair its ±1.8 µm precision with automated reporting to streamline quality assurance in high-stakes production lines.
