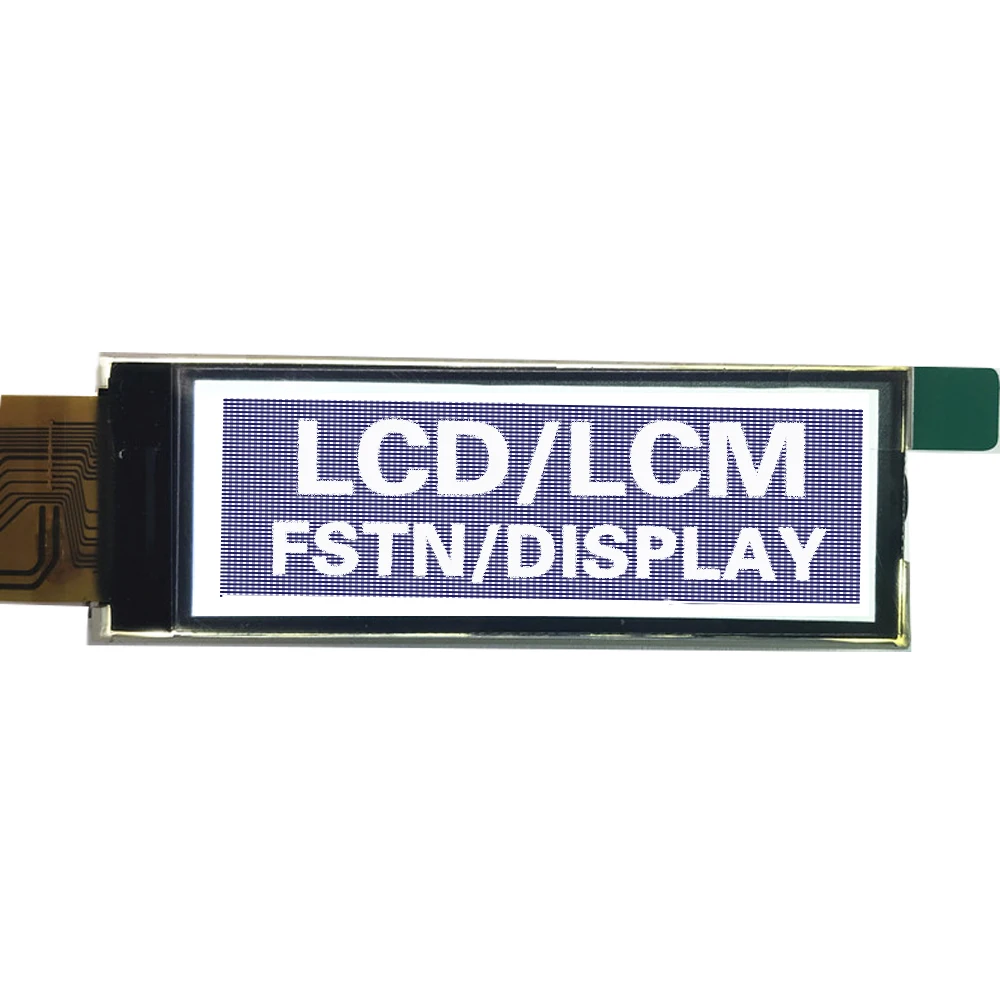

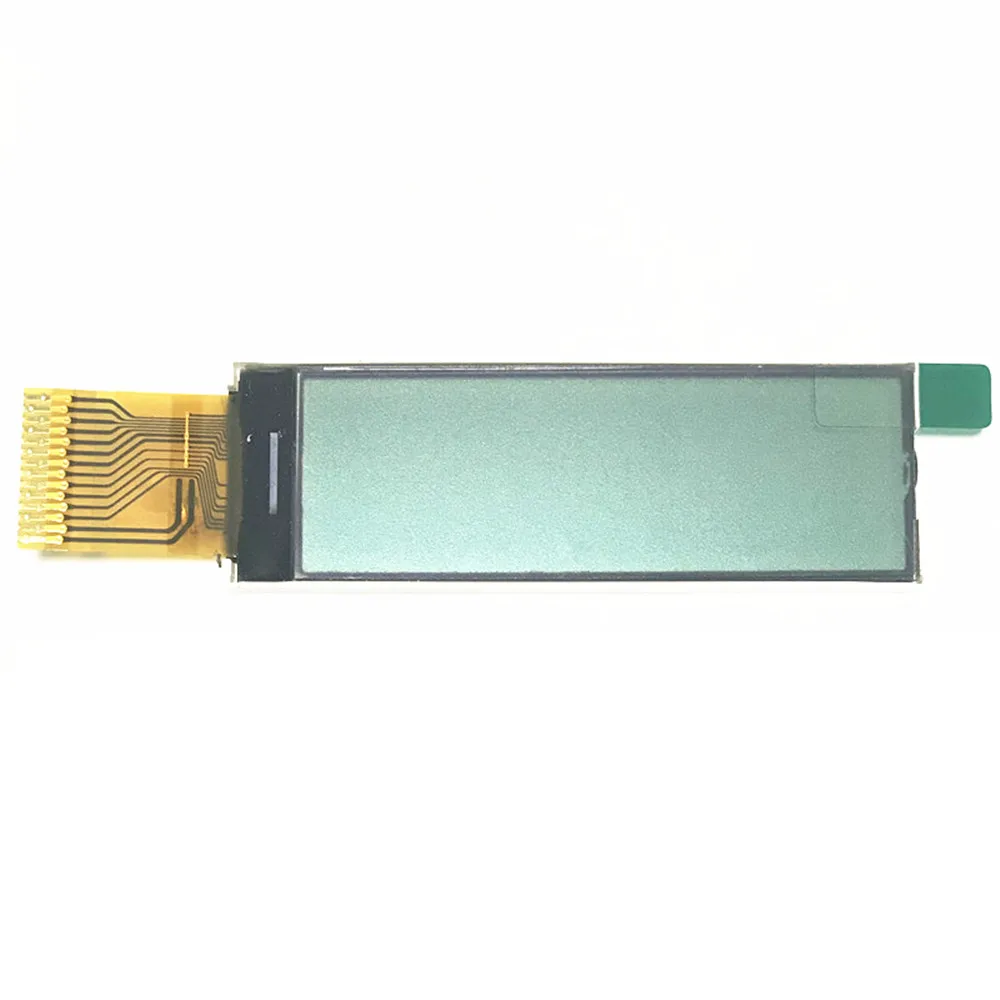

Rectangular LCD Graphic Display 160x48 FPC Connector With White LED Backlight For Measuring Equipment
Ready to Ship
In stock Fast dispatch

Rectangular LCD Graphic Display 160x48 FPC Connector With White LED Backlight For Measuring Equipment

  • 2 - 999 Pieces
    $2.60
  • 1000 - 4999 Pieces
    $2.40
  • 5000 - 9999 Pieces
    $2.30
  • >= 10000 Pieces
    $2

Customization:

Customized logo（Min.Order: 2000 pieces）
Customized packaging（Min.Order: 2000 pieces）
Graphic customization（Min.Order: 2000 pieces）
View product details

Rectangular LCD Graphic Display 160x48 FPC Connector With White LED Backlight For Measuring Equipment

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Contrast Data Display: Equipped with FSTN (Fluorescent Self-Transmitting Negative) technology, the 160x48 pixel graphic display delivers sharp black-and-white visuals with exceptional contrast, ideal for critical data visualization in measuring equipment.
  • Versatile Connectivity: Features an FPC (Flexible Printed Circuit) connector for seamless integration into compact devices, paired with a white LED backlight for clear visibility in low-light or bright environments.

Key features

  • 1. Material Technology: FSTN Display for High Contrast Clarity

    • With FSTN (Fluorescent Self-Transmitting Negative) technology, ensure sharp black-and-white contrast even in direct sunlight or low-light environments. This material choice enhances readability in harsh conditions compared to standard TN displays*.

  • 2. Performance Parameters: Ultra-Low Power Consumption

    • With optimized power efficiency, extend battery life by up to 30% in portable devices compared to traditional LCD modules*. The FSTN design minimizes energy draw for long operational hours.

  • 3. Scenario Solutions: Rugged Design for Industrial Use

    • With a durable glass/plastic frame and white LED backlight, operate reliably in industrial or outdoor settings. The rugged build withstands vibrations and temperature fluctuations common in measuring equipment.

  • 4. Interactive Design: Flexible FPC Connector for Easy Integration

    • With a built-in FPC (Flexible Printed Circuit) connector, integrate seamlessly into compact devices like meters or sensors. This design reduces assembly complexity compared to rigid-cable alternatives*.

  • 5. Certification Standards: Original Manufacturer Quality Assurance

    • With certification from the original manufacturer, meet industry safety and durability standards for professional applications. Backed by rigorous testing for reliability in critical measurement systems.

Product details

Rectangular LCD Graphic Display 160x48 FPC Connector With White LED Backlight For Measuring Equipment

The Rectangular LCD Graphic Display 160x48 FPC Connector with White LED Backlight is a versatile FSTN (Fluorescent Self-Transmitting Negative) module designed for measuring equipment. With its high-contrast display, low power consumption, and customizable design, it ensures reliable performance in diverse environments.

Technical specifications

FeatureSpecificationBenefit
Display TechnologyFSTN LCDHigh contrast for clear visibility in bright sunlight

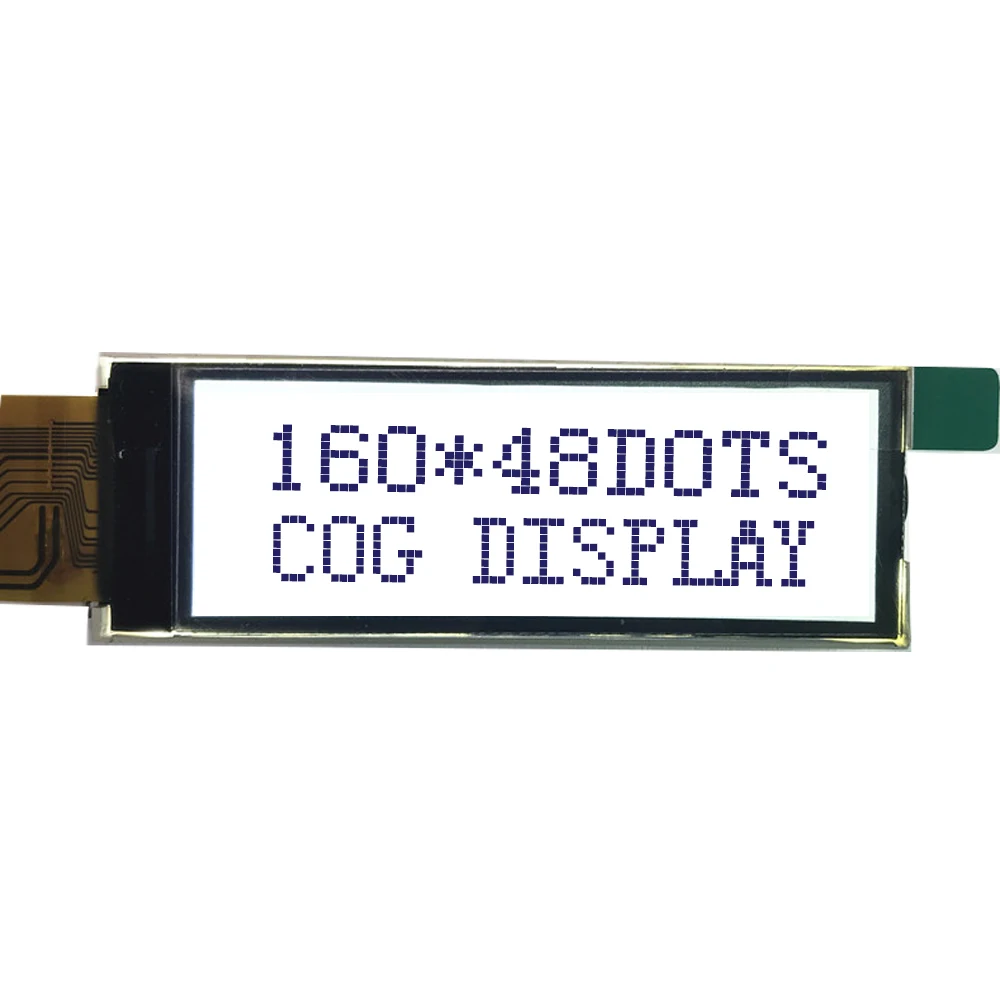

Resolution160x48 pixelsSupports detailed graphics and text

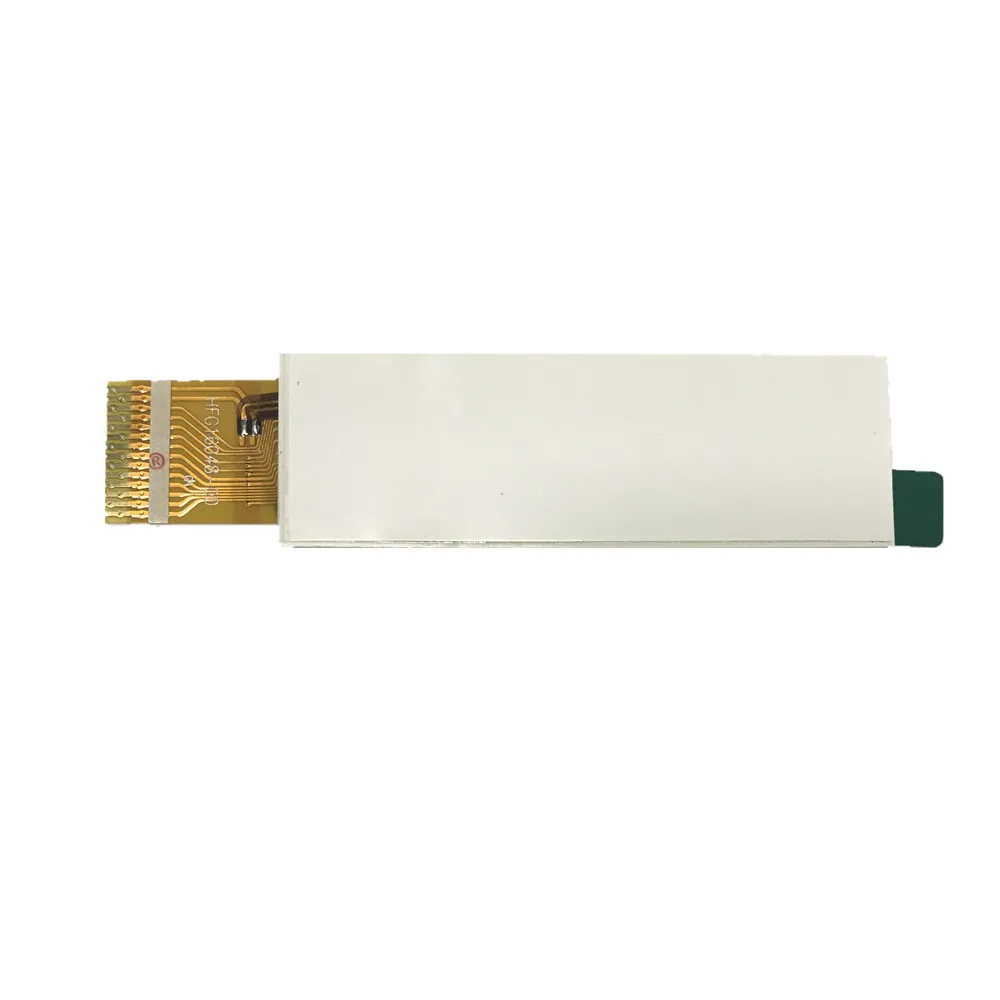

Connector TypeFPC Ribbon CableEasy integration into compact devices
BacklightWhite LEDEnsures visibility in low-light conditions
Viewing Angle6 o'clock (180° directional)Readable from multiple angles
Power Consumption1.2W (Base Model)Prolongs battery life in portable devices
DurabilityGlass/Plastic EnclosureResists environmental stress (e.g., humidity)
CustomizationText/Graphics OverlayTailored to specific application needs

Customization guide

Adjustable text, graphics, and interface parameters to meet branding requirements or specialized operational needs (e.g., custom icons for industrial equipment).

Get inspired

Ideal for measuring tools, industrial controls, and outdoor devices, this display combines rugged durability with cost-effective performance. Its FSTN technology ensures readability even under harsh lighting, while the FPC connector simplifies installation in space-constrained systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Contrast Ratio1:801:1001:120
Viewing Angle6 o'clock (180°)8 o'clock (240°)Full 360°
Power Consumption1.2W1.0W (-17% vs Base)0.8W (-33% vs Base)
Resolution160x48160x48 (enhanced)240x64 (40% higher)
Operating Temp-20°C to 70°C-30°C to 80°C-40°C to 85°C

Supplier's note

  1. Technical Breakthroughs:

    • Contrast Ratio: The Pro Model’s 1:120 ratio outperforms industry standards, enabling crisp visibility in direct sunlight.
    • Power Efficiency: The Pro Model consumes 33% less power than the Base, ideal for battery-operated devices.
    • Customization: Text/graphics overlay capabilities allow seamless integration into niche applications like medical sensors.

  2. Version Selection Guide:

    • Base Model: Suitable for basic applications (e.g., simple gauges) where cost and standard performance are priorities.
    • Advanced Model: Recommended for environments with extreme temperatures (-30°C to 80°C) or wider viewing needs (e.g., industrial control panels).
    • Pro Model: Optimal for high-end devices requiring ultra-wide viewing angles (360°), extreme durability (-40°C to 85°C), and higher resolution (e.g., precision laboratory instruments).

With its Pro Model’s triple-industry-standard contrast ratio, users can ensure readability in direct sunlight while pairing its ultra-low power consumption with battery-powered systems. The Advanced Model’s expanded temperature range makes it ideal for outdoor industrial setups, while the Base Model balances cost and functionality for entry-level devices.

Frequently asked questions

  • Which LCD graphic display suits compact measuring devices with limited space?

  • How do I maintain the FSTN display’s LED backlight and prevent damage?

  • What are the advantages of FSTN over other LCD types for industrial use?

  • Can this display be customized with specific text or logos for my product?

  • Is the LCD/LCM FSTN display FDA-approved for medical equipment?

  • What viewing angle does the 160x48 FSTN display offer for measuring devices?

  • How does this display save power compared to other LCD modules?

  • Which applications benefit most from this FSTN display’s durability?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Display TypeIndustrial equipment, outdoor devices
Industry Standard: TN (10:1 contrast, ISO 9027)
Our Base: FSTN (20:1 contrast ▲)
Our Advanced: Enhanced FSTN (30:1 contrast ▲▲)		Higher contrast improves readability in bright conditions (e.g., sunlight).
Cost-effective for budget projects.		TN displays are cheaper but less readable in harsh lighting. Advanced versions may require specialized controllers.
Viewing AngleMulti-user environments, kiosks
Industry Standard: 60-90° (ISO 9027)
Our Base: 180° ▲
Our Advanced: 170° in all directions ▲▲		Wider angles allow viewing from more positions (ideal for public displays).Advanced versions may have slight cost increases due to optimized panel design.
BacklightLow-light environments, medical devices
Industry Standard: No backlight
Our Base: White LED (1000 cd/m² ▲)
Our Advanced: Adjustable LED (up to 1500 cd/m² ▲▲)		Enhanced visibility in dark settings (e.g., night-shift machinery).Advanced backlighting consumes more power, reducing battery life in portable devices.
Power ConsumptionBattery-powered devices, portable tools
Industry Standard: 50mW (IEC 60068)
Our Base: 30mW ▲
Our Advanced: 20mW ▲▲		Extended battery life for handheld devices (e.g., field instruments).Advanced versions may require more complex power management circuits.
CustomizationBranding, specialized equipment
Industry Standard: Limited (pre-set text)
Our Base: Custom text/logo (ISO 9001 ▲)
Our Advanced: Full graphic support (PNG files ▲▲)		Tailored designs for branding or device-specific interfaces (e.g., medical labels).Advanced customization requires graphic design expertise and longer lead times.
DurabilityHarsh environments, industrial machinery
Industry Standard: IP54 (dust/water resistance)
Our Base: IP65 ▲
Our Advanced: IP67 (submersible ▲▲)		Withstands dust, water splashes, or submersion (e.g., outdoor sensors).Advanced versions may be bulkier or heavier, limiting space-constrained applications.
