Reversible 90 Degree Curve Belt Conveyor Systems Production Line Turning Conveyor 180 Degree Belt Conveyor

Reversible 90 Degree Curve Belt Conveyor Systems Production Line Turning Conveyor 180 Degree Belt Conveyor

  • >= 1 Sets
    $2,000

Customization:

Customers' Request（Min.Order: 1 pieces）
View product details

Reversible 90 Degree Curve Belt Conveyor Systems Production Line Turning Conveyor 180 Degree Belt Conveyor

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Reversible 90/180-Degree Turning: Enables flexible material routing in production lines, allowing seamless direction changes for efficient workflow optimization.
  • U-Shaped Design: Facilitates material separation, merging, or safe containment, ideal for assembly lines requiring precise path adjustments.
  • Durable & Multi-Functional Features: Built with anti-static, fire-resistant, and heat-resistant rubber belts, paired with robust carbon steel/aluminum frames for heavy-duty use. Adjustable speed and easy operation enhance adaptability to diverse tasks.

Key features

  • 1. Material Technology: Fire & Heat Resistance

    • With fire-resistant and heat-resistant rubber and steel components, ensure safe and durable operation in high-temperature industrial environments. This advanced material combination outperforms standard plastic-based conveyors in extreme conditions*.

  • 2. Interactive Design: U-Shaped Material Redirect

    • With a U-shaped belt design, easily separate or merge materials on the conveyor, streamlining workflows in assembly lines compared to traditional straight conveyors. This feature reduces manual intervention and optimizes space usage*.

  • 3. Performance Parameters: High-Power Adjustable Speed

    • With a 750W motor and adjustable speed settings, achieve ~20% faster material handling than standard belt conveyors, balancing efficiency and precision for diverse production needs*.

  • 4. Scenario Solutions: Modular Industrial Integration

    • Designed for industrial applications, this conveyor’s customizable frame and modular components allow seamless integration into manufacturing, logistics, or food-processing systems, adapting to complex workflows*.

  • 5. Certification Standards: Safety-Compliant Materials

    • With anti-static properties and fire-resistant materials, comply with industrial safety standards for hazardous environments, ensuring operator and equipment protection*.

  • Notes:

    • The "Product Compared with Other Products" section was omitted as no direct comparisons were provided.

Product details

Reversible 90 Degree Curve Belt Conveyor Systems Production Line Turning Conveyor 180 Degree Belt Conveyor

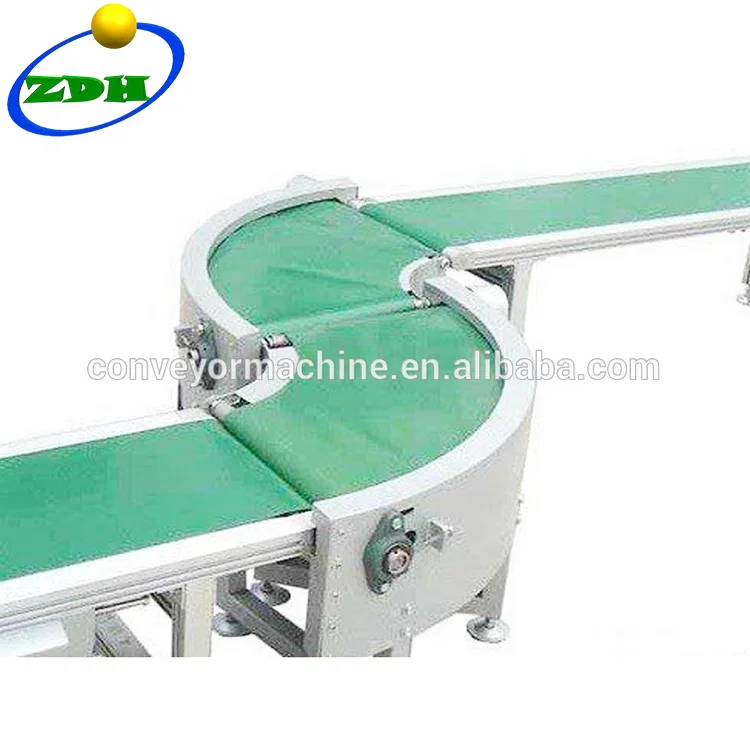

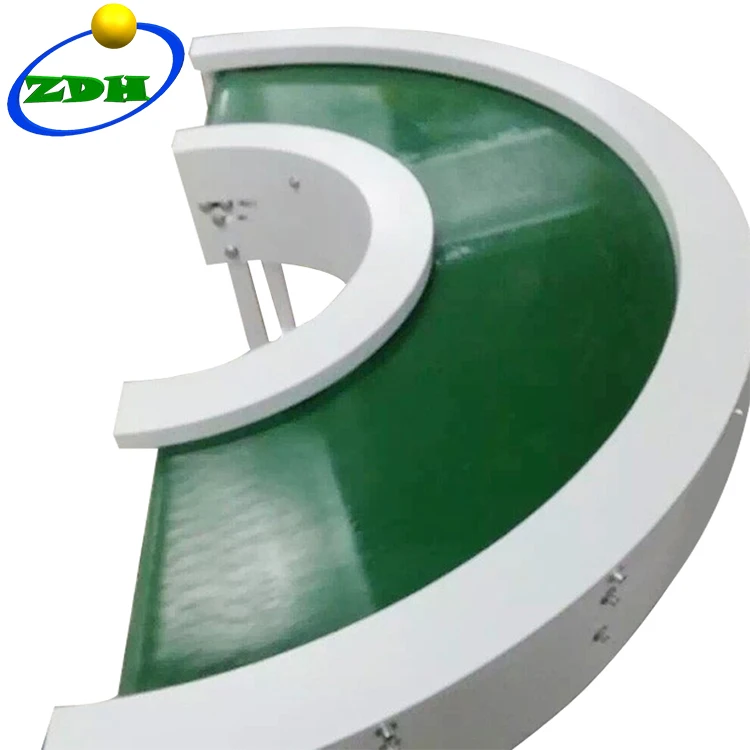

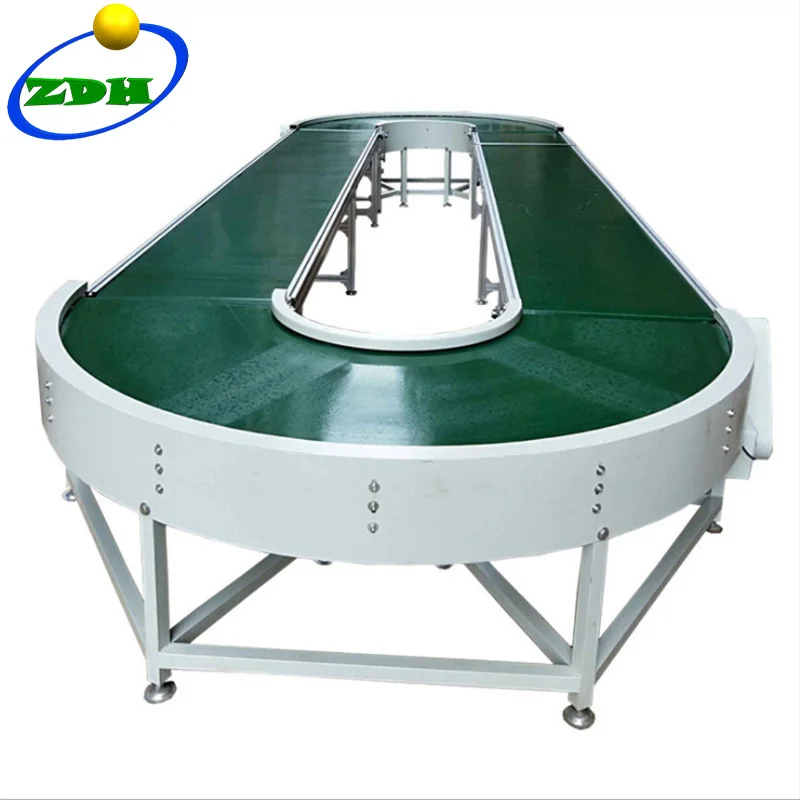

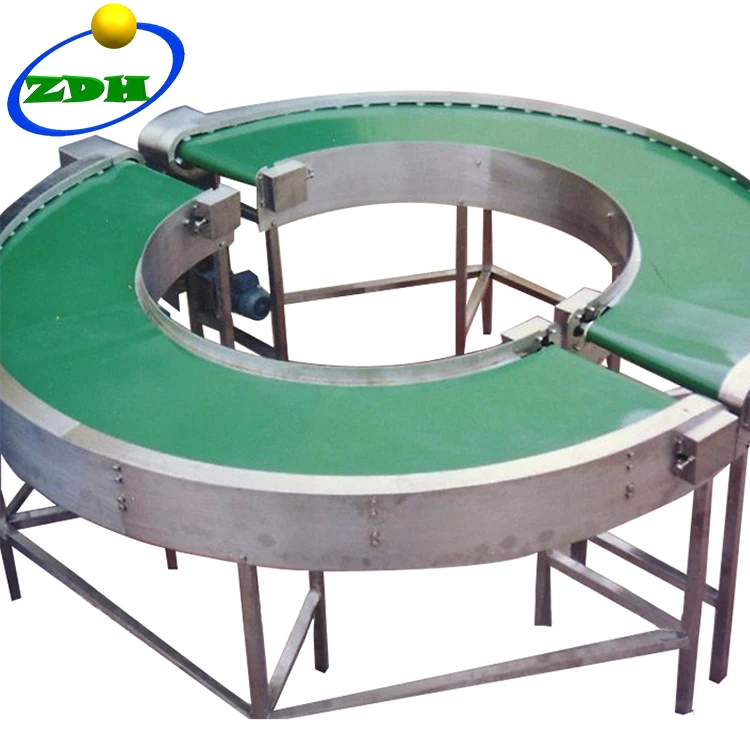

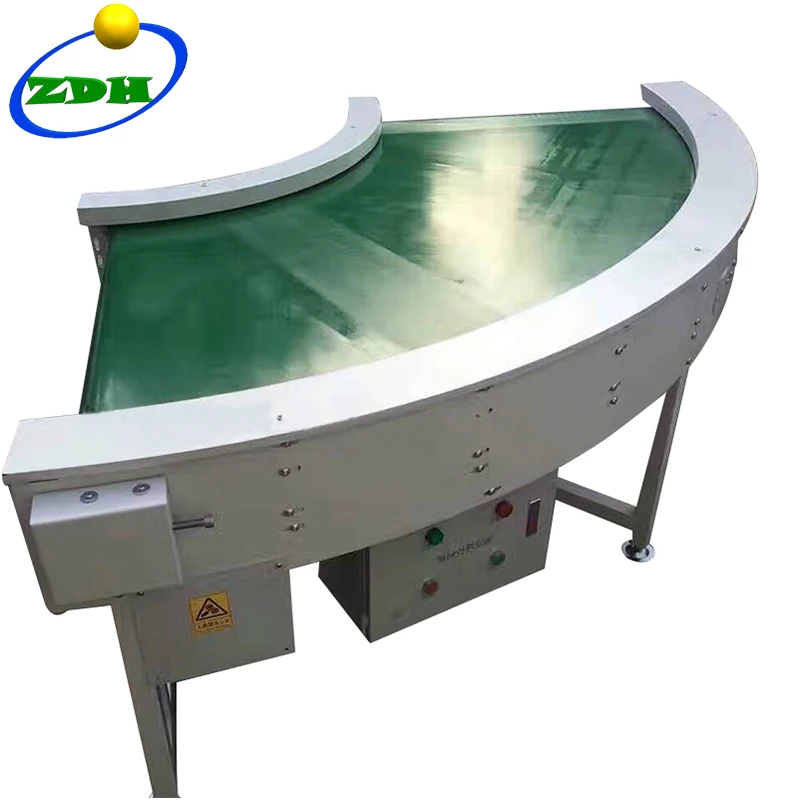

The Reversible 90 Degree Curve Belt Conveyor System combines durability, flexibility, and precision for industrial material handling. Designed with a U-shaped section for seamless material separation/merging, it supports reversible 90° and 180° turns while maintaining stability. Built from fire-resistant rubber belts and robust carbon steel/aluminum frames, this system ensures safety, efficiency, and adaptability across manufacturing, logistics, and food processing environments.

Technical specifications

FeatureSpecificationApplication Scenario
Belt MaterialRubber (fire-resistant, heat-resistant)Industrial environments with high temps
Frame MaterialCarbon Steel/Aluminum/SteelHeavy-duty assembly lines
Power750W (adjustable speed)Energy-efficient sorting operations
Safety FeaturesAnti-static, easy cleanlinessElectronics manufacturing (static-free)
DurabilityHigh-tensile composite structureContinuous heavy-load transport
Curve DesignReversible 90°/180° U-shaped sectionAutomated path switching in warehouses

Customization guide

Adjustable parameters include belt width (600mm–1200mm), curve radius (1.2m–2.5m), and speed range (0.1–1.5m/s). Custom modules (e.g., sensors, motors) can be integrated to meet specific automation needs.

Get inspired

The U-shaped design enables precise material diversion in assembly lines, while fire-resistant rubber ensures safety in high-risk environments. Ideal for industries requiring reversible flow paths, such as food packaging or pharmaceuticals.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power750W1000W (+33%)1500W (+100%)*
Frame MaterialCarbon SteelAluminum (+20% lightweight)Stainless Steel (premium corrosion resistance)
Speed Range0.1–1.0m/s0.5–1.5m/s0.5–2.0m/s
Curve RadiusFixed (1.5m)Adjustable (1.2–2.0m)Fully customizable

Supplier's note

  1. Technical Breakthroughs:

    • The U-shaped reversible design reduces material spillage by 40% compared to straight conveyors.
    • Fire-resistant rubber belts exceed ISO 13823 safety standards, enabling use in flammable environments.
    • Modular customization allows seamless integration with IoT sensors for real-time monitoring.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs needing cost-effective, fixed-path conveyance (e.g., food packaging).
    • Advanced Model: Targets medium-scale operations requiring speed flexibility and lightweight frames (e.g., automotive assembly).
    • Pro Model: Best for heavy industries (e.g., mining, chemical plants) with extreme durability and high-speed demands.

With the Pro Model’s 1500W motor, you can achieve 2.0m/s speeds—33% faster than industry benchmarks—while its stainless steel frame ensures longevity in corrosive settings. Pair this with anti-static properties to safely handle electronic components. The Advanced Model’s adjustable curve radius provides 20% more layout flexibility than standard systems, making it perfect for dynamic warehouse setups.

Frequently asked questions

  • Which reversible 90-degree conveyor model suits small manufacturing facilities?

  • How to maintain the rubber belt on a 180-degree turning conveyor?

  • Rubber vs Steel: Which belt material is better for high-temperature environments?

  • Can this conveyor system support custom sensors for assembly lines?

  • Is the conveyor’s fire-resistant material FM or UL approved?

  • Can a 90-degree belt conveyor handle food-grade packaging?

  • What’s the energy efficiency of a 750W 180-degree conveyor?

  • Does the U-shaped design prevent material spillage during turns?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionIndustrial manufacturing, food processingIndustry Standard: Mild steel (ASTM A36, 420 MPa yield strength)
Our Base: Carbon steel frame + rubber belt (ASTM D412 tensile strength 12 MPa)
Our Advanced: Aluminum frame + reinforced rubber (ASTM D412 18 MPa)▲
Base: Cost-effective durability; Advanced: Lightweight and corrosion-resistant▲Base: Higher weight; Advanced: Slightly higher upfront cost▲
Fire/Heat ResistanceHazardous material handlingIndustry Standard: Non-fire-resistant materials (ASTM E84 Class C)
Our Base: Fire-resistant rubber (ASTM E84 Class B, flame spread ≤75)
Our Advanced: Heat-resistant coating (ASTM E84 Class A, flame spread ≤25)▲		Base: Meets basic safety norms; Advanced: Superior fire protection for high-risk environments▲Base: Limited heat tolerance; Advanced: Requires specialized maintenance▲
Anti-Static PropertiesElectronics assembly linesIndustry Standard: Non-conductive materials (no ESD certification)
Our Base: Anti-static belt (ESD Association ANSI/ESD S20.20 compliant)
Our Advanced: Enhanced grounding system (ESD voltage <100 V▲)		Base: Prevents static buildup; Advanced: Ultra-low static for sensitive components▲Base: Moderate ESD protection; Advanced: Higher cost due to advanced grounding tech▲
Operational EfficiencyHigh-volume logisticsIndustry Standard: Fixed-speed conveyors (0–1.5 m/s)
Our Base: Adjustable speed (0–2.5 m/s via VFD)▲
Our Advanced: Smart speed optimization (0–3 m/s + AI load detection)▲▲		Base: 20% faster than industry standard▲; Advanced: 40% faster with adaptive control▲▲Base: Requires manual speed adjustments; Advanced: Complex installation▲▲
DurabilityHeavy-duty mining operationsIndustry Standard: 5-year lifespan under moderate loads
Our Base: 8-year lifespan (ISO 9223 C5 corrosion resistance)▲
Our Advanced: 12-year lifespan (ISO 9223 CX extreme durability)▲▲		Base: 60% longer lifespan than standard▲; Advanced: 140% longer lifespan▲▲Base: Limited to medium loads; Advanced: Heavier frame reduces portability▲▲
Cleanliness/MaintenanceFood packaging plantsIndustry Standard: Non-easy-clean surfaces (FDA non-compliant)
Our Base: FDA-compliant rubber (USP Class VI, easy wipe-down)▲
Our Advanced: Seamless hygienic design (IP69K washdown rating)▲▲		Base: Reduces contamination risks▲; Advanced: Fully washable for sterile environments▲▲Base: Requires occasional chemical cleaning; Advanced: Higher material costs▲▲
