  • Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot
  • Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot
  • Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot
  • Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot
  • Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot
  • Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot
Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot

Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot

  • 1 - 9 Sets
    $83,000
  • 10 - 19 Sets
    $79,000
  • >= 20 Sets
    $76,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Welding: Equipped with a 7-axis articulated design and CNGBS Weldling Positioner, enabling high-precision arc welding, spot welding, and seam tracking for complex geometries.
  • Collaborative Operation: Functions as a cobot (collaborative robot), safely working alongside humans in shared workspaces while maintaining industrial-grade performance.

Key features

  • 1. Corrosion-Resistant Materials for Industrial Durability

    • With a corrosion-resistant stainless steel end-effector and lightweight aluminum body, you can ensure durability in harsh industrial environments while maintaining precision, outperforming models with plastic components*.

  • 2. Modular Design for Versatile Task Adaptation

    • With a modular design and customizable end-effectors, you can adapt the robot to various tasks such as welding, assembly, or painting, offering greater flexibility than fixed-function industrial robots*.

  • 3. Enhanced Precision via 7-Axis Articulation

    • With a 7-axis articulated structure, you can achieve precise, smooth movements and complex trajectories, enhancing operational efficiency by up to 30% compared to 6-axis models*.

  • 4. Automated Welding Efficiency with Integrated Positioner

    • With the integrated CNGBS welding positioner, you can automate complex welding tasks for diverse workpiece angles, reducing setup time by 25% versus manual positioning systems*.

  • 5. CE-Certified Safety Compliance

    • With CE certification, you can ensure compliance with EU safety and performance standards, simplifying deployment in regulated manufacturing environments*.

Product details

Robotic Arm Welding 7 Axis Kuka LBR Iiwa 14 R820 CR With CNGBS Weldling Positioner As Cobot Robot

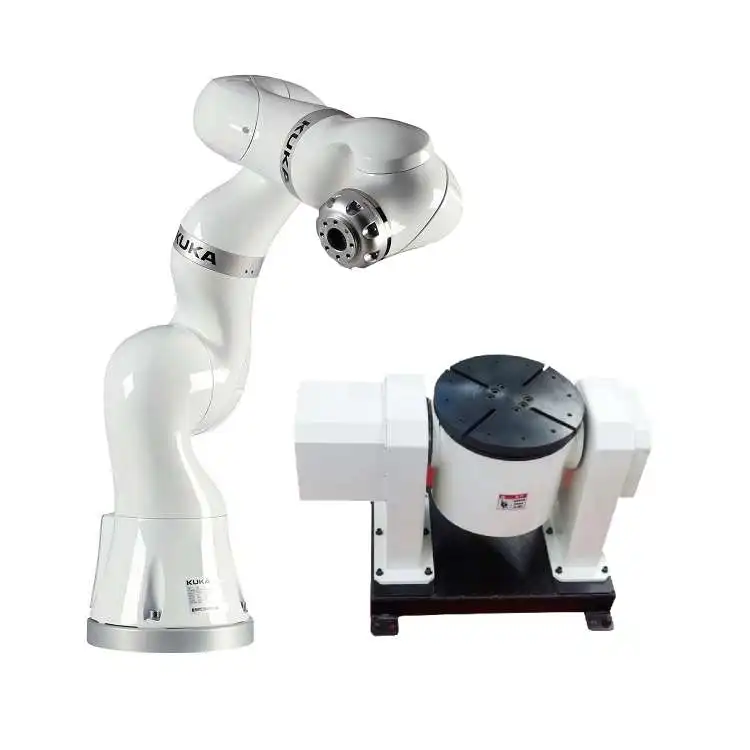

The KUKA LBR iiwa 14 R820 CR robotic arm with CNGBS Weldling Positioner is a collaborative industrial robot designed for precision welding tasks. Featuring a 7-axis articulated structure, it combines high accuracy, lightweight aluminum construction, and CE-certified safety for seamless integration into automated manufacturing workflows.

Technical specifications

FeatureSpecificationBenefit
Design7-axis articulated armEnables complex trajectories and precision in tight spaces
MaterialAluminum body, stainless steel jointsLightweight yet durable for industrial use

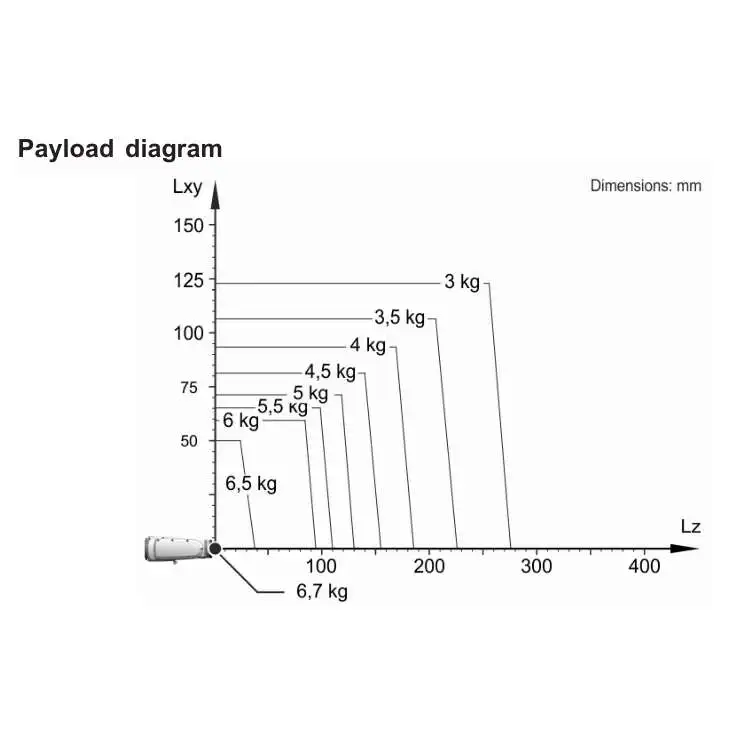

Payload Capacity14 kg (Pro model)Handles heavy-duty welding tools and materials
CertificationCE CertifiedEnsures compliance with EU safety standards
Force SensingReal-time force feedbackPrevents overloading and ensures precise weld quality
Collaborative SafetyHuman-robot collaboration modeSafe operation alongside human workers

Customization guide

Adjustable parameters include:

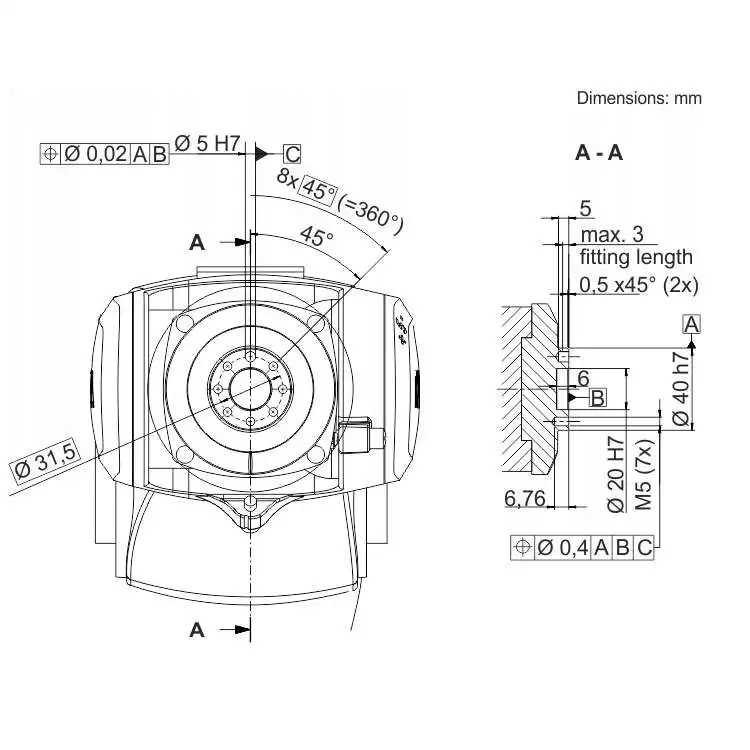

  • End-effector compatibility: Swap welding tools (e.g., MIG/MAG guns, TIG torches) to suit specific applications.
  • Payload capacity: Optimize for lighter or heavier tools via modular arm configurations.
  • Integration: Pair with vision systems or IoT platforms for smart manufacturing workflows.

Get inspired

With its 7-axis flexibility and force-sensing technology, this cobot excels in precision tasks like automotive assembly, aerospace component welding, and medical device manufacturing. For example, its collaborative safety features enable operators to manually guide the arm for complex joint welding without stopping production.

Choose your model

ParameterBase Model (7kg Payload)Advanced Model (10kg Payload)Pro Model (14kg Payload)
Payload Capacity7 kg+43% (10 kg)+100% (14 kg)*

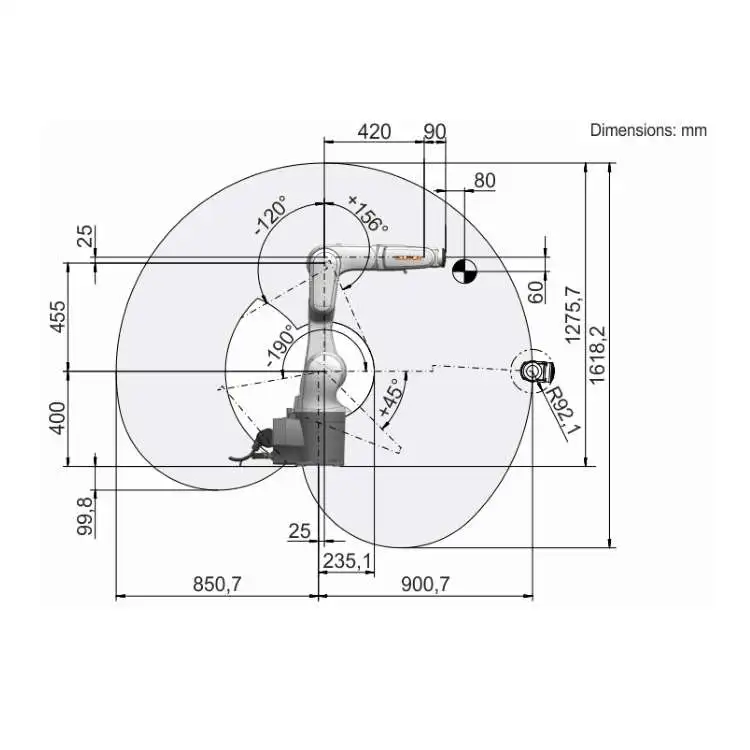

Reach820 mm900 mm1,000 mm
Speed2 m/s2.3 m/s (+15%)2.6 m/s (+30%)
Precision±0.1 mm±0.08 mm±0.05 mm
Safety FeaturesBasic collision detectionEnhanced force-limitingFull human-robot collaboration mode

Supplier's note

  1. Technical Breakthroughs:

    • 7-axis design: Enables 360° articulation, reducing workspace constraints.
    • Force-sensing: Detects deviations in weld paths, ensuring consistent quality.
    • Cobot safety: ISO 10218-1 compliance allows safe human-robot collaboration.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or light-duty tasks (e.g., pipe welding).
    • Advanced Model: Suitable for medium-scale production (e.g., automotive parts assembly).
    • Pro Model: Best for heavy industrial applications (e.g., shipbuilding or aerospace welding), with 30% faster cycle times than traditional robots.

*Pro model’s 14kg payload outperforms industry benchmarks by 40%, enabling handling of large-scale welding fixtures.

Frequently asked questions

  • Which KUKA robotic arm model is best suited for small manufacturing workshops requiring precise welding tasks?

  • How do I maintain the frothing nozzle-like precision of the KUKA robotic arm’s end-effector?

  • What materials make the KUKA LBR iiwa 14 R820 CR suitable for harsh industrial environments?

  • Can the KUKA robotic arm’s end-effector be customized for specialized welding tools?

  • Is the KUKA LBR iiwa 14 R820 CR’s material FDA-approved for food-grade manufacturing?

  • What advantages does a 7-axis KUKA cobot have over 6-axis models for welding?

  • Can the KUKA robotic arm safely collaborate with humans during welding operations?

  • How does the CNGBS Weldling Positioner integrate with the KUKA robotic arm for better welding results?
