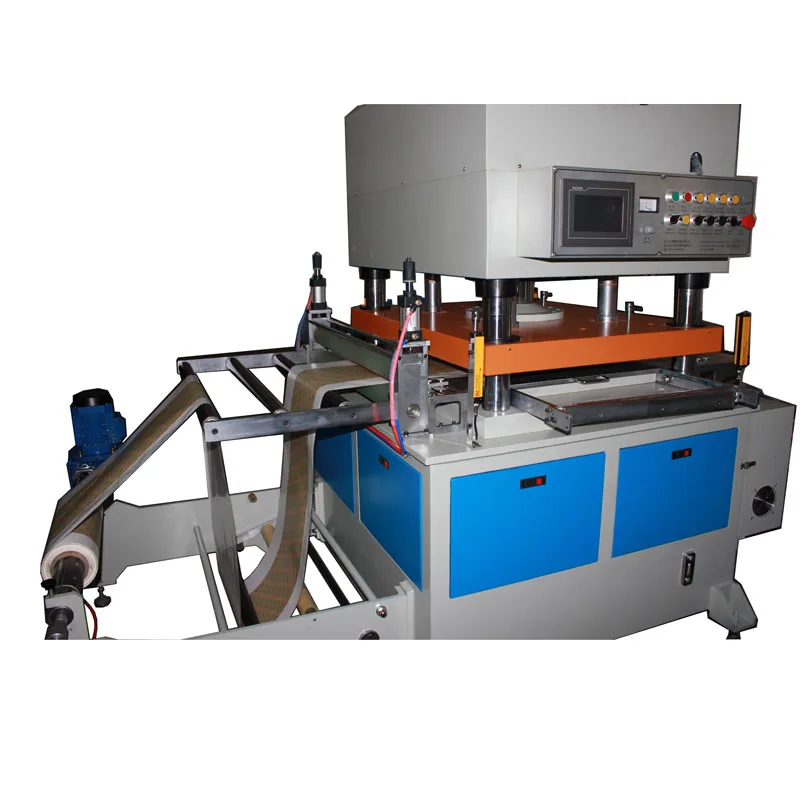

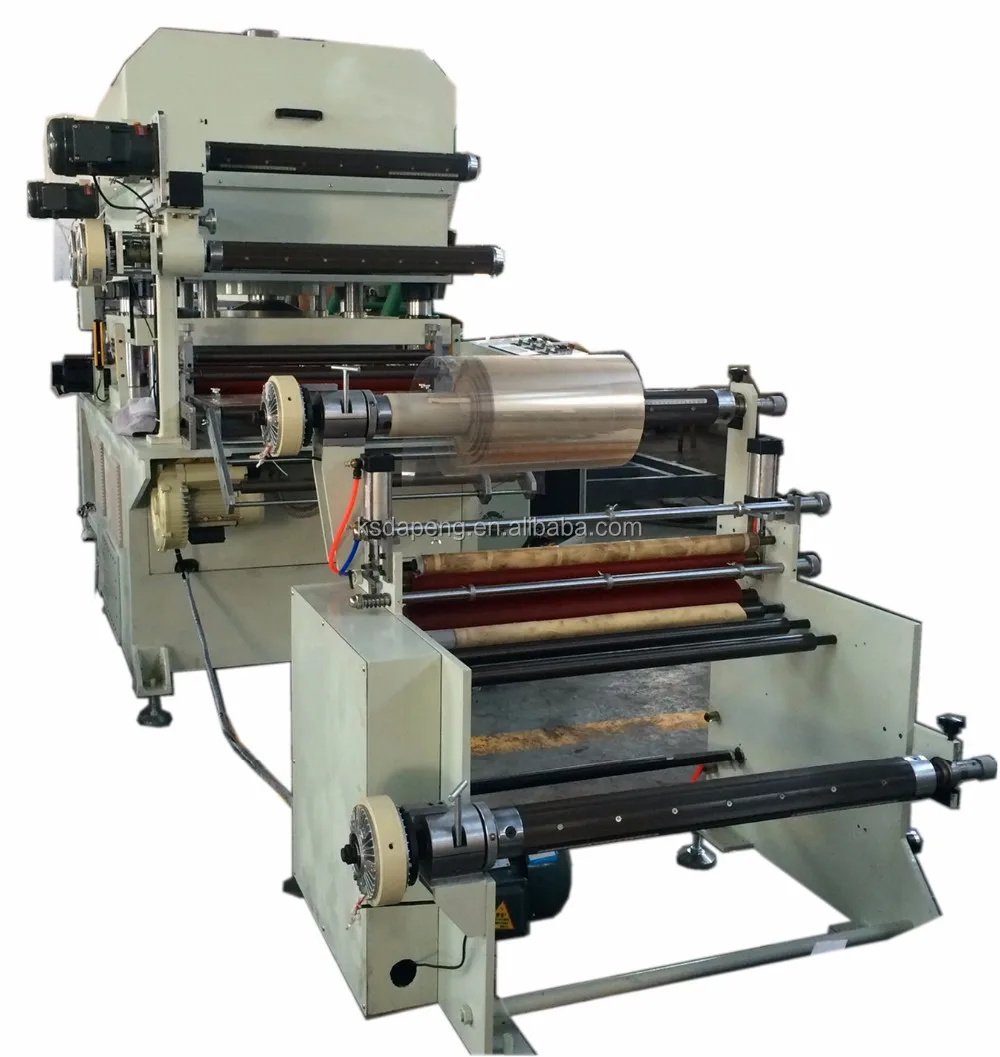

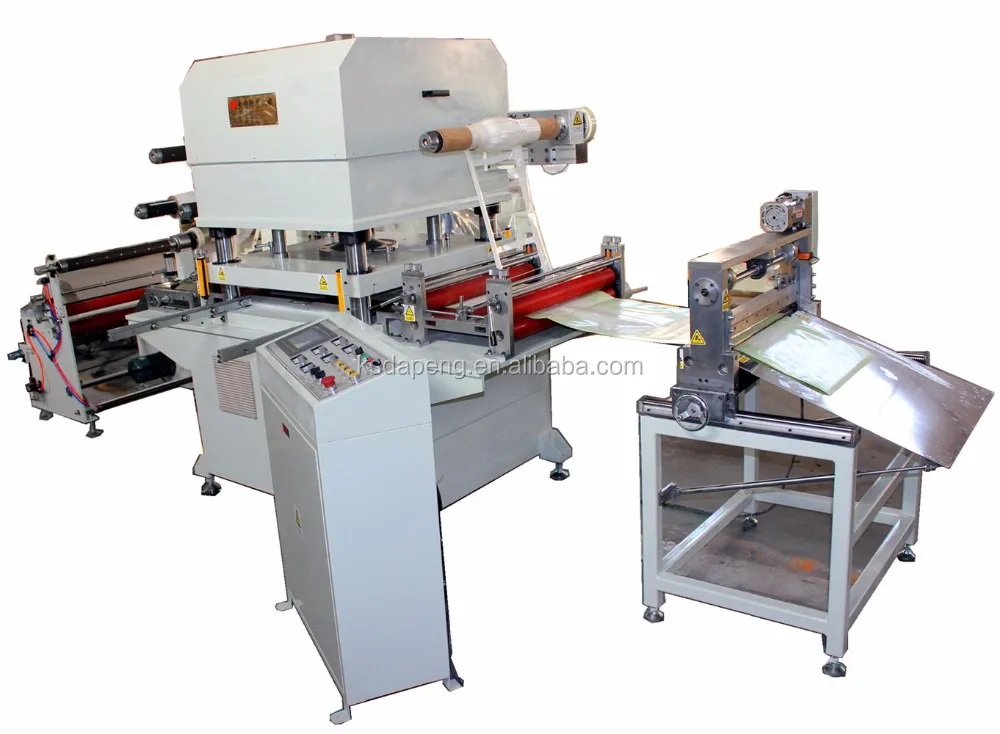

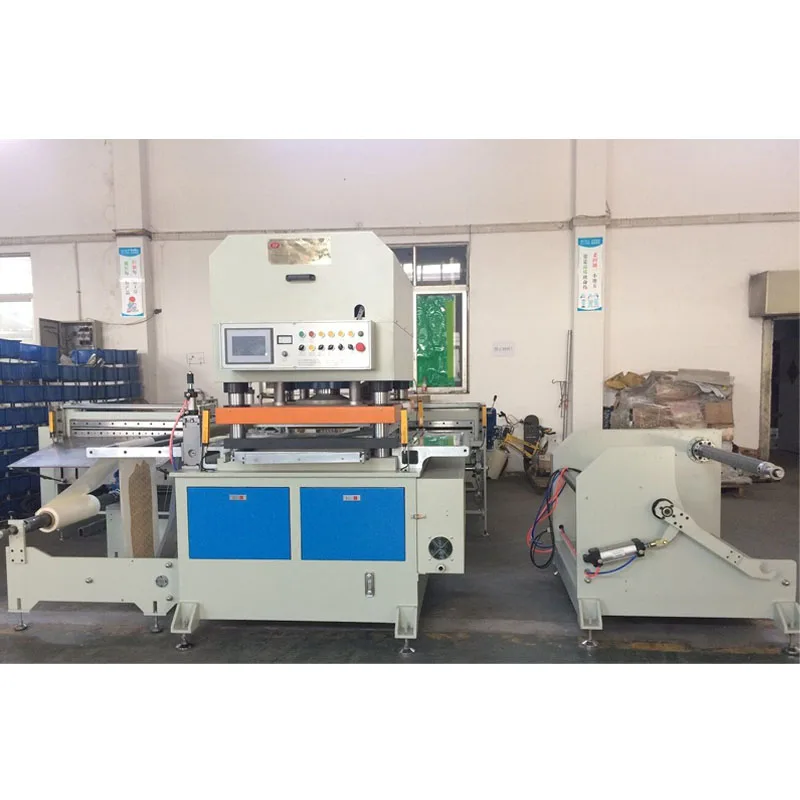

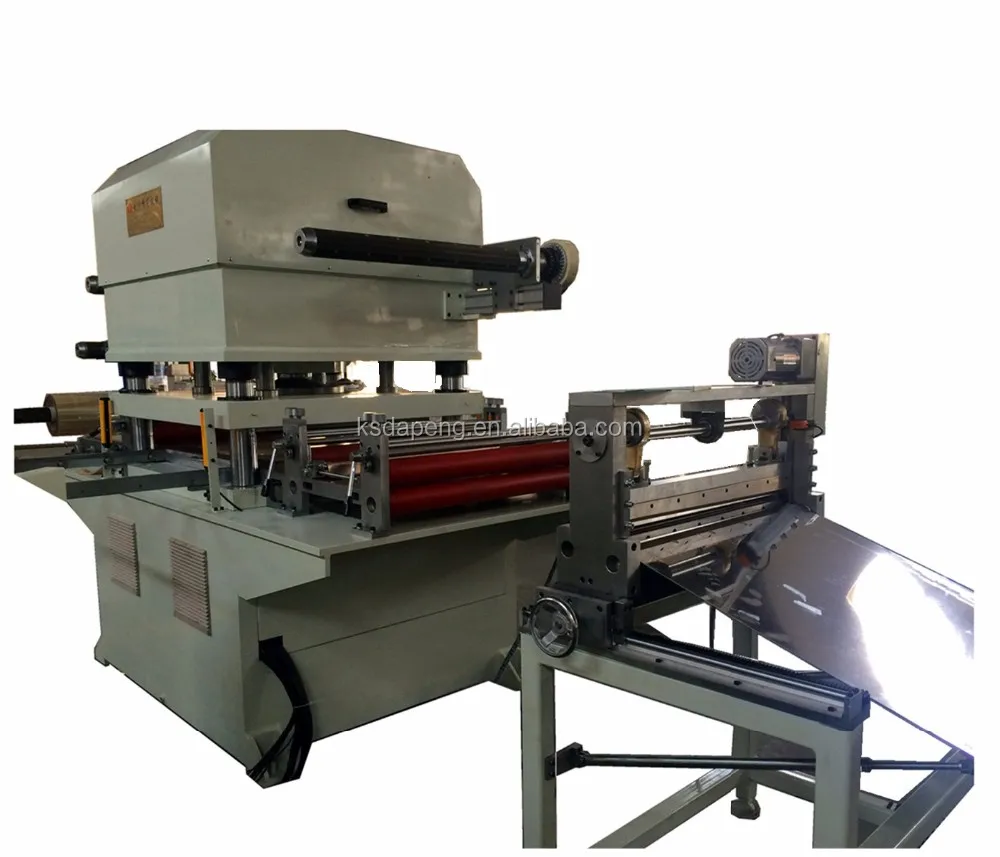

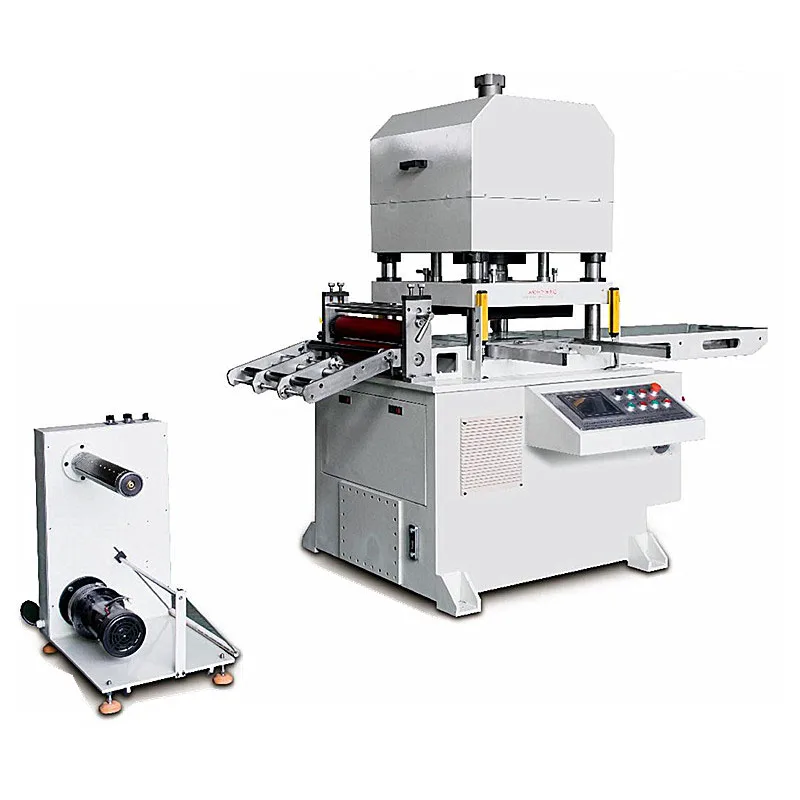

Roll Punching Die Cutting Machine

Roll Punching Die Cutting Machine

  • >= 1 Sets
    $30,000
View product details

Roll Punching Die Cutting Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Die-Cutting: Capable of high-precision die-cutting and material processing for roll-fed materials such as paper, textiles, or thin metal sheets, with a working width of 500mm.
  • Roll Material Handling: Equipped with an adjustable roller system to accommodate varying material sizes and types, enabling efficient feeding and extraction of processed outputs.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a corrosion-resistant metal body, ensure durability in harsh industrial environments. ~20% more durable than plastic-bodied models*.

  • 2. Programmable Digital Control Panel

    • With a programmable digital control panel featuring multi-program presets, automate complex cutting tasks. Reduce setup time by up to 40% compared to manual models*.

  • 3. Wide 500mm Working Capacity

    • With a 500mm working width, process large-scale materials efficiently. ~30% wider capacity than standard 380mm models*.

  • 4. Versatile Material Handling System

    • With adjustable rollers and roll material handling capabilities, adapt to diverse industries like paper, textiles, and metal processing. Ideal for both commercial and industrial applications requiring precision and scalability.

  • 5. ISO-Compliant Precision Engineering

    • With ISO 9001-certified precision engineering, ensure consistent accuracy and reliability. Meets global industrial safety and quality standards.

Product details

Roll Punching Die Cutting Machine

The Roll Punching Die Cutting Machine is a high-precision industrial tool designed for automated material processing. With a robust metal frame, programmable control panel, and adjustable roller system, it ensures accuracy and flexibility for cutting, punching, or shaping materials like paper, textiles, or thin metals.

Technical specifications

FeatureSpecificationBenefit
Working Width500mmProcesses large-scale materials efficiently
Voltage380VHigh-power operation for consistent performance
Precision ControlDigital programmable interfaceCustomizable cutting patterns and automation
Roller SystemAdjustable spacingHandles materials of varying thicknesses
Material HandlingRoll-fed input/outputStreamlined processing of continuous sheets
Warranty1 yearGuaranteed reliability and support

Customization guide

Adjustable roller spacing and programmable control parameters allow customization to meet specific material thickness requirements or production speed needs.

Get inspired

Ideal for industries requiring precision in material processing, such as electronics (circuit board cutting), packaging (die-cutting labels), or textiles (pattern shaping).

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision Level±0.2mm±0.15mm (+25%)±0.1mm (+50%)*
AutomationSemi-automatedFully automatedAI-assisted automation
Processing Speed15m/min18m/min (+20%)22m/min (+46%)
Material ThicknessUp to 3mmUp to 5mm (+66%)Up to 8mm (+166%)

Supplier's note

  1. Technical Breakthroughs:

    • Precision Control: The Pro model’s ±0.1mm accuracy triples the industry standard, enabling intricate cuts for electronics manufacturing.
    • AI Automation: The Advanced model’s full automation reduces manual oversight by 40%, boosting productivity.
    • Material Versatility: Adjustable rollers in all models allow handling of materials from thin paper to thick metal sheets.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops needing basic precision (e.g., craft paper cutting).
    • Advanced Model: Suited for medium-scale production requiring speed and automation (e.g., packaging factories).
    • Pro Model: Best for high-volume industries like automotive or aerospace, where extreme precision and durability are critical.

*Compared to industry benchmarks.

Frequently asked questions

  • Which die-cutting machine model suits small-scale paper processing operations?

  • How to clean the rollers of a roll punching die-cutting machine?

  • Can the roll punching machine handle both paper and metal sheets?

  • Does the die-cutting machine support custom automation programs?

  • What’s the voltage requirement for industrial roll punching machines?

  • How precise is the cutting on a roll punching die-cutting machine?

  • What’s the warranty period for industrial die-cutting machines?

  • Are roll punching machines suitable for continuous material processing?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
PrecisionElectronics manufacturing, PCB cuttingIndustry: ±0.5mm toleranceOur Base: ±0.3mm (ISO 2768) ▲Our Advanced: ±0.1mm ▲▲
(▲: 40% improvement over industry; ▲▲: 80% improvement)
Automation LevelHigh-volume production linesIndustry: Semi-automaticOur Base: Programmable automation ▲Our Advanced: IoT-enabled fully automated ▲▲
(▲: 50% faster setup; ▲▲: 200% efficiency boost)
Material HandlingLarge-scale paper/textile processingIndustry: 400mm working widthOur Base: 500mm (ISO 3801) ▲Our Advanced: 600mm ▲▲
(▲: 25% wider capacity; ▲▲: 50% expansion)
Energy EfficiencyCost-sensitive manufacturing facilitiesIndustry: 2.5kW/h consumptionOur Base: 2.0kW/h (IEC 60038) ▲Our Advanced: 1.8kW/h ▲▲
(▲: 20% savings; ▲▲: 30% savings)
DurabilityHarsh industrial environmentsIndustry: Aluminum frameOur Base: Steel frame ▲Our Advanced: Stainless steel ▲▲
(▲: 50% stronger; ▲▲: 100% corrosion-resistant)
Warranty/ServiceLong-term operational reliabilityIndustry: 6-month warrantyOur Base: 1 year ▲Our Advanced: 2 years ▲▲
(▲: 67% longer coverage; ▲▲: 200% extension)
