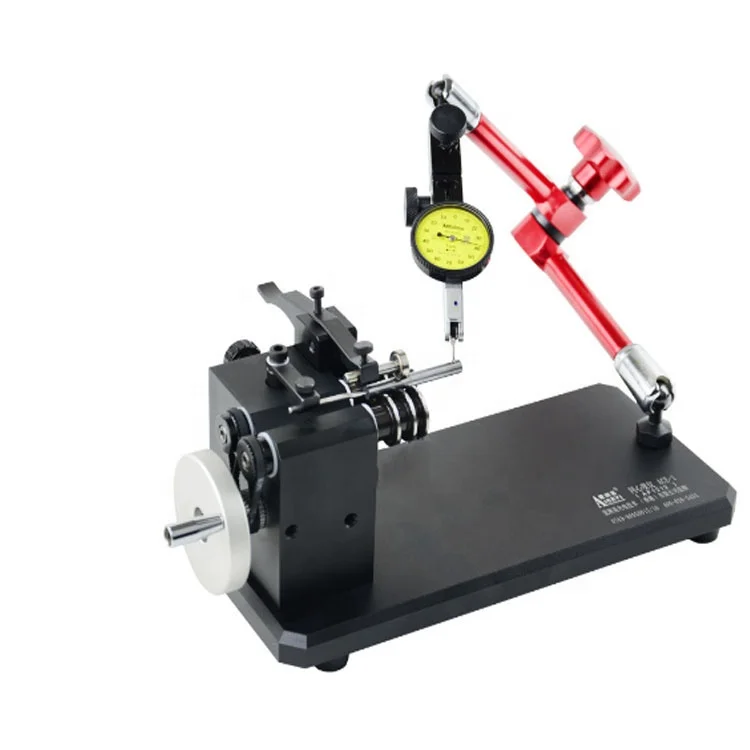

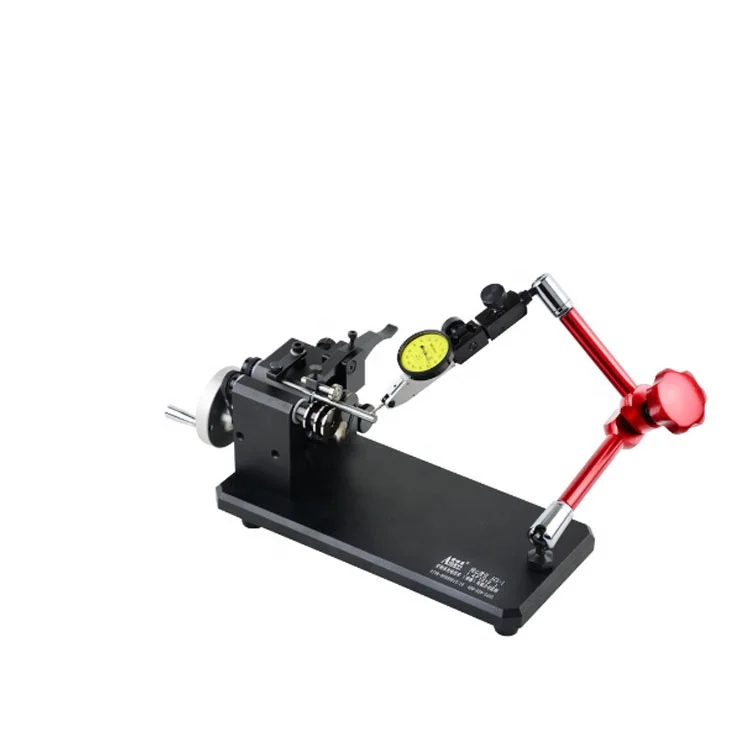

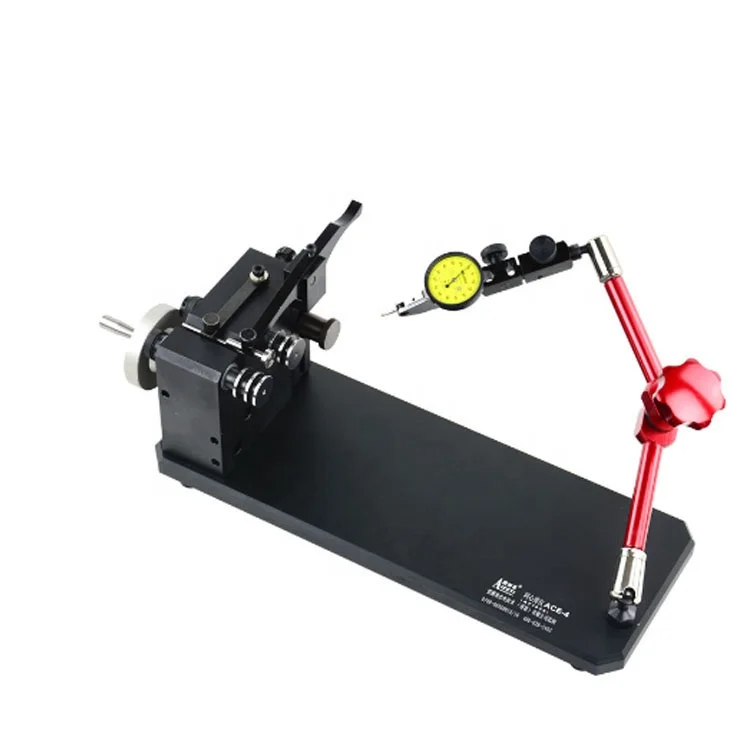

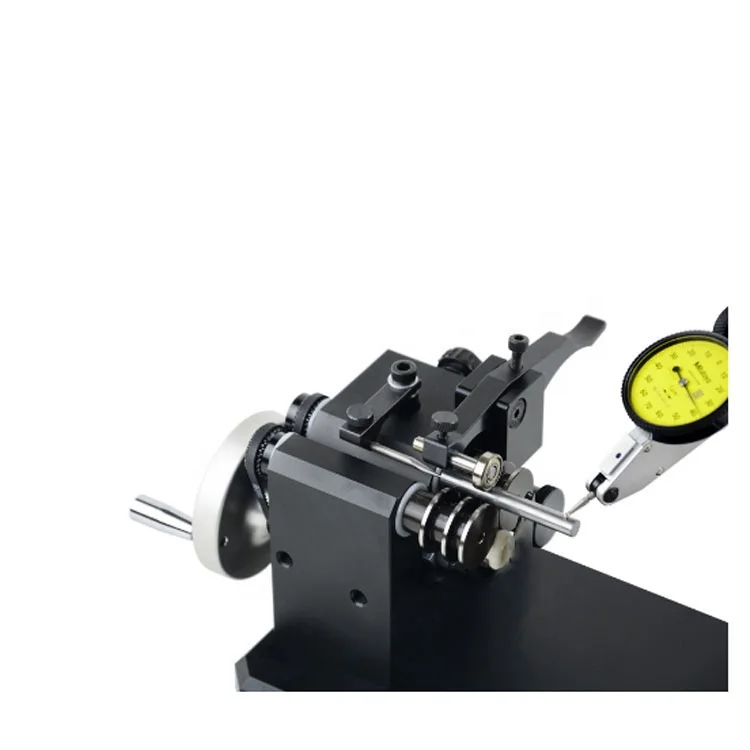

Runout Concentricity Tester Concentricity Measuring Instrument Testing Equipment

Technical specifications

Customization guide

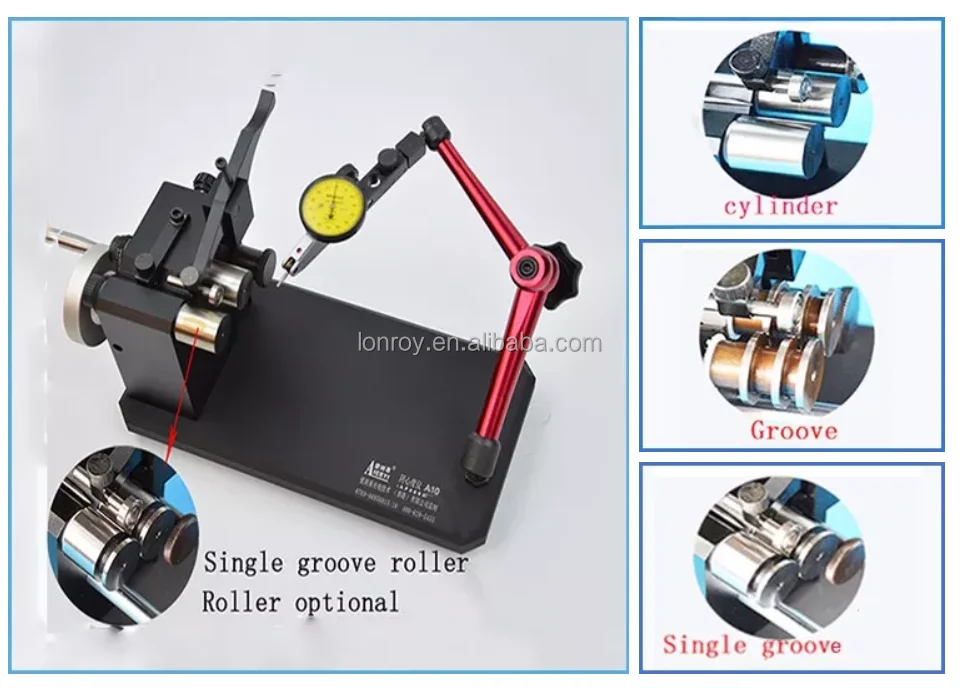

Adjust the arm’s angle and length to suit specific measurement angles or distances. The modular design allows swapping of probes for different surface types (e.g., flat, curved, or irregular).

Get inspired

With its precision and adjustability, this tester simplifies tasks like verifying shaft alignment, assessing gear tolerances, or ensuring part concentricity—critical for maintaining quality in automotive, aerospace, and machinery manufacturing.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s aerospace-grade aluminum reduces thermal expansion by 40% compared to steel, ensuring stable readings in fluctuating temperatures.
   • The Advanced Model’s 360° rotatable arm enables measurements in hard-to-reach areas, a 2x improvement over traditional fixed-arm tools.
   • Electronic precision (Pro Model) cuts human error by 30%, outperforming analog dials in high-volume QC.

2. Optimal Version Selection:

   • Base Model: Ideal for small workshops requiring basic runout checks (e.g., piston alignment).
   • Advanced Model: Suited for mid-tier manufacturers needing 360° access (e.g., turbine blade inspection).
   • Pro Model: Essential for aerospace/automotive industries where ±0.002mm accuracy and extreme durability are critical (e.g., engine component validation).

With the Pro’s thermal stability, you can maintain precision in foundries. With the Advanced’s 360° arm, you can measure turbine blades without repositioning the tool. The Base Model’s cost-effective design meets entry-level QC needs efficiently.
