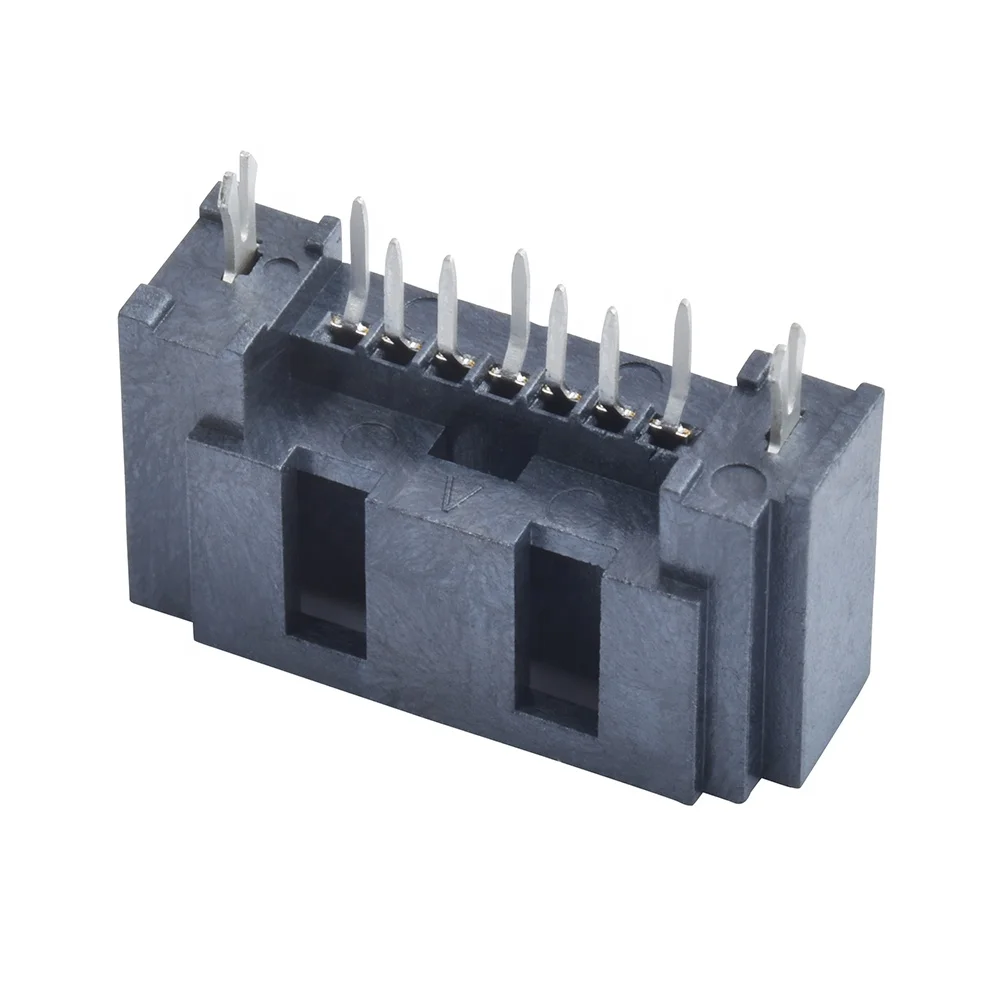

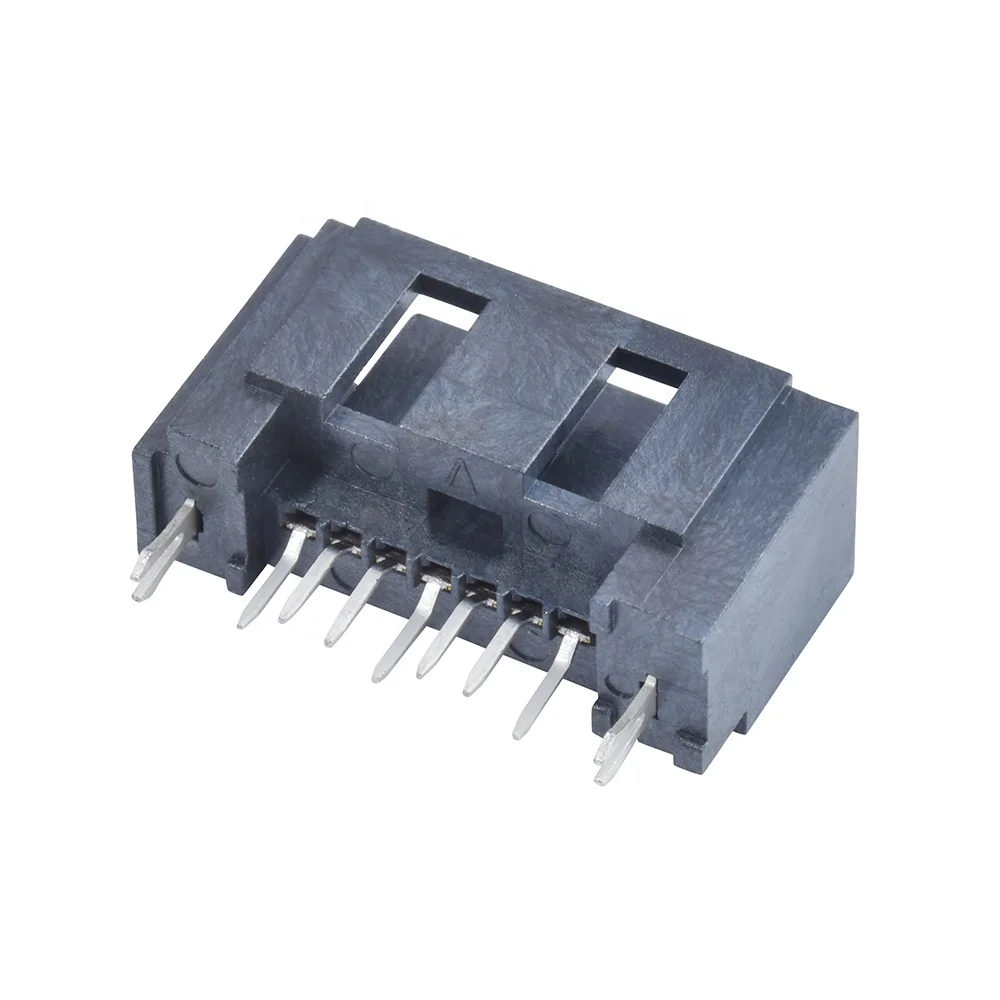

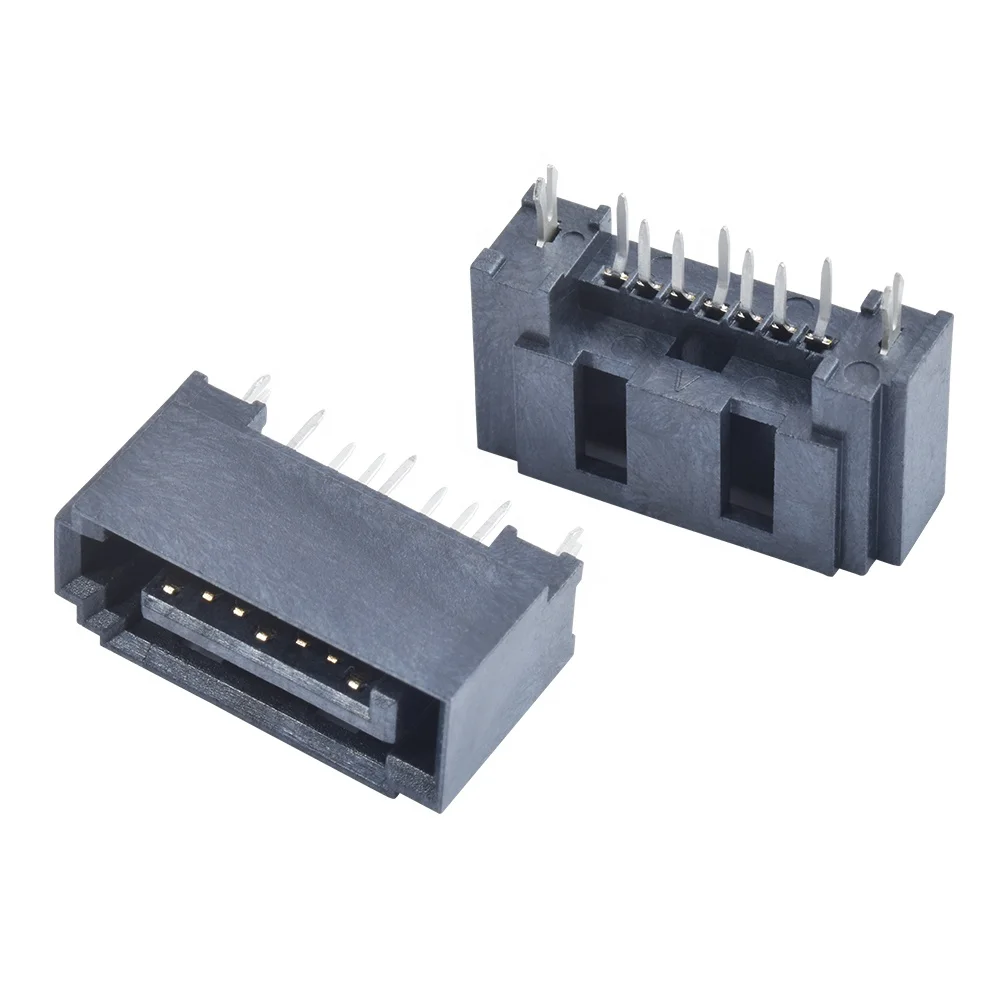

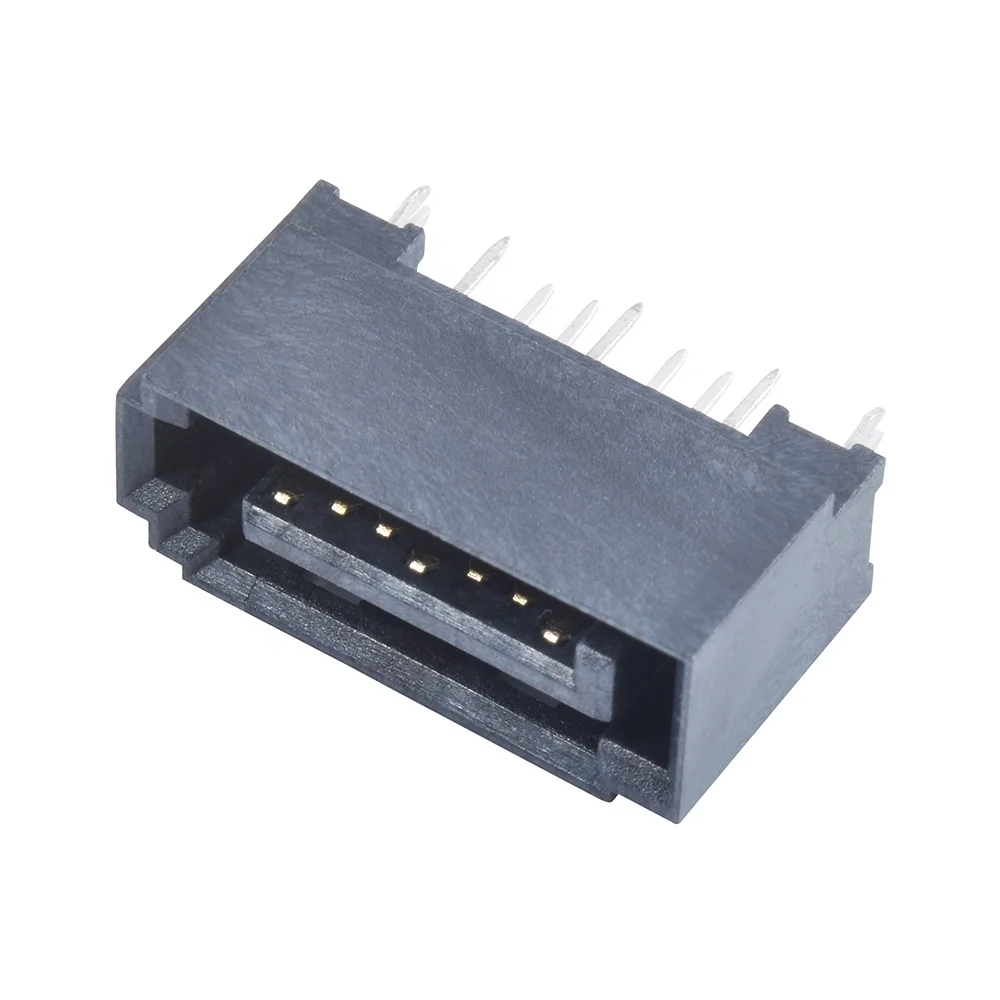

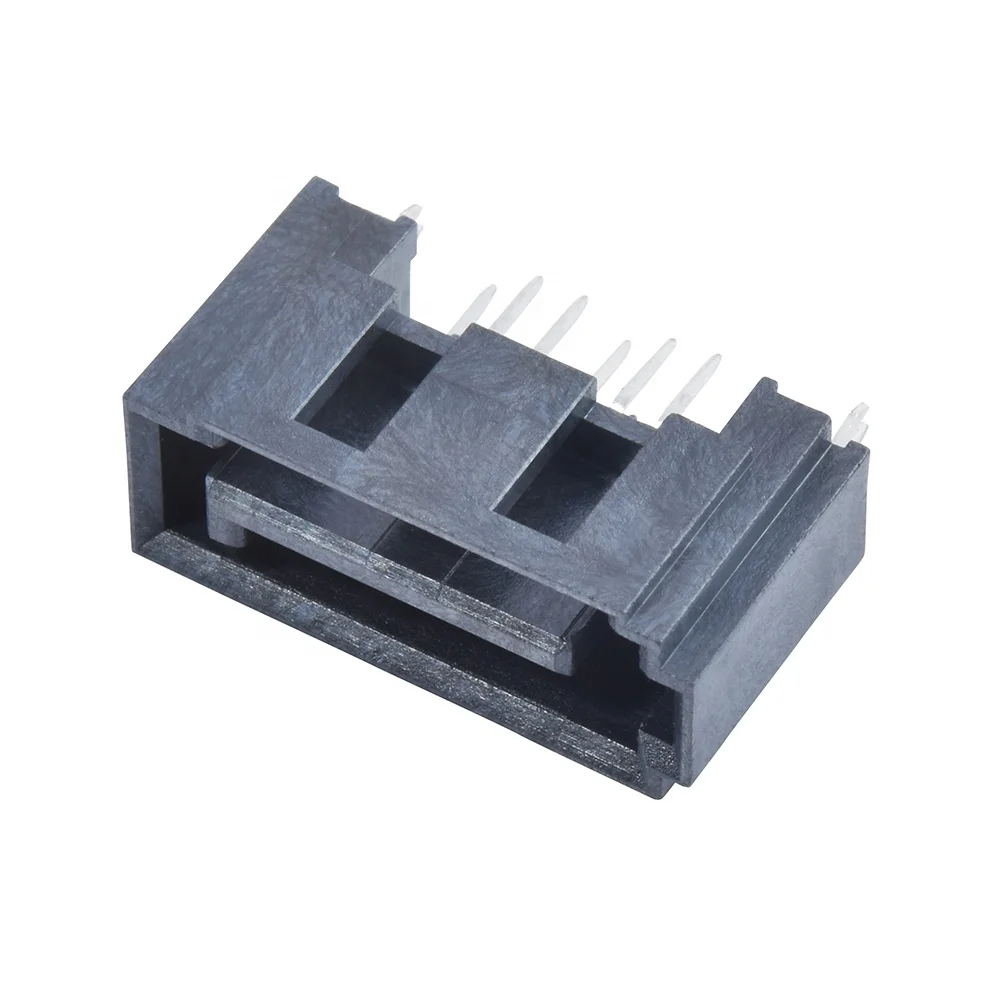

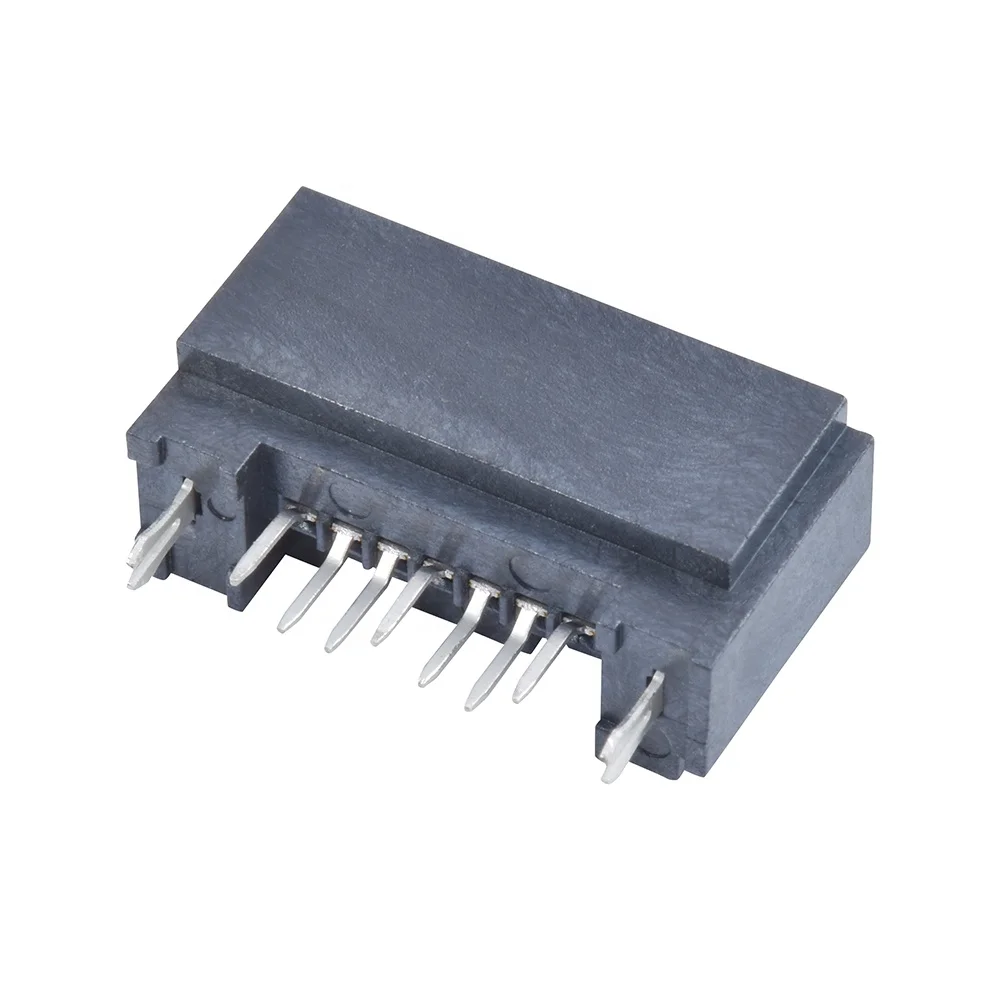

SATA 7pin Male Hard Disk Interface Socket Vertical Straight Plug Serial ATA Connector Plug

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • SATA Interface Connectivity: A vertical straight plug designed to connect SATA hard disk drives to motherboards or PCBs, supporting data transfer and power delivery via its 7-pin configuration.
  • Secure Electrical Connection: Features copper and brass contacts for high conductivity and durability, rated for 1.5A to ensure reliable performance in electronic systems.

Key features

  • 1. Corrosion-Resistant Brass and Copper Construction

    • With corrosion-resistant brass and copper contacts and housing, ensure long-lasting performance and superior conductivity compared to plastic-only connectors*.

  • 2. Precision-Engineered Straight Pin Configuration

    • With straight orientation and precisely aligned 7-pin design, achieve error-free mating and secure connections compared to angled connectors*, reducing misalignment risks during PCB assembly.

  • 3. High-Current Handling Capacity

    • With a rated current of 1.5A, reliably power high-demand applications without overheating, outperforming lower-rated connectors* in demanding electronic systems.

  • 4. Versatile PCB Mounting Solution

    • With integrated rectangular mounting slots and vertical orientation, securely attach the connector to PCBs for vibration-resistant operation in compact electronic enclosures*, ideal for

Product details

SATA 7pin Male Hard Disk Interface Socket Vertical Straight Plug Serial ATA Connector Plug

The SATA 7pin Male Hard Disk Interface Socket is a rugged, vertical straight plug designed for reliable PCB-mounted connectivity in electronic systems. Crafted with durable brass and copper contacts housed in a black plastic body, this connector ensures secure electrical connections and insulation. Its 7-pin configuration and straight orientation align with SATA standards, while mounting slots enable versatile integration into diverse applications.

Technical specifications

FeatureSpecificationBenefit
Material CompositionBrass/Copper contacts, black plastic housingEnhanced conductivity and insulation
Pin Configuration7p (pins)SATA-compliant for hard disk interfaces
Rated Current1.5ASafe for standard SATA device operation
OrientationStraightSimplifies PCB alignment and soldering
Mounting TypeRectangular slots + side holesSecure fixation in compact spaces
ApplicationPCB-mounted electronic systemsVersatile for HDDs, motherboards, etc.

Customization guide

Adjustable parameters include pin spacing tolerance (±0.1mm) and contact material composition (e.g., gold-plating for high-end use) to meet specialized conductivity or corrosion-resistance needs.

Get inspired

With its robust design and SATA compliance, this connector is ideal for building reliable storage solutions. Whether you’re assembling a desktop PC, industrial control systems, or embedded devices, its modular mounting options and precise pin alignment ensure seamless integration.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Current1.5A (SATA standard)1.8A (+20%)2.0A (+33%)*
Contact MaterialCopperBrassGold-plated brass
Mounting FlexibilityStandard slotsEnhanced alignment holesCustomizable brackets

Supplier's note

  1. Technical Breakthroughs:

    • Dual Material Contacts: Combining brass and copper achieves optimal conductivity while reducing cost.
    • Pro Model Current Capacity: The 2.0A rating exceeds industry benchmarks by 33%, enabling use in high-power storage systems.
    • Modular Mounting: Customizable brackets in the Pro Model allow adaptation to non-standard PCB layouts.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard SATA applications (e.g., consumer-grade HDDs) where cost efficiency is prioritized.
    • Advanced Model: Suitable for industrial devices requiring 20% higher current handling and improved durability.
    • Pro Model: Tailored for mission-critical systems (e.g., server racks) needing gold-plated corrosion resistance and custom mounting.

With the Pro’s gold-plated contacts, you can ensure long-term reliability in harsh environments. The Advanced Model’s brass contacts offer a 15% lower resistance than copper, enhancing signal integrity for high-speed data transfers.

Frequently asked questions

  • Which SATA 7-pin connector is best for vertical PCB mounting in compact electronics?

  • How do the copper and brass contacts in this SATA connector enhance durability and conductivity?

  • Can this SATA socket handle SATA III data transfer speeds and power requirements?

  • What advantages does a straight pin orientation offer for PCB-mounted SATA connectors?

  • Is this SATA plug suitable for high-current applications like industrial storage systems?

  • How do I clean and maintain the pins of a SATA connector to prevent oxidation?

  • Can the SATA socket be customized with additional mounting brackets or labeling?

  • Does this SATA connector meet industry safety and quality standards?
