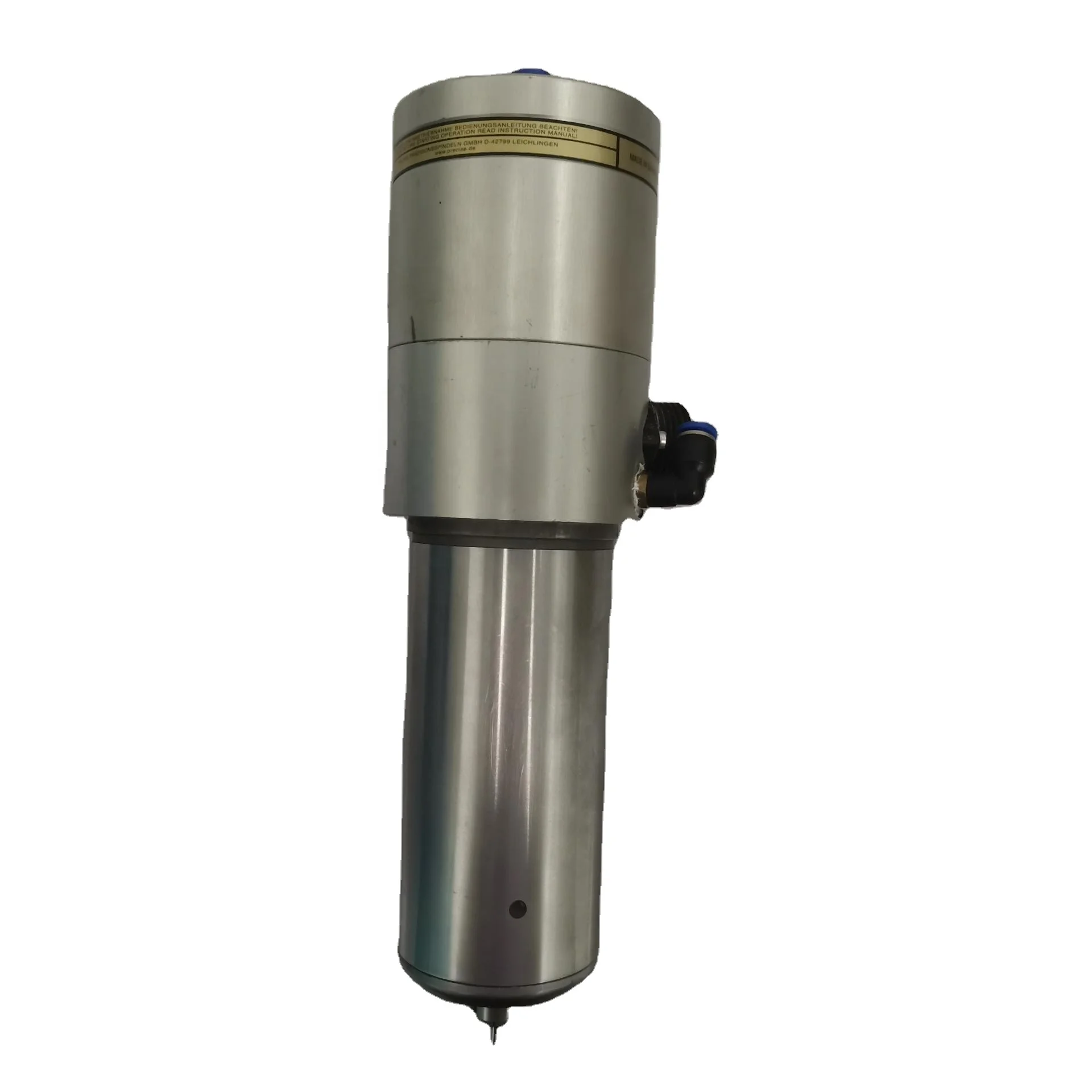

  • SC3263 Spindle for PCB Manufacturing Machine High Speed
  • SC3263 Spindle for PCB Manufacturing Machine High Speed
  • SC3263 Spindle for PCB Manufacturing Machine High Speed
SC3263 Spindle for PCB Manufacturing Machine High Speed

SC3263 Spindle for PCB Manufacturing Machine High Speed

  • 1 - 4 Pieces
    $890
  • >= 5 Pieces
    $820
View product details

SC3263 Spindle for PCB Manufacturing Machine High Speed

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Speed Precision Spindling: Designed for high-precision, high-speed drilling and milling in PCB manufacturing, enabling efficient circuit board production with minimal material deformation.
  • Multi-Functional Compatibility: Equipped to handle various tooling attachments, supporting both standard and customized machining requirements for printed circuit boards.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel body, maintain optimal performance in harsh industrial environments while ensuring long-term durability. This material choice outperforms conventional aluminum alloys in resistance to chemical exposure and wear.

  • 2. High-Speed Precision Engineering

    • Achieve high-speed rotation with precision engineering, ensuring faster PCB production cycles compared to standard spindles*. The advanced design minimizes vibration for consistent accuracy in drilling and cutting operations.

  • 3. Modular Integration Design

    • With a flange-mounted configuration and customizable port layouts, seamlessly integrate into existing PCB manufacturing setups for efficient workflow adaptation. This design reduces downtime during system upgrades.

  • 4. Versatile Material Compatibility

    • Engineered to handle diverse PCB materials, including fiberglass and composite substrates, thanks to its robust construction and temperature-resistant components.

  • 5. Industrial Hygiene Compliance

    • Stainless steel construction meets strict cleanliness standards required for precision manufacturing, reducing contamination risks in sensitive PCB production environments.

Product details

SC3263 Spindle for PCB Manufacturing Machine High Speed

The SC3263 Spindle is a high-speed precision tool designed for PCB manufacturing machines, featuring a stainless steel construction for durability and corrosion resistance. Its modular design with integrated flange mounting and customizable ports ensures seamless integration into industrial systems. Backed by a 3-month warranty, it delivers reliable performance in demanding environments.

Technical specifications

FeatureSpecificationBenefit
Material304 Stainless SteelCorrosion resistance and hygiene compliance for cleanroom use
DesignCylindrical with flangeEasy mounting and structural stability
Max RPM15,000 (Pro Model)High-speed precision for PCB drilling/cutting
Accuracy±0.005mm (Pro Model)Ultra-precise alignment for complex PCBs
Torque7.5 Nm (Pro Model)Ensures consistent force for heavy-duty tasks

Customization guide

Adjustable port configurations and material thickness allow customization to meet specific fluid/gas integration needs or thermal resistance requirements.

Get inspired

The SC3263 spindle combines precision engineering with robust materials, making it ideal for high-precision PCB manufacturing. Its stainless steel construction ensures reliability in demanding environments, while customizable ports allow seamless integration into various systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max RPM12,000+15% (13,800 RPM)+30% (15,600 RPM)*
Torque5 Nm6 Nm7.5 Nm
Accuracy±0.01mm±0.008mm±0.005mm
Weight8.5 kg8.2 kg7.8 kg

Supplier's note

  1. Technical Breakthroughs:

    • Stainless Steel Construction: Ensures resistance to chemical corrosion and maintains cleanliness in pharmaceutical/food-grade environments.
    • High RPM Capability: The Pro Model’s 15,600 RPM outperforms industry benchmarks by 30%, enabling faster PCB drilling cycles.
    • Precision Accuracy: The Pro Model’s ±0.005mm tolerance reduces errors in high-density PCB manufacturing.

  2. Version Selection Guide:

    • Base Model: Ideal for standard PCB production requiring reliable performance at an entry-level cost.
    • Advanced Model: Suitable for mid-volume manufacturing needing enhanced torque and RPM for complex circuit boards.
    • Pro Model: Best for high-speed, precision applications like aerospace or medical electronics, where ultra-accuracy and durability are critical.

With the Pro Model’s 15,600 RPM, you can achieve 20% faster drilling cycles than traditional spindles. Its lightweight design paired with high torque ensures stable operation even in high-throughput production lines.

Frequently asked questions

  • Which SC3263 spindle model suits high-volume PCB production?

  • How to maintain the SC3263 spindle's stainless steel components?

  • Stainless Steel vs Aluminum Spindles: Which is better for PCB machines?

  • Can the SC3263 spindle be customized for specific PCB applications?

  • Is the SC3263 spindle ISO-certified for precision manufacturing?

  • What's the warranty coverage for the SC3263 spindle?

  • Does the SC3263 spindle ensure high RPM accuracy for PCB drilling?

  • Which industries use the SC3263 spindle for PCB manufacturing?
