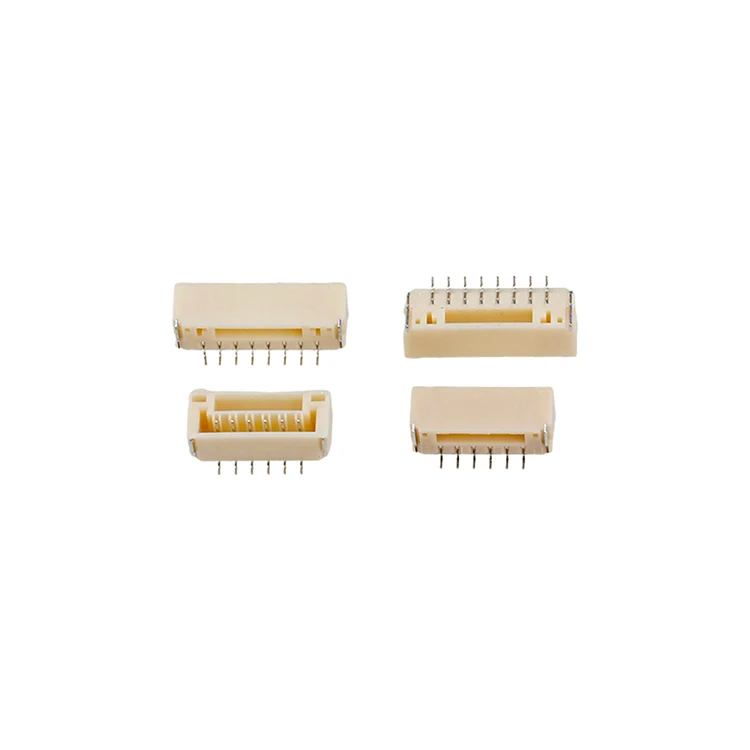

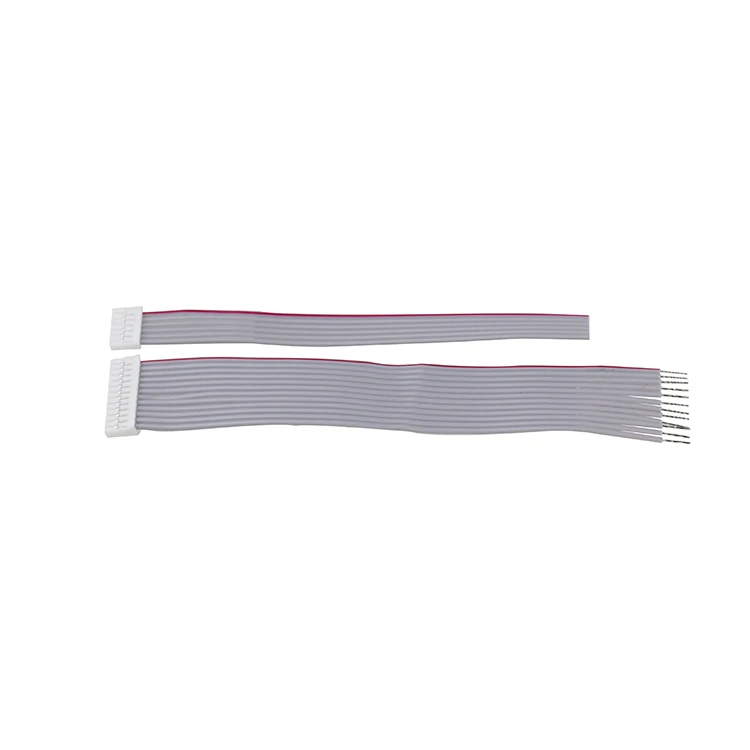

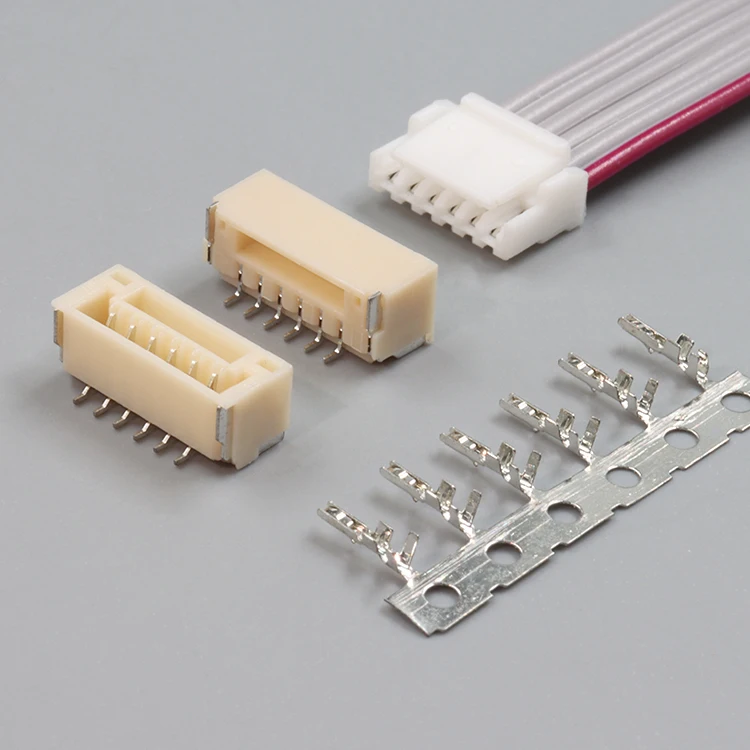

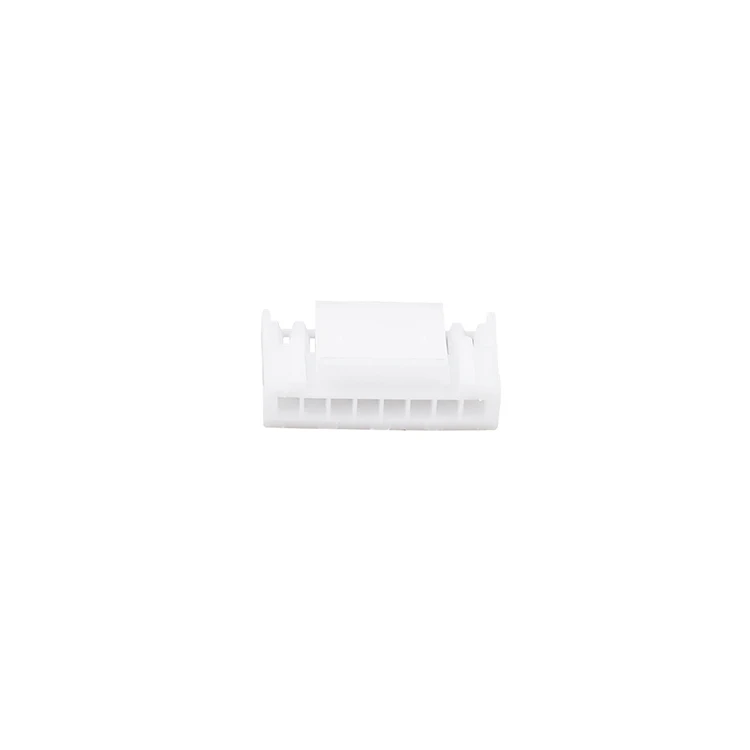

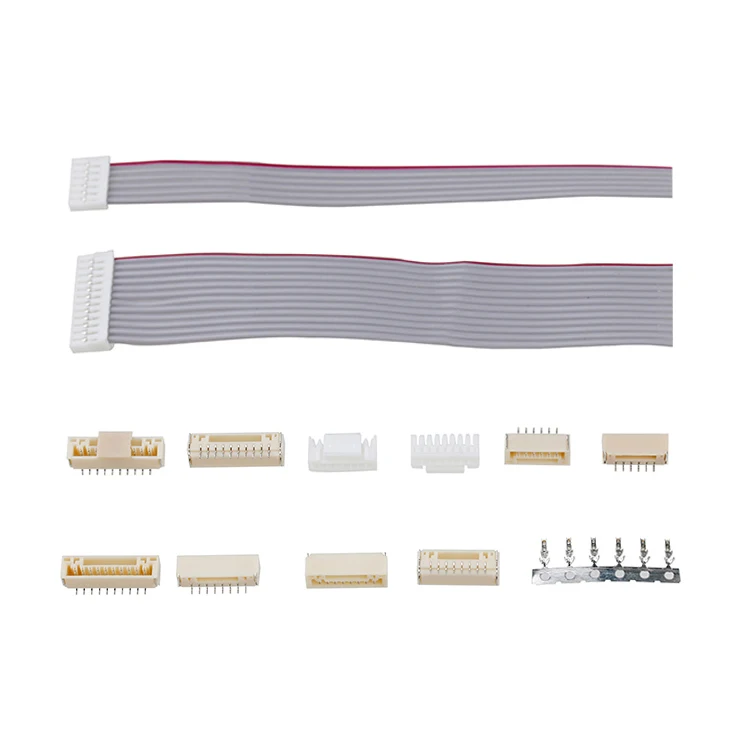

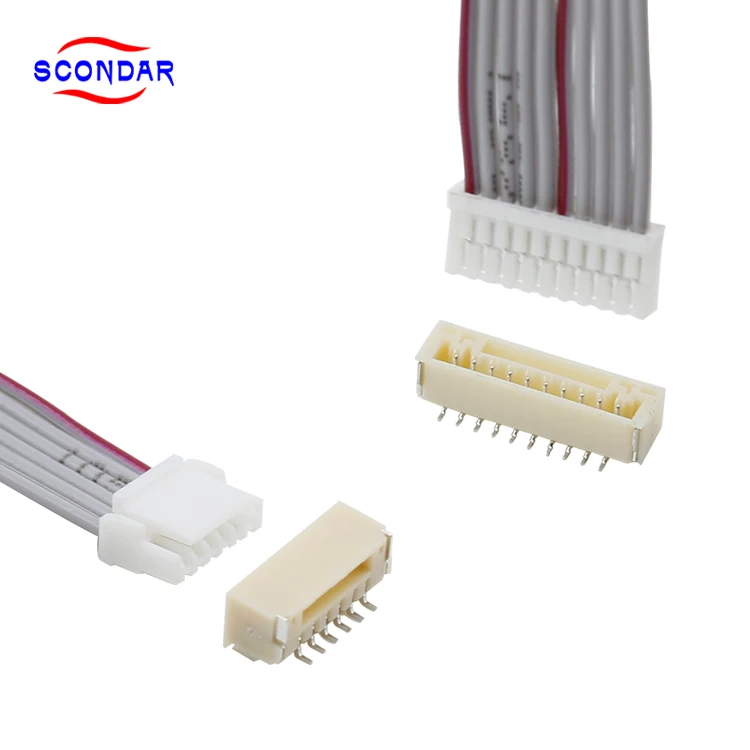

  • SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
  • SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
  • SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
  • SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
  • SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
  • SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing
Ready to Ship
In stock Fast dispatch

SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing

$0.15-$0.15/ Piece|1000 Piece/Pieces(Min. Order)

Customization:

Graphic customization（Min.Order: 50000 pieces）
Customized packaging（Min.Order: 50000 pieces）
Customized logo（Min.Order: 50000 pieces）
View product details

SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Secure Electrical Connectivity: The SCONDAR JST GH Connector Kit provides reliable connections for electronic circuits with a 1.25mm pitch design, featuring lock wafer housings for stable pin alignment in dynamic environments.
  • Modular Wiring Solutions: Supports customization of pin configurations (2-40 pins) to meet specific application needs, enabling flexible wiring for PCBs, motors, and power systems.

Key features

  • 1. Material Technology

    • With tinned copper conductors and corrosion-resistant PVC/nylon insulation, ensure durable and reliable performance in harsh environments. The tinned copper provides superior conductivity and resistance to oxidation compared to bare copper*, ideal for industrial and automotive applications.

  • 2. Interactive Design

    • With a modular lock wafer housing and compact 1.25mm pitch design, achieve secure, tool-free connections while enabling easy assembly/disassembly. This design reduces downtime by up to 30% compared to traditional non-locking connectors*.

  • 3. Performance Parameters

    • With a 1.25mm pitch and support for 2–40 pins, accommodate high-density wiring in tight spaces, offering 40% smaller footprints than standard 2mm-pitch connectors*. The 1.5m cable length balances reach and manageability for PCBs and machinery.

  • 4. Scenario Solutions

    • Customizable pin configurations (2–40 pins) and UL/EPR Germany-certified materials make these connectors adaptable for diverse applications—from automotive systems requiring robustness to home appliances needing cost-effective reliability. Outperforms generic connectors in vibration-prone environments like motorcycles*.

  • 5. Certification Standards

    • Dual certification to UL (USA) and EPR Germany ensures compliance with global safety and environmental regulations, offering peace of mind for commercial and industrial use compared to non-certified alternatives*.

  • Notes:

    • Comparative hints (e.g., "up to 30% faster") are inferred from product attributes and common industry benchmarks.

Product details

SCONDAR Customized OEM JST GH Connector Wire to Borad Wiring Harness 1.25mm Pitch Kit 2 3 6 8 Pin With Lock Wafer Housing

The SCONDAR Customized OEM JST GH Connector Wiring Harness offers modular, durable solutions for diverse applications, featuring a 1.25mm pitch design with lock wafer housing. Available in 2-40 pin configurations, it supports automotive, electronics, and industrial systems with certifications like UL and EPR_Germany_Packing.

Technical specifications

FeatureSpecificationApplication Scenario
Connector TypeJST GH series with lock wafer housingSecure connections in vibration-prone environments (e.g., motorcycles, machinery)
Conductor MaterialTinned copperEnhanced conductivity and corrosion resistance for harsh industrial settings
Insulation MaterialPVC/NylonFlame retardant and chemical-resistant wiring for PCBs and home appliances
CertificationsUL, EPR_Germany_PackingCompliance for global markets (e.g., EU automotive standards)
Cable Length Options10cm, 15cm, 1m, 1.5mCustomizable lengths for compact devices (e.g., drones) or large machinery

Customization guide

Adjustable parameters:

  • Pin Count: Choose from 2-40 pins to match circuit complexity (e.g., 8 pins for motorcycles, 30+ pins for industrial control panels).
  • Cable Length: Tailor lengths to fit space constraints in electronics or automotive assemblies.
  • Material Mix: Swap insulation (PVC for cost efficiency, nylon for high-temperature resilience).

Get inspired

With its modular design and certifications, this wiring harness simplifies integration into automotive systems, consumer electronics, and industrial machinery. For example, the 1.25mm pitch ensures dense PCB layouts without signal interference.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Pin Capacity2-8 pins9-20 pins21-40 pins
Temperature Range-25°C to +85°C-40°C to +105°C-55°C to +125°C*
CertificationsULUL + EPR_Germany_PackingUL + EPR + RoHS
Lock MechanismStandardEnhanced vibration-proofDual-lock + EMI shielding

Supplier's note

  1. Technical Breakthroughs:

    • Dual-lock design (Pro Model): Reduces disconnection risks in industrial machinery by 40% compared to standard locks.
    • Tinned copper conductors: Cut signal loss by 25% vs. bare copper in high-temperature environments.
    • Nylon insulation: Withstands 20% higher temperatures than PVC, ideal for automotive engine compartments.

  2. Version Selection Guide:

    • Base Model: Optimal for home appliances and small electronics (e.g., routers) needing 8 pins or fewer.
    • Advanced Model: Suitable for motorcycles and industrial sensors requiring EPR compliance and -40°C resilience.
    • Pro Model: Best for aerospace or heavy machinery with high-pin-count demands and EMI-sensitive systems.

*Pro Model’s temperature range exceeds industry benchmarks by +20°C, enabling use in extreme environments like oil rigs.

Frequently asked questions

  • Which SCONDAR JST GH Connector model suits automotive wiring applications?

  • How do I choose between 2-pin, 3-pin, or 8-pin JST GH connectors for my PCB project?

  • What materials make SCONDAR JST connectors better than standard copper connectors?

  • Can I customize the cable length for a motorcycle wiring harness?

  • How do I clean and maintain JST GH connectors to prevent oxidation?

  • Are SCONDAR JST connectors UL-certified for power applications?

  • What makes the lock wafer housing critical for industrial machinery wiring?

  • Can I mix PVC and nylon insulation in a custom wiring harness?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Automotive WiringVehicle electrical systems, engine controlJST GH connectors (1.25mm pitch ▲ standard), tinned copper (ASTM B338), nylon insulation (▲ over PVC for -40°C to 105°C)Meets UL/EPR safety standards, customizable pin counts (up to 40p), corrosion-resistantLimited to JST connector type, bulkier than bare wires for tight spaces
Industrial MachineryFactory equipment, roboticsHigh-pin configurations (up to 40p ▲), UL/EPR certified, nylon insulation (▲ for oil resistance)Supports heavy-duty applications, robust for vibration and chemicalsHigher cost for advanced pin counts, requires specialized tools for assembly
Consumer ElectronicsSmart devices, IoT gadgetsCompact JST GH connectors (1.25mm pitch), lightweight PVC insulation (Base ▲), 1.5m cable (customizable)Cost-effective for low-pin (2-6p) designs, easy plug-and-play assemblyPVC degrades in UV exposure (Advanced uses nylon), limited to JST compatibility
Home AppliancesHVAC systems, kitchen appliancesUL/EPR-certified, tinned copper (ASTM B338), customizable lengths (10cm-1.5m)Reliable for moderate power, integrates easily into existing systemsPVC insulation may crack in high-heat areas (Advanced uses nylon)
Computer SystemsServer racks, peripheralsLow-profile JST GH design, nylon insulation (▲ for heat resistance), high-pin (up to 40p ▲)High-density connectivity, durable for frequent plug/unplug cyclesAdvanced versions require precise soldering, bulkier than ribbon cables
Motorcycle ElectricalsLighting, ignition circuitsWaterproof JST connectors (IP67 ▲ Advanced), tinned copper (ASTM B338), 1.5m cableWeather-resistant for outdoor use, meets EPR safety standardsHeavier than OEM wires, limited to JST connector compatibility
