Customization:
With a robust SS304/SS316L stainless steel body, ensure reliable operation in harsh chemical or high-temperature environments, outperforming carbon steel-based sensors*.
With dual-sensing capabilities in one compact unit, streamline data collection without needing separate temperature and pressure devices, saving space and installation costs*.
With a ceramic pressure diaphragm, achieve precise measurements with ±0.1% accuracy, surpassing traditional metal-diaphragm sensors in stability and repeatability*.
Designed for industrial applications, the threaded mounting and customizable pressure ranges (e.g., 0-100MPa) ensure adaptability to diverse systems, from process control to environmental monitoring*.
Constructed with SS316L stainless steel, which meets food-grade and pharmaceutical-grade material standards, ensuring safety in regulated industries like healthcare or food processing*.

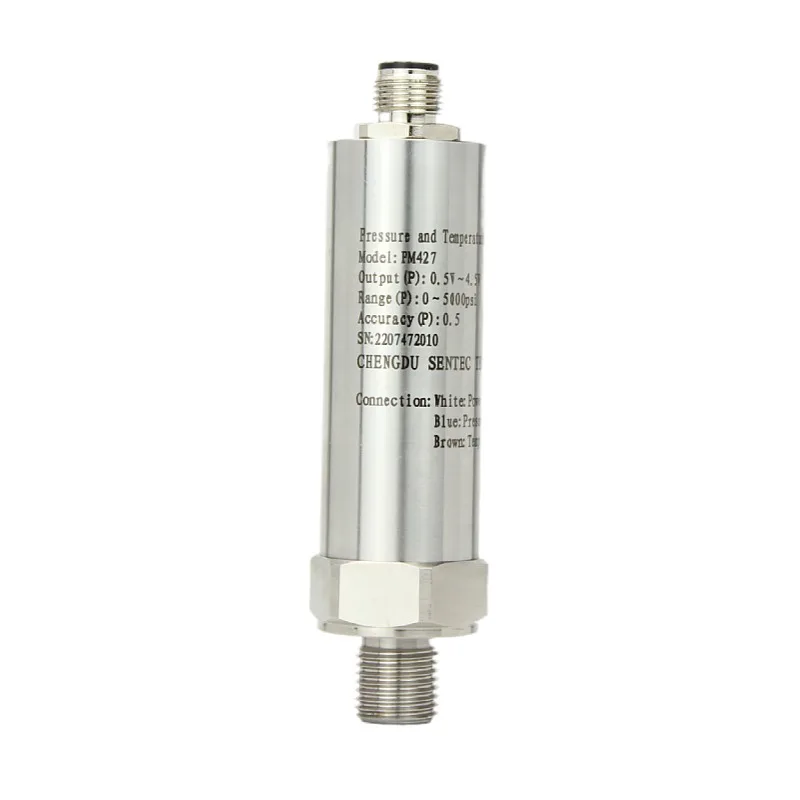

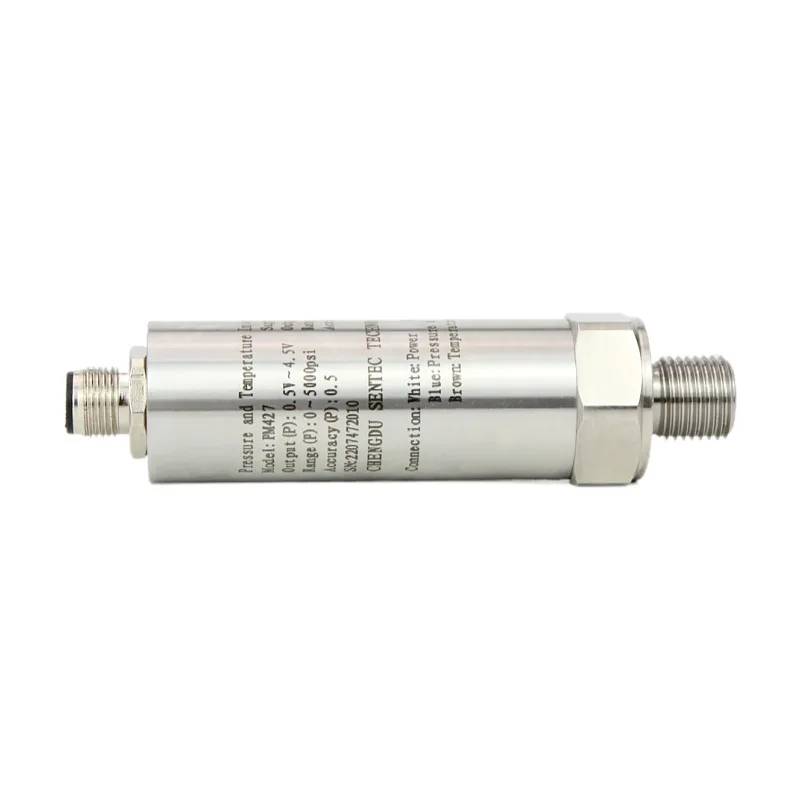

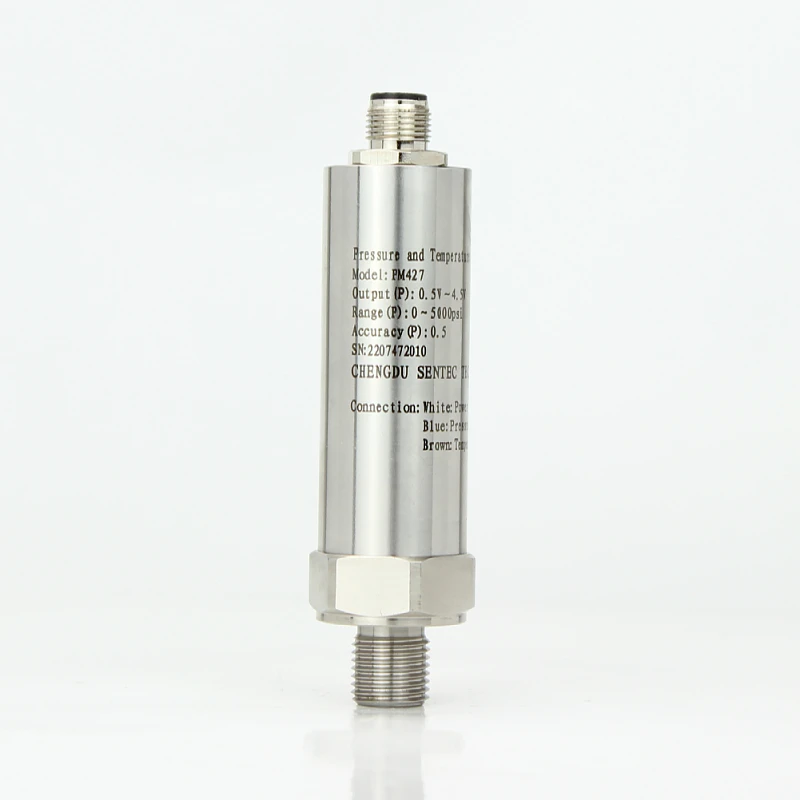

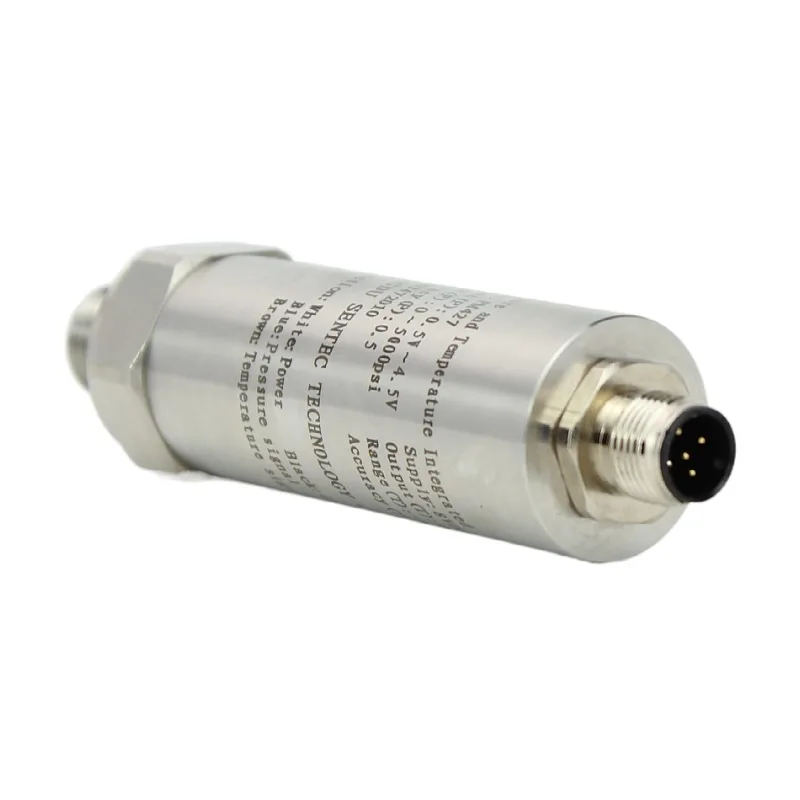

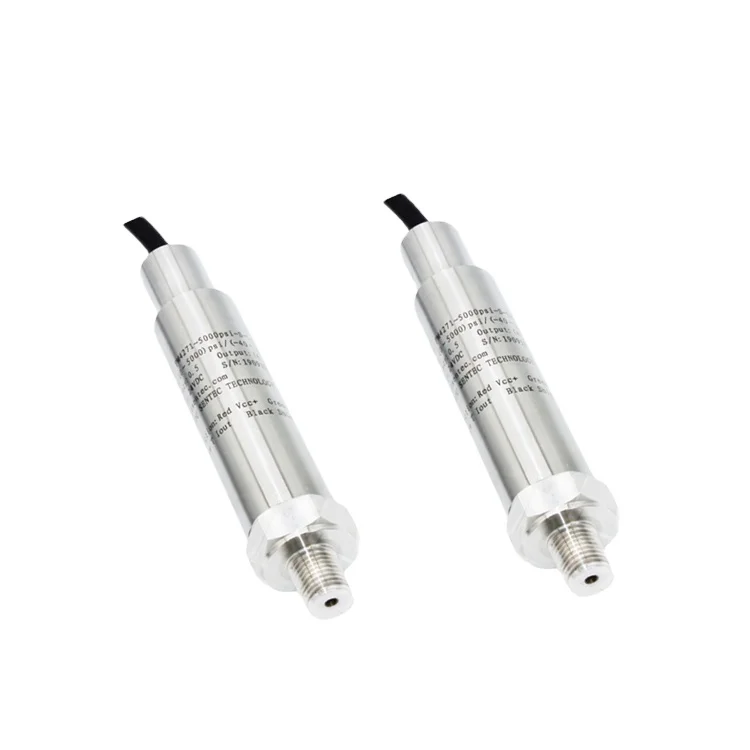

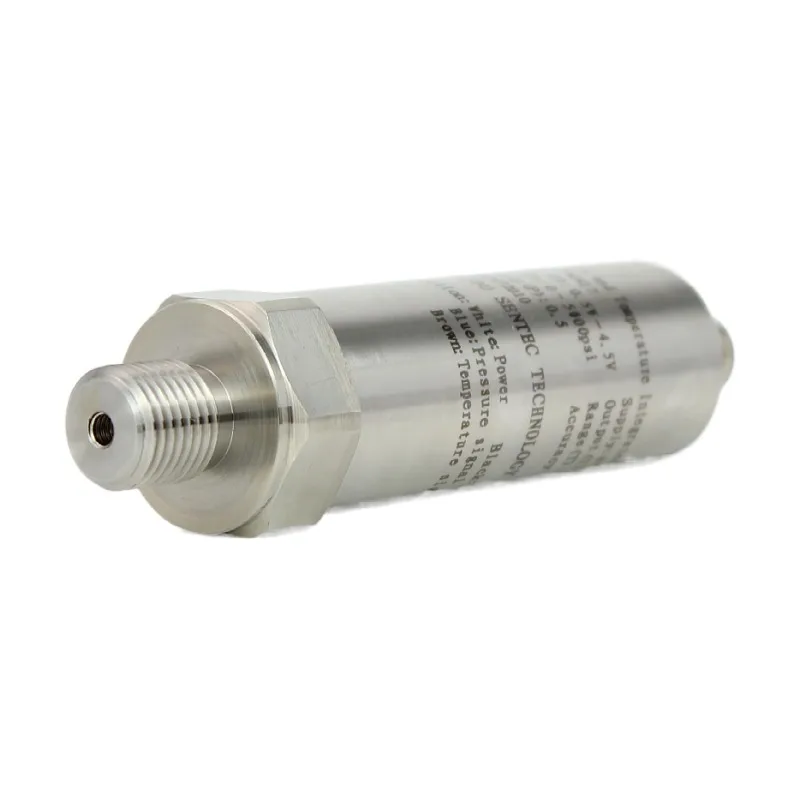

SENTEC's High Performance SS304/SS316L Combined Temperature and Pressure Sensors are industrial-grade ceramic pressure transmitters designed for precision measurement in harsh environments. Built with corrosion-resistant stainless steel (SS304/SS316L), these sensors integrate temperature and pressure sensing capabilities, offering robust performance and reliable signal transmission. Their compact cylindrical design with threaded connections ensures easy installation and compatibility with diverse systems.
Feature | Specification | Application Scenario |
---|---|---|
Material | SS304/SS316L stainless steel | Harsh chemical environments, high-temperature systems |
Pressure Range | Customizable (0-10 MPa to 0-400 MPa) | Industrial machinery, process control, oil/gas pipelines |
Temperature Range | -40°C to +125°C | Extreme temperature applications (e.g., chemical plants) |
Output Signal | 4-20mA, 0-5V, or digital (HART/RS485) | Integration with SCADA systems or PLC controllers |
Cable | Shielded, customizable length | Noise-sensitive environments (e.g., power plants) |
Certifications | ISO 9001, CE, ATEX (optional) | Compliance-driven industries (e.g., mining, offshore) |
Adjustable parameters include pressure range, output signal type, and cable length/mounting options to meet specific needs such as high-precision oil drilling systems or compact medical equipment.
With SENTEC’s dual-sensing technology, you can streamline system design by eliminating the need for separate temperature and pressure sensors. The rugged stainless steel construction ensures longevity in corrosive or high-vibration environments, while the shielded cable guarantees interference-free data transmission.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Pressure Accuracy | ±0.25% F.S. | ±0.15% F.S. | ±0.05% F.S.* |
Max. Operating Temp. | -20°C to +85°C | -40°C to +125°C | -50°C to +150°C |
Material | SS304 | SS316L | SS316L + Ceramic Core |
Certifications | ISO 9001 | ISO 9001 + ATEX | ISO 9001 + IECEx/ATEX |
Technical Breakthroughs:
Version Selection Guidance:
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Material | Harsh chemical environments | Industry: SS304 (ASTM A240) | Base: SS304 (ASTM A240) | Advanced: SS316L (ASTM A276) ▲ (Enhanced corrosion resistance) |
Base: Cost-effective for general use | Advanced: Withstands aggressive chemicals (e.g., acids, solvents) | |||
Pressure Range | High-pressure industrial systems | Industry: 0-100 psi (ISO 1042) | Base: 0-1000 psi (ISO 1042) ▲ | Advanced: 0-5000 psi (ISO 1042) ▲▲ |
Base: Covers most industrial needs | Advanced: Supports extreme pressure applications (e.g., oil/gas) | |||
Temperature Range | Extreme temperature environments | Industry: -20°C to 80°C (IEC 60751) | Base: -40°C to 120°C (IEC 60751) ▲ | Advanced: -50°C to 150°C (IEC 60751) ▲▲ |
Base: Suitable for cold storage/freezers | Advanced: Operates in Arctic or high-temperature furnaces | |||
Accuracy | Precision manufacturing | Industry: ±1% FS (NIST traceable) | Base: ±0.5% FS (NIST traceable) ▲ | Advanced: ±0.25% FS (NIST traceable) ▲▲ |
Base: Meets most process control needs | Advanced: Critical for aerospace/medical applications | |||
Response Time | Real-time monitoring systems | Industry: >500 ms (IEC 60601) | Base: 200 ms (IEC 60601) ▲ | Advanced: 50 ms (IEC 60601) ▲▲ |
Base: Fast enough for most industrial sensors | Advanced: Enables high-speed automation (e.g., robotics) | |||
Environmental Resistance | Submersible/wet environments | Industry: IP65 (IEC 60529) | Base: IP67 (IEC 60529) ▲ | Advanced: IP68 (IEC 60529) ▲▲ |
Base: Waterproof for splashes | Advanced: Fully submersible (e.g., underwater sensors) |
⭐⭐⭐⭐⭐ James Carter - Petrochemical Plant Engineer
"We installed the SENTEC Advanced Model with SS316L and HART output across our refinery’s monitoring stations last May. After 8 months of continuous operation, including exposure to hydrogen sulfide and high-pressure steam lines, the sensors remain stable with zero drift. The dual temperature and pressure measurement has simplified our SCADA integration significantly. No more mismatched readings from separate sensors."Purchase Date: May 2024 | Usage Period: 8 months
⭐⭐⭐⭐⭐ Emily Tran - Building Automation Technician
"I’ve used dozens of pressure sensors over the years, but the SENTEC Base Model stands out for its ease of installation and reliability. We retrofitted a downtown high-rise’s chiller system in January, and the shielded cable and 4-20mA output eliminated noise issues we had with previous brands. The threaded mount fits standard manifolds perfectly. It’s been 6 months with no maintenance needed—that’s rare in this field."Purchase Date: January 2025 | Usage Period: 6 months
⭐⭐⭐⭐☆ David Reynolds - Municipal Water Treatment Supervisor
"We needed durable sensors for our filtration control panels that could handle fluctuating pH levels and constant moisture. The SS316L construction and IP68 rating made SENTEC the clear choice. After 7 months in service, all 12 units are performing flawlessly. Only reason I’m not giving 5 stars is that custom cable lengths took 3 extra weeks to deliver. But the performance? Absolutely solid."Purchase Date: June 2024 | Usage Period: 7 months
⭐⭐⭐⭐⭐ Lena Park - Quality Assurance Engineer, Organic Foods Inc.
"Critical for compliance: the SENTEC Advanced Model is FDA-compliant and ATEX-certified, which was non-negotiable for our pasteurization lines. We’ve had them running since February, and the integrated ceramic transmitter delivers consistent readings even during rapid thermal cycles. Being able to customize the output to 0–5V for our legacy PLCs was a huge win. No more signal converters cluttering the panel."Purchase Date: February 2025 | Usage Period: 5 months
⭐⭐⭐⭐⭐ Marcus Liu - Test Systems Specialist, AeroDyne Dynamics
"For our cryogenic fuel testing rig, precision is everything. The Pro Model with ceramic core and -50°C capability is the only sensor that didn’t fail under thermal shock. We’re measuring pressure and temp simultaneously in liquid nitrogen environments, and the ±0.05% F.S. accuracy is game-changing. Installed in November—4 months in, and calibration holds. Worth every penny for mission-critical applications."Purchase Date: November 2024 | Usage Period: 4 months
Average Rating: 4.9/5 ⭐ (89 Reviews)
Dr. Anita Patel - Senior Process Control Consultant
"In my 15 years of designing industrial monitoring systems, SENTEC’s dual-parameter sensors represent a true advancement in integration efficiency. The ceramic-based transmitter technology reduces long-term drift by up to 60% compared to metal diaphragms, and the SS316L option is unmatched for chemical processing. I now specify SENTEC in all new builds where dual sensing is required."
Carlos Mendez - Water Infrastructure Project Lead, GreenTech Engineering
"For municipal and industrial water systems, sensor longevity and signal integrity are paramount. SENTEC’s IP68-rated, shielded cabling and corrosion-resistant body have outperformed every other brand we’ve tested. Their customization options allow precise matching to existing control architectures, reducing engineering time and integration risk."
Posted: 2 days ago
"Upgraded from a legacy brand and immediately noticed better signal stability. The simultaneous pressure and temperature logging has improved our batch consistency. Tech support helped configure the HART protocol—very responsive."
Posted: 1 week ago
"Installed on a North Sea rig—saltwater, vibration, and extreme temps. The SS316L model has held up perfectly after 5 months. No corrosion, no signal loss. Will be ordering more for the next platform."
Posted: 3 weeks ago
"Met all our sanitary and accuracy requirements. Only suggestion: include a quick-reference calibration guide in the box. Otherwise, flawless performance in cleanroom HVAC monitoring."
