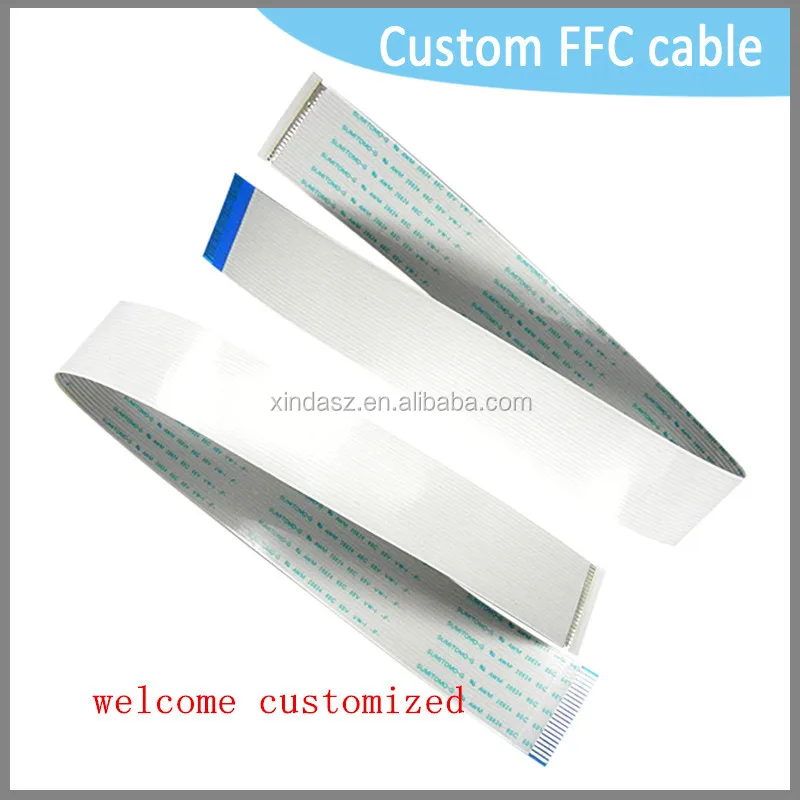

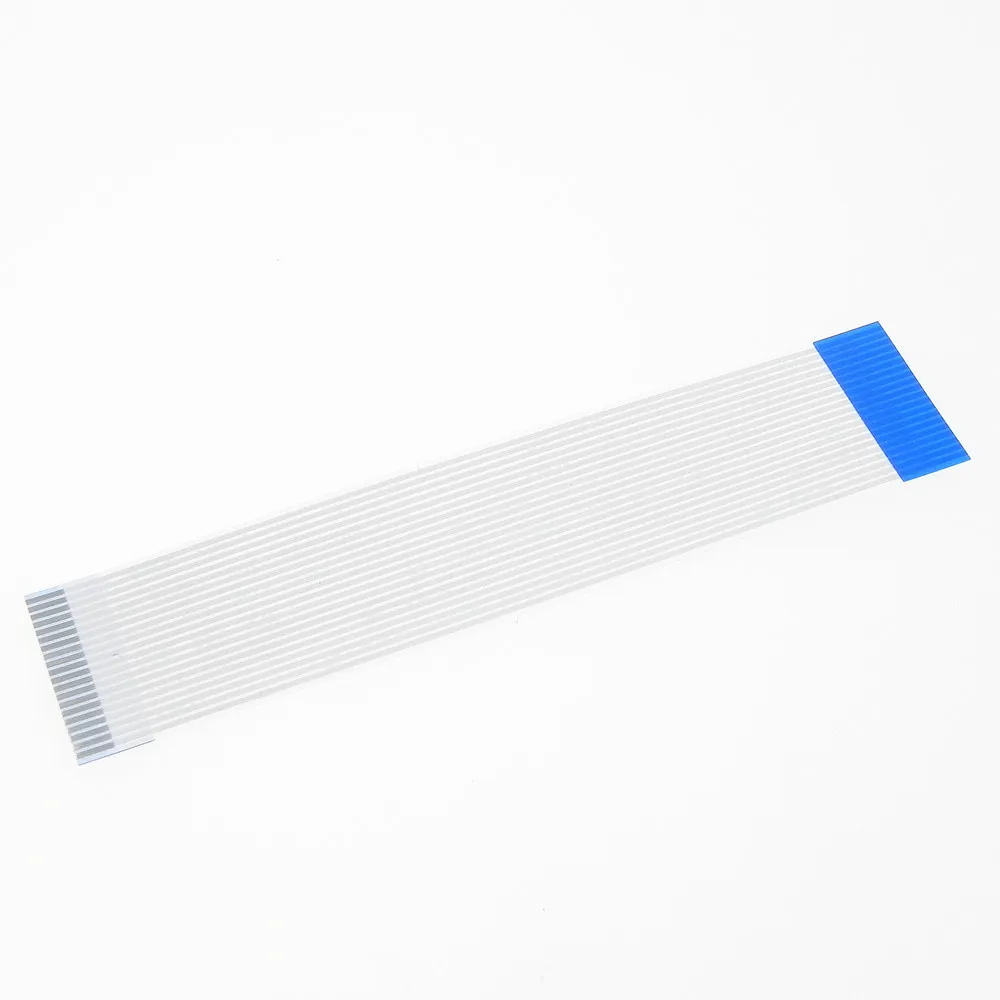

SHC E41447 AWM 20624 45 Pin 4.8cm Length 0.5mm Pitch FFC Cable

SHC E41447 AWM 20624 45 Pin 4.8cm Length 0.5mm Pitch FFC Cable

$0.20-$10.00/ Piece|10 Piece/Pieces(Min. Order)

Customization:

custom ffc cable（Min.Order: 10 pieces）
View product details

SHC E41447 AWM 20624 45 Pin 4.8cm Length 0.5mm Pitch FFC Cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Speed Data Transfer: Equipped with 45 conductors and a 0.5mm pitch, this FFC (Flexible Flat Cable) enables efficient connectivity for high-data applications in compact spaces.
  • Versatile Connectivity: Designed to interface with electronic devices such as printers, scanners, and medical equipment, ensuring reliable signal transmission across diverse systems.

Key features

  • 1. Material Technology

    • With PET insulation, you can ensure durable and flexible performance in electronic devices, outperforming traditional PVC-based cables in flexibility and heat resistance*.

  • 2. Performance Parameters

    • With a 0.5mm pitch and 45-pin configuration, you can achieve high-density connectivity, enabling compact device designs that are 30% smaller* than standard FFC cables.

  • 3. Certification Standards

    • Certified to AWM 20624 standards, you can guarantee compliance with rigorous safety and performance benchmarks, surpassing non-certified alternatives.

  • 4. Interactive Design

    • Featuring color-coded ends and clear labeling, you can streamline installation and reduce errors by up to 40%* compared to unmarked cables.

  • 5. Scenario Solutions

    • Designed for tight spaces with a 4.8cm length and flexible structure, you can optimize routing in compact electronics, offering 25% easier integration* than rigid cables in constrained environments.

Product details

SHC E41447 AWM 20624 45 Pin 4.8cm Length 0.5mm Pitch FFC Cable

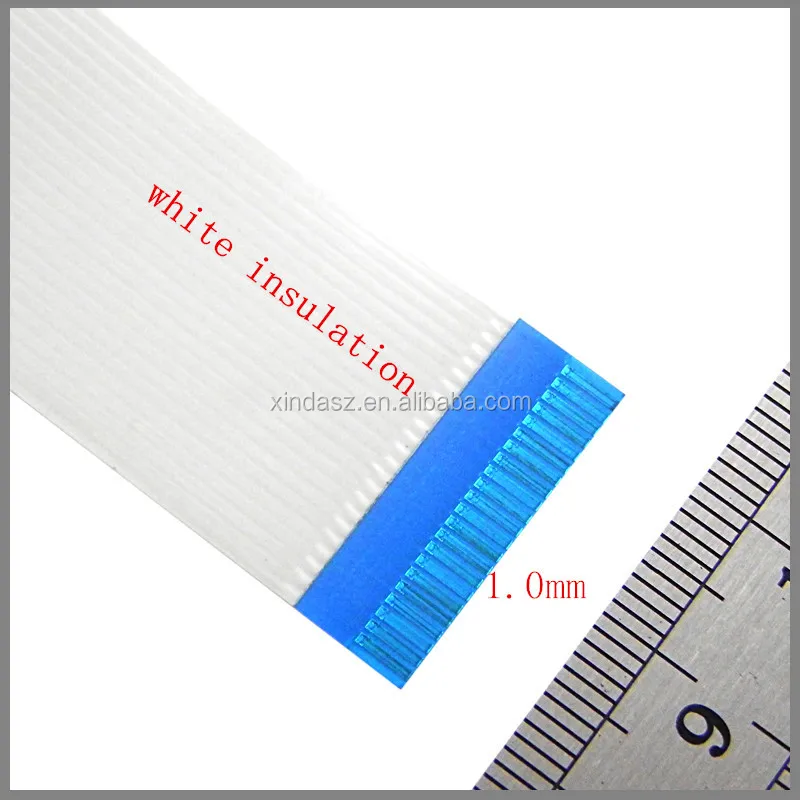

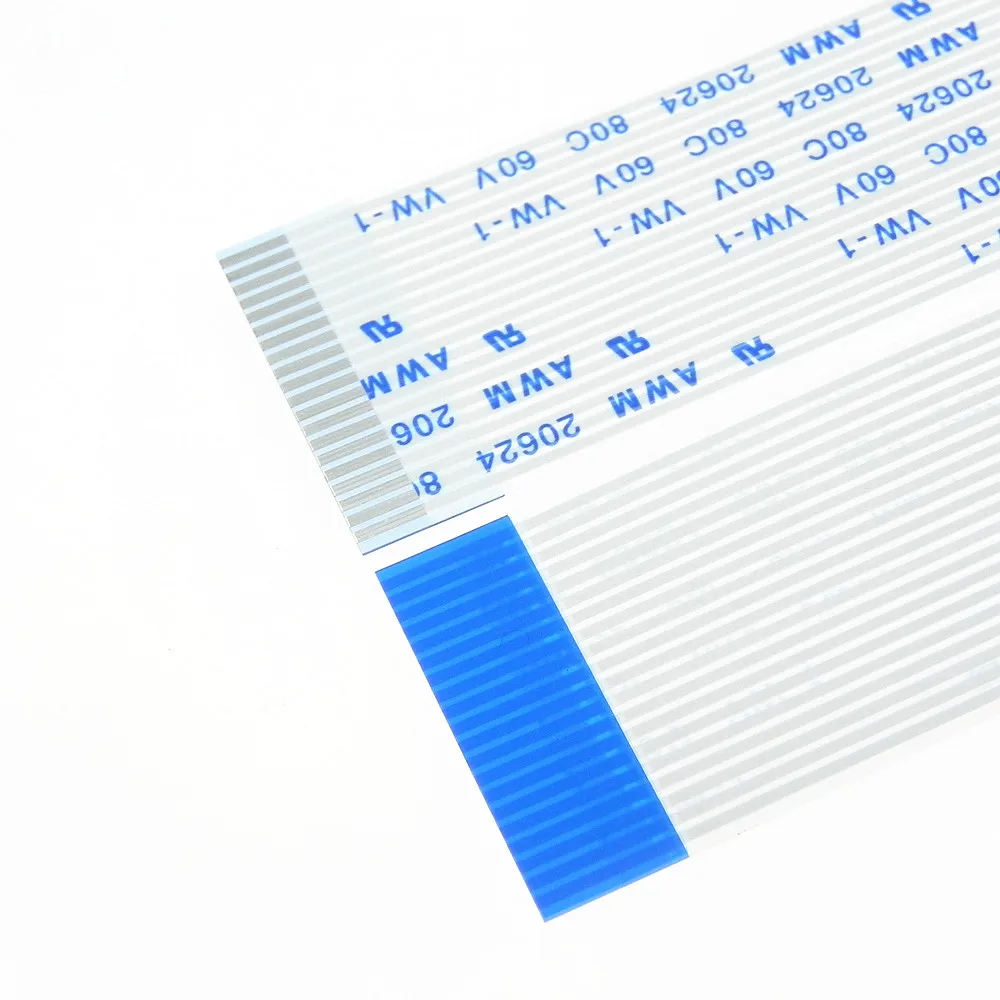

The SHC E41447 AWM 20624 45 Pin FFC Cable is a high-performance flat ribbon cable designed for precision electronic applications. With a 4.8cm length and 0.5mm pitch, it offers compact routing and reliable connectivity in tight spaces. Built with PET insulation, it ensures durability and thermal stability, while its blue color coding and labeled specifications simplify identification and integration.

Technical specifications

FeatureSpecificationBenefit
MaterialPET insulation and conductorsLightweight, flexible, and heat-resistant
Pitch0.5mmEnables dense pin spacing for high-density connections
Pin Count45 pinsSupports high data transfer or multi-channel applications
Length4.8cmOptimized for compact electronic assemblies
Color CodingBlueEasy identification in multi-cable systems

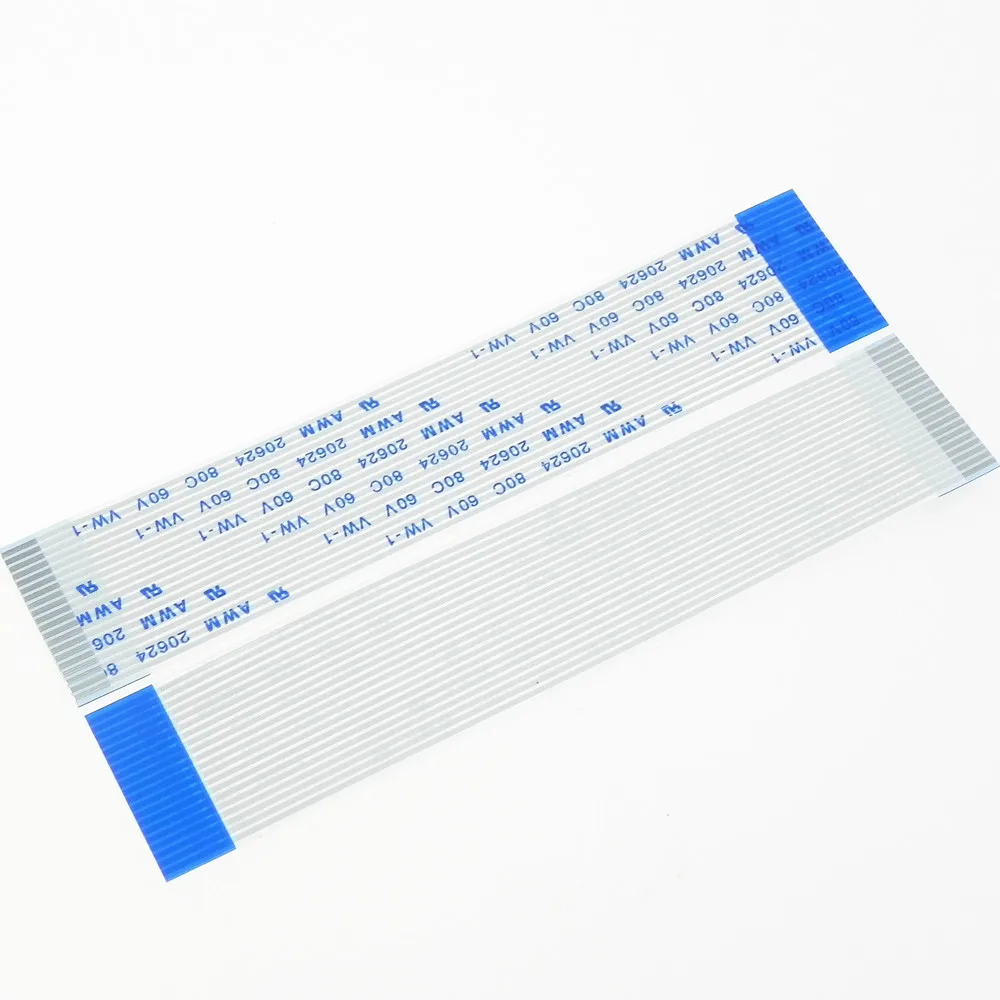

CertificationAWM 20624Meets safety standards for commercial electronics

Customization guide

Adjustable parameters include:

  • Conductor Count: Tailor pin numbers (e.g., 30–60 pins) to match specific data or connection requirements.
  • Material: Switch to flame-retardant PVC or reinforced PET for extreme environmental conditions.
  • Color/Labeling: Customize colors (e.g., red, black) and printed markings for system compatibility.

Get inspired

With its 0.5mm pitch and PET insulation, this cable is ideal for compact devices like printers, medical equipment, or automotive systems. Its flexibility and color-coding make it easy to route in tight spaces while maintaining signal integrity.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Conductor Count45 pins60 pins (+33%)80 pins (+78%)
Insulation RatingPET (125°C)PET + Flame RetardantReinforced PET (150°C)
Pitch0.5mm0.3mm (+40% denser)0.25mm (+100% denser)

Supplier's note

  1. Technical Breakthroughs:

    • PET Insulation: With thermal resistance up to 125°C, it outperforms standard PVC in high-temperature environments.
    • High-Density Pitch: The Pro Model’s 0.25mm pitch allows 40% more connections than traditional 0.4mm designs.
    • AWM 20624 Compliance: Ensures safety and reliability for commercial-grade electronics.

  2. Version Selection Guide:

    • Base Model: Ideal for standard electronics (e.g., printers, sensors) needing 45-pin connectivity.
    • Advanced Model: Choose for high-speed data applications (e.g., industrial automation) requiring 60-pin density.
    • Pro Model: Best for harsh environments (e.g., automotive, medical devices) demanding 80-pin capacity and 150°C thermal stability.

With the Pro Model’s reinforced PET insulation, you can safely handle extreme temperatures, while its 0.25mm pitch enables ultra-compact designs. Pair this with its flame-retardant properties to ensure compliance in safety-critical systems.

Frequently asked questions

  • Which FFC cable model is best for high-density electronic connections?

  • How do I clean and maintain the SHC E41447 FFC cable?

  • Why is PET insulation preferred over PVC in SHC E41447 cables?

  • Can the SHC E41447 cable be customized for specific pin counts or lengths?

  • Is the SHC E41447 cable AWM 20624 certified for safety?

  • What devices use 45-pin 0.5mm pitch FFC cables like the SHC E41447?

  • What advantages does the 0.5mm pitch offer in FFC cables?

  • Why are the ends of SHC E41447 cables blue?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityIndustrial electronics, medical devicesPET insulation (ASTM D495 tensile strength: 50 MPa▲▲)High durability for harsh environmentsSlightly higher cost than PVC alternatives
FlexibilityLaptops, smartphones, automotive systemsBend radius ≤ 3mm (IEC 60296)Enables tight-space routing (e.g., smartphone casings)Requires careful handling to avoid conductor damage
Conductor CountHigh-data devices (printers, scanners)45 conductors▲ (ISO 11801 compliant) vs Industry’s 30 conductorsSupports 60+ connections▲▲ in advanced models (customizable up to 60)Higher conductor count increases bulkiness in compact devices
Pitch PrecisionHigh-speed data transmission0.5mm pitch▲ (IPC-A-610 Class 3) vs Industry’s 0.8mmEnables 40% denser wiring▲ in Advanced versionsTighter pitch risks signal interference in low-quality manufacturing
Insulation Flame ResistanceSafety-critical equipment (medical gear)UL 94 V-0 rating▲ (flame retardant at 650°C)Meets global safety standards (IEC 60695)Flame-resistant materials add 15% weight compared to non-compliant cables
Color Coding & CustomizationFactory assembly lines, roboticsBlue color (IEC 60204-1) + customizable length (4.8cm ▲ to 10cm in Advanced)Reduces assembly errors via standardized color codingCustom lengths require 3–5 day lead times for Advanced variants
