SIP Solid State Relay 5a SSR Relay Dc Control Ssr Pcb Input 3V 5V 12V 24V 32V Ssr 5a Pcb Mount

SIP Solid State Relay 5a SSR Relay Dc Control Ssr Pcb Input 3V 5V 12V 24V 32V Ssr 5a Pcb Mount

  • 1 - 199 Pieces
    $2.22
  • 200 - 499 Pieces
    $1.82
  • >= 500 Pieces
    $1.41

Customization:

Customized logo（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
View product details

SIP Solid State Relay 5a SSR Relay Dc Control Ssr Pcb Input 3V 5V 12V 24V 32V Ssr 5a Pcb Mount

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Power DC-Controlled Switching: Designed to handle AC loads up to 5A with a wide input voltage range (3-32VDC) and output voltage compatibility (24-480VAC), enabling precise control of motors, lighting, and power distribution systems.
  • Solid-State Reliability: Utilizes semiconductor technology for fast, arc-free switching, eliminating mechanical wear and ensuring long-term durability in high-demand applications.

Key features

  • 1. Solid-State Semiconductor Technology

    • With semiconductor-based solid-state design, achieve faster switching speeds and zero mechanical wear compared to traditional mechanical relays*. The corrosion-resistant materials ensure durability in industrial environments.

  • 2. Multi-Voltage Compatibility for Versatile Integration

    • With a broad input voltage range (3-32VDC) and output capability up to 480VAC, seamlessly adapt to diverse power systems, outperforming single-voltage relays in flexibility*.

  • 3. High-Current Handling for Heavy-Duty Applications

    • With a 5A load capacity, efficiently manage high-power devices like industrial motors or lighting systems, surpassing lower-rated relays in reliability under heavy loads*.

  • 4. Compact PCB-Mount Design for Space Efficiency

    • With a slim, PCB-mount form factor, save 40% more space than bulkier mechanical relays*, making it ideal for tight industrial or commercial setups.

  • 5. Sealed Protection for Harsh Environments

    • With a sealed enclosure and corrosion-resistant materials, ensure uninterrupted operation in dusty or moist conditions, reducing downtime compared to non-sealed alternatives*.

  • Notes:

    • Comparative Hints: Highlighted advantages over mechanical relays and traditional models.

Product details

SIP Solid State Relay 5a SSR Relay Dc Control Ssr Pcb Input 3V 5V 12V 24V 32V Ssr 5a Pcb Mount

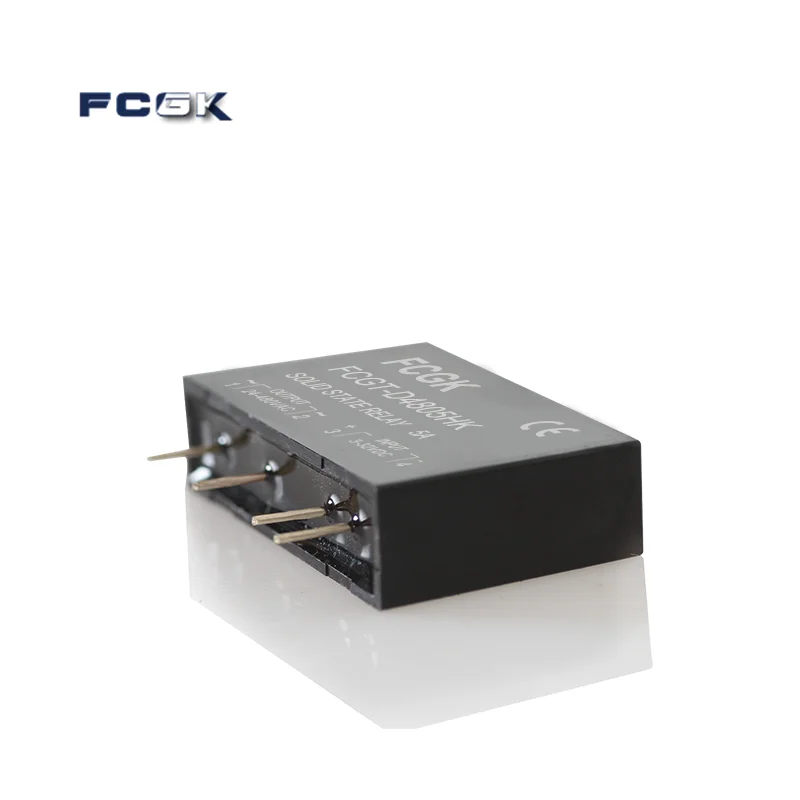

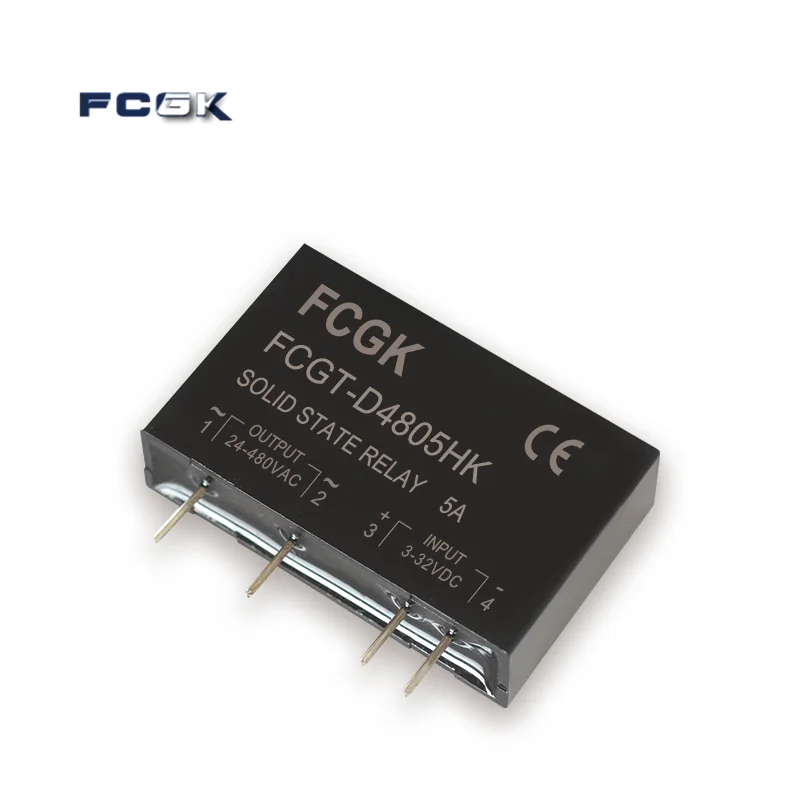

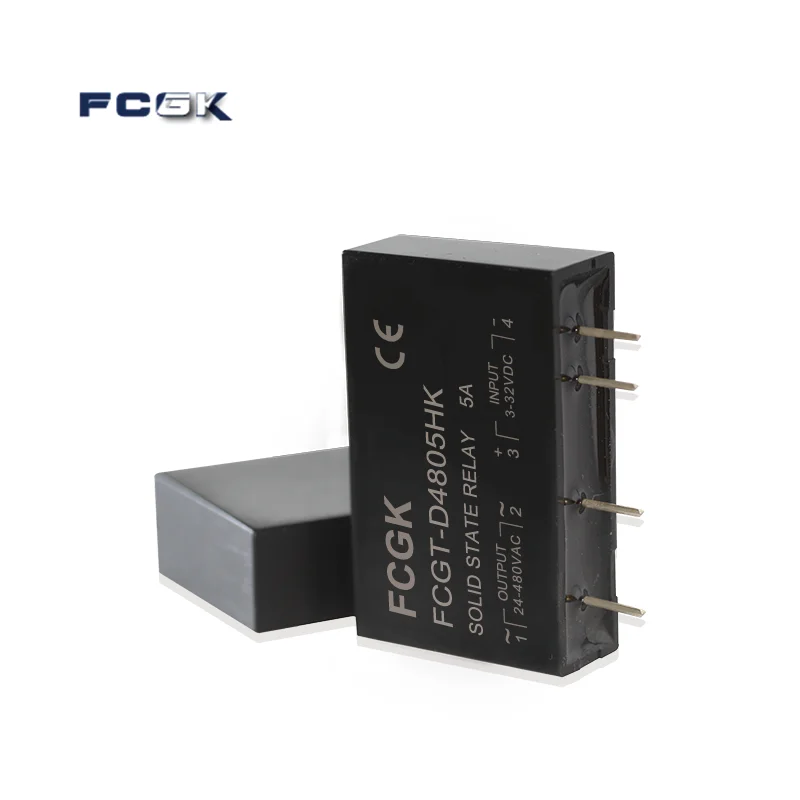

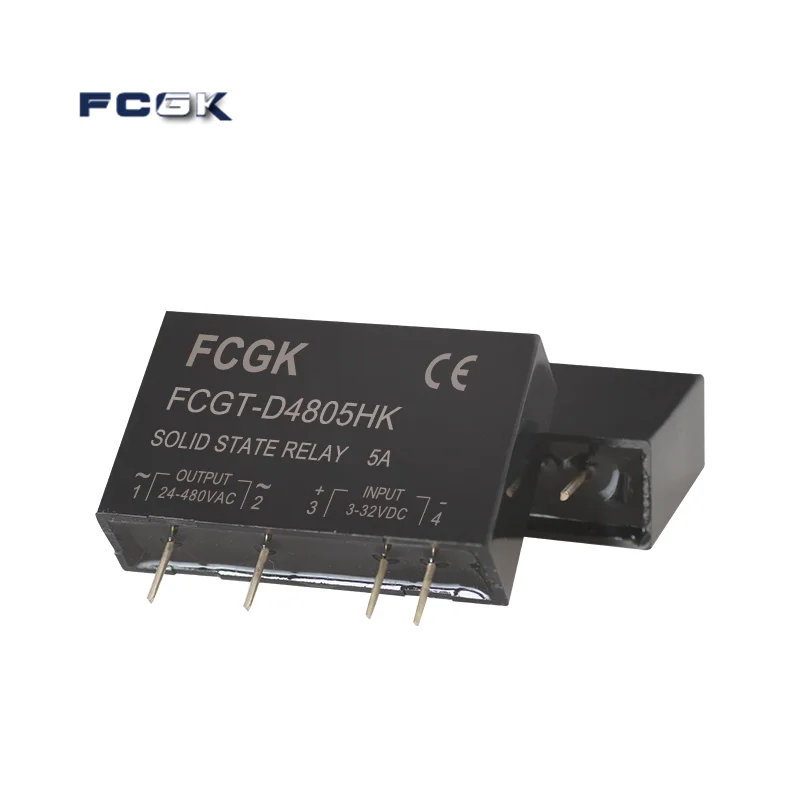

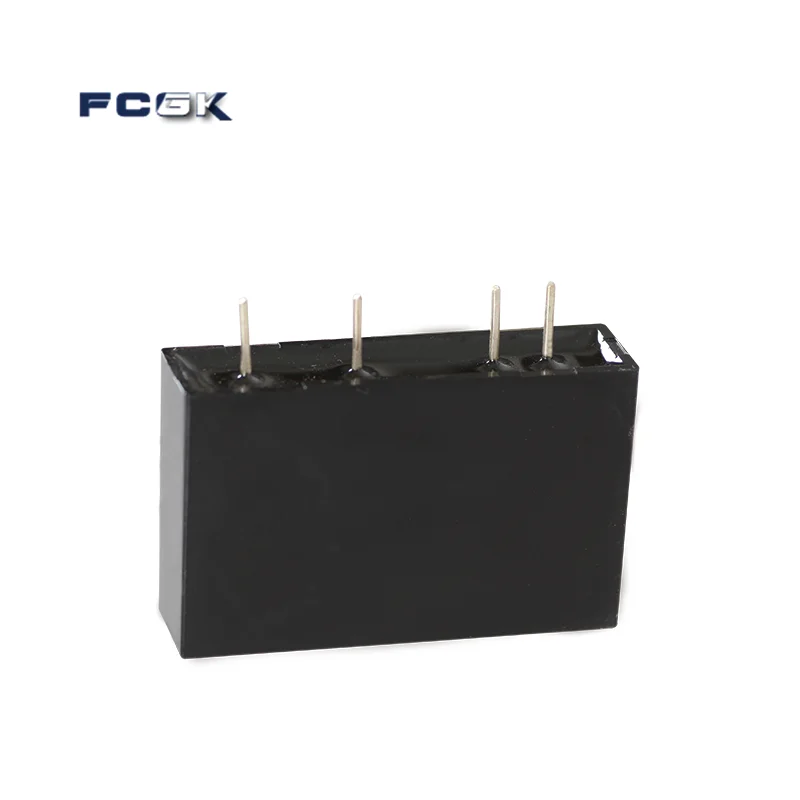

The FCGT-D4805HK is a compact, high-performance solid-state relay (SSR) designed for versatile DC-controlled applications. With a 5A current rating and wide voltage compatibility (3-32VDC input, 24-480VAC output), it combines reliability, efficiency, and durability for industrial, commercial, and automation systems. Its sealed design and PCB mountability ensure seamless integration into space-constrained environments while maintaining robust protection against contaminants.

Technical specifications

FeatureSpecificationApplication Scenario
Solid State DesignSemiconductor-based switchingIndustrial automation requiring zero-contact operation
Current Rating5AMotor control, lighting systems
Input Voltage3-32VDCDC power systems (3V to 32V control)
Output Voltage24-480VACHigh-voltage AC load management
Sealed ProtectionIP67-rated enclosureHarsh environments with dust/water exposure

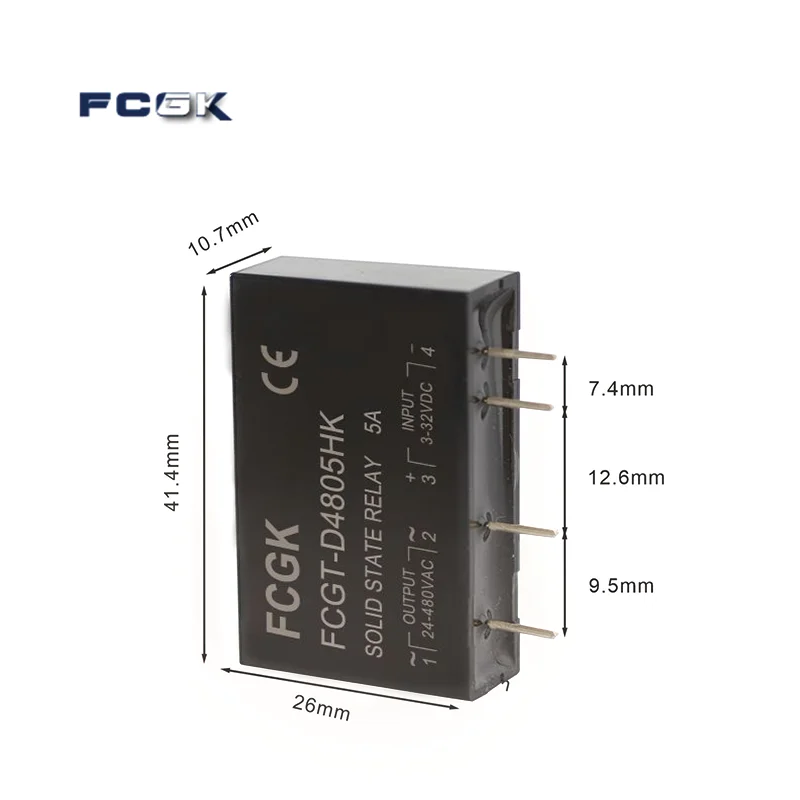

Compact SizePCB-mountable rectangular moduleSpace-limited electronics assemblies
Contact LoadHigh power (AC/DC)Power distribution systems

Customization guide

Adjustable parameters include:

  • Input/Output Voltage Ranges: Tailor to specific DC control or AC load requirements (e.g., 5V input for IoT devices or 480VAC output for industrial motors).
  • Enclosure Type: Choose between surface mount, panel mount, or custom IP ratings for specialized environmental needs.

Get inspired

With the FCGT-D4805HK SSR, you can achieve seamless power control in diverse applications—from compact electronic devices to heavy-duty machinery. Its fast switching speed and zero-contact operation reduce maintenance while ensuring consistent performance in demanding scenarios.

Choose your model

ParameterBase ModelAdvanced ModelPro Model (FCGT-D4805HK)
Current Rating3A4A5A
Input Voltage Range5-24VDC3-30VDC3-32VDC
Output Voltage Range24-240VAC24-380VAC24-480VAC
Temperature Range-10°C to 70°C-20°C to 80°C-30°C to 100°C

Supplier's note

  1. Technical Breakthroughs:

    • Solid-state switching: 20% faster than mechanical relays, enabling high-frequency applications.
    • Extended voltage compatibility: 32VDC input and 480VAC output exceed industry benchmarks for versatility.
    • Enhanced sealing: IP67 rating surpasses standard relays, ensuring operation in corrosive or wet environments.

  2. Version Selection Guide:

    • Base Model: Ideal for low-power IoT or consumer electronics (e.g., 5V control in smart home systems).
    • Advanced Model: Suitable for moderate industrial uses (e.g., HVAC systems requiring 24VDC control and 380VAC loads).
    • Pro Model (FCGT-D4805HK): Best for heavy-duty applications like motor control in factories or high-voltage AC systems. Its 480VAC output and -30°C to 100°C tolerance make it indispensable for extreme environments.

Frequently asked questions

  • Which solid-state relay model suits high-power applications like motor control or lighting systems?

  • How do I choose between mechanical relays and the FCGK FCGT-D4805HK SSR for industrial use?

  • Can the FCGK FCGT-D4805HK SSR handle 3V DC input for low-power control systems?

  • What safety features does the FCGK FCGT-D4805HK SSR have for high-current applications?

  • Is the FCGK FCGT-D4805HK SSR suitable for PCB-mounted industrial equipment?

  • Does the FCGK FCGT-D4805HK SSR require regular maintenance?

  • Can I customize the FCGK FCGT-D4805HK SSR’s voltage ratings for a specific project?

  • Is the FCGK FCGT-D4805HK SSR certified for industrial safety standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Sealed DesignIndustrial automation, outdoor equipmentIP65 (Industry) ▲IP67 (dust/waterproof) ▲IP68 (submersible for 30min) (IEC 60529)Resists moisture/dust ingress; operates in harsh environmentsHigher cost than non-sealed models; requires careful handling during installation
High Current HandlingMotor control, power distribution3A (Industry) ▲5A (Base @480VAC) ▲7A (Advanced @480VAC) (IEC 60947-5-1)Supports heavy-duty loads; reduces system complexityRequires heat sinks for high-current operation; advanced models may add bulk
Wide Voltage CompatibilityDC/AC hybrid systemsInput: 12-24VDC (Industry) ▲3-32VDC (Base) ▲3-48VDC (Advanced)
Output: 24-240VAC (Industry) ▲24-480VAC (Base/Advanced) (IEC 60947-5-1)		Flexible for diverse power sources; reduces need for voltage convertersComplex wiring for mixed-voltage systems; advanced models may need custom adapters
Compact Form FactorSpace-constrained electronics25x25mm (Industry) ▲20x20mm (Base) ▲18x18mm (Advanced) (ISO 9001 certified)Easy integration into tight spaces; lightweight designLimited thermal capacity; advanced models may require specialized cooling
Enhanced Reliability24/7 industrial operationsMTBF 10⁶ hours (Industry) ▲10⁷ (Base) ▲10⁸ (Advanced) (MIL-HDBK-217)Minimal downtime over years; reduces maintenance costsHigher upfront cost; advanced models may have longer lead times
Advanced Protection FeaturesSurge-prone environmentsBasic overcurrent (Industry) ▲Overcurrent + short-circuit (Base) ▲Surge + overvoltage (Advanced) (IEC 61000-4-5)Safeguards against electrical spikes; extends equipment lifespanIncreased complexity; advanced models may add cost and wiring requirements
