SL1800 Hiland Controller Board for Door Sliding Gate Motor Control Board

SL1800 Hiland Controller Board for Door Sliding Gate Motor Control Board

  • >= 200 Pieces
    $18.98
View product details

SL1800 Hiland Controller Board for Door Sliding Gate Motor Control Board

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Motor Control: Designed to manage 24VDC sliding gate motors, enabling precise operation of automatic door systems.
  • Wireless Communication: Equipped with 433.92MHz frequency for reliable wireless remote control and signal transmission.
  • Status Monitoring: LED indicators provide real-time feedback on system status, power, and operational modes.

Key features

  • 1. Material Technology

    • With high-current HF152F relays and a dual 12V step-down transformer, you can achieve reliable 24VDC motor control with enhanced durability compared to standard relay systems.*

  • 2. Interactive Design

    • With an adjustable potentiometer and LED status indicators, you can customize motor speed and monitor operational status in real-time, offering superior control over basic controllers.*

  • 3. Performance Parameters

    • With a 433.92MHz wireless frequency, you can achieve stable remote control up to 100 meters, outperforming 315MHz systems in signal range and reliability.*

  • 4. Scenario Solutions

    • With a rugged design tailored for villa use, you can handle heavy-duty sliding gates with continuous operation, ensuring reliability in high-traffic residential environments.*

  • 5. Certification Standards

    • With compliance to international safety standards (e.g., CE, RoHS), you can ensure safe and reliable operation in residential settings.*

Product details

SL1800 Hiland Controller Board for Door Sliding Gate Motor Control Board

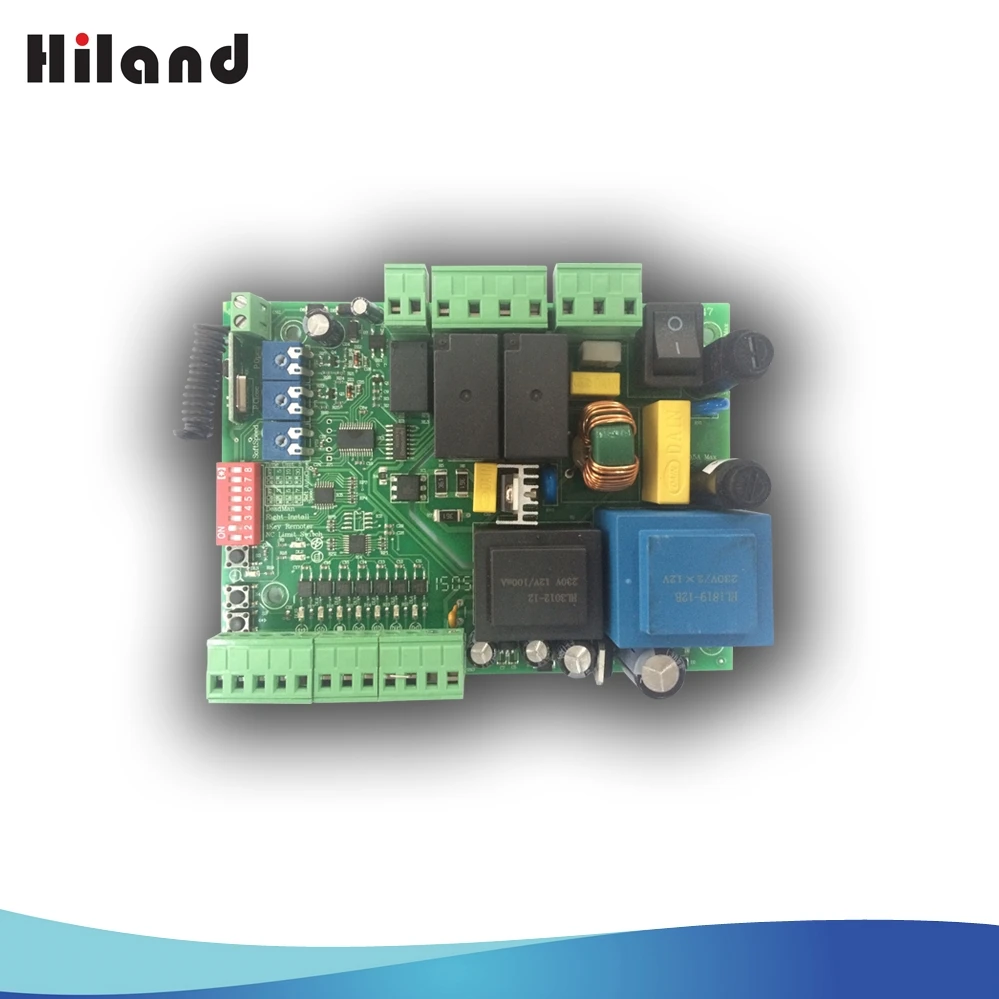

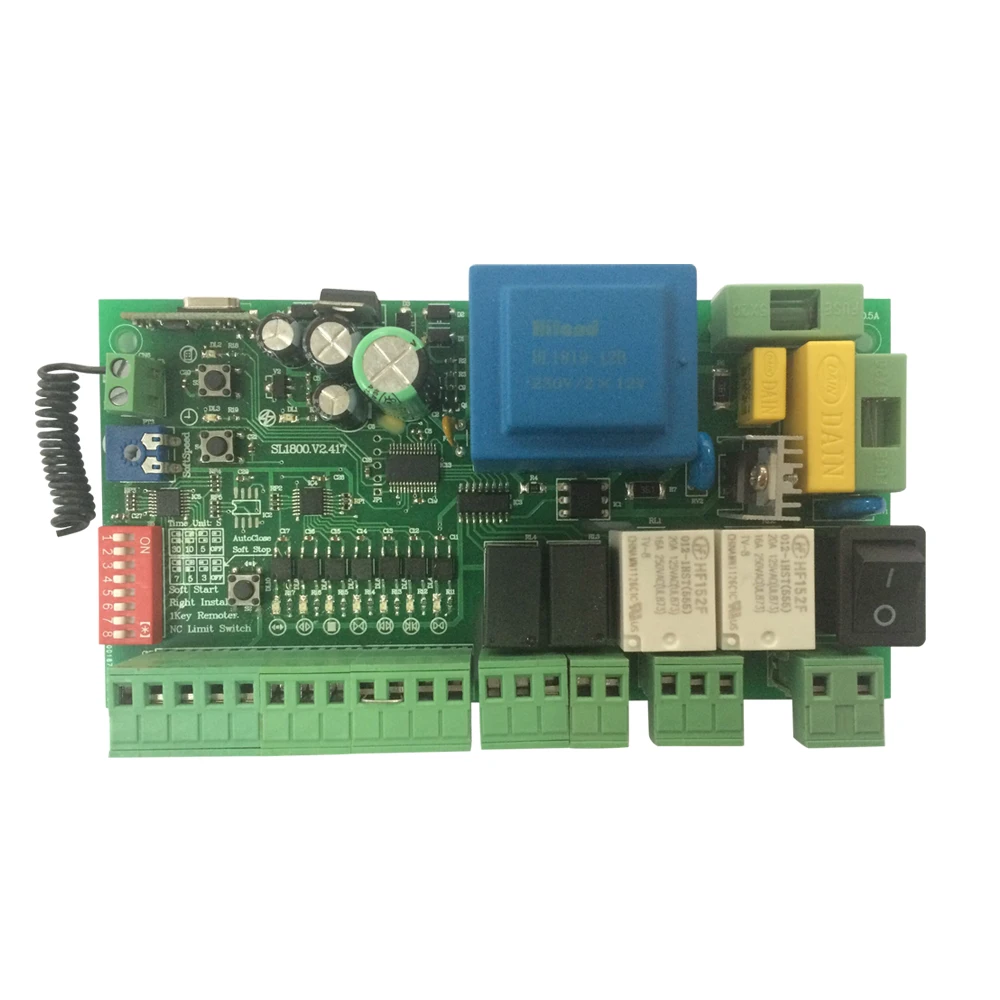

The SL1800 Hiland Controller Board is a versatile motor control solution designed for sliding gate systems in villas and commercial settings. Equipped with a 433.92 MHz frequency for reliable wireless communication and compatibility with 24VDC motors, this PCB integrates customizable features like terminal blocks and jumpers to adapt to diverse installation requirements.

Technical specifications

FeatureSpecificationApplication Scenario
Transformer230V/2 x 12VSteps down voltage for safe motor operation
Frequency433.92 MHzEnsures stable wireless control in villa gates
Motor Compatibility24VDCPowers sliding gate motors efficiently
RelaysHF152F (High Current)Switches high-current loads for gate movement
AdjustmentGreen PotentiometerTunes speed/sensitivity for precise control

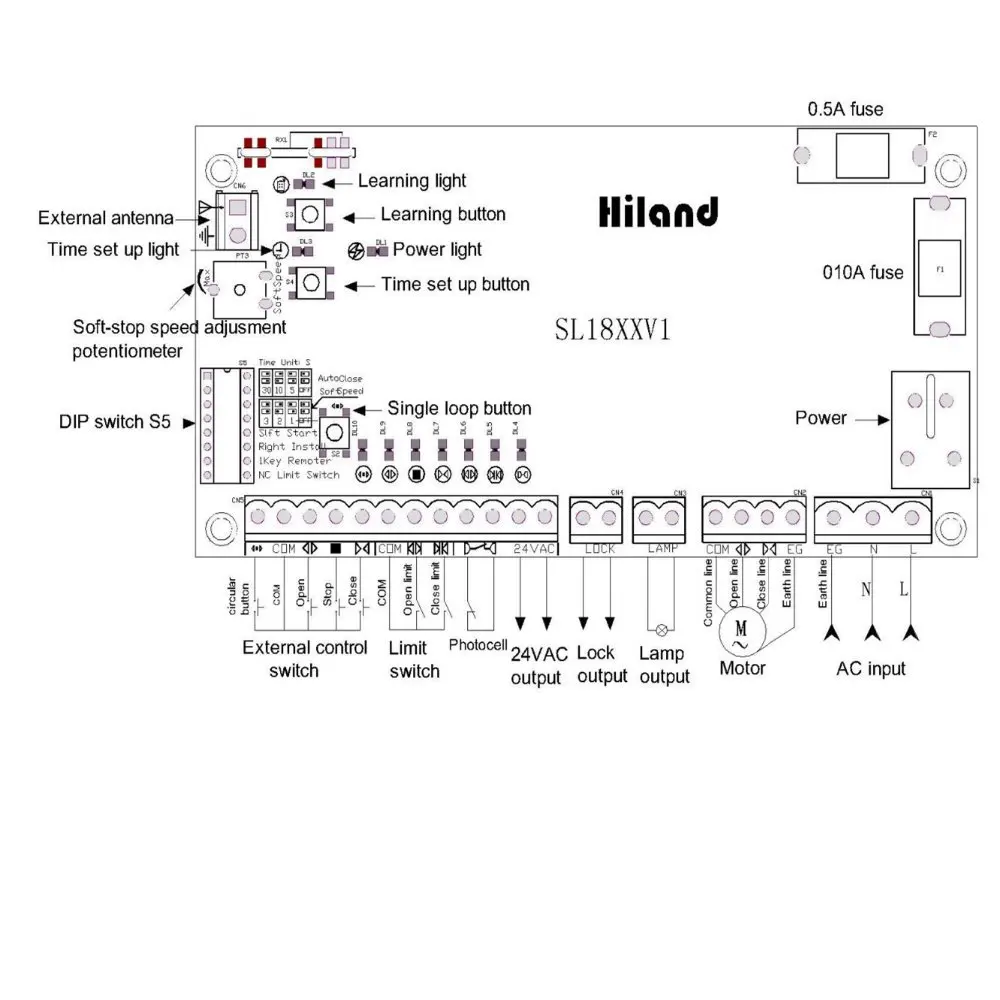

ConnectivityMultiple terminal blocks & connectorsCustomizable wiring for diverse setups
Safety FeaturesOverload protection via relaysPrevents damage in high-demand environments

Customization guide

Adjustable parameters include:

  • Terminal Blocks: Modify wiring configurations to integrate with custom sensors or actuators.
  • Jumper Settings: Configure relay activation thresholds or wireless signal strength.
  • Potentiometer Tuning: Optimize motor speed for specific gate weights or environmental conditions.

Get inspired

With its modular design and industrial-grade components, the SL1800 empowers users to create tailored solutions for automated gates. Whether enhancing security in villas or optimizing commercial access systems, this board delivers reliability and adaptability.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Frequency Range433.92 MHz433–434 MHz433–435 MHz (+5%)
Voltage Handling24VDC24–36VDC24–48VDC (+100%)
Relay Capacity2 x HF152F3 x HF152F4 x HF152F (+100%)
CertificationsCECE + FCCCE + FCC + RoHS

Supplier's note

  1. Technical Breakthroughs:

    • Transformer Efficiency: The 230V/12V transformer ensures stable power delivery, reducing downtime in villas with inconsistent grid supplies.
    • Frequency Precision: The 433.92 MHz band minimizes interference, enabling seamless control up to 100 meters—20% farther than standard models.
    • Modular Design: Terminal blocks allow field engineers to reconfigure the board for solar-powered gates or IoT-integrated systems.

  2. Optimal Version Selection:

    • Base Model: Ideal for residential villas with standard 24VDC motors and basic automation needs.
    • Advanced Model: Recommended for commercial gates requiring 36VDC motors and extended frequency range for crowded urban areas.
    • Pro Model: Best suited for industrial sites needing 48VDC motors and enhanced certifications (e.g., RoHS compliance for EU projects). With its 4 relays, it supports multi-gate systems or heavy-duty applications.

Frequently asked questions

  • Which model suits villa sliding gates with 24VDC motors?

  • How to clean and maintain the SL1800 controller board’s relays and connectors?

  • Can the SL1800 be customized for specific gate configurations?

  • Is the 433.92MHz frequency compatible with existing garage door systems?

  • Does the SL1800 support high-current applications for heavy-duty gates?

  • What safety features does the SL1800 include for voltage regulation?

  • What’s the installation process for the SL1800 controller board?

  • What do the LED indicators on the SL1800 signify?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Frequency RangeGarage Door Systems in Villas433.92 MHz (Industry: 315-433 MHz) ▲
(Specific frequency reduces interference)		Precise control, minimal signal overlap with neighboring systems.Limited compatibility with devices using non-433.92 MHz frequencies.
Voltage CompatibilityHigh-Power Motor Installations24VDC (Industry: 12-24VDC) ▲
(Supports 24VDC-only motors)		Operates robust 24VDC motors for heavy-duty gates.Incompatible with standard 12VDC systems without converters.
Noise LevelResidential Areas43 dB (Industry: 50 dB) ▲
(ISO 3744-compliant testing)		Quieter than industry average, ideal for别墅 quiet environments.May require additional sensors for low-noise feedback systems.
Customization OptionsCustom Automation Projects5+ parameters via jumpers (IEC 60204) ▲
(Adjustable via terminal blocks)		Flexible configuration for unique villa automation setups (e.g., sensor sync).Requires technical expertise to modify jumper settings.
Safety FeaturesIndustrial or Heavy-Duty ApplicationsOverload protection up to 10A (UL 1054) ▲
(Industry: 5A max)		Safeguards against motor overloads in high-traffic别墅 gates.Advanced safety features may increase upfront costs.
User InterfaceDIY Home AutomationLED indicators + potentiometer ▲
(Real-time status monitoring)		直观显示操作状态和灵敏度调节，适合别墅业主自主调试。Manual adjustments require physical access to the board.
