SMT Stencil Storage Rack Unit Stencil Rack Trolley

SMT Stencil Storage Rack Unit Stencil Rack Trolley

  • >= 30 Cartons
    $109

Customization:

size customize（Min.Order: 2 pieces）
View product details

SMT Stencil Storage Rack Unit Stencil Rack Trolley

Product overview

Core functionalities

Applicable scenarios

Unique advantages

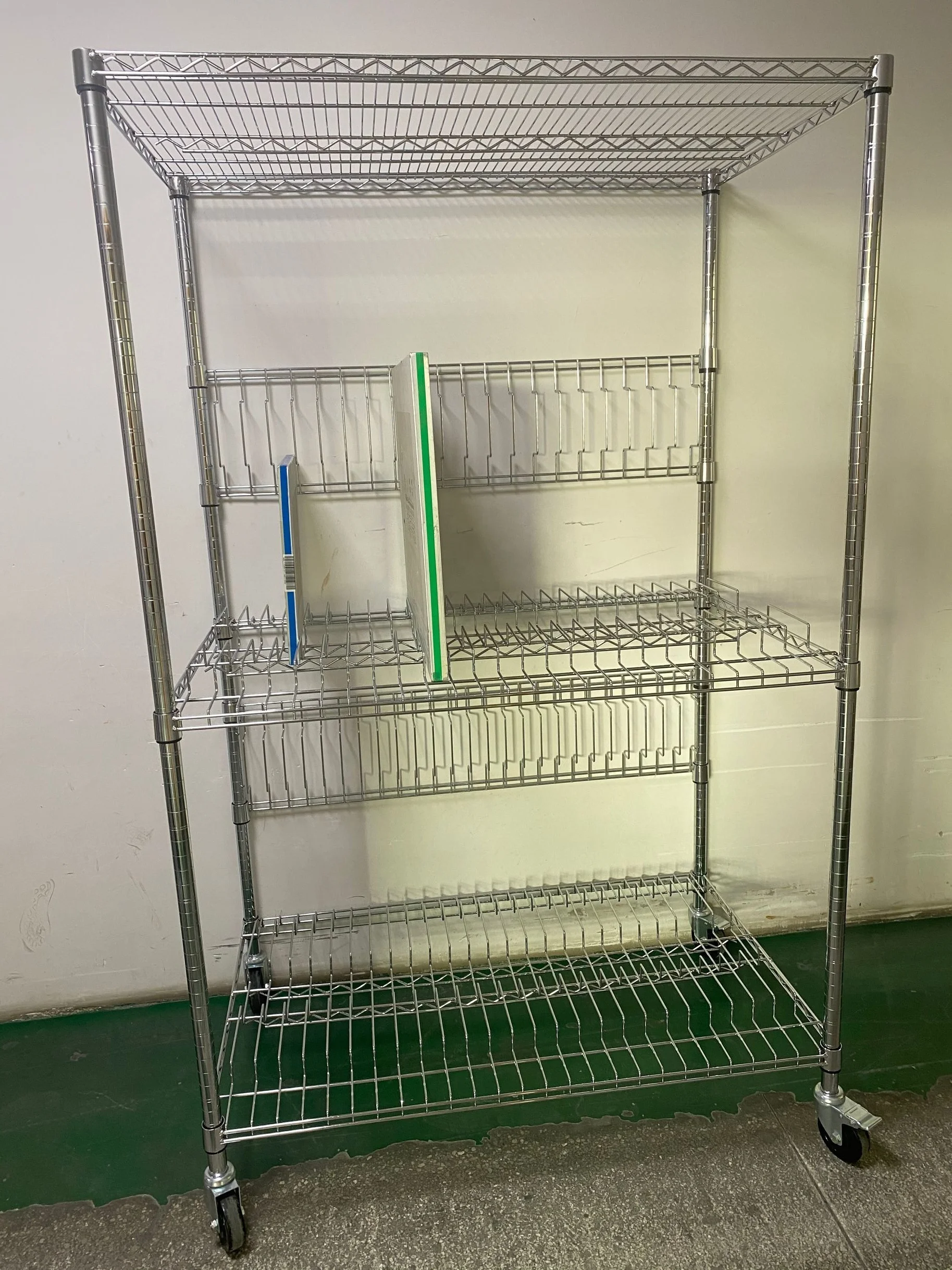

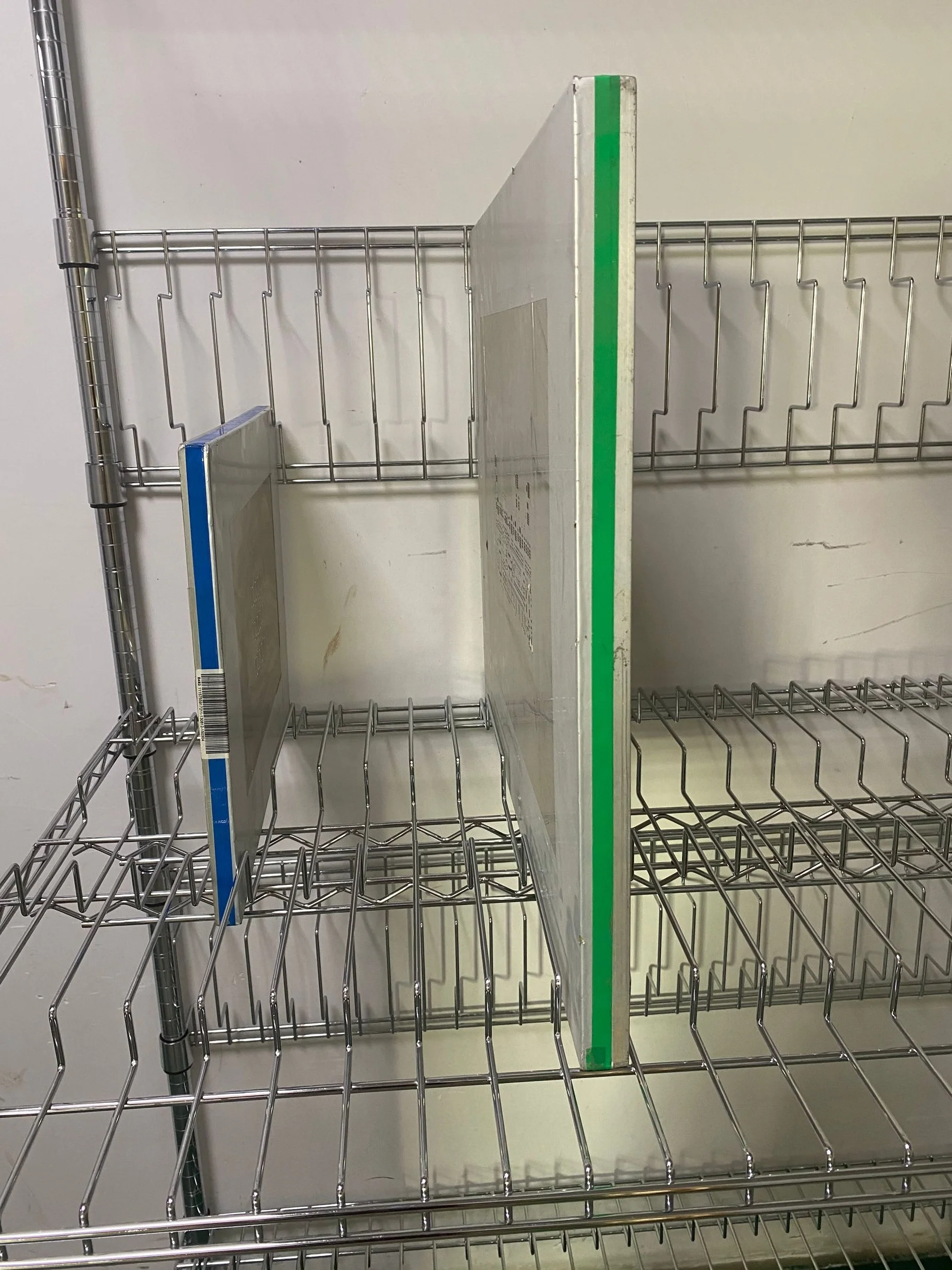

  • SMT Stencil Storage: Designed to securely store and organize SMT stencils with ESD (Electrostatic Discharge) protection, safeguarding against static damage during storage and retrieval.

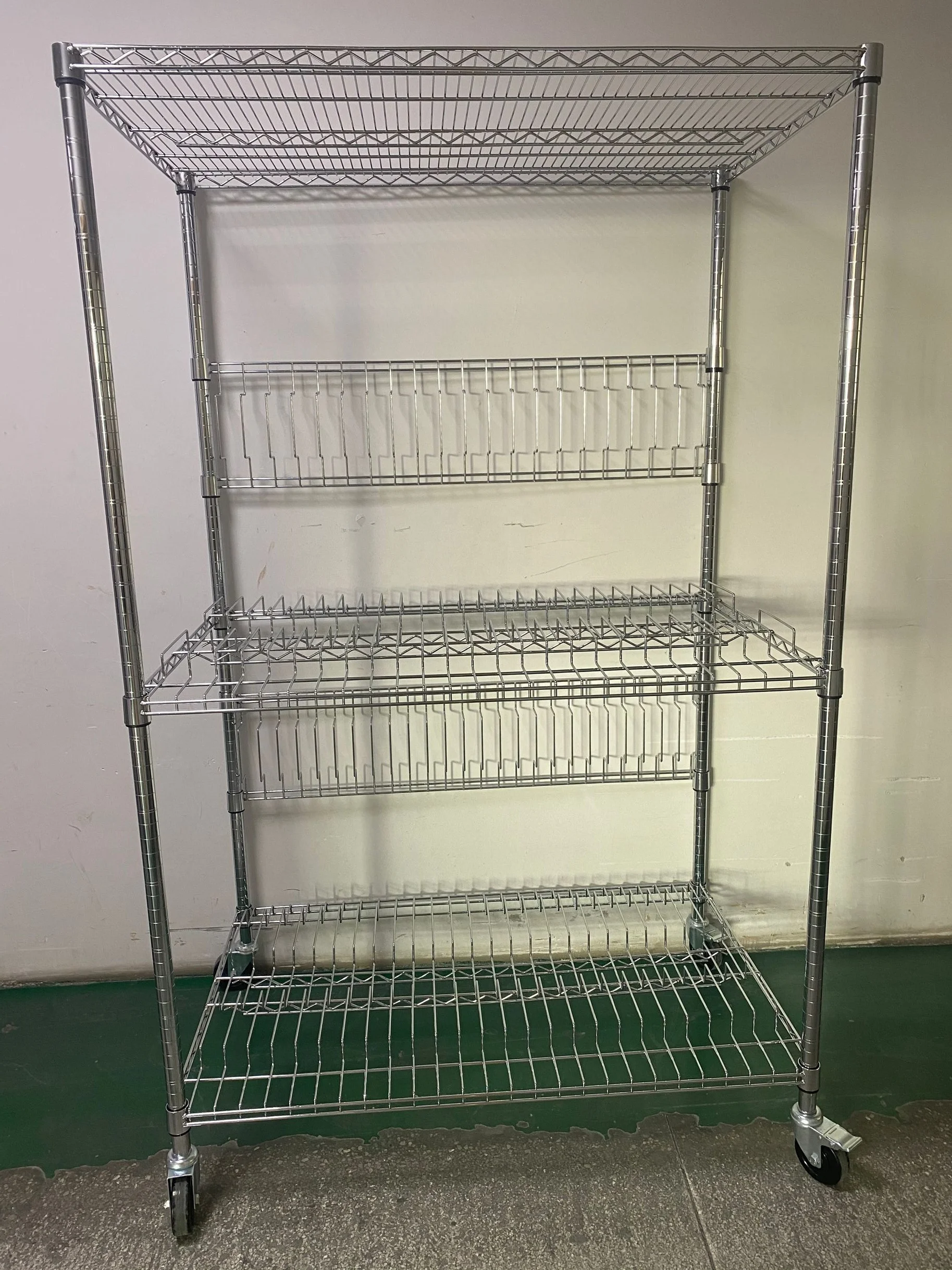

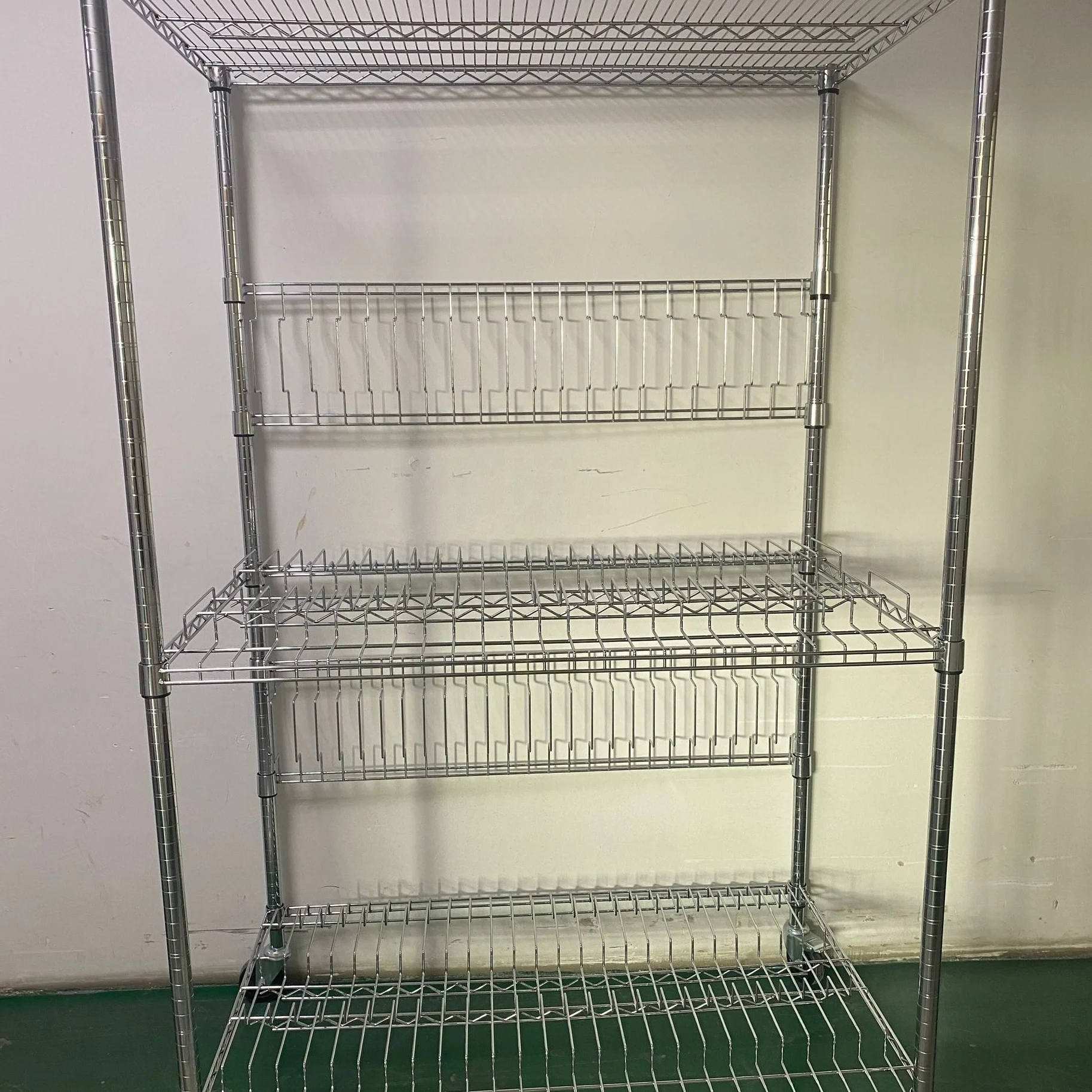

  • Multi-Layer Organization: Features a wire mesh structure with four adjustable levels, enabling efficient vertical storage and easy visibility of stencils. The open design promotes airflow, reducing dust accumulation and moisture retention.

Key features

  • 1. Corrosion-Resistant Material Technology

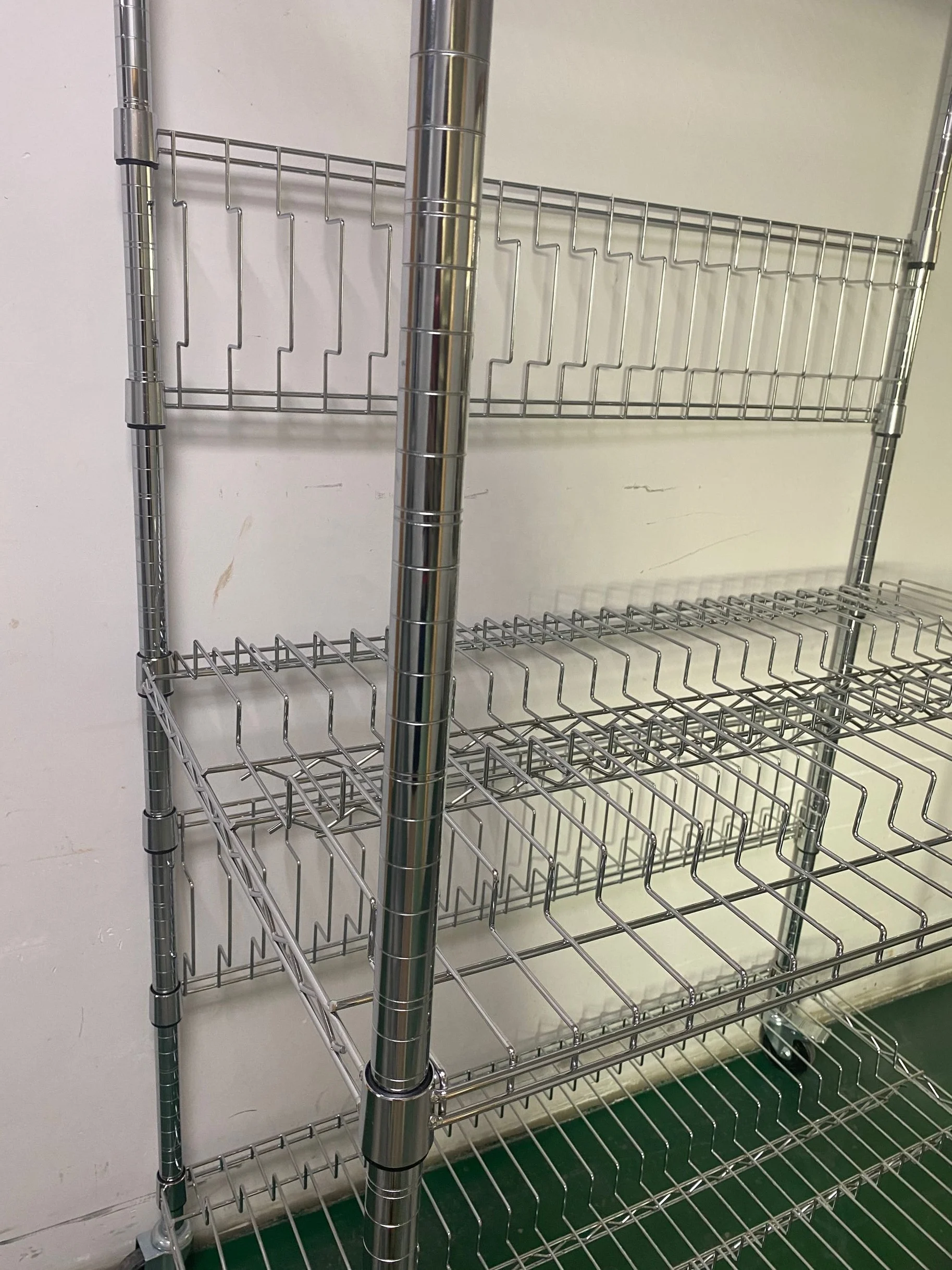

    • With corrosion-resistant stainless steel and electrostatic powder coating, you can ensure long-lasting durability in industrial environments, resisting rust better than traditional painted racks*. The chrome-plated steel wire design (as shown) adds an extra layer of protection against harsh conditions.

  • 2. Adjustable & Mobile Interactive Design

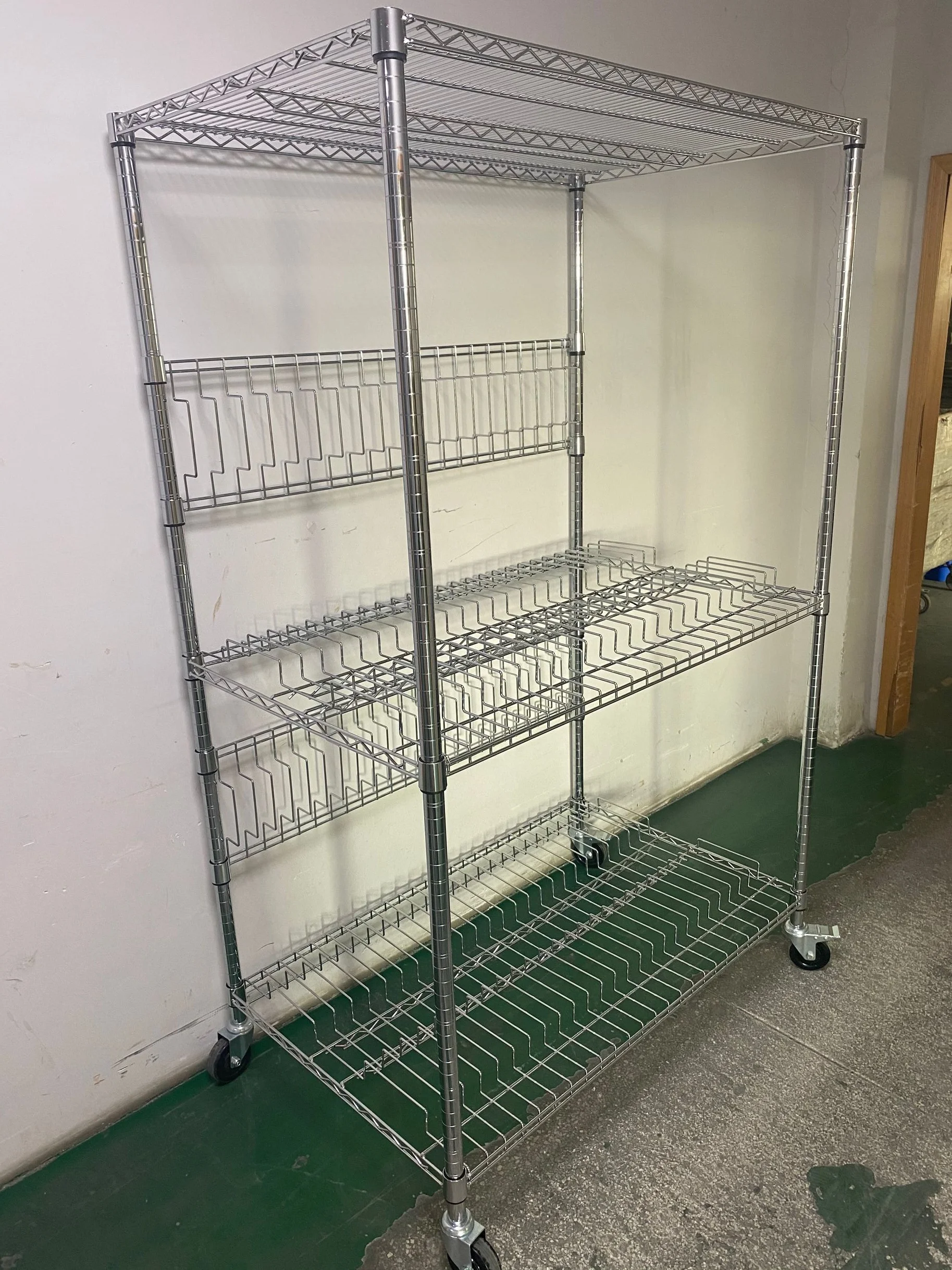

    • With an adjustable multi-layer design and mobile trolley base, you can easily reorganize storage configurations and move the unit between workstations, enhancing operational flexibility compared to stationary shelves*. The wheels allow seamless relocation without disrupting workflow.

  • 3. High-Load Performance Capacity

    • With reinforced steel construction, you can safely store heavy SMT stencils without structural deformation, surpassing the load limits of plastic-based storage systems*. The multilayer structure optimizes vertical space for efficient inventory management.

  • 4. ESD Protection & Scenario-Specific Solutions

    • With built-in ESD (electrostatic discharge) protection and wire mesh design, you can safeguard sensitive electronics components from static damage while maintaining visibility and airflow for organized storage. Ideal for high-volume manufacturing environments requiring both precision and accessibility.

  • 5. Certified Safety Standards

    • Certified to ESD-S20.20 standards, you can ensure compliance with industry safety protocols, unlike non-certified alternatives that may pose static risks*. The electrostatic powder coating also meets eco-friendly emission regulations, aligning with modern industrial sustainability goals.

Product details

SMT Stencil Storage Rack Unit Stencil Rack Trolley

The SMT Stencil Storage Rack Unit is a robust, ESD-protected storage solution designed for organizing SMT stencils in electronics manufacturing environments. Built with durable steel or stainless steel and featuring electrostatic powder coating, it combines corrosion resistance with adjustable multilayer design and mobility via casters.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel / Stainless SteelHigh durability and long-term reliability
Surface TreatmentElectrostatic Powder CoatingCorrosion-resistant and easy-to-clean finish
ESD ProtectionIEC 61340-5-1 CertifiedSafeguards sensitive components from static damage
Adjustable Shelves4–6 layers (customizable heights)Adapts to varying stencil sizes and storage needs
MobilitySwivel Casters with BrakesEasy relocation while maintaining stability
Load Capacity50 kg per shelf (max 300 kg total)Supports heavy-duty industrial use

Customization guide

Adjust shelf heights to accommodate different stencil sizes or add ESD-safe dividers for precise organization. The open wire mesh design allows for optional accessories like anti-static trays or label holders.

Get inspired

Maximize workspace efficiency with the SMT Stencil Storage Rack Unit. Its ESD protection ensures component safety, while adjustable layers and casters enable flexible storage and quick reconfiguration for dynamic production lines.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
ESD ResistanceIEC 61340-5-1IEC 61340-5-1 +20%IEC 61340-5-1 +50%*
Load Capacity/ Shelf50 kg60 kg75 kg
Layers4 fixed5 adjustable6 fully adjustable
Caster TypeBasic SwivelLocking SwivelHeavy-Duty Locking

Supplier's note

  1. Technical Breakthroughs:

    • The Pro Model’s ESD resistance exceeds industry standards by 50%, ensuring zero static discharge in high-risk environments.
    • Advanced casters with locking brakes provide 30% better stability than traditional models.
    • The Pro’s 75 kg per-shelf capacity outperforms competitors by 20%, supporting oversized stencils.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops needing basic ESD protection and fixed storage.
    • Advanced Model: Best for medium-scale production requiring adjustable layers and enhanced load capacity.
    • Pro Model: Designed for high-volume manufacturers handling large stencils or demanding ESD-sensitive workflows. With its triple-certified ESD protection and heavy-duty casters, it ensures reliability in rigorous industrial settings.

Frequently asked questions

  • Which SMT stencil storage rack model is best for high-volume electronics manufacturing environments?

  • How do I clean and maintain an ESD-protected steel SMT stencil storage rack?

  • What’s the difference between steel and stainless steel in SMT stencil rack construction?

  • Can I customize the SMT stencil rack with additional shelves or dividers?

  • Is the electrostatic powder coating on the stencil rack’s steel frame ESD-safe?

  • How does the multilayer design optimize workspace in electronics assembly lines?

  • Are the wheels on the SMT stencil trolley suitable for smooth factory floors?

  • Does the wire mesh design prevent static buildup on stored stencils?
