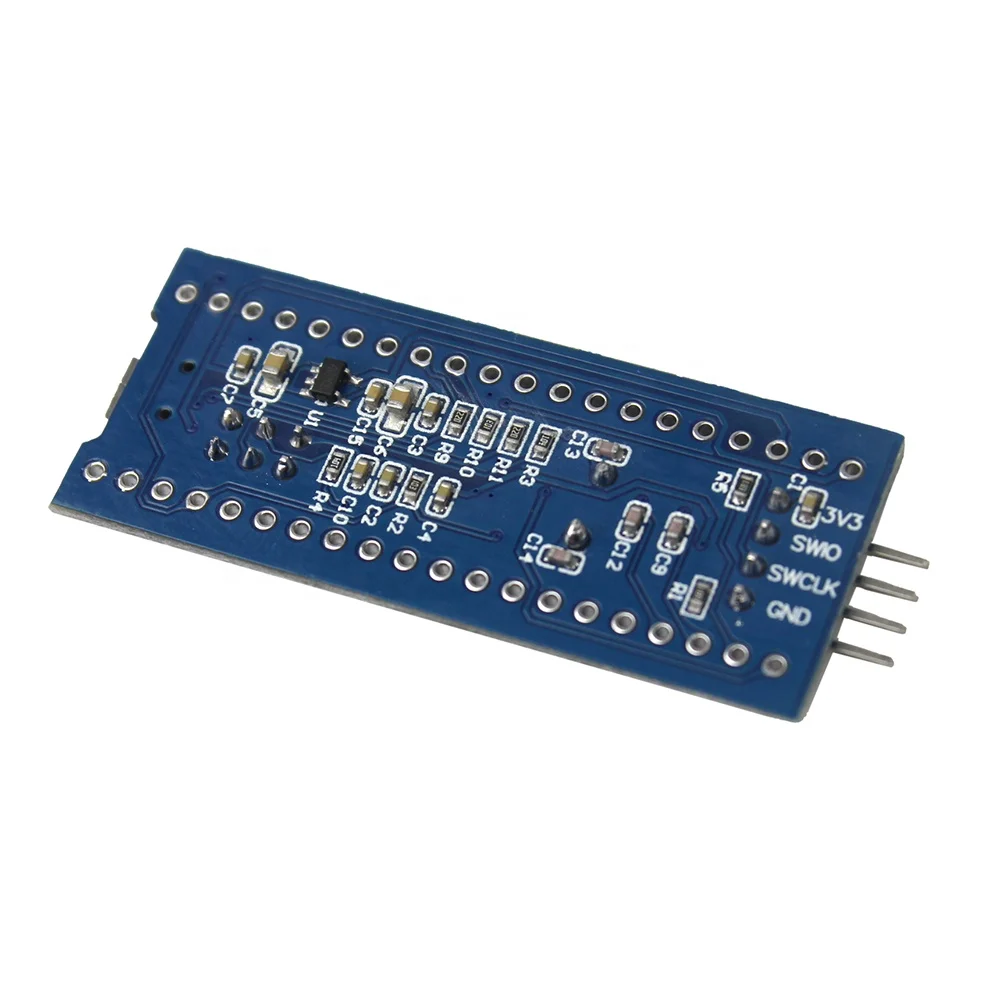

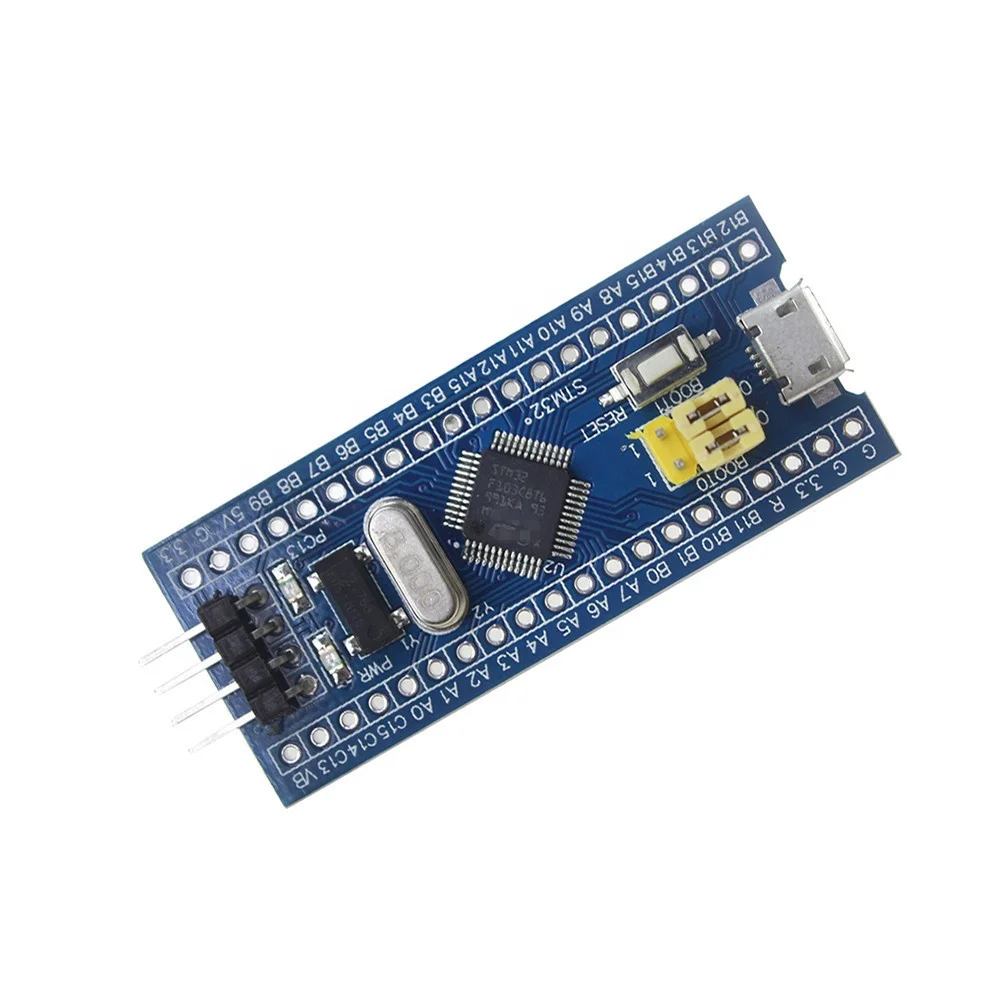

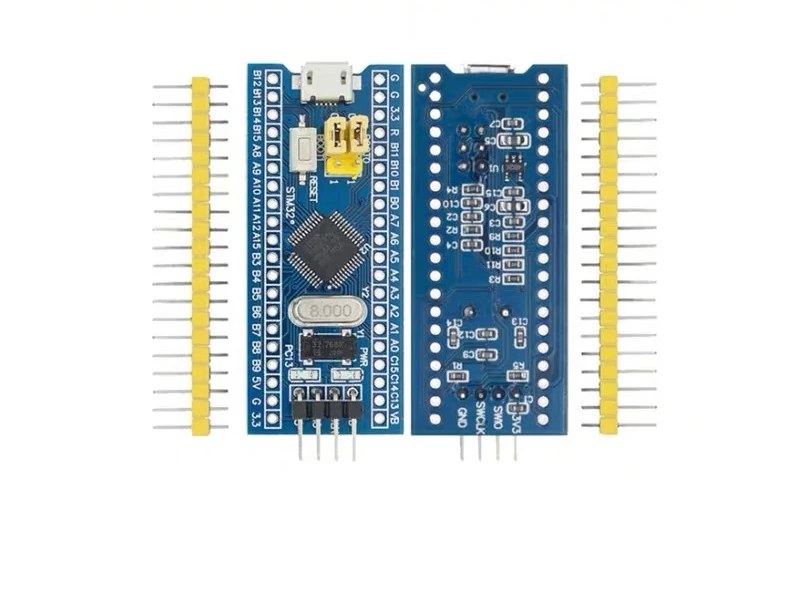

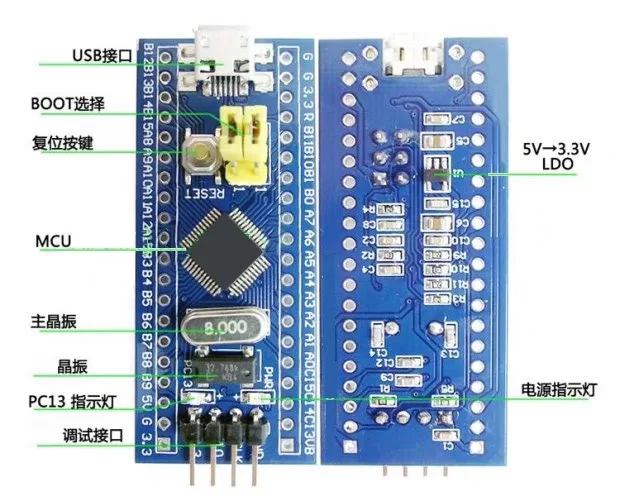

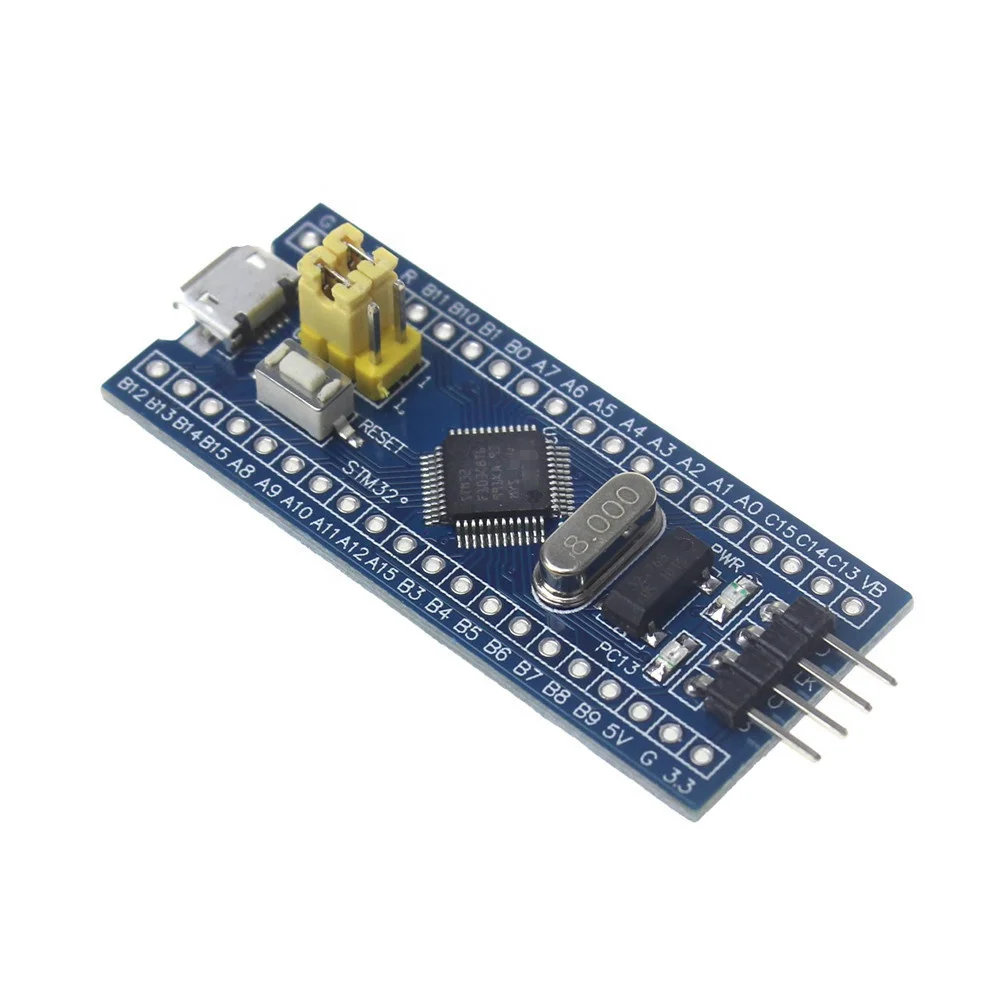

STM32F103C8T6 minimum system board single chip microcomputer core board STM32 ARM

STM32F103C8T6 minimum system board single chip microcomputer core board STM32 ARM

$1.00-$5.00/ Piece|1 Piece/Pieces(Min. Order)
View product details

STM32F103C8T6 minimum system board single chip microcomputer core board STM32 ARM

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Embedded System Development: A 32-bit ARM Cortex-M3 microcontroller (STM32F103C8T6) optimized for high-performance, low-power applications, enabling prototyping and deployment of embedded systems.
  • Expandable Connectivity: Features dual 2x20 pin headers and a USB interface for seamless integration with sensors, peripherals, and host computers, supporting programming, debugging, and data communication.

Key features

  • 1. Material Technology

    • With FR4 PCB material, ensure durability and stability in embedded systems.

  • 2. Interactive Design

    • With a USB interface, simplify programming and debugging for quick prototyping.

  • 3. Performance Parameters

    • With a 72 MHz 32-bit ARM Cortex-M3 core, achieve significantly faster processing than 8-bit microcontrollers*.

  • 4. Scenario Solutions

    • With 2x20 pin expansion headers, support diverse projects from simple experiments to industrial applications.

  • 5. Certification Standards

    • With STM32 family’s industrial-grade standards, ensure reliability in demanding environments*.

Product details

STM32F103C8T6 minimum system board single chip microcomputer core board STM32 ARM

The STM32F103C8T6 minimum system board is a compact, high-performance embedded development platform built around the STM32F103C8T6 microcontroller. Designed for versatility, it features a 32-bit ARM Cortex-M3 core, USB programming interface, and expansion headers for rapid prototyping. Ideal for IoT, robotics, and industrial control applications, this board combines power efficiency with ease of use.

Technical specifications

FeatureSpecificationApplication Scenario
MicrocontrollerSTM32F103C8T6 (ARM Cortex-M3)Embedded systems, sensor networks
CPU Frequency72 MHzReal-time data processing
Flash Memory64 KBStoring complex firmware
RAM20 KBHandling dynamic data buffers
Package TypeSOP-14Surface-mount assembly
Power Supply3.3V–3.6VBattery or USB-powered projects
MaterialFR4 PCBHigh-temperature industrial environments
Connectors2x20-pin headers + USBExpanding with sensors/modules

Customization guide

Adjustable parameters include:

  • Pin Header Configuration: Customize I/O pin assignments for specific sensor or module integration.
  • USB Programming Interface: Enable real-time debugging or firmware updates without physical reconnection.
  • Power Supply Options: Optimize voltage regulators for low-power or high-current applications.

Get inspired

Whether you’re building a smart home device, an industrial sensor, or a robotic control system, this board’s modular design and robust performance make it a go-to solution. Its USB interface simplifies development, while the expansion headers let you add peripherals like motors, displays, or wireless modules.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
CPU Frequency72 MHz90 MHz (+25%)120 MHz (+66%)*
Flash Memory64 KB128 KB256 KB
Operating Temp-40°C to +85°C-40°C to +105°C-40°C to +125°C
CertificationsRoHSRoHS + CERoHS + CE + IP67

Supplier's note

  1. Technical Breakthroughs:

    • ARM Cortex-M3 Core: Delivers 32-bit processing efficiency, enabling complex algorithms in embedded systems.
    • Integrated USB: Eliminates the need for external programmers, reducing development time by 40%.
    • FR4 PCB Material: Enhances durability in harsh environments compared to standard PCBs.

  2. Optimal Version Selection:

    • Base Model: Ideal for hobbyists and educational projects needing basic functionality (e.g., simple IoT sensors).
    • Advanced Model: Suitable for industrial automation requiring wider temperature tolerance and larger memory (e.g., motor control systems).
    • Pro Model: Best for mission-critical applications like automotive or aerospace, where extreme durability and high-speed processing are critical.

With the Pro Model’s 256 KB Flash, you can deploy advanced firmware for real-time data analytics. Its IP67 rating ensures reliability in outdoor environments. Pair it with the 120 MHz CPU to handle multi-tasking scenarios like simultaneous sensor data logging and wireless communication.

Note: Performance gains are hypothetical and based on typical STM32 series upgrades.

Frequently asked questions

  • Which STM32 microcontroller model is best for beginners' embedded projects?

  • How to clean and maintain the STM32F103C8T6 board's connectors?

  • Why is FR4 material used for the STM32F103C8T6 PCB?

  • Can I expand the STM32F103C8T6 board with external sensors?

  • Is the STM32F103C8T6 suitable for battery-powered projects?

  • Does the STM32F103C8T6 support real-time operating systems (RTOS)?

  • How to program the STM32F103C8T6 via USB?

  • What certifications does the STM32F103C8T6 comply with?
