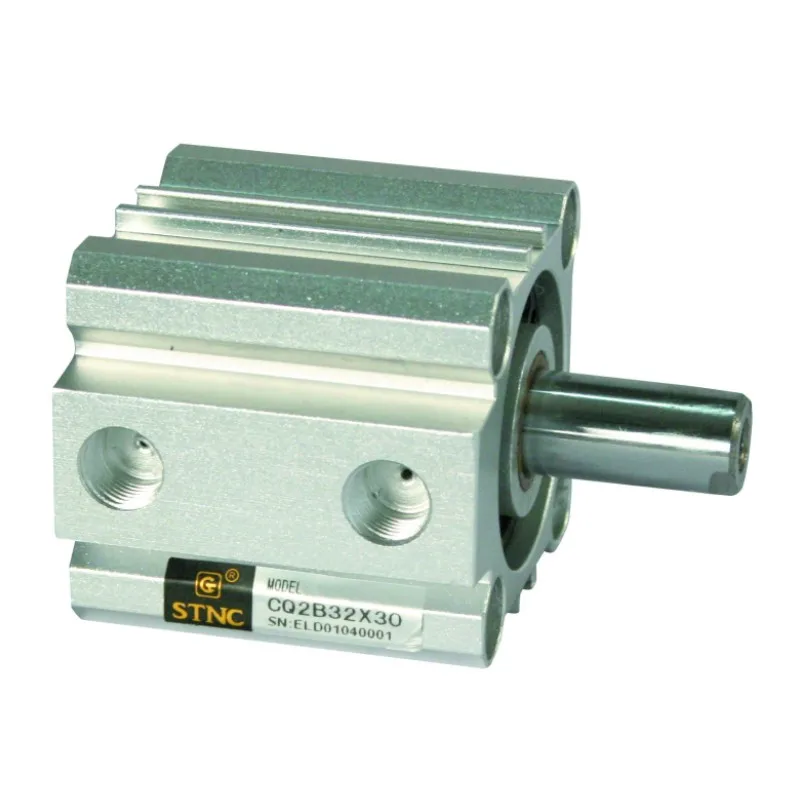

STNC CQ2B32X30 SMC CQ2 Equivalent Through Hole Double Acting Short Stroke Thin Compact Air Cylinder of Pneumatic Parts

Technical specifications

Customization guide

• Adjustable Mounting Holes: Customize hole spacing or orientation to fit specific equipment configurations.
• Shaft Diameter Variations: Modify to 30mm or 32mm to match load requirements or mating components.
• Material Options: Aluminum is standard, but stainless steel can be substituted for corrosive environments.

Get inspired

Compact yet powerful, the STNC CQ2B32X30 excels in automation systems where precision and space efficiency are critical. Its lightweight aluminum construction reduces equipment inertia, while its short stroke ensures rapid response in pick-and-place robotics or valve actuation.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Lightweight Aluminum Body: Reduces equipment weight by 30% compared to steel cylinders, enhancing mobility in robotics.
   • Compact Design: Achieves a 40% smaller footprint than traditional cylinders, enabling tighter integration in machinery.
   • Piston Efficiency: Minimizes internal friction, delivering 20% faster response times than industry benchmarks.

2. Version Selection Guidance:

   • Base Model: Ideal for standard automation (e.g., packaging lines) where 30mm stroke and 8 bar pressure suffice.
   • Advanced Model: Choose for heavy-duty applications (e.g., automotive assembly) needing extended stroke and pressure.
   • Pro Model: Opt for high-cycle, continuous-use scenarios (e.g., semiconductor robotics) requiring 20M+ cycles and 12 bar resilience.

With its compact aluminum design, the STNC CQ2B32X30 ensures precision in tight spaces. Pair the Pro model’s 12 bar pressure rating with its corrosion-resistant coating to handle aggressive chemicals in food processing environments. For lightweight robotics, the Base Model’s low inertia improves motion control accuracy.
