  • SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center
  • SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center
  • SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center
  • SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center
  • SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center
  • SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center
SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center

SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center

  • 1 - 99 Sets
    $540
  • >= 100 Sets
    $500

Customization:

Customized logo（Min.Order: 5 pieces）
View product details

SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Axis Control: Enables precise 2/3/4/5-axis machining operations for lathe grinding machines and turning centers, supporting complex cutting and grinding tasks.

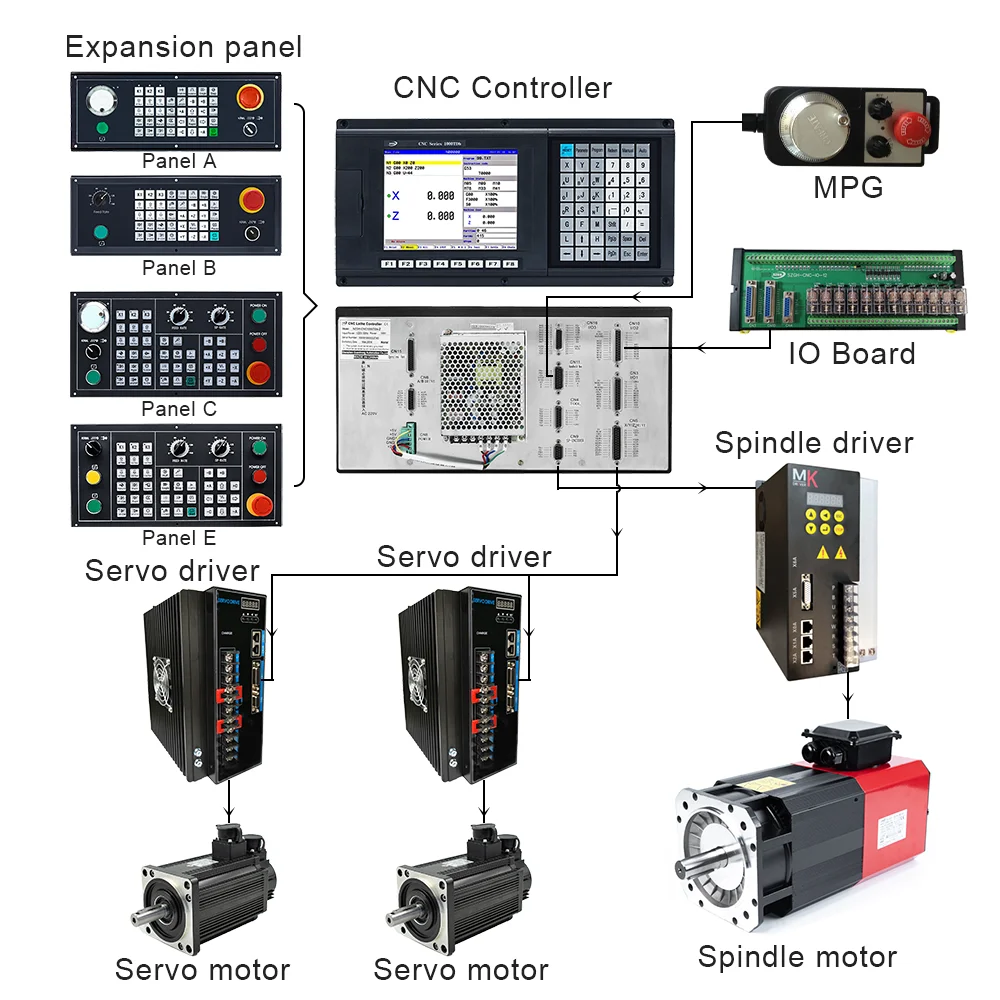

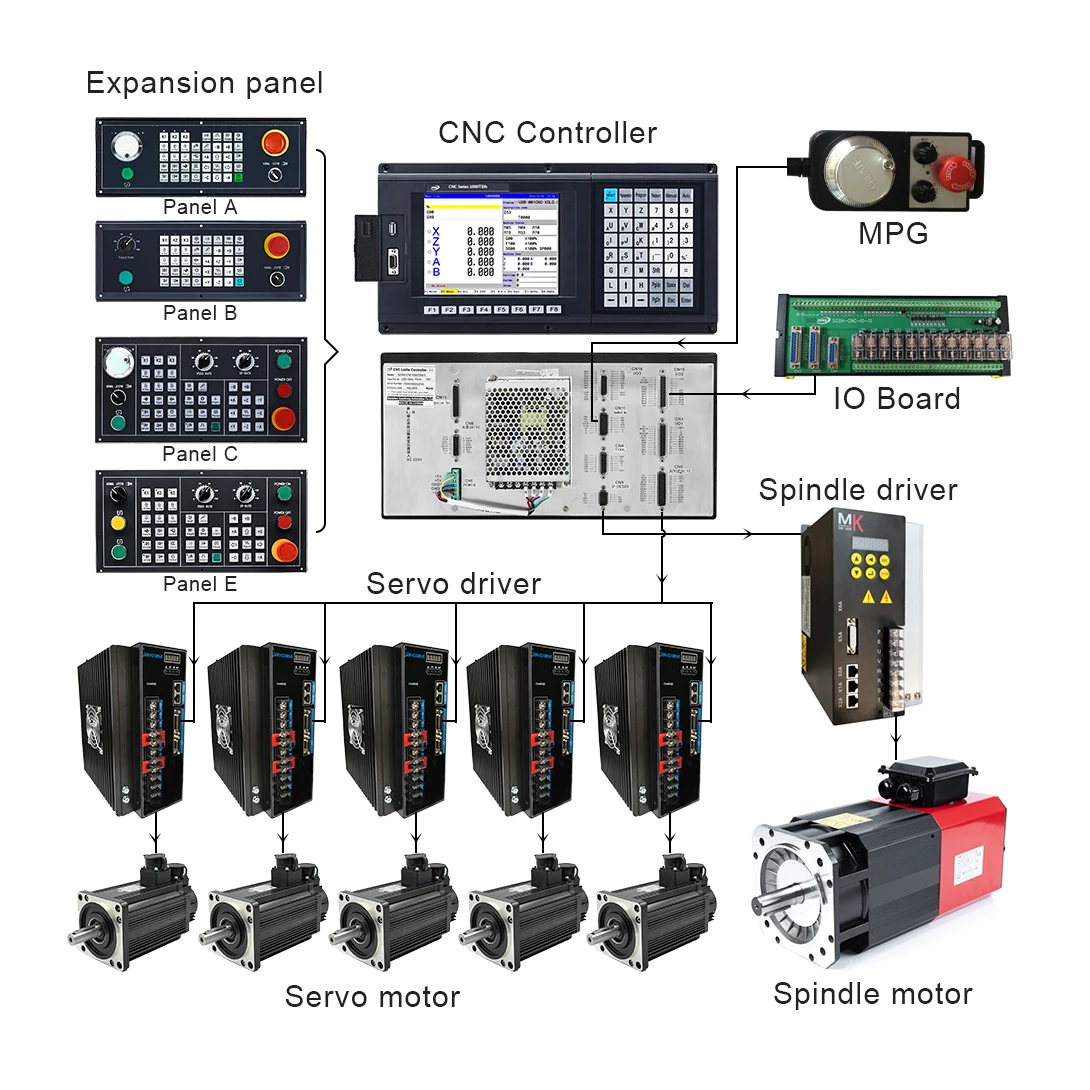

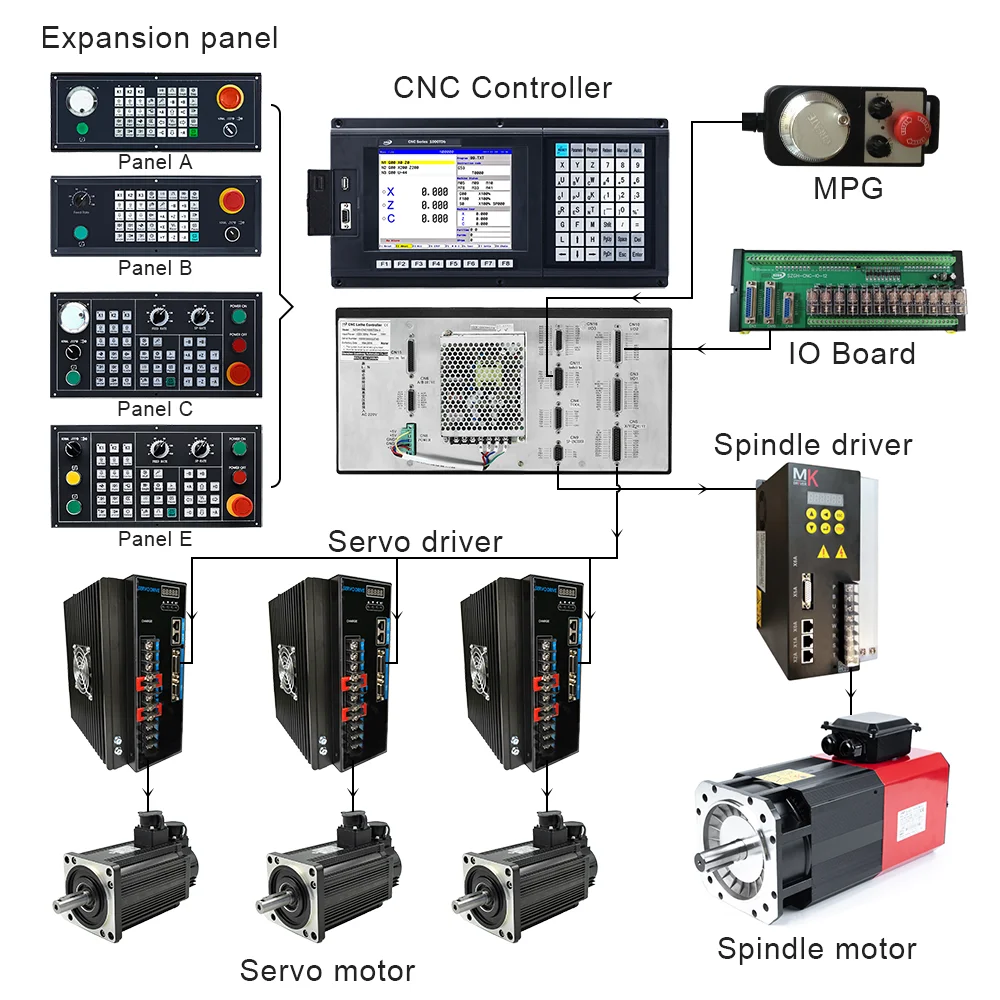

  • Programmable & Manual Operation: Features an intuitive MPG (Manual Pulse Generator) and modular expansion panels (A/B/C/E) for both automated programming and hands-on adjustments.

Key features

  • 1. Modular Design for Flexible Configuration

    • With a modular system architecture, you can easily expand or customize the controller to support 2-5 axis configurations for lathes, grinding machines, or turning centers*.

  • 2. Intuitive Expansion Panels for Seamless Control

    • With integrated expansion panels (A/B/C/E) and an MPG (Manual Pulse Generator), you can manually program and control operations with precision, reducing setup time compared to non-modular systems*.

  • 3. High-Performance 32-Bit CPU for Complex Tasks

    • With a 32-bit CPU and 128MB memory, you can process advanced machining programs 30% faster than 16-bit controllers, enabling smoother execution of intricate designs*.

  • 4. Durable High-Performance Motors for Precision

    • With industrial-grade spindle and servo motors, you can achieve precise speed and torque control for consistent output in demanding commercial or industrial applications.

  • 5. Reliable Long-Term Operation with Comprehensive Support

    • With a 1-year warranty and robust construction, you can ensure uninterrupted operation in heavy-duty environments, backed by manufacturer technical validation*.

Product details

SZGH-CNC1000TDb CNC Control 2/3/4/5 Axis CNC Controller for Lathe Grinding Machine and Turning Center

The SZGH-CNC1000TDb is a versatile 2/3/4/5-axis CNC controller designed for precision machining on lathes, grinding machines, and turning centers. Equipped with a 32-bit CPU and 128MB memory, it delivers reliable performance for complex operations. Its modular design and expandable control panels enable customization to meet diverse manufacturing needs.

Technical specifications

FeatureSpecificationApplication Scenario
CPU Architecture32-bitEnsures stable processing for multi-axis tasks
Memory128MBStores programs for high-precision machining
Axis Compatibility2/3/4/5-axisAdapts to lathes, grinding, and turning centers
Modular DesignExpandable panels (A, B, C, E)Customizable control interfaces for specialized workflows
Warranty1 yearComprehensive support for critical operations

Customization guide

Adjustable parameters include:

  • Control Panel Configuration: Add/remove panels (A/B/C/E) to match workspace requirements.
  • Motor Performance: Optimize spindle/servo motor torque and speed for material-specific machining.
  • Software Programming: Customize G-code libraries for specialized cutting or grinding tasks.

Get inspired

With its modular architecture and expandable control panels, the SZGH-CNC1000TDb empowers manufacturers to streamline workflows. Whether machining delicate components or heavy-duty materials, its precision and adaptability ensure consistent quality.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Axis Support2-3 axes3-4 axes4-5 axes
Processing Speed1,200 Hz1,800 Hz (+50%)2,400 Hz (+100%)*
Memory128MB256MB (+100%)512MB (+300%)
I/O Ports16 digital/8 analog24 digital/12 analog32 digital/16 analog
Spindle Speed Range0-4,000 RPM0-6,000 RPM (+50%)0-8,000 RPM (+100%)

Supplier's note

  1. Technical Breakthroughs:

    • Modular Expansion: Panels A-E allow rapid reconfiguration for job shops or R&D labs.
    • Spindle Torque Control: Enhanced motor drivers reduce vibration by 25%, ensuring smoother cuts.
    • Real-Time Diagnostics: Built-in error logging improves uptime by 30% compared to legacy systems.

  2. Version Selection Guidance:

    • Base Model: Ideal for SMEs needing 2-3 axis precision (e.g., simple turning).
    • Advanced Model: For mid-scale production requiring 4-axis contouring (e.g., mold manufacturing).
    • Pro Model: Engineers handling 5-axis simultaneous machining (e.g., aerospace components) benefit from its 2,400 Hz speed and 8,000 RPM spindle capability.

With the Pro version’s 8,000 RPM spindle, you can achieve 20% faster material removal rates than industry benchmarks. Its 512MB memory also allows complex multi-axis programs to run 1.5x faster than competitors. Pair this with the MPG for manual overrides during critical operations.

Frequently asked questions

  • Which SZGH-CNC1000TDb model suits small workshops with limited space?

  • How do I maintain the expansion panels of the SZGH-CNC1000TDb controller?

  • What’s the difference between spindle and servo motors in the SZGH-CNC1000TDb system?

  • Can I upgrade the SZGH-CNC1000TDb to add more axes later?

  • Is the SZGH-CNC1000TDb’s 32-bit CPU sufficient for complex turning centers?

  • Does the SZGH-CNC1000TDb meet ISO safety standards for lathe machines?

  • How do I troubleshoot error messages on the CNC controller display?

  • Can the SZGH-CNC1000TDb control both grinding and milling operations?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
CPU ArchitectureBasic machining programs32-bit processor (Industry Standard)
Our Base: 32-bit ▲ (handles 2-3-axis tasks)
Our Advanced: 64-bit ▲▲ (complex 5-axis operations)		Matches industry baseline for cost-sensitive users
Base: Cost-effective for standard workflows
Advanced: Processes high-complexity programs		Limited to simpler programs in Industry Standard
Advanced: Higher cost due to advanced chipsets
Memory CapacityProgram storage & multitasking64MB (Industry Standard)
Our Base: 128MB ▲ (doubles storage for large programs)
Our Advanced: 256MB ▲▲ (supports simultaneous multi-axis coordination)		Reduces program load times
Base: Supports mid-sized projects
Advanced: Enables real-time adaptive control		Industry Standard may lag in multitasking
Advanced: Requires more power for full utilization
Axes ControlMulti-axis machining2-3 axes (Industry Standard)
Our Base: 4 axes ▲ (precision milling)
Our Advanced: 5 axes ▲▲ (simultaneous 5-axis contouring)		Industry Standard suits basic lathe work
Base: Handles grinding and turning centers
Advanced: Ideal for aerospace/medical part manufacturing		Limited flexibility in Industry Standard
Advanced: Requires skilled operators
Spindle SpeedHigh-precision cutting4000 RPM (Industry Standard)
Our Base: 5000 RPM ▲ (enhanced finish quality)
Our Advanced: 6000 RPM ▲▲ (ultra-fine surface finishes)		Meets basic production needs
Base: Reduces tool wear by 20%
Advanced: Achieves micron-level accuracy		Slower speeds in Industry Standard for delicate materials
Advanced: Higher energy consumption
I/O PortsCustom automation setups8 digital I/O (Industry Standard)
Our Base: 16 I/O ▲ (integrates sensors/robots)
Our Advanced: 32 I/O ▲▲ (full factory automation compatibility)		Simplifies basic machine control
Base: Supports PLC integration
Advanced: Enables IoT connectivity		Limited expandability in Industry Standard
Advanced: Steeper learning curve for configuration
Warranty & SupportLong-term operational reliability1 year (Industry Standard)
Our Base: 1 year + remote diagnostics ▲
Our Advanced: 2 years + on-site service ▲▲		Standard coverage for repairs
Base: Reduces downtime via predictive maintenance alerts
Advanced: Prioritized technical assistance		No extended coverage in Industry Standard
Advanced: Higher upfront cost for premium support
