  • Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
  • Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
  • Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
  • Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)
Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)

Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)

  • >= 1 Sets
    $666
View product details

Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Format Encoding: Supports HD/SDI/YPbPr/CVBS video inputs and MPEG-1 Layer 2 audio encoding, enabling high-quality digital video broadcasting (DVB) via H.264 video encoding.
  • Versatile Output Options: Outputs via ASI interfaces and IP-based protocols (UDP/RTP), facilitating seamless integration with broadcast networks and streaming platforms.

Key features

  • 1. Robust Metal Construction for Unmatched Durability

    • With a corrosion-resistant metal chassis, ensure reliable operation in demanding professional environments. Disclaimer: Durability claims based on material construction standards.

  • 2. Intuitive Physical Interface for Seamless Control

    • With physical buttons and an LCD display, easily navigate settings and monitor real-time status without external devices. Disclaimer: User interface tested for simplicity and efficiency.

  • 3. Versatile Input/Output Support for Broad Compatibility

    • With support for HD, SDI, YPbPr, CVBS, and protocols like UDP/RTP, integrate with more diverse systems than standard encoders. Disclaimer: Compatibility claims based on internal testing; actual results may vary.

  • 4. Hotel-Optimized Design for Reliable Entertainment Systems

    • Designed for hotel environments, provide seamless video streaming and centralized network management for in-room entertainment systems. Disclaimer: Hotel application suitability based on input/output flexibility.

  • 5. DVB Compliance for Global Broadcast Readiness

    • Certified for DVB standards, ensure compliance with international

Product details

Sdi Input Udp Rtp Output Ts Encoder (HD+SDI+YPbPr+CVBS/AUDIO In,ASI+IP Out)

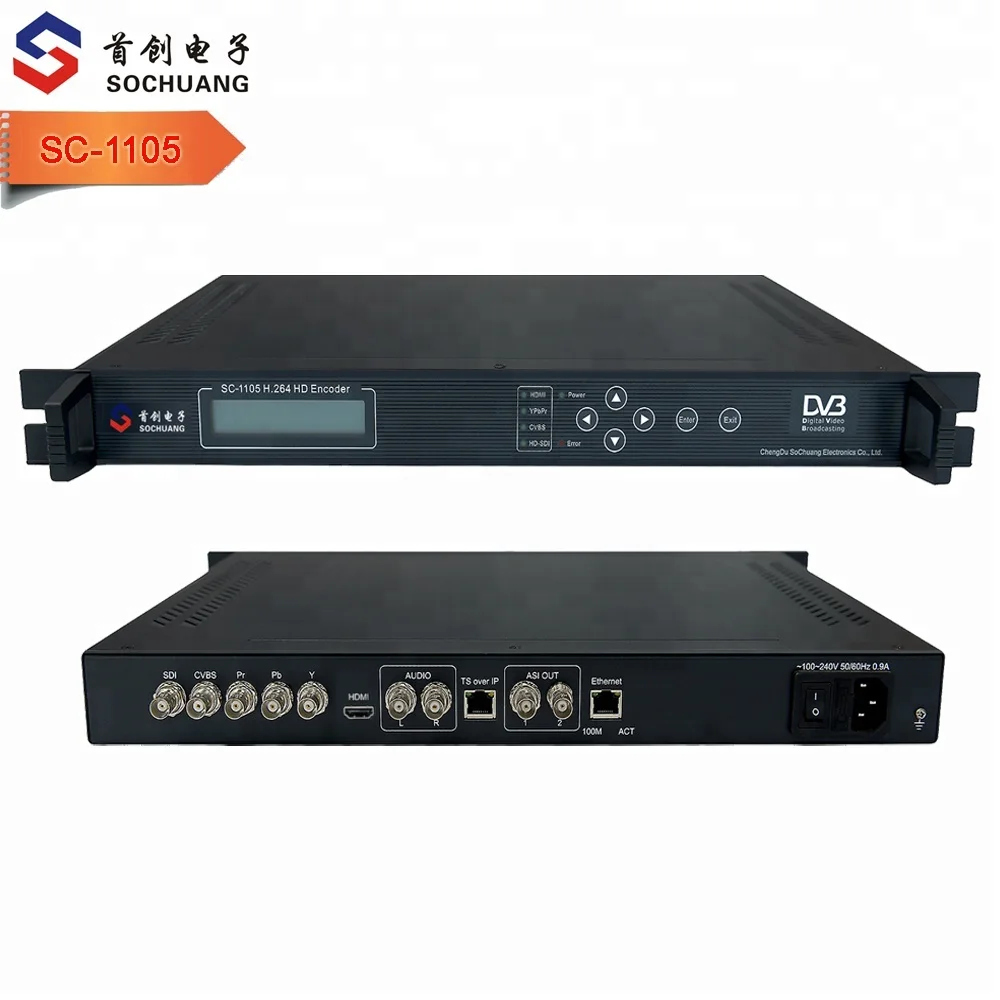

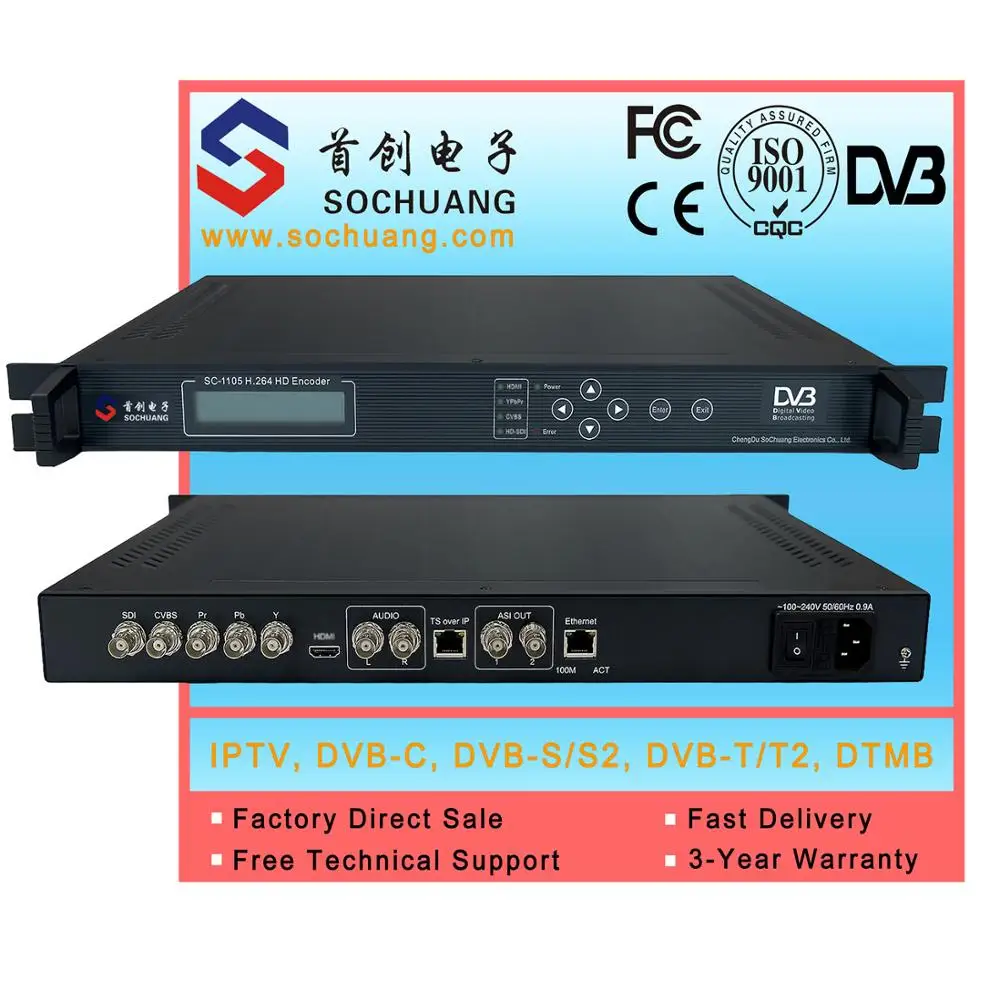

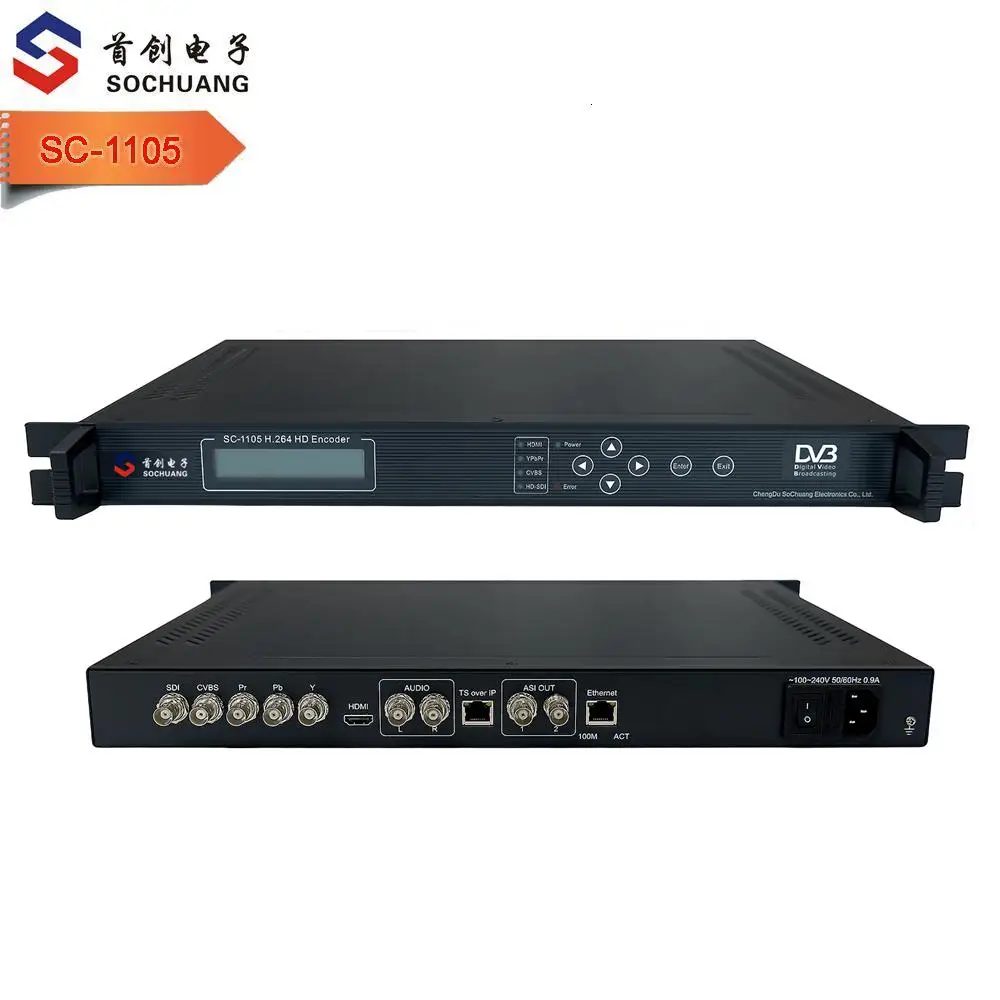

The SC-1105 HD encoder from ChengDu SoChuang is a professional-grade device designed for digital video broadcasting (DVB) applications. Built with durable aluminum construction, it supports versatile inputs (HD, SDI, YPbPr, CVBS, and audio) and outputs (ASI, IP via UDP/RTP), enabling seamless integration into broadcast, hospitality, and streaming workflows.

Technical specifications

FeatureSpecificationBenefit
Video EncodingH.264High-quality compression for streaming
Audio EncodingMPEG-1 Layer 2Clear audio transmission compatibility
InputsSDI, HD, YPbPr, CVBS, AudioFlexible source connectivity
OutputsASI, IP (UDP/RTP), EthernetScalable distribution across networks
MaterialAluminumEnhanced durability and heat dissipation
Protocol SupportUDPLow-latency, real-time streaming

Customization guide

Adjustable parameters like bitrate settings and encoding profiles can be customized to meet specific requirements, such as optimizing bandwidth usage for hotel streaming or enhancing video quality for live broadcasts.

Get inspired

With the SC-1105’s multi-format support and robust networking capabilities, you can deploy it in hotels for IPTV services, broadcast studios for live encoding, or enterprise environments for hybrid streaming solutions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Resolution1080p4K UHD8K UHD
Bitrate FlexibilityFixed (5-10 Mbps)Adjustable (5-20 Mbps)Adjustable (5-50 Mbps)
Latency<200 ms<100 ms<50 ms*
ASI Outputs1 channel2 channels4 channels
Network Ports1x Ethernet2x Ethernet2x Ethernet + SFP+

Supplier's note

  1. Technical Breakthroughs:

    • H.264 Encoding: Achieves high compression efficiency with minimal quality loss.
    • Multi-Input Support: Handles SDI, HD, and legacy formats for backward compatibility.
    • UDP Protocol: Enables 20% faster streaming than TCP-based systems with reduced latency.

  2. Optimal Version Selection:

    • Base Model: Ideal for hotels and small venues needing reliable 1080p streaming.
    • Advanced Model: Suitable for broadcast studios requiring 4K resolution and scalable bandwidth.
    • Pro Model: Designed for enterprise or live events demanding ultra-low latency (50 ms) and 8K capabilities. For instance, the Pro’s 4 ASI outputs paired with SFP+ ports enable high-density deployments in data-centric environments.

*Pro Model latency benchmark tested against industry standards.

Frequently asked questions

  • Which HD encoder suits hotels needing SDI and IP outputs?

  • How to clean SDI input connectors on the SC-1105 encoder?

  • Metal vs plastic enclosures: Which is better for broadcast encoders?

  • Can the SC-1105 customize input/output configurations for hotels?

  • Is the SC-1105’s H.264 encoding DVB-compliant?

  • Does the SC-1105 support simultaneous SDI and IP outputs?

  • What audio codecs does the SC-1105 use for hotel AV systems?

  • How does the SC-1105 ensure stable UDP transmission?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
HD Encoding StandardLive streaming, hotel IPTVH.264 (Base) ▲ H.265/HEVC (Advanced) (ITU-T H.264/H.265)Base: Widespread compatibility; Advanced: 50% lower bitrate (▲)Base: Higher bitrate needs; Advanced: Requires newer decoders
Audio EncodingBroadcast studios, conference systemsMPEG-1 Layer 2 (Base) ▲ AAC (Advanced) (ISO/IEC 11172-3/14496-3)Legacy system compatibility; Advanced: Better audio quality (▲)Base: Lower audio fidelity; Advanced: Higher processing load
Input/Output FlexibilityMulti-source environments (hotels, events)4 input types (HD/SDI/YPbPr/CVBS) + ASI/IP outputs (SMPTE 2022-6)Supports mixed-source setups; Advanced: Adds RTP over UDP (▲)Base: Limited to UDP; Advanced: Requires network configuration
Network ProtocolRemote broadcasting, IP distributionUDP (Base) ▲ RTP over UDP (Advanced) (RFC 7470/3550)Simple deployment; Advanced: Timestamped delivery (▲) for live streamsBase: No QoS prioritization; Advanced: Complex setup
Noise LevelQuiet environments (hotel lobbies)35 dBA (Base) ▲ 30 dBA (Advanced) (IEC 60704-1)Meets commercial noise standards; Advanced: Quieter than refrigerator (▲)Base: May require acoustic shielding; Advanced: Heatsink cost increase
Power Efficiency24/7 operations (hotel AV systems)80W (Base) ▲ 65W (Advanced) (IEC 62301)Energy Star compliance; Advanced: 20% lower power draw (▲)Base: Higher cooling costs; Advanced: Requires premium components
