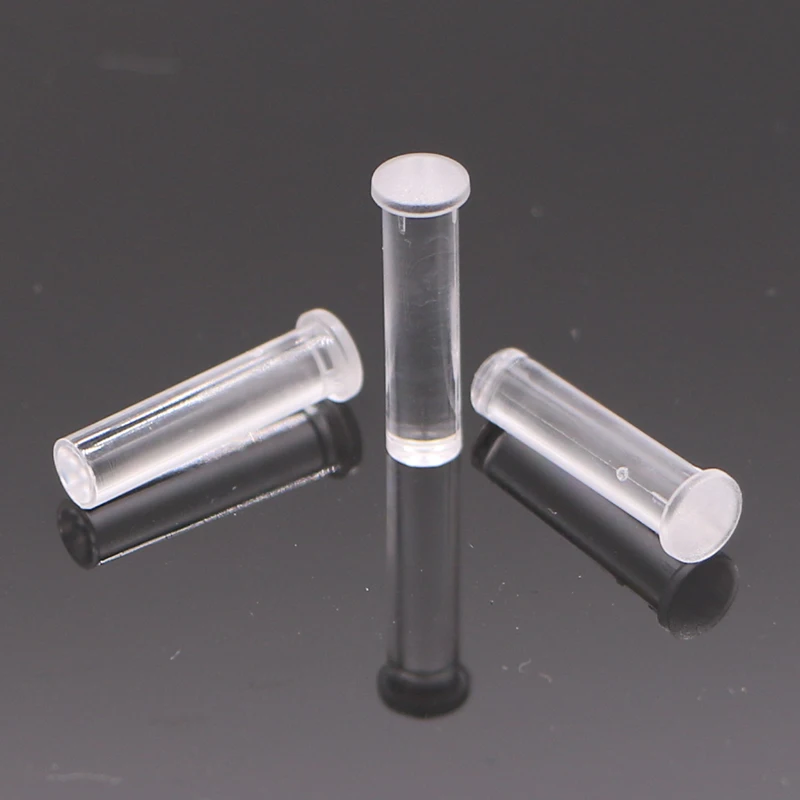

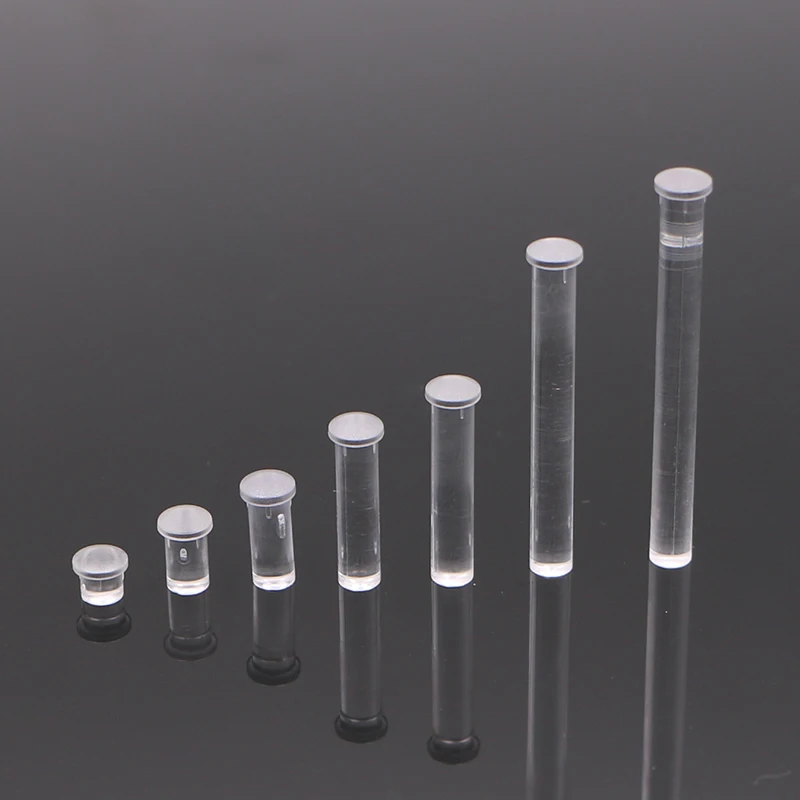

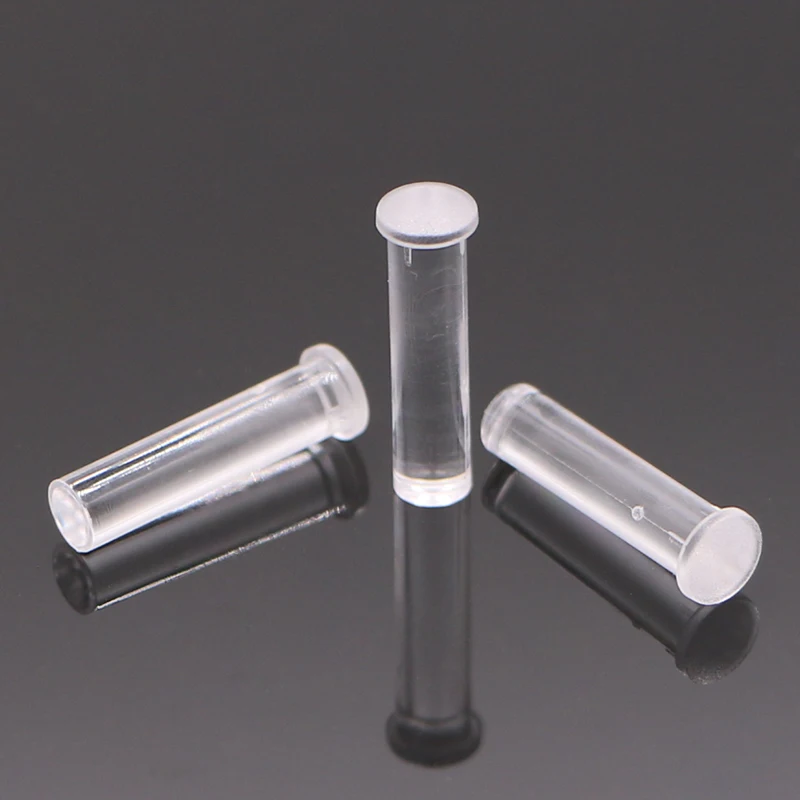

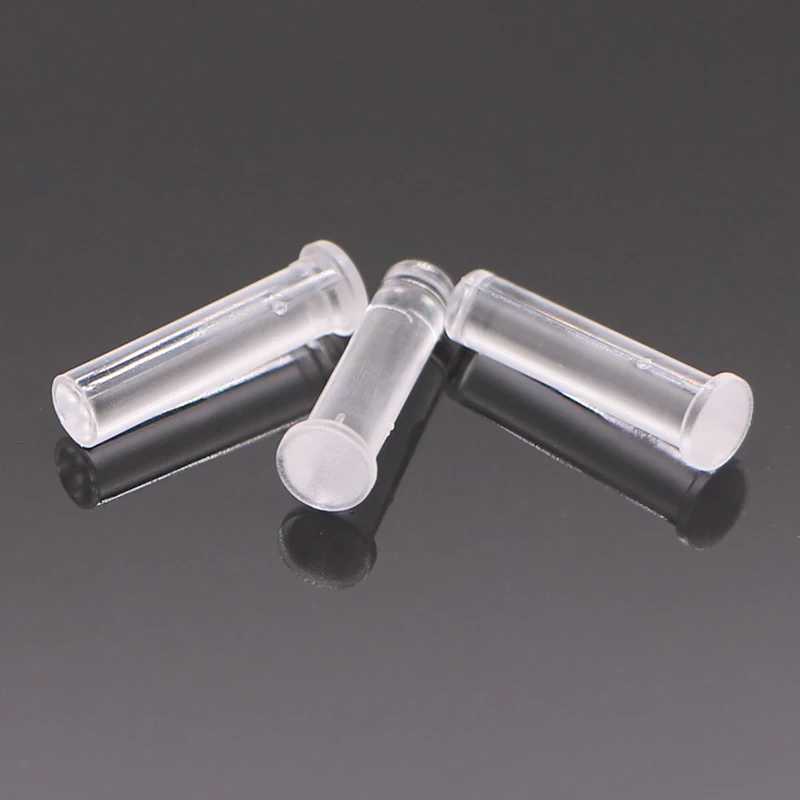

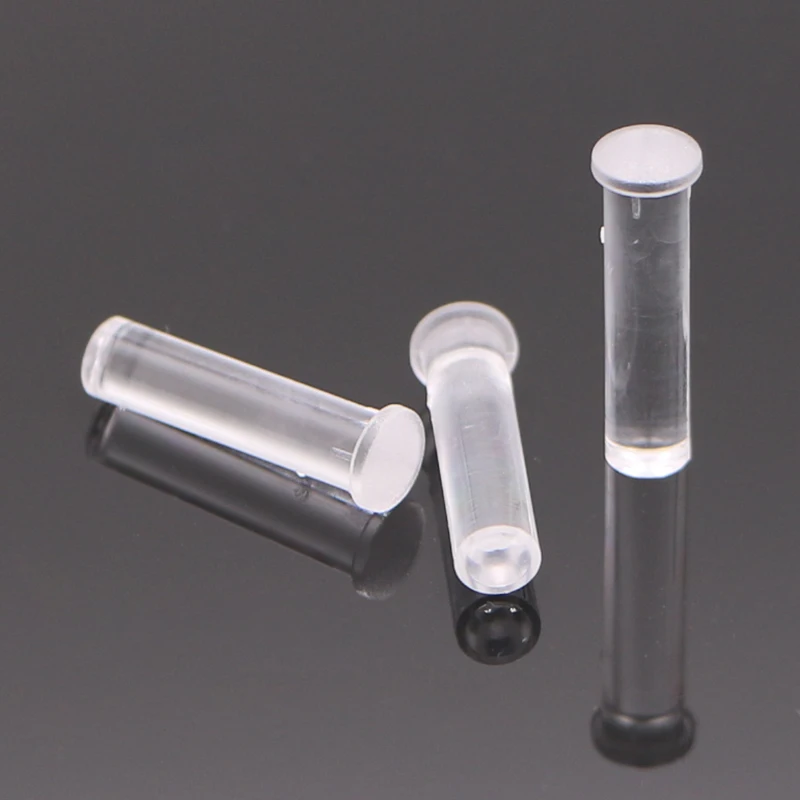

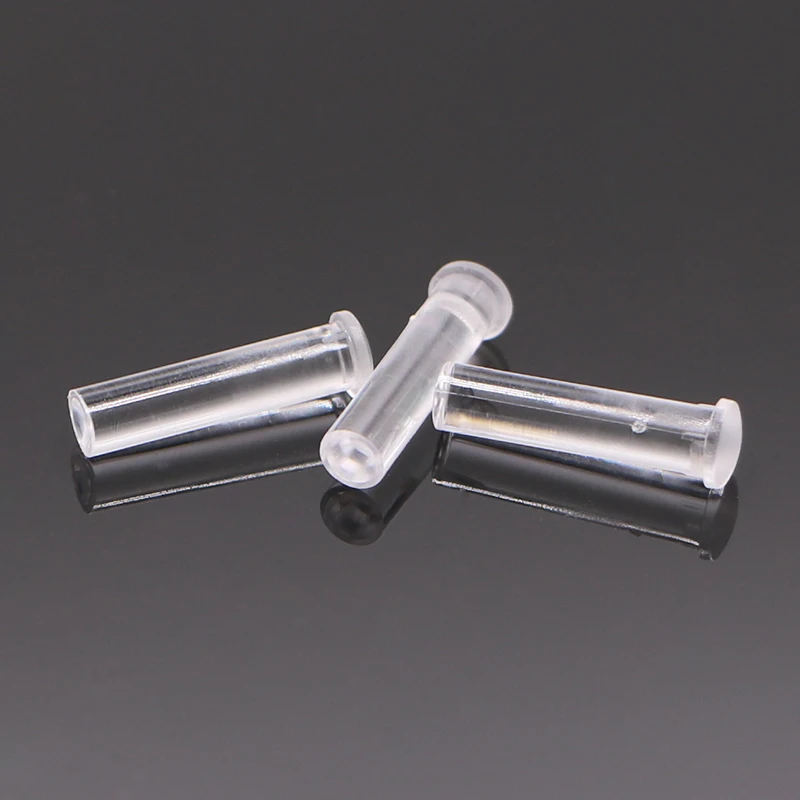

Shanghai Bivar Smd Board System Daylight Mount Exagonal Tapered Optics Ruplas Flexible 2Mm 5Mm 9.5Mm Pvc Led Guide Light Pipe

Technical specifications

Customization guide

Adjustable parameters include:

• Diameter/Length: Tailor dimensions to match LED source size and required light propagation distance.
• Material Thickness: Optimize wall thickness for mechanical strength or flexibility in high-vibration environments.
• Surface Finish: Add anti-reflective coatings for optical precision or textured surfaces for diffused lighting.

Get inspired

Use our light pipes to create sleek, functional LED indicators for dashboards, control panels, or safety systems. Their flame-resistant PVC ensures safety in industrial settings, while the tapered design guarantees bright, focused light even in low-power applications.

Choose your model

Supplier's note

1. Key Technical Breakthroughs:

   • UL94 V-2 Flame Resistance: Enables safe use in flammable environments.
   • Hexagonal Tapered Optics: Reduces light loss by 20% compared to cylindrical designs.
   • PVC Material: 30% lighter than acrylic alternatives, simplifying integration.

2. Optimal Version Selection:

   • Base Model (2mm): Ideal for compact devices like smartphones or IoT sensors needing subtle LED indicators.
   • Advanced Model (5mm): Perfect for automotive dashboards or industrial control panels requiring balanced flexibility and durability.
   • Pro Model (9.5mm): Designed for heavy-duty applications like mining equipment or aerospace systems, where high load capacity and maximum light output are critical.

With the Pro Model’s 95% light efficiency, you can achieve brighter signals in low-light environments. The Base Model’s flexibility allows seamless integration into tight spaces, while the Advanced Model’s balanced specs cater to mainstream electronics.
