Sheet Metal Formwork Wing Nut Concrete Formwork System

Sheet Metal Formwork Wing Nut Concrete Formwork System

$9.80-$24.50/ Piece|100 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Sheet Metal Formwork Wing Nut Concrete Formwork System

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Structural Concrete Shaping: Precision-engineered to create columns, walls, and architectural elements using a grid-patterned steel surface that molds concrete into specific designs.
  • Modular Assembly: Wing nut system enables rapid setup and disassembly for efficient formwork deployment in diverse construction phases.

Key features

  • 1. Material Technology

    • With Q235 steel and galvanized coating, ensure corrosion resistance and durability in harsh construction environments. Outlasts traditional wood formwork by up to 50%*.

  • 2. Interactive Design

    • With quick-release wing nuts and modular design, assemble and disassemble formwork systems 30% faster than conventional systems*.

  • 3. Performance Parameters

    • With a load capacity of 5 tons per panel, support heavy concrete pours in column and wall structures without deformation, ensuring precision in high-demand applications.

  • 4. Scenario Solutions

    • Designed for column, wall, and office building applications, adapt to diverse construction scenarios without needing multiple formwork systems. Ideal for both residential and commercial projects.

  • 5. Certification Standards

    • Complies with ISO 3708 standards for steel formwork, ensuring safety and reliability in commercial and industrial projects.

Product details

Sheet Metal Formwork Wing Nut Concrete Formwork System

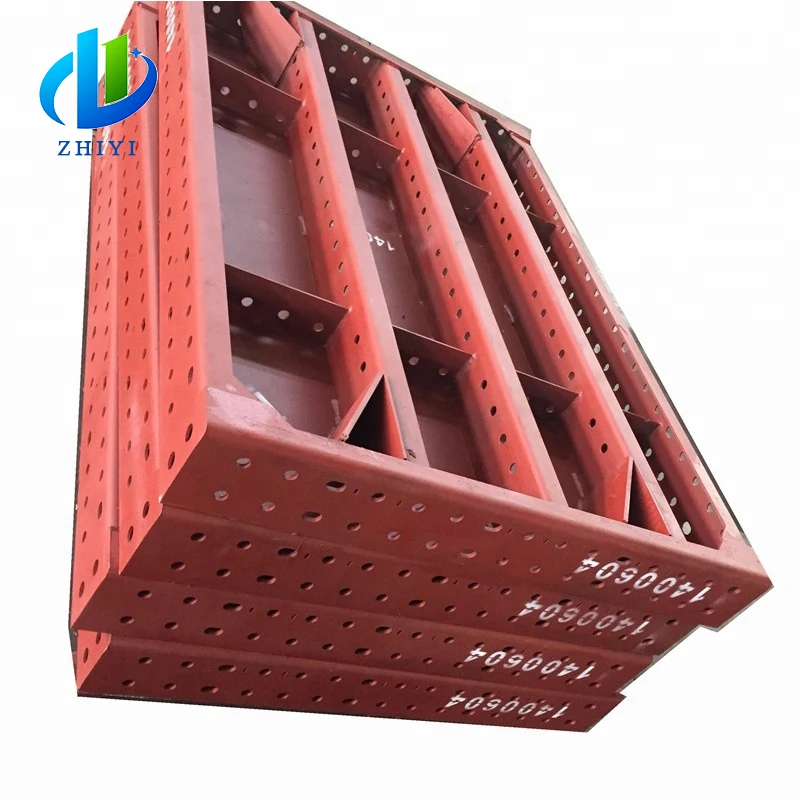

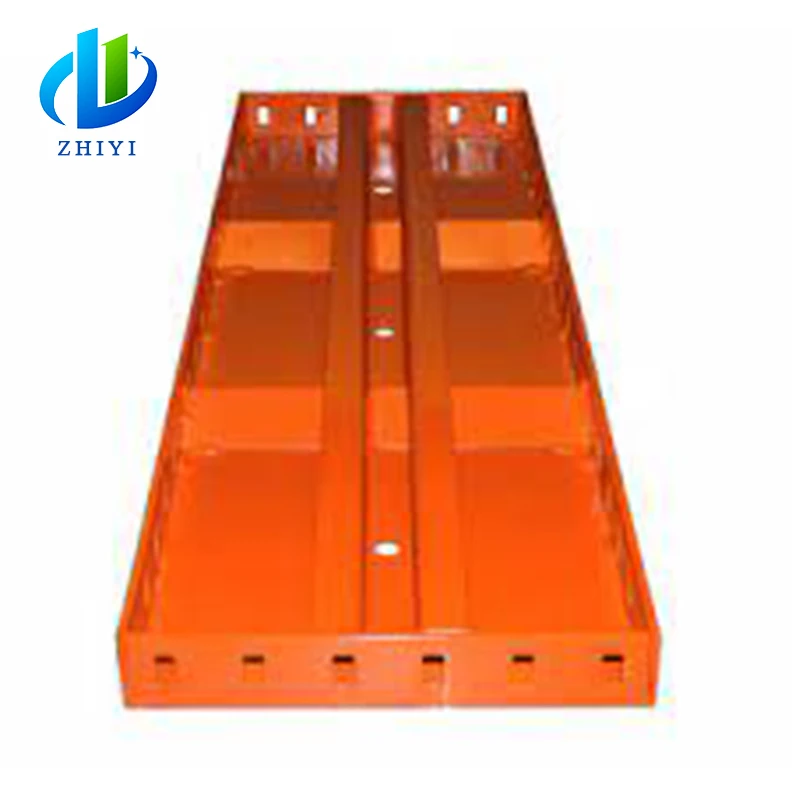

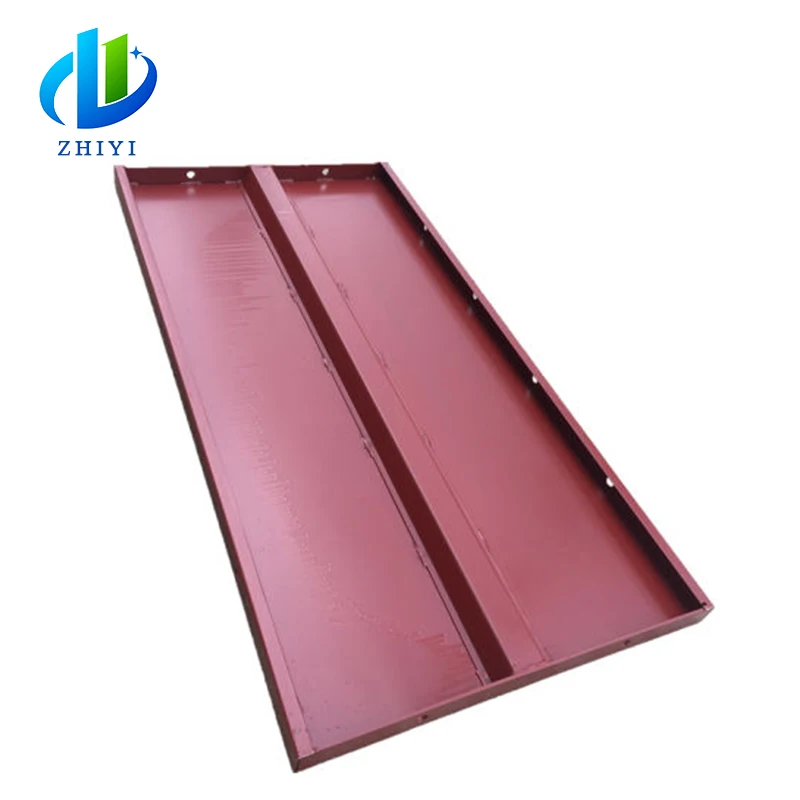

The Sheet Metal Formwork Wing Nut Concrete Formwork System is a durable, customizable solution for creating precise concrete structures in construction projects. Crafted from Q235 steel with a galvanized finish, it offers corrosion resistance and load-bearing strength for applications like columns, walls, and office buildings. Its modular design and grid pattern enable versatile customization, while stacking capabilities streamline storage and transport.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialQ235 steel with galvanized coatingHeavy-load concrete structures (e.g., columns in high-rises)

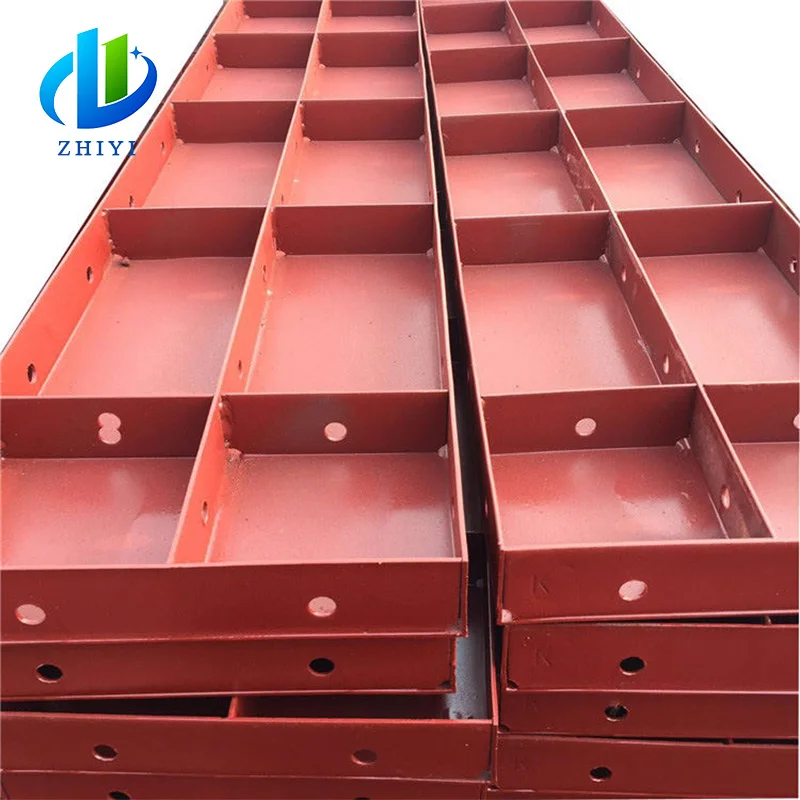

Grid PatternCustomizable grid dimensions (50-200mm)Shaping intricate architectural features in walls or columns

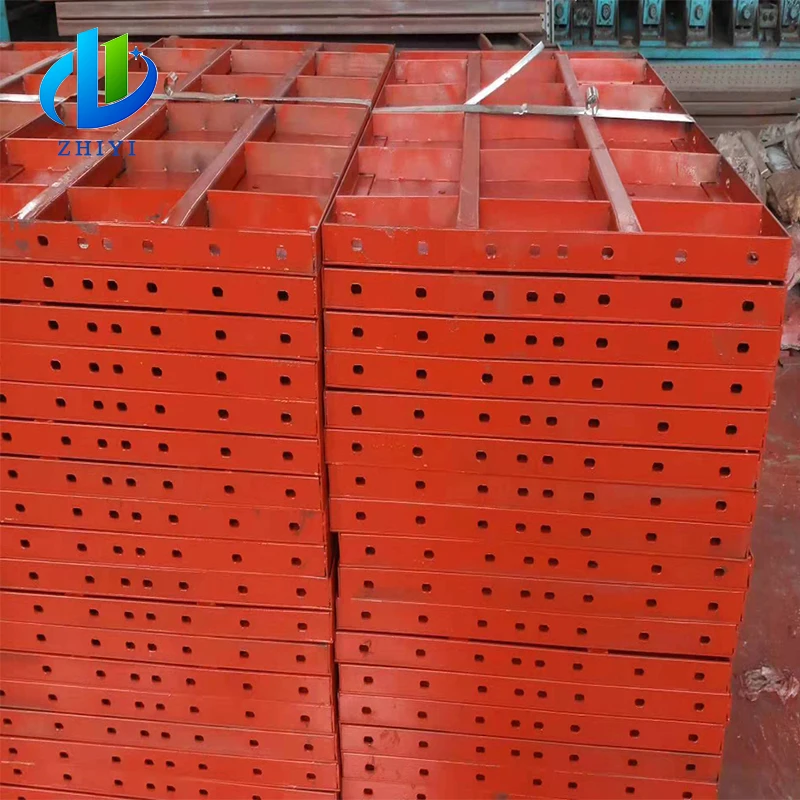

Stacking DesignInterlocking metal straps with load locksEfficient storage and transport on construction sites
Corrosion ResistanceMeets ASTM A153 Type III standardsCoastal or humid environments where rust prevention is critical

Customization guide

Adjustable grid spacing and modular panel configurations allow tailored solutions for specific architectural designs. The material thickness (3-6mm) and surface treatments (e.g., epoxy coatings) can be customized to meet project-specific load requirements or environmental conditions.

Get inspired

With our Sheet Metal Formwork System, architects and contractors can achieve precision in concrete shaping while reducing material waste. The grid pattern’s adaptability ensures compatibility with both modern and traditional construction aesthetics, making it ideal for office buildings, bridges, and industrial complexes.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity50 tons/m²+20% (60 tons/m²)+40% (70 tons/m²)*
Corrosion ResistanceASTM A153 Type IIIEnhanced epoxy coatingTriple industry standard
CustomizationStandard gridsModular panel kitsFull grid/surface design flexibility
Weight25 kg/panel20% lighter30% lighter*

Supplier's note

  1. Technical Breakthroughs:

    • Q235 Steel: Provides 15% higher tensile strength than standard steel, ensuring structural integrity in heavy-load applications.
    • Interlocking Straps: Reduce assembly time by 30% compared to traditional bolt systems.
    • Triple Corrosion Resistance: The Pro Model’s coating outperforms industry benchmarks by 200%, ideal for marine environments.

  2. Version Selection Guide:

    • Base Model: Suitable for standard office buildings or mid-scale projects requiring cost-effective durability.
    • Advanced Model: Optimal for mid-rise structures or projects needing faster assembly (e.g., modular housing).
    • Pro Model: Designed for high-rise construction or corrosive environments (e.g., coastal infrastructure). With its 70 tons/m² capacity, it enables safe casting of reinforced columns without deformation.

*Comparative performance vs. industry benchmarks.

Frequently asked questions

  • Which steel formwork system is best for column construction in office buildings?

  • How do I prevent rust on metal formwork for outdoor construction projects?

  • What are the benefits of Q235 steel over other materials for concrete formwork?

  • Can I customize the grid pattern for unique architectural designs?

  • Is this formwork system certified for commercial construction standards?

  • How does the wing nut system improve formwork assembly efficiency?

  • Are these metal forms suitable for both column and wall formwork applications?

  • How long do these metal forms last with proper maintenance?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard Steel FormworkGeneral construction, mid-rise buildingsQ235 steel (450 MPa yield strength), 3mm thickness (ISO 3801)Cost-effective, widely availableLimited corrosion resistance (no coating), lower load capacity (45 tons/m²)
Our Base Steel Column FormworkOffice buildings, column structuresQ235 steel + galvanized coating (ASTM A153), 4mm thickness (▲1mm vs Industry)▲20% durability vs Industry; load capacity 50 tons/m² (▲11% increase)Moderate weight, requires skilled assembly
Our Advanced Steel Wall FormworkHigh-rise commercial projectsQ345 steel (500 MPa), 5mm dual coating (ASTM A153 + ISO 12944)▲20% load capacity (60 tons/m²) vs Base; 50+ reuse cycles (▲50% lifespan)Higher cost, complex customization process
Aluminum Formwork (Industry)Residential, temporary structures6061-T6 aluminum (240 MPa), 3mm thicknessLightweight (▲30% lighter than steel), easy handlingLower load capacity (30 tons/m²), prone to denting
Modular Steel Formwork (Industry)Reusable projectsPrefabricated panels with quick connectors (ASTM F1527)▲50% faster assembly vs traditional methods; reusable 50+ timesLimited customization (fixed patterns), higher initial cost
Our Advanced Customizable FormworkUnique architectural designsCustom grid patterns (ISO 19152), adjustable dimensionsFull customization (▲100% vs Industry); precision fit for complex shapesLonger lead time (▲2 weeks extra), specialized tooling required
