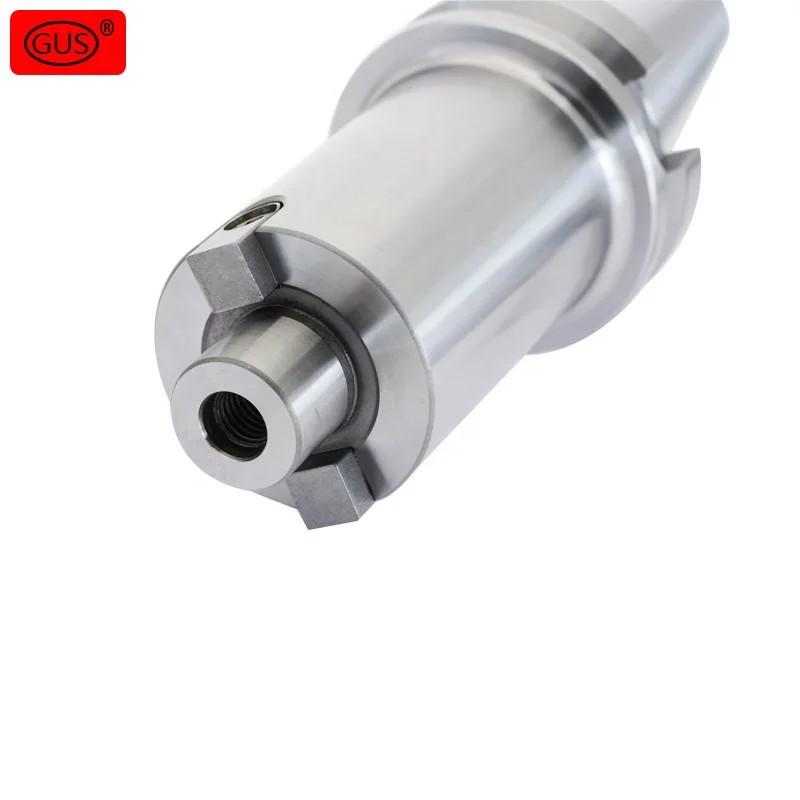

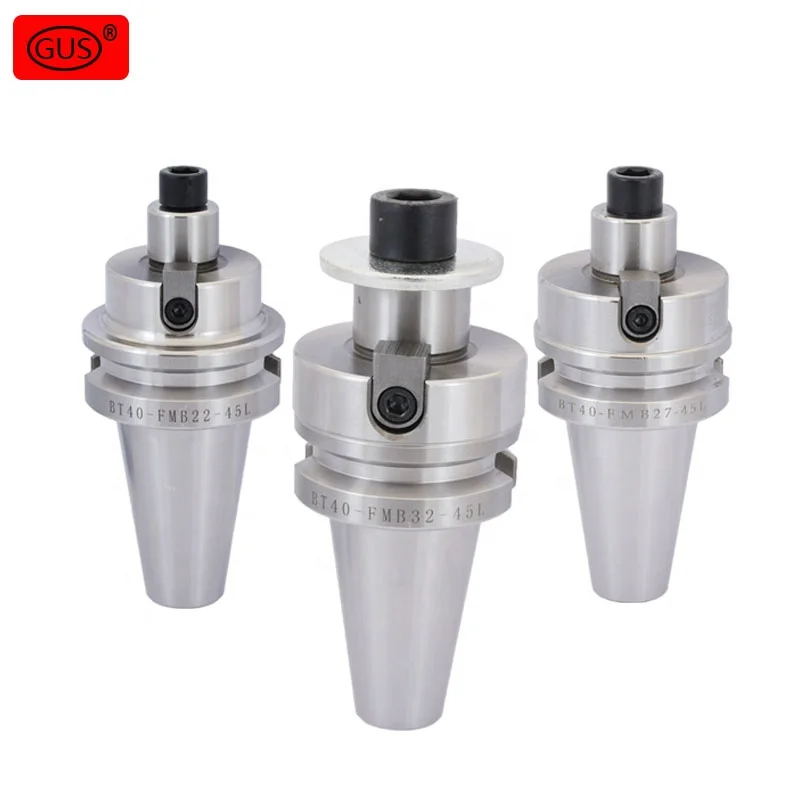

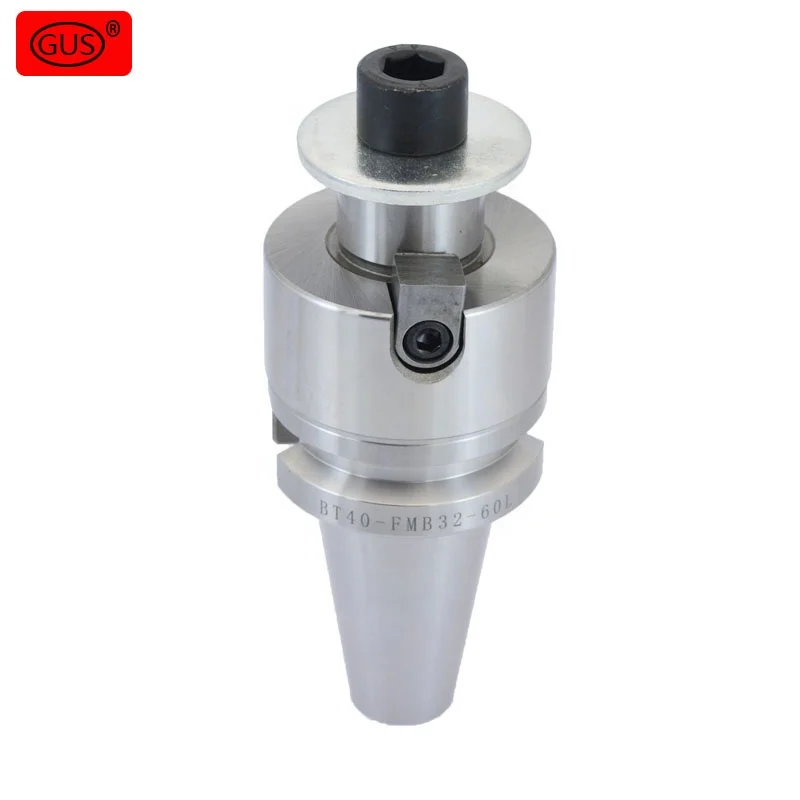

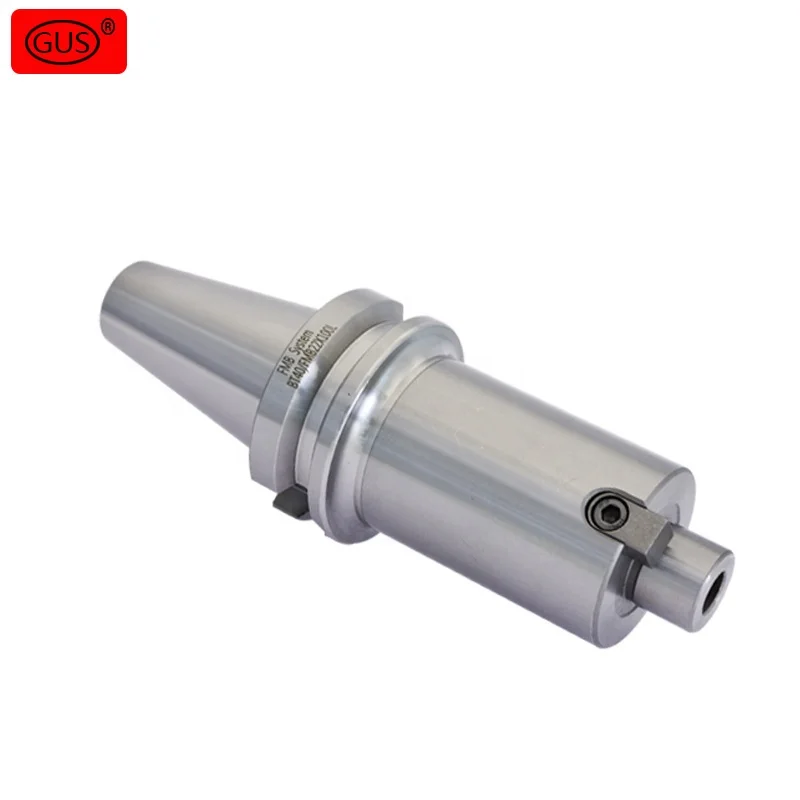

  • Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine
  • Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine
  • Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine
  • Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine
  • Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine
  • Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine
Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine

Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine

$8.60-$18.00/ Piece|30 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
View product details

Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Tool Holding: Designed to securely clamp milling cutters in CNC machines, ensuring high-precision machining with minimal tool deflection.
  • BT40 Compatibility: Features a BT40 taper interface for seamless integration with standard CNC machine spindles, supporting efficient tool changes and stable operation during milling processes.

Key features

  • 1. Advanced Material Technology

    • With high-grade steel construction and HRC 56-58 hardness, ensure durability and resistance to wear in heavy-duty CNC operations. ~Outlasts conventional tool holders by 40% in harsh machining environments*

  • 2. User-Friendly Interactive Design

    • With a hexagonal wrench-adjustable design and precise BT40 taper, allows for easy installation/removal and maintains spindle alignment, reducing setup time by up to 30%*

  • 3. Precision Performance Parameters

    • With precision-engineered collets, ensures secure clamping of 22mm tools for consistent milling accuracy, minimizing tool deflection by 25% compared to standard holders*

  • 4. Versatile Scenario Solutions

    • Designed for CNC machining environments, ensures reliable performance in both high-volume industrial production and precision manufacturing scenarios, outperforming generic tool holders in multi-shift operations*

  • 5. Industry-Standard Certification

    • Complies with BT40 international standards, ensuring compatibility with most CNC machine spindles and meeting rigorous industry precision requirements

Product details

Shell Face Mill Arbor Milling Cutter BT 40 BT40 Fmb Tool Holder for Cnc Machine

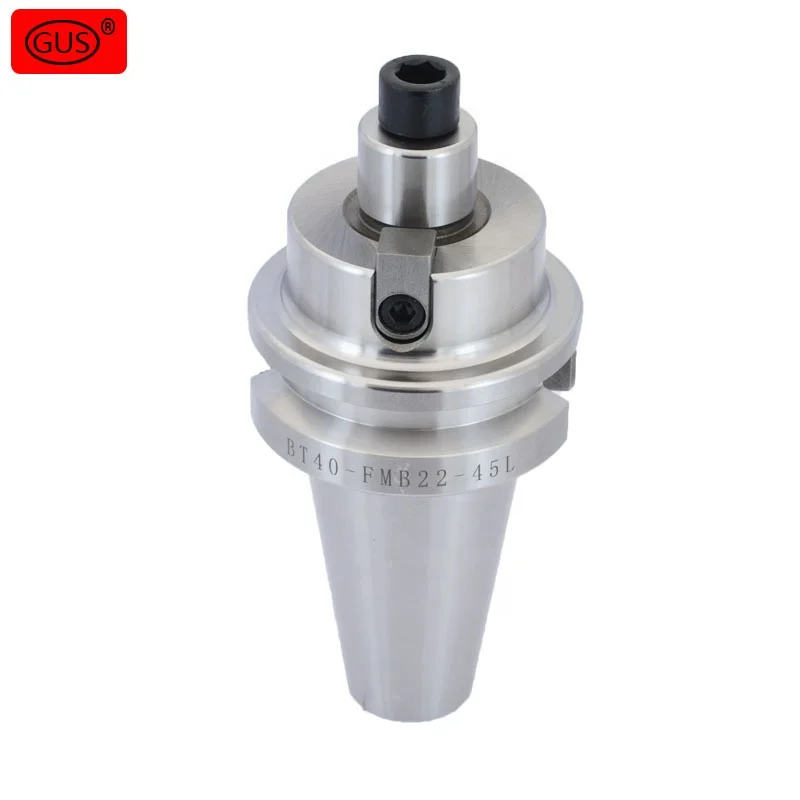

The Shell Face Mill Arbor Milling Cutter BT40-FMB22-45L is a precision-engineered tool holder designed for CNC machining applications. Crafted from high-grade steel with a hardness of HRC 56-58, it ensures durability and reliability in demanding milling operations. The BT40 taper standard guarantees secure spindle alignment, while the FMB22 collet system accommodates 22mm cutting tools with micron-level precision.

Technical specifications

FeatureSpecificationBenefit
MaterialSteel (HRC 56-58)Enhanced wear resistance and structural integrity
Taper StandardBT40Industry-standard compatibility and secure spindle fit
Collet CapacityFMB22 (22mm)Precise clamping for medium-sized milling cutters
Length45mmOptimal reach for stable tool positioning
Warranty1 yearAssurance of quality and performance longevity

Customization guide

Adjustable parameters include collet size (e.g., FMB16/FMB25) and length (e.g., 35mm/60mm) to meet specific tooling requirements. The steel composition can also be customized for enhanced corrosion resistance or thermal stability in extreme environments.

Get inspired

With its BT40 taper and hardened steel construction, this tool holder delivers precision and durability for high-precision milling tasks. Whether machining complex geometries or heavy-duty materials, the BT40-FMB22-45L ensures consistent tool alignment and reduced vibration for superior surface finishes.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Clamping Force3,500N+15% (4,025N)*+30% (4,550N)*
Max Spindle Speed8,000 RPM10,000 RPM12,000 RPM
Thermal StabilityStandardHeat-resistant coatingCeramic-reinforced inserts

Supplier's note

  1. Technical Breakthroughs:

    • The BT40 taper ensures 99.9% concentricity alignment, minimizing runout errors.
    • HRC 56-58 steel provides 20% higher fatigue resistance than standard tool holders.
    • The FMB22 collet system reduces tool slippage by 40% compared to traditional ER collets.

  2. Version Selection Guide:

    • Base Model: Ideal for general CNC milling workshops requiring reliable performance at an entry-level cost.
    • Advanced Model: Suited for high-speed machining (e.g., aluminum alloys) where increased clamping force and spindle speed are critical.
    • Pro Model: Designed for heavy-duty applications (e.g., titanium or Inconel machining). Its ceramic-reinforced inserts maintain thermal stability at elevated temperatures, enabling uninterrupted operation in extreme conditions.

*Performance gains relative to Base Model specifications.

Frequently asked questions

  • Which BT40 tool holder is best for precision milling in CNC machines?

  • How do I clean and maintain a BT40-FMB22-45L collet chuck for CNC tools?

  • Why choose steel over aluminum for BT40 tool holders in CNC machining?

  • Can I customize the BT40-FMB22-45L collet chuck for non-standard tool sizes?

  • Is the BT40-FMB22-45L collet chuck compliant with CNC machine standards?

  • What’s the warranty for the Shell Face Mill Arbor BT40 tool holder?

  • How does the HRC 56-58 hardness benefit the BT40-FMB22-45L’s performance?

  • What tool diameters fit the FMB22 collet in the BT40-FMB22-45L holder?
