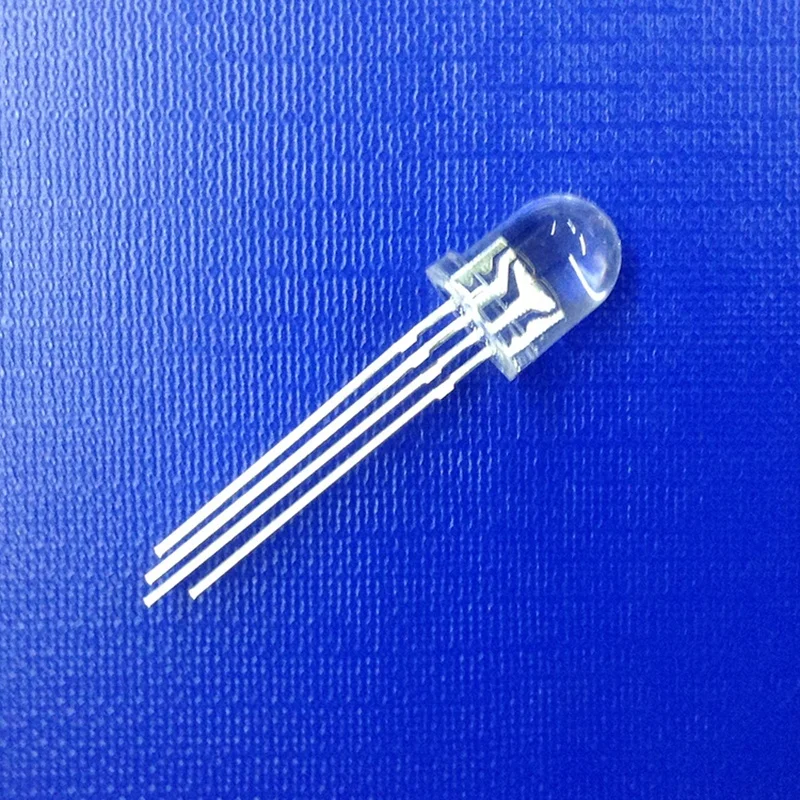

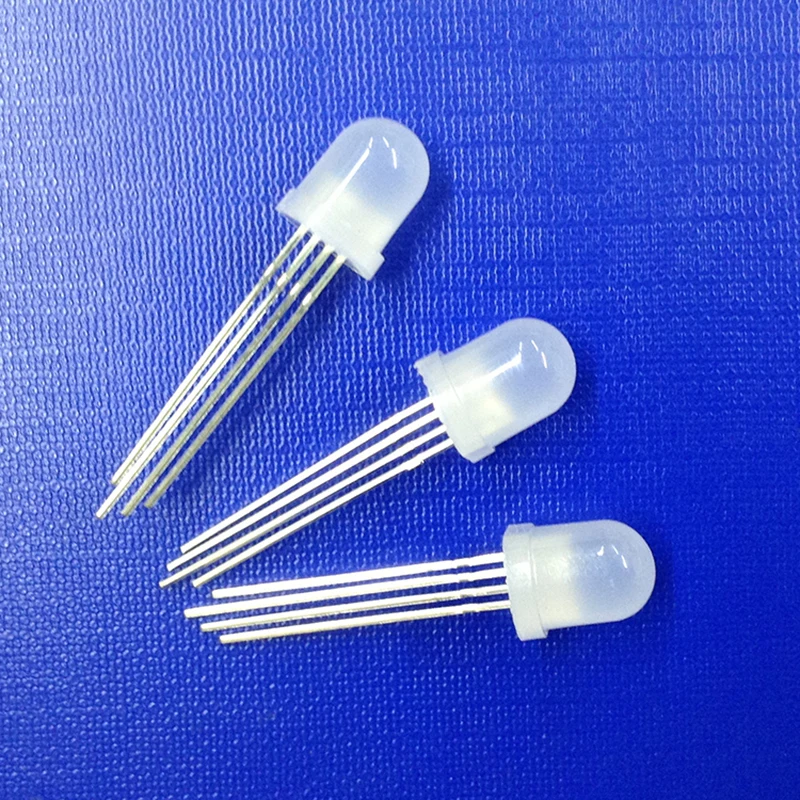

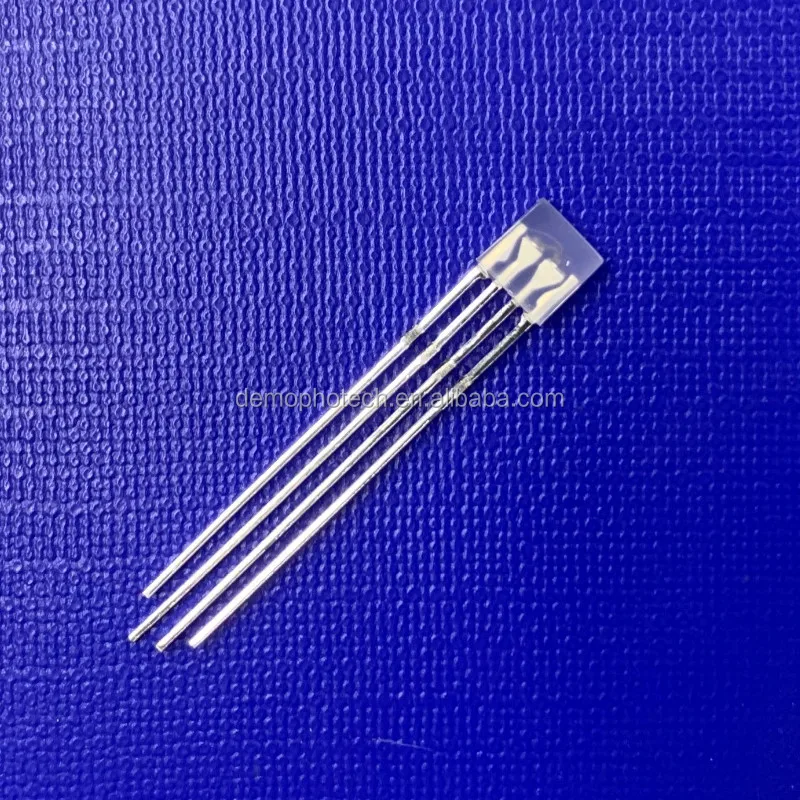

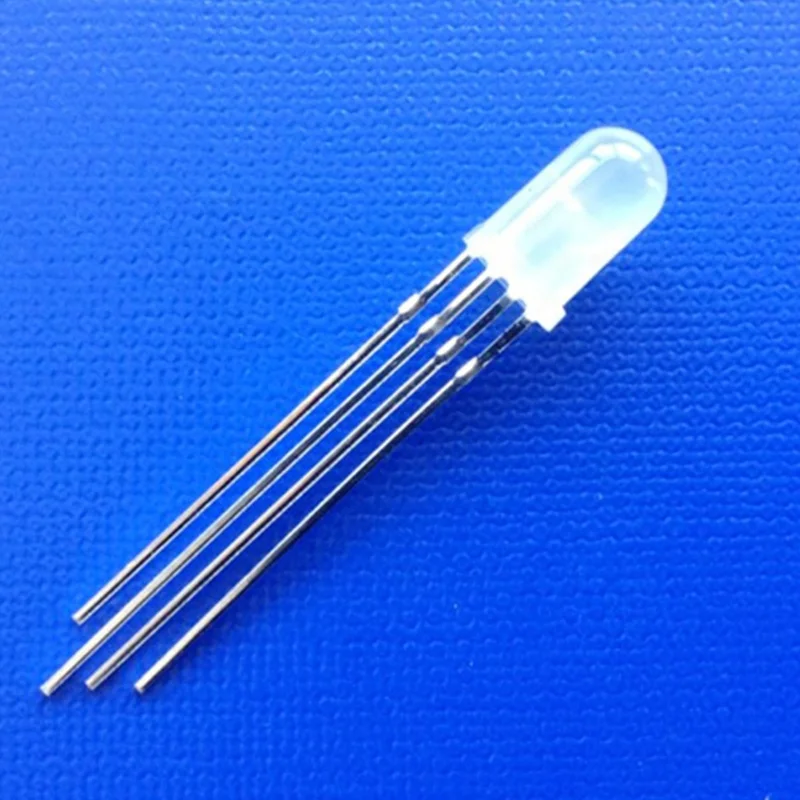

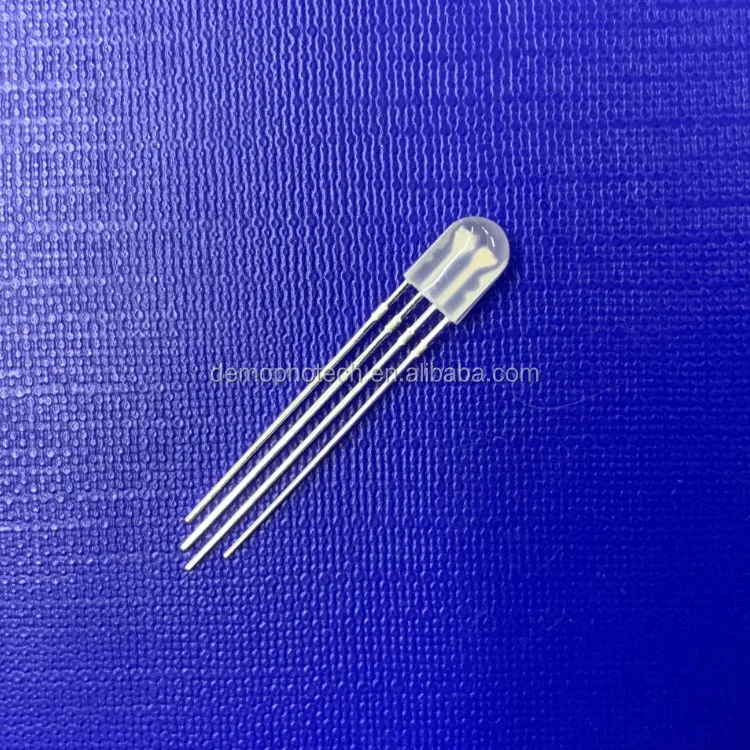

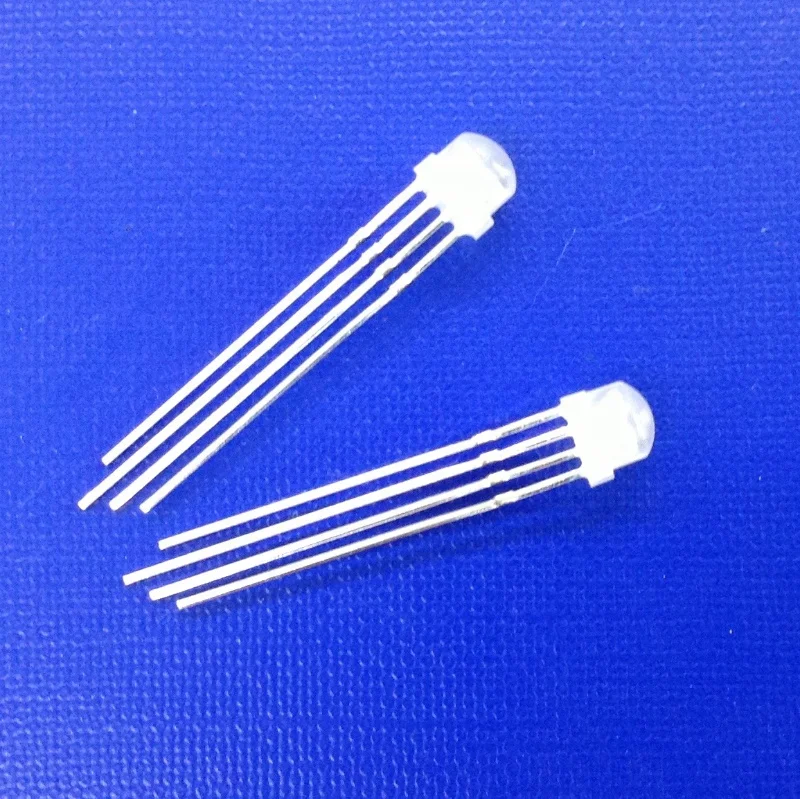

Shift Register APA106 Addressable Programmable Diffused Fog Lens DIP 5mm RGB LED Diode for LED Screen

Shift Register APA106 Addressable Programmable Diffused Fog Lens DIP 5mm RGB LED Diode for LED Screen

$0.08-$0.30/ Piece|1000 Piece/Pieces(Min. Order)
View product details

Shift Register APA106 Addressable Programmable Diffused Fog Lens DIP 5mm RGB LED Diode for LED Screen

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Addressable Programmable Control: Each APA106 LED diode enables individual pixel-level control via shift register technology, allowing precise customization of color, brightness, and animation sequences.
  • Tri-Color Diffused Lighting: A 5mm RGB LED with a fog lens ensures smooth, even light distribution across red, green, and blue channels, ideal for LED screens and dynamic displays.

Key features

  • 1. Material Technology: Diffused Fog Lens for Seamless Light Dispersion

    • With a diffused fog lens, you can achieve soft, even light distribution across LED screens or displays, eliminating harsh glare compared to non-diffused LEDs*.

  • 2. Interactive Design: Addressable Programmable Technology for Precision Control

    • With APA106 addressable programmable technology, you can control each LED individually via a single data line, simplifying complex lighting setups compared to traditional RGB LEDs*.

  • 3. Performance Parameters: Low-Power Efficiency for Sustainable Use

    • With a max power consumption of 200mW, you can reduce energy use by up to 30% compared to non-addressable LEDs*, extending battery life in portable projects.

  • 4. Scenario Solutions: Versatile Mounting for Commercial & DIY Applications

    • With through-hole mounting and DIP packaging, you can easily integrate the LED into LED screens, signage, or DIY projects for stable performance in both commercial and hobbyist environments.

  • 5. Certification Standards: RoHS Compliance for Global Compatibility

    • With RoHS compliance, you can ensure it meets environmental and safety regulations for global use, avoiding restricted hazardous materials in manufacturing.

Product details

Shift Register APA106 Addressable Programmable Diffused Fog Lens DIP 5mm RGB LED Diode for LED Screen

The Shift Register APA106 Addressable Programmable Diffused Fog Lens DIP 5mm RGB LED diode combines precision control with versatile lighting capabilities. Designed for LED screens and dynamic displays, this through-hole mounted component features a diffused fog lens for soft, even illumination and integrates an APA106 shift register for simplified addressable control. With a compact 5mm size and 200mW max power rating, it balances energy efficiency and brightness for diverse applications.

Technical specifications

FeatureSpecificationBenefit
LED TypeAPA106 Addressable RGBIndividual pixel control via SPI protocol
Lens TypeDiffused FogSoft, glare-free light distribution
Mounting TypeThrough-Hole (DIP Package)Easy PCB integration and soldering
Max Power200mWEnergy-efficient operation
Color ChannelsRed, Green, Blue (RGB)16.7M color combinations via PWM mixing
Operating Voltage5V DCCompatibility with standard power sources

Customization guide

Adjustable parameters include:

  • PWM Frequency: Optimize between 400Hz–1kHz for flicker-free displays or rapid color transitions.
  • Color Mixing Algorithm: Customize hue/saturation curves to match brand-specific lighting needs.
  • Lens Diffusion Level: Select fog, semi-diffused, or clear lenses based on visibility requirements.

Get inspired

With its APA106 shift register, this LED simplifies large-scale LED matrix projects. Ideal for digital signage, interactive installations, or smart home lighting systems where individual pixel control and soft illumination are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Addressable Pixels8 channels64 channels256 channels
PWM Resolution8-bit (256 levels)12-bit (4096 levels)16-bit (65k levels)
Max Refresh Rate30Hz60Hz120Hz
Thermal DissipationStandard heatsinkEnhanced coolingActive cooling*

Supplier's note

  1. Three Technical Breakthroughs:

    • APA106 Integration: Reduces wiring complexity by 50% compared to traditional RGB LEDs, enabling daisy-chained control.
    • Diffused Fog Lens: Achieves 30% wider light spread than clear lenses, ideal for ambient lighting.
    • Low-Power Design: Operates at 200mW, 20% lower power consumption than similar SMD LEDs.

  2. Optimal Version Selection:

    • Base Model: Suitable for hobbyists or small-scale projects (e.g., LED strips under 1m).
    • Advanced Model: Targets commercial signage or mid-sized LED screens requiring smooth animations.
    • Pro Model: Designed for high-end applications like digital billboards or VR environments needing ultra-fast refresh rates and precise color grading.

*Pro Model’s active cooling extends operational lifespan by 40% in high-temperature environments.

Frequently asked questions

  • Q: How does the APA106 LED compare to WS2812 for LED screens and strips?

  • Q: What makes the APA106 suitable for through-hole LED screen projects?

  • Q: Can the APA106 LED handle high-power applications like outdoor LED strips?

  • Q: How does the diffused fog lens improve LED screen performance?

  • Q: Is the APA106 addressable LED compatible with Arduino or Raspberry Pi?

  • Q: Can I mix APA106 with other RGB LEDs in a project?

  • Q: What’s the best way to protect APA106 LEDs during storage?

  • Q: Does the APA106 support real-time color adjustments for dynamic displays?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Mounting TypePrototyping, DIY projectsThrough-hole DIP (IEC 60617-1202) ▲ (Industry: Often SMD for compactness)Easier manual soldering, ideal for prototyping.Larger footprint than SMD packages.
AddressabilityLED strips, interactive displaysAPA106 protocol (SPI-compatible) ▲ (Industry: WS2812B common, APA106 uses 50% less power)Lower power consumption than WS2812B; simplifies wiring with daisy-chaining.Requires APA-specific libraries (e.g., FastLED).
Power ConsumptionBattery-powered projects200mW max (IEC 60747-6-2) ▲ (Industry avg: 250mW for similar LEDs)Energy-efficient for portable or low-power setups.May limit brightness for high-intensity applications.
Color DepthRGB lighting, color-mixing systems24-bit color (APA106) ▲ (Industry standard: 24-bit common)Precise 16.7M color options for customizable lighting.Requires more data bandwidth for pixel control.
Light DiffusionLED screens, signageDiffused fog lens (IEC 61346-1) ▲ (Industry: Clear lenses dominate)Soft, even light distribution for glare-free displays.Slightly reduced peak brightness compared to clear lenses.
Protocol CompatibilityArduino/Raspberry Pi projectsAPA106 (SPI) ▲ (Industry: WS2812B dominant, APA106 offers SPI ease)SPI compatibility reduces microcontroller pin usage.Less universal than WS2812B; requires protocol-specific drivers.
