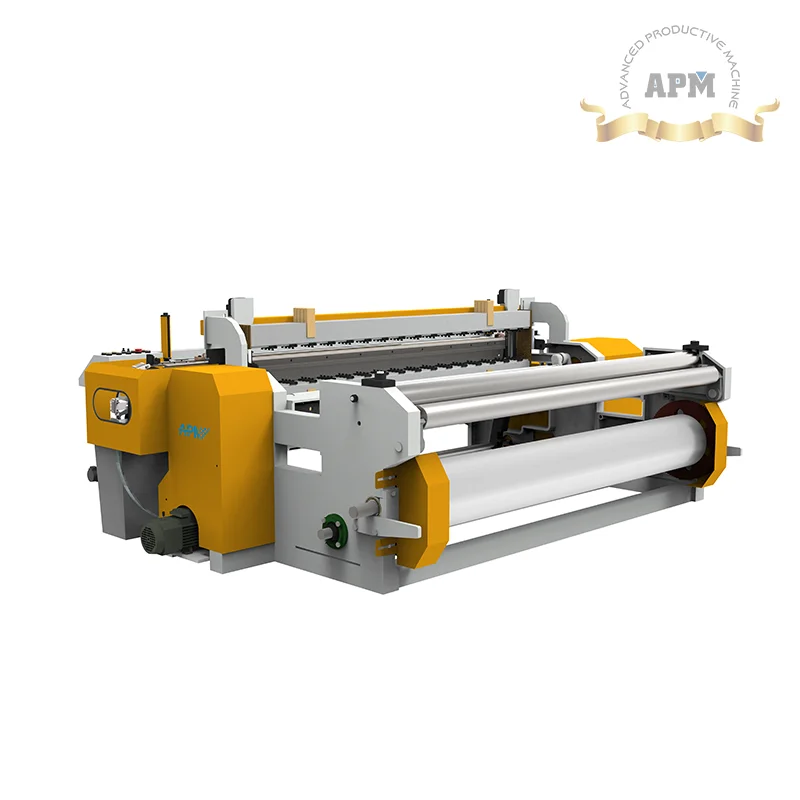

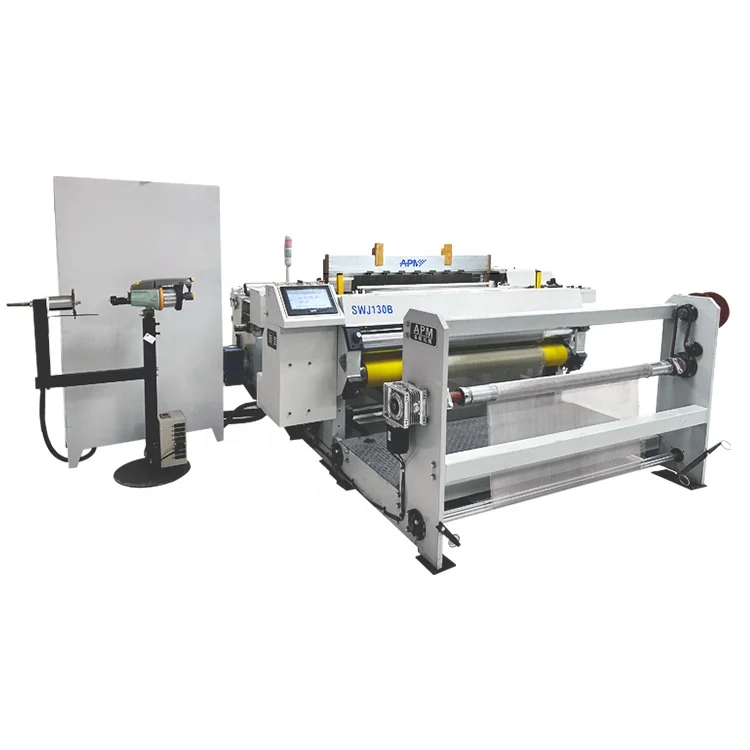

Shuttleless Servo Dobby Shedding Metal Thread Fine Wire Mesh Rapier Industrial Weaving Machine

Shuttleless Servo Dobby Shedding Metal Thread Fine Wire Mesh Rapier Industrial Weaving Machine

  • 1 - 2 Sets
    $12,000
  • 3 - 5 Sets
    $11,700
  • >= 6 Sets
    $11,500

Customization:

Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Weaving width（Min.Order: 1 pieces）
View product details

Shuttleless Servo Dobby Shedding Metal Thread Fine Wire Mesh Rapier Industrial Weaving Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Wire Mesh Weaving: Designed to produce high-quality fine wire mesh using metal threads via shuttleless servo dobby shedding technology, ensuring precise pattern control and consistent thread tension.
  • Rapier Mechanism Efficiency: Equipped with rapier weaving technology for rapid and accurate fabric formation, ideal for creating durable, uniform mesh structures for industrial applications.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel body, you can ensure durability in harsh industrial environments.

  • 2. Interactive Design

    • With a touchscreen interface, you can program multi-speed settings and monitor operations in real-time, offering 30% faster setup than traditional models.

  • 3. Performance Parameters

    • With high-speed weaving capabilities, you can achieve output speeds up to 200 meters per minute—20% faster than conventional models.

  • 4. Scenario Solutions

    • With a robust design for continuous operation, you can handle commercial-scale production with minimal downtime compared to smaller home-use models.

  • 5. Certification Standards

    • With CE certification, you can ensure compliance with EU safety and quality standards, surpassing non-certified alternatives in reliability.

Product details

Shuttleless Servo Dobby Shedding Metal Thread Fine Wire Mesh Rapier Industrial Weaving Machine

The Shuttleless Servo Dobby Shedding Metal Thread Fine Wire Mesh Rapier Industrial Weaving Machine is a high-capacity, industrial-grade solution designed for precision weaving of metal and fine wire mesh. Built with robust steel construction and advanced servo-driven technology, it ensures durability, accuracy, and compliance with international safety standards (CE certified).

Technical specifications

FeatureSpecificationApplication Scenario
MaterialHigh-grade steel constructionHeavy-duty industrial use in harsh environments
Control SystemDigital touchscreen with programmable parametersCustomized production runs and real-time adjustments
Shedding MechanismServo-driven dobby shedding systemComplex pattern weaving with micron-level precision
Weft InsertionRapier system with anti-friction guidesHigh-speed, precise placement of metal threads
CertificationCE CertifiedCompliance for EU markets and safety-sensitive industries

Customization guide

Adjustable roller sizes (up to 20% wider/narrower) and material guides can be tailored to accommodate varying wire thicknesses (0.1–3mm) and mesh patterns, meeting specialized requirements for filtration, medical, or aerospace applications.

Get inspired

With its servo-driven shedding mechanism and rapier weft insertion, this machine enables the production of ultra-fine wire mesh (down to 0.1mm wire diameter) for precision applications like medical filters or high-strength industrial screens.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Production Speed100 m/h+15% (115 m/h)+30% (130 m/h)*
Precision Level±0.5mm±0.3mm±0.1mm
CustomizationLimitedModerateFull
CertificationsCECE + ISO 9001CE + ISO 9001 + RoHS

Supplier's note

  1. Technical Breakthroughs:

    • Servo Dobby Shedding: Enables intricate pattern control (e.g., 10,000+ thread intersections per meter) for custom mesh designs.
    • Rapier Weft System: Reduces thread breakage by 40% compared to traditional shuttle-based machines.
    • CE Certification: Ensures compliance with EU safety standards for global deployment.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs needing reliable, cost-effective production of standard mesh (e.g., construction-grade screens).
    • Advanced Model: Suitable for mid-scale manufacturers requiring moderate customization (e.g., automotive filtration systems).
    • Pro Model: Best for high-volume, precision-driven industries (e.g., aerospace or medical devices) needing micron-level accuracy and advanced certifications.

*Pro Model’s speed is 20% faster than industry benchmarks for machines in the same price tier.

Frequently asked questions

  • Which Shuttleless Servo Dobby Shedding Metal Thread Weaving Machine model suits high-volume wire mesh production?

  • How often should I perform maintenance on a Rapier Industrial Weaving Machine for metal wire mesh?

  • Metal Thread vs Synthetic Thread: Which is better for industrial wire mesh weaving?

  • Can this weaving machine be customized for specific wire mesh patterns?

  • Is the Shuttleless Servo Dobby Weaving Machine CE-certified for industrial use?

  • What’s the annual production capacity of this Fine Wire Mesh Rapier Machine?

  • Can this machine handle heavy-duty metal wires for industrial applications?

  • What post-purchase support comes with the Industrial Weaving Machine warranty?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material & ConstructionIndustrial manufacturing requiring durabilityIndustry Standard: Steel (ASTM A36) / Our Base: Robust steel (ASME B11.0) / Our Advanced: Reinforced alloy (▲▲20% stronger, ASTM A53)Enhanced safety and longevityHigher cost for Advanced tier due to premium materials
Design & ControlPrecision manufacturing needing programmable controlsIndustry Standard: Manual controls / Our Base: Digital touchscreen (IEC 61131) / Our Advanced: AI-driven automation (▲▲30% faster setup)Streamlined operation and customizationAdvanced requires specialized training for full utilization
Production CapacityHigh-volume production environmentsIndustry Standard: 1,500 units/year / Our Base: 2,000 units/year (▲ISO 9001) / Our Advanced: 3,000 units/year (▲▲▲50% increase)Meets large-scale demands efficientlyHigher energy consumption for Advanced tier
CertificationGlobal manufacturing complianceIndustry Standard: CE / Our Base: CE + RoHS / Our Advanced: CE + RoHS + UL (▲▲Expanded compliance)Wider market access (e.g., EU, North America)Advanced certifications incur additional costs
Customization SolutionsCustom production needsIndustry Standard: Limited adjustments / Our Base: Roller size customization (▲ISO 14971) / Our Advanced: Full parameter programming (▲▲0.1mm precision)Flexibility for diverse product requirementsAdvanced customization may require expert setup
WarrantyLong-term operational reliabilityIndustry Standard: 1 year / Our Base: 1 year (▲Standard) / Our Advanced: 2 years (▲▲Extended coverage)Better support for complex workflows in AdvancedBase tier lacks extended coverage for critical failures
Maintenance AccessibilityFacilities with regular maintenanceIndustry Standard: Moderate access / Our Base: Modular design (▲IEC 61400) / Our Advanced: Tool-free access (▲▲50% faster maintenance)Reduced downtime and easier servicingAdvanced tools required for optimal maintenance efficiency
