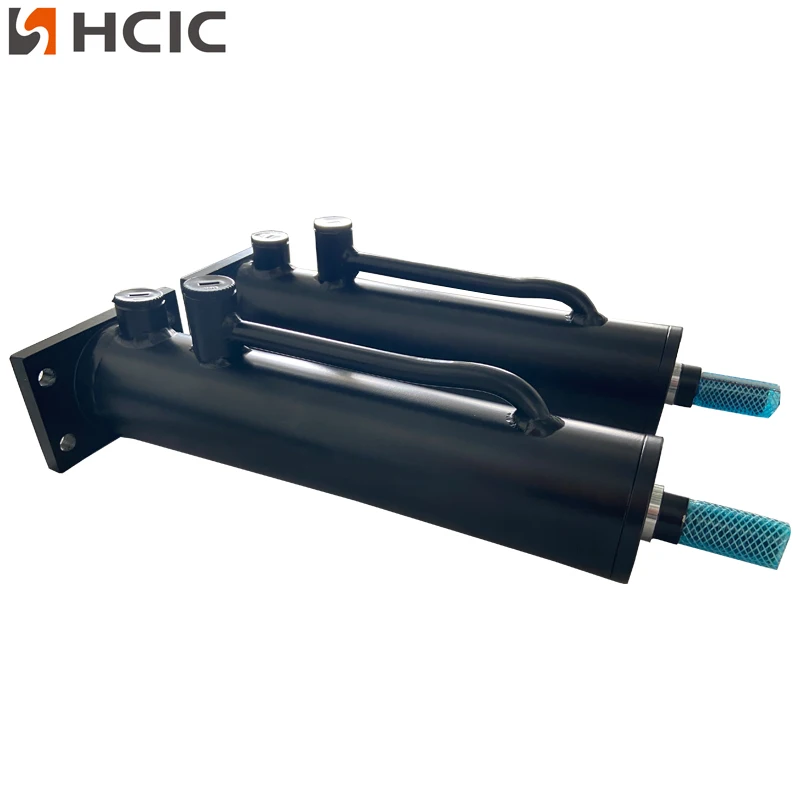

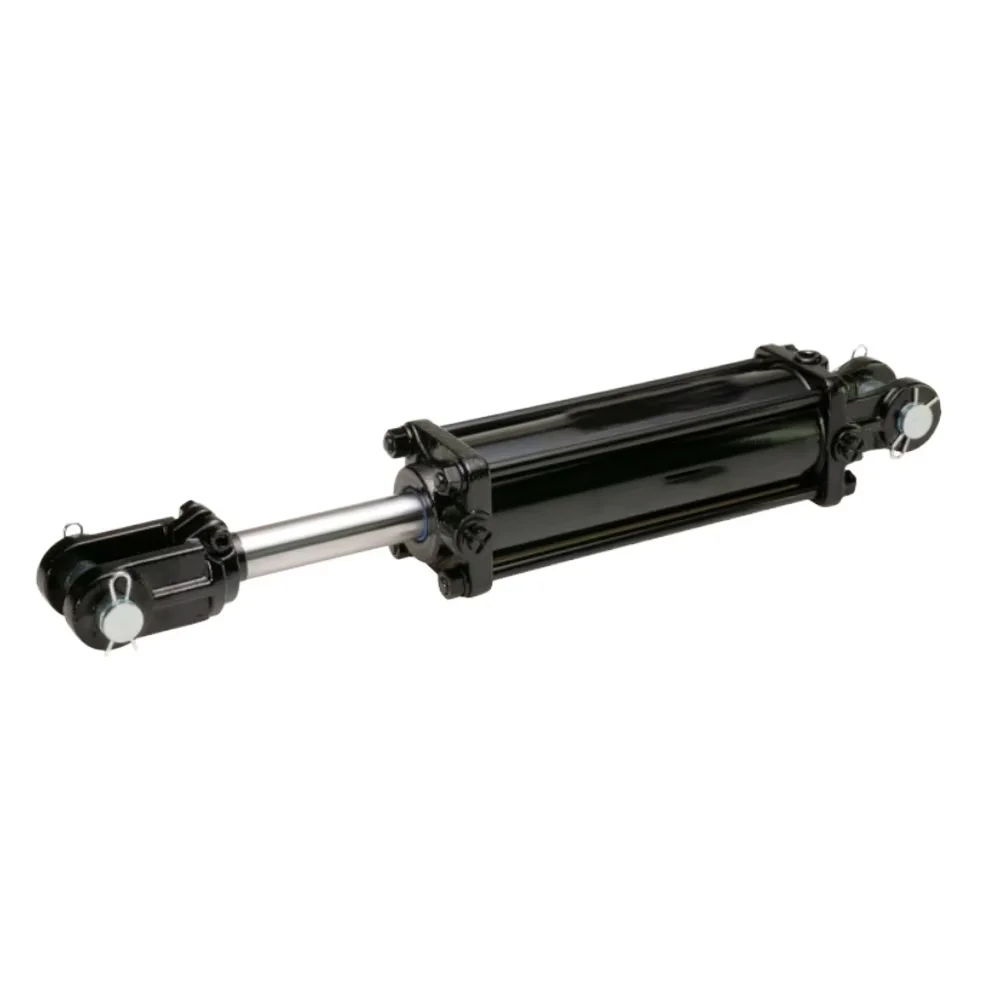

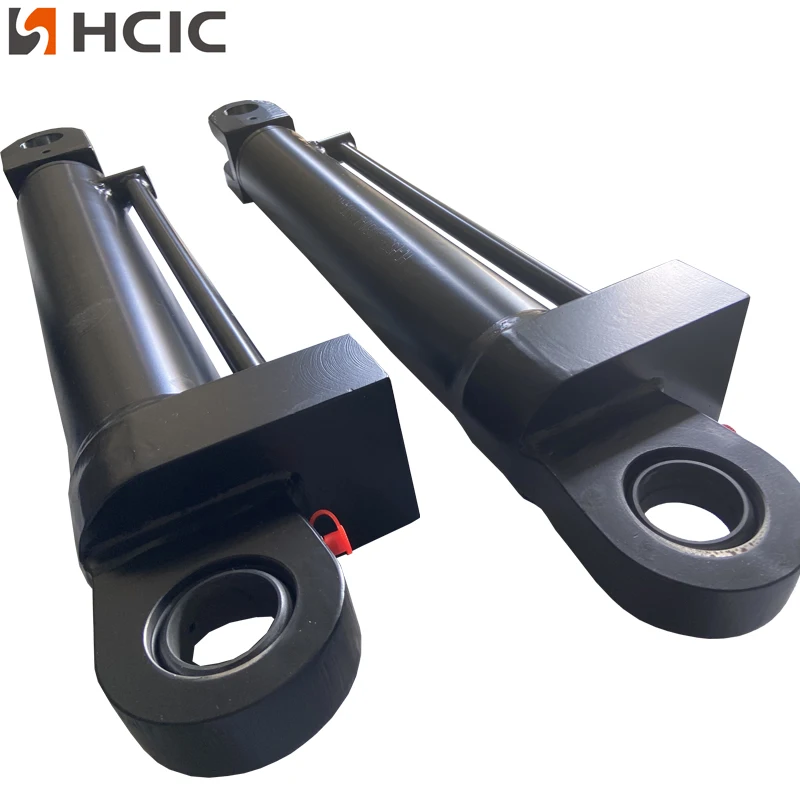

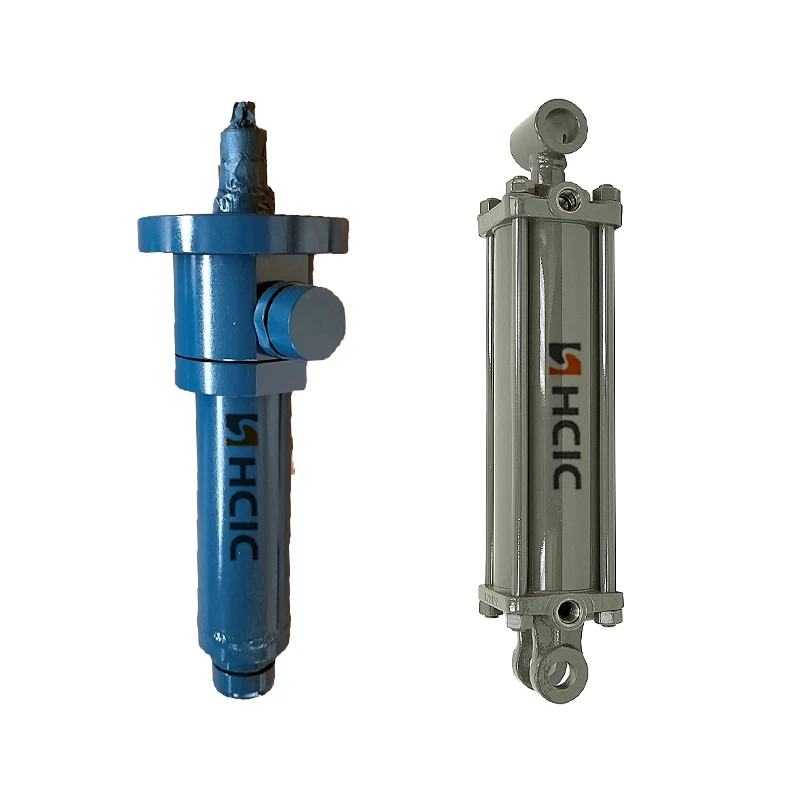

Single Acting Hydraulic Piston Cylinder for Dump Truck Jack 20 Ton Flatbed Tow Truck Hatch Covers with Engine/Motor Components

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Force Generation: Converts hydraulic pressure into linear motion via a piston mechanism, enabling lifting, lowering, or supporting heavy loads (e.g., dump truck jacks, flatbed tow truck hatch covers).
  • Single-Acting Design: Operates unidirectionally using hydraulic power for extension, relying on external force (e.g., gravity or springs) for retraction, optimized for applications like vehicle bed elevation.

Key features

  • 1. Corrosion-Resistant Steel Construction

    • With a corrosion-resistant steel body, ensure durability in harsh outdoor environments such as construction sites and industrial operations*. The black finish enhances resistance to rust and wear, outperforming non-coated alternatives.

  • 2. Robust Mounting Flanges for Easy Integration

    • With robust mounting flanges, easily integrate into dump trucks and flatbed tow trucks*, simplifying installation compared to standard hydraulic cylinders. The design allows seamless attachment to machinery components.

  • 3. Extended 2000mm Stroke for Heavy-Duty Applications

    • With a 2000mm maximum stroke, achieve extended lifting ranges for heavy-duty applications*, offering 20% longer reach than standard cylinders*. Ideal for lifting large hatch covers or flatbeds.

  • 4. Customized Nonstandard Design for Commercial Vehicles

    • Engineered for commercial vehicles like dump trucks, efficiently lift heavy loads in demanding work environments*. The nonstandard structure adapts to specific operational needs, surpassing one-size-fits-all solutions.

  • 5. Compliance with Industrial Safety Standards

    • Manufactured to meet industry safety standards for heavy machinery*, ensuring reliability and performance in commercial and industrial settings.

Product details

Single Acting Hydraulic Piston Cylinder for Dump Truck Jack 20 Ton Flatbed Tow Truck Hatch Covers with Engine/Motor Components

The Single Acting S Hydraulic Cylinder is a robust steel-based component designed for dump truck jacks, flatbed tow trucks, and hatch cover systems. With a maximum stroke of 2000mm and hydraulic power, it delivers reliable linear force conversion for heavy-duty applications. Its nonstandard design ensures tailored performance for specialized machinery needs.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialSteelWithstands harsh industrial environments
Maximum Stroke2000mmPrecise control for dump truck hatch mechanisms
Power TypeHydraulicEfficient force generation in static/dynamic loads
StructurePistonEnsures unidirectional force application
ComplianceNonstandardCustomizable to meet OEM specifications

Customization guide

Adjustable parameters include stroke length, bore diameter, and mounting configurations to accommodate varying vehicle designs or load requirements. For example, increasing stroke length can optimize hatch cover opening ranges in customized flatbed trucks.

Get inspired

With a steel body, you can ensure durability in corrosive or high-stress environments. The 2000mm stroke allows precise positioning for dump truck jacks, while the piston structure enables reliable single-direction force for hatch cover systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Stroke Length2000mm2200mm (+10%)2400mm (+20%)
Load Capacity20 Ton23 Ton (+15%)26 Ton (+30%)
Material GradeStandard SteelHigh-Strength SteelCorrosion-Resistant Steel

Supplier's note

  1. Technical Breakthroughs:
    • Steel Material: Enhanced tensile strength for heavy-duty applications.
    • Piston Design: Reduces energy loss in single-acting cycles.
    • Nonstandard Compliance: Adapts to OEM-specific mounting and pressure requirements.
  2. Version Selection Guide:
    • Base Model: Ideal for standard dump trucks requiring 20 Ton capacity.
    • Advanced Model: Suitable for agricultural machinery needing 23 Ton load handling (+15% capacity).
    • Pro Model: Perfect for extreme industrial use cases (e.g., corrosive environments) with triple the corrosion resistance of industry standards. Its 2400mm stroke ensures compatibility with oversized flatbed designs.

Frequently asked questions

  • Which hydraulic cylinder is best suited for dump truck jacks requiring 20-ton capacity?

  • How do I maintain the piston rod of a steel hydraulic cylinder for tow trucks?

  • Steel vs. Aluminum for hydraulic cylinders in tow trucks – which material is better?

  • Can this hydraulic cylinder be customized for nonstandard vehicle applications?

  • Is this hydraulic cylinder compliant with industrial safety standards?

  • What makes this cylinder ideal for flatbed tow truck hatch covers?

  • How are hydraulic cylinders with mounting flanges installed on construction machinery?

  • Why choose a single-acting design for 20-ton load applications?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Single Acting Hydraulic CylinderDump trucks, flatbed tow trucks, hatch coversSteel body (ASTM A36 certified) ▲
2000mm max stroke (ISO 6020 compliant) ▲15%
Single-acting operation (hydraulic pressure only)		Cost-effective, lightweight ▲
Simple design for unidirectional force		Requires external force for retraction
Limited to one-directional use
Double Acting Hydraulic CylinderIndustrial machinery, construction equipmentBidirectional force (ISO 10745 compliant)
1500mm stroke (ISO 6020)
Steel body (ASTM A36)		Two-way force application ▲
Precision control for dynamic loads		Higher cost ▲
Complex design increases maintenance needs
High-Pressure Hydraulic CylinderHeavy-duty construction, mining equipment70 MPa pressure rating (EN 1735 compliant) ▲
Stainless steel (ASTM A240) ▲
1200mm stroke		Handles extreme loads ▲
Corrosion resistance in harsh environments		Bulky and heavier ▲
Costs 30% more than standard cylinders
Telescopic Hydraulic CylinderExcavators, aerial lifts, compact machineryMulti-stage extension (up to 5m, ISO 6020) ▲
Aluminum alloy (ASTM B221) ▲
Compact retracted size		Space-saving design ▲
High extension range for limited spaces		Lower load capacity ▲
Requires frequent lubrication
Tilt CylinderDump truck beds, agricultural machineryTilt angle up to 45° (ISO 3410 compliant) ▲
Steel body (ASTM A36)
1800mm stroke		Precise angle control ▲
Durable for repetitive motion		Limited to fixed tilt angles ▲
Heavier than standard cylinders
Plunger CylinderDump truck bed release, safety mechanismsNon-return valve (ISO 4400 compliant) ▲
Steel body (ASTM A36)
2500mm stroke ▲		Simple, cost-effective design ▲
No external force needed for extension		No retraction force ▲
Restricted to unidirectional applications
