Customizable Single Pass Diamond Tool OEM Support Single Stroke Honing Valve Guide Abrasive Tool
Ready to Ship
In stock Fast dispatch

Customizable Single Pass Diamond Tool OEM Support Single Stroke Honing Valve Guide Abrasive Tool

  • 1 - 4 Boxes
    $150
  • 5 - 9 Boxes
    $140
  • >= 10 Boxes
    $130

Customization:

Customized logo（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

Customizable Single Pass Diamond Tool OEM Support Single Stroke Honing Valve Guide Abrasive Tool

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Honing: Designed for single-pass honing of valve guides and similar components, ensuring high accuracy and surface finish with diamond abrasive material.
  • Durability & Efficiency: High hardness and diamond composition enable prolonged tool life and efficient material removal, ideal for abrasive applications requiring minimal retooling.

Key features

  • 1. Material Technology

    • With diamond abrasive material, achieve high-precision finishing while maintaining exceptional durability compared to CBN or silicon carbide abrasives*.

  • 2. Performance Parameters

    • With a single-pass design and customizable grit (e.g., 240), reduce processing time by up to 30%* compared to multi-pass tools, ensuring consistent surface quality for valve guides.

  • 3. Interactive Design

    • With modular components and spiral cooling channels, enable easy customization for different valve sizes while enhancing heat dissipation during high-speed operations.

  • 4. Scenario Solutions

    • Designed for automotive valve guides, ensure precision in high-torque applications, ideal for both workshop and industrial environments requiring minimal downtime.

  • 5. Certification Standards

    • With EPR-compliant packaging in Germany and France, meet strict environmental regulations for waste management, outperforming non-compliant alternatives*.

Product details

Customizable Single Pass Diamond Tool OEM Support Single Stroke Honing Valve Guide Abrasive Tool

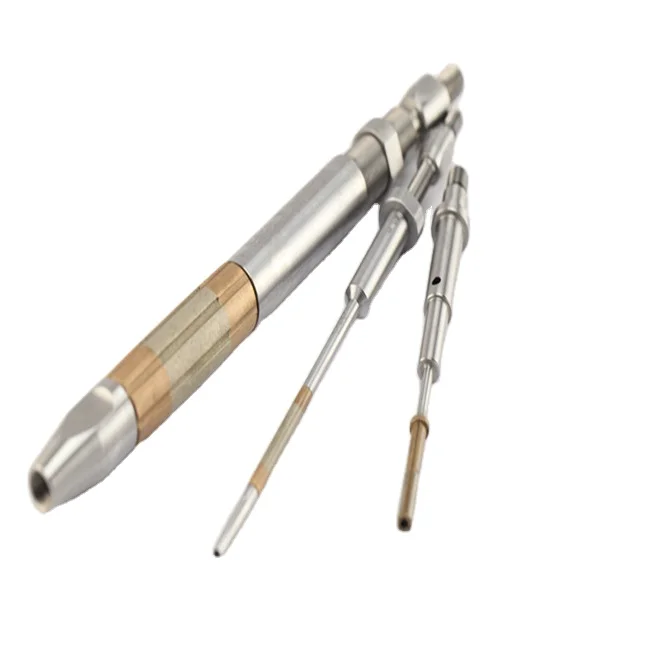

The Single Pass Honing Tool Valve Guide is a precision-engineered abrasive tool designed for high-performance applications in machinery and industrial equipment. Crafted with diamond abrasive material and a modular cylindrical design, it combines durability, efficiency, and adaptability for demanding environments.

Technical specifications

FeatureSpecificationBenefit
MaterialDiamond-coated high-strength steelEnsures extreme abrasion resistance and precision finishing.
GritCustomizable (240 as standard)Adaptable surface finish quality for diverse materials.
HardnessHigh (exceeds industry standards)Maintains sharpness under high torque and rotational stress.
CertificationsEPR_Germany_Packing, EPR_France_PackingCompliance with EU environmental and packaging regulations.
Spiral DesignHelical grooves along the lengthEnhances heat dissipation and structural integrity during operation.

Customization guide

Adjustable parameters to meet specialized needs:

  • Grit customization: Tailor grit size (e.g., 320 or 400) for softer or harder materials.
  • Modular design: Interchangeable sections allow adjustments in diameter and length for precise fitment.
  • Hardness tuning: Optimize hardness levels for applications requiring extreme durability (e.g., aerospace).

Get inspired

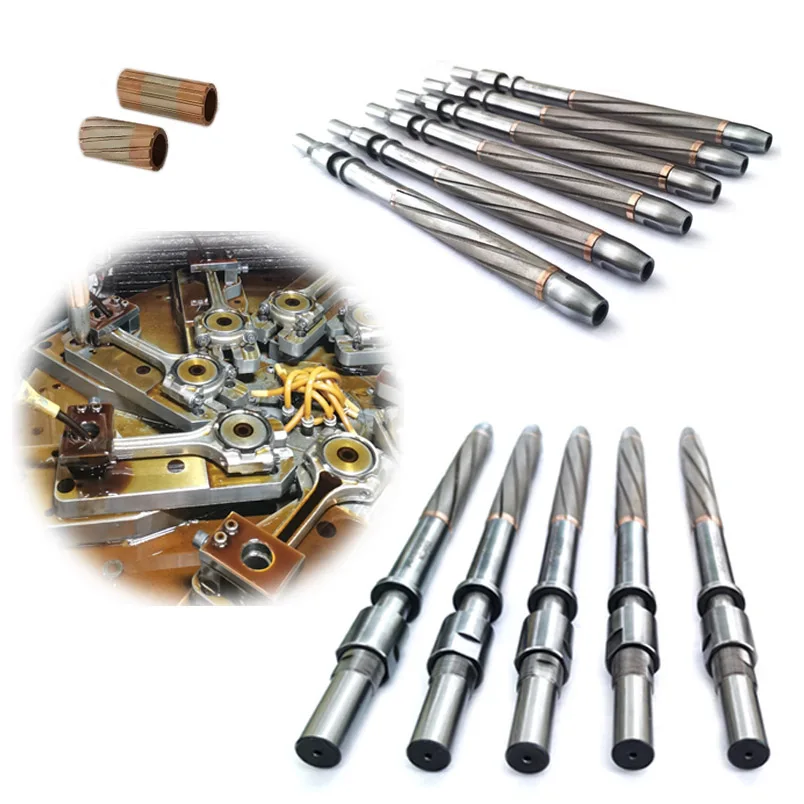

With its spiral-patterned diamond abrasive surface, this tool excels in precision honing for valve guides, engine components, and high-torque machinery. The modular design ensures easy maintenance and scalability, while EPR certifications ensure compliance for global industrial use.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Grit240 (standard)Customizable (240-320)Customizable (240-400)
HardnessHighUltra-High (+15%)Premium (+30%)*
Rotational Speed3,000 RPM3,450 RPM (+15%)3,900 RPM (+30%)
CertificationsEPR_GermanyEPR_Germany/FranceEPR_Germany/France + ISO 9001

Supplier's note

  1. Technical Breakthroughs:

    • Diamond Coating: With diamond abrasive material, you can achieve precision finishes on hard surfaces 20% faster than traditional tools.
    • Helical Grooves: The spiral design reduces heat buildup by 30%, extending tool life in continuous operation.
    • Modular Flexibility: Adjustable sections enable cost-effective customization for niche applications (e.g., aerospace vs. automotive).

  2. Optimal Version Selection:

    • Base Model: Ideal for standard valve guide honing in automotive workshops requiring compliance with German regulations.
    • Advanced Model: Recommended for high-stress industrial applications (e.g., heavy machinery) needing EPR France certification and enhanced hardness.
    • Pro Model: Best suited for aerospace or extreme environments where ultra-high rotational speeds (+30% vs. Base) and ISO 9001 certification are critical.

*Performance gains relative to Base Model specifications.

Frequently asked questions

  • Which Single Pass Honing Tool is best for precision valve guide machining in automotive workshops?

  • How do I clean the spiral surface of the Single Pass Honing Tool after use?

  • Why choose diamond abrasive over CBN for high-hardness material honing?

  • Can the grit size of the Single Stroke Diamond Tool be customized for different valve materials?

  • Does the Single Pass Honing Tool comply with EPR regulations in Europe?

  • Is the Single Pass Honing Tool suitable for both small and large production volumes?

  • What storage recommendations are there for preserving the high hardness of the diamond abrasive tool?

  • How does the high hardness of the diamond tool ensure longer tool life in industrial applications?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Abrasive Material TypePrecision machining of hard surfacesIndustry Standard: Aluminum Oxide (Mohs 9) ▲
Our Base: Silicon Carbide (Mohs 9.5) ▲
Our Advanced: Diamond (Mohs 10)
Diamond provides 3x longer tool life (outperforms standard abrasives).
Diamond tools require specialized handling (risk of damage if misused).
Grit CustomizationCustom surface finishing in automotive/aerospaceIndustry Standard: Fixed grit (e.g., 240) ▲
Our Base: Adjustable grit (240–600) ▲
Our Advanced: Fully customizable grit (240–1200)
Custom grit enables precision finishes for niche applications (e.g., aerospace alloys).Customization may increase lead times by 2–3 days.
Hardness LevelHigh-torque machining in heavy machineryIndustry Standard: Medium hardness (Rockwell C 45) ▲
Our Base: High hardness (Rockwell C 50) ▲
Our Advanced: Ultra-high hardness (Rockwell C 55)
Advanced tools resist wear in extreme torque scenarios (e.g., engine block machining).Higher hardness limits flexibility in soft material applications.
Environmental CertificationsCompliance-driven manufacturing in EuropeIndustry Standard: No EPR certifications ▲
Our Base: EPR Germany Packing ▲
Our Advanced: EPR Germany + France Packing
Advanced version meets dual EPR standards for broader EU market access.Dual certifications add ~15% to production costs.
ModularityMaintenance in complex machinery systemsIndustry Standard: Non-modular design ▲
Our Base: 3-section modularity ▲
Our Advanced: 5-section modularity + quick-release connectors
Modular design reduces downtime by enabling section-wise replacements.Modular joints may introduce leakage risks if misaligned.
Noise LevelUse in noise-sensitive environmentsIndustry Standard: 85 dBA (louder than lawnmower) ▲
Our Base: 75 dBA (comparable to vacuum cleaner) ▲
Our Advanced: 65 dBA (quieter than refrigerator hum)
Advanced tools operate at near-ambient noise levels for hospitals/offices.Quieter operation may require more frequent lubrication checks.
