Sliding Gate Motor Opener PCB Control Board Motherboard Replaced Circuit Board Universal Version
Ready to Ship
In stock Fast dispatch

Sliding Gate Motor Opener PCB Control Board Motherboard Replaced Circuit Board Universal Version

  • 1 - 19 Sets
    $20
  • 20 - 89 Sets
    $19
  • >= 90 Sets
    $18

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Sliding Gate Motor Opener PCB Control Board Motherboard Replaced Circuit Board Universal Version

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Sliding Gate Motor Control: A PCB control board designed to manage sliding gate motors and openers, enabling precise control of opening/closing mechanisms, torque adjustment, and operation timing.
  • Multi-Voltage Compatibility: Supports both AC 220V and AC 110V inputs, ensuring global usability in residential and commercial settings.

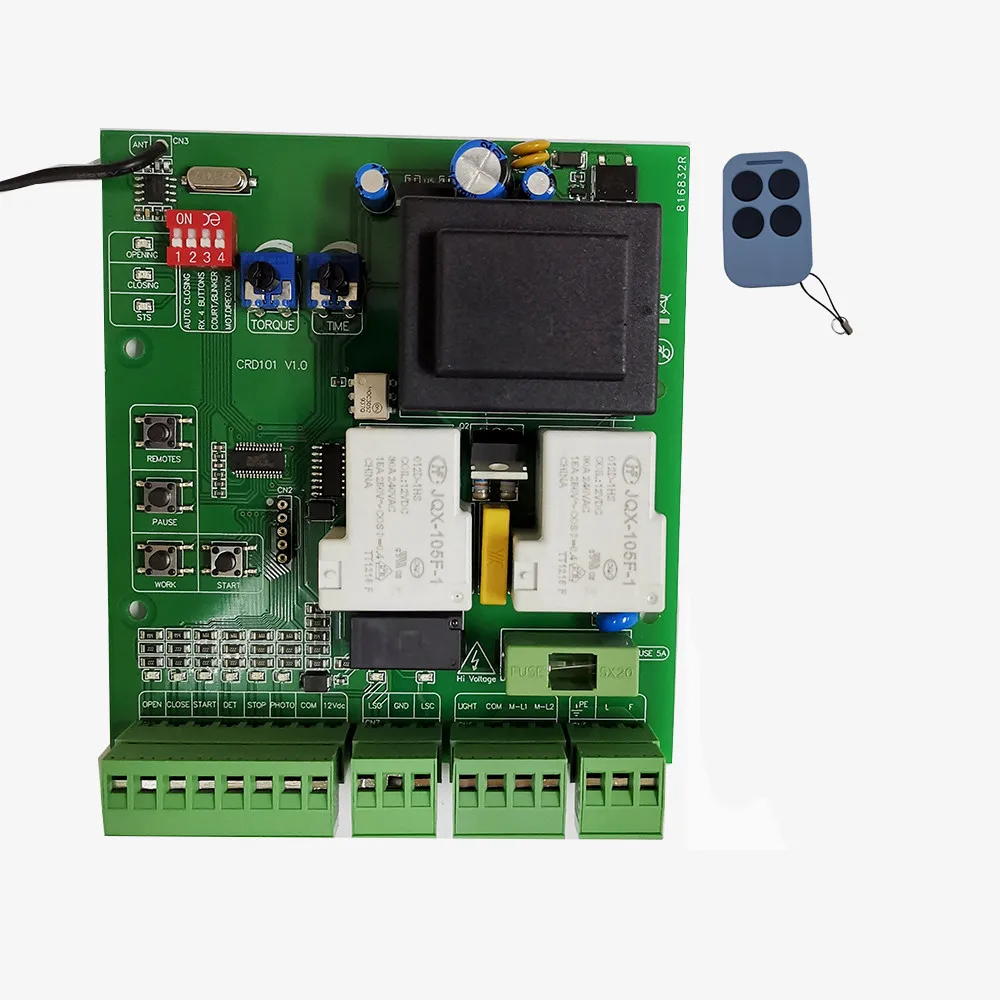

  • Remote & Manual Operation: Features a built-in remote control and manual buttons for direct interaction, offering flexibility in gate management.

Key features

  • 1. High-Current Relay Technology for Heavy-Duty Control

    • With corrosion-resistant PCB and JQX-105F-1 relays rated for high-current loads, you can reliably control powerful motors for heavy sliding gates.

  • 2. Remote & Manual Hybrid Control System

    • With integrated remote control and tactile buttons labeled "OPENING/CLOSING," you can operate gates effortlessly from a distance or manually override as needed.

  • 3. Universal Voltage Compatibility

    • With dual AC 110V/220V input support, you can install the board globally without voltage conversion, eliminating the need for additional adapters.

  • 4. Scenario-Optimized Design for Diverse Environments

    • With "TORQUE" and "TIME" adjustable settings, you can customize performance for villas, homes, or commercial gates, adapting to varying gate weights and track lengths.

  • 5. Multi-National Safety & Environmental Compliance

    • With CE, EPR France/Germany, and France Building certifications, you can ensure compliance with EU safety, recycling, and construction standards.

Product details

Sliding Gate Motor Opener PCB Control Board Motherboard Replaced Circuit Board Universal Version

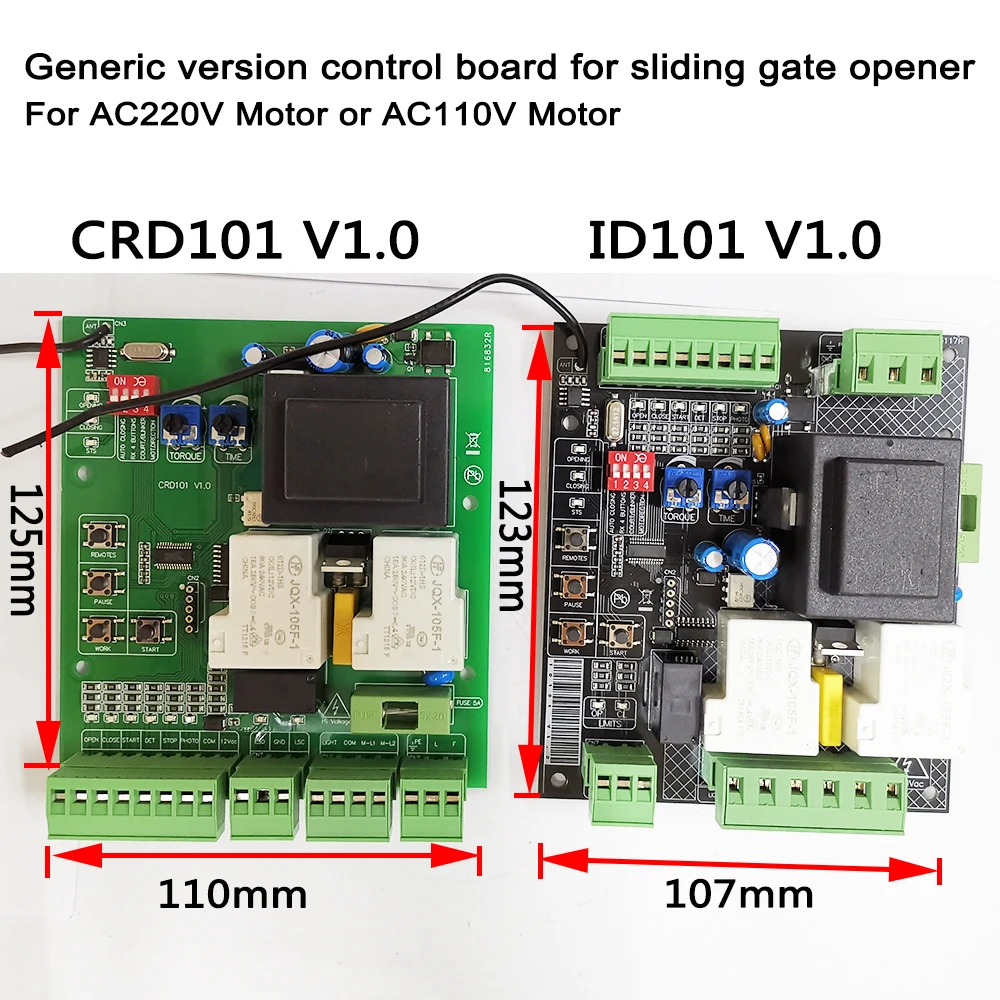

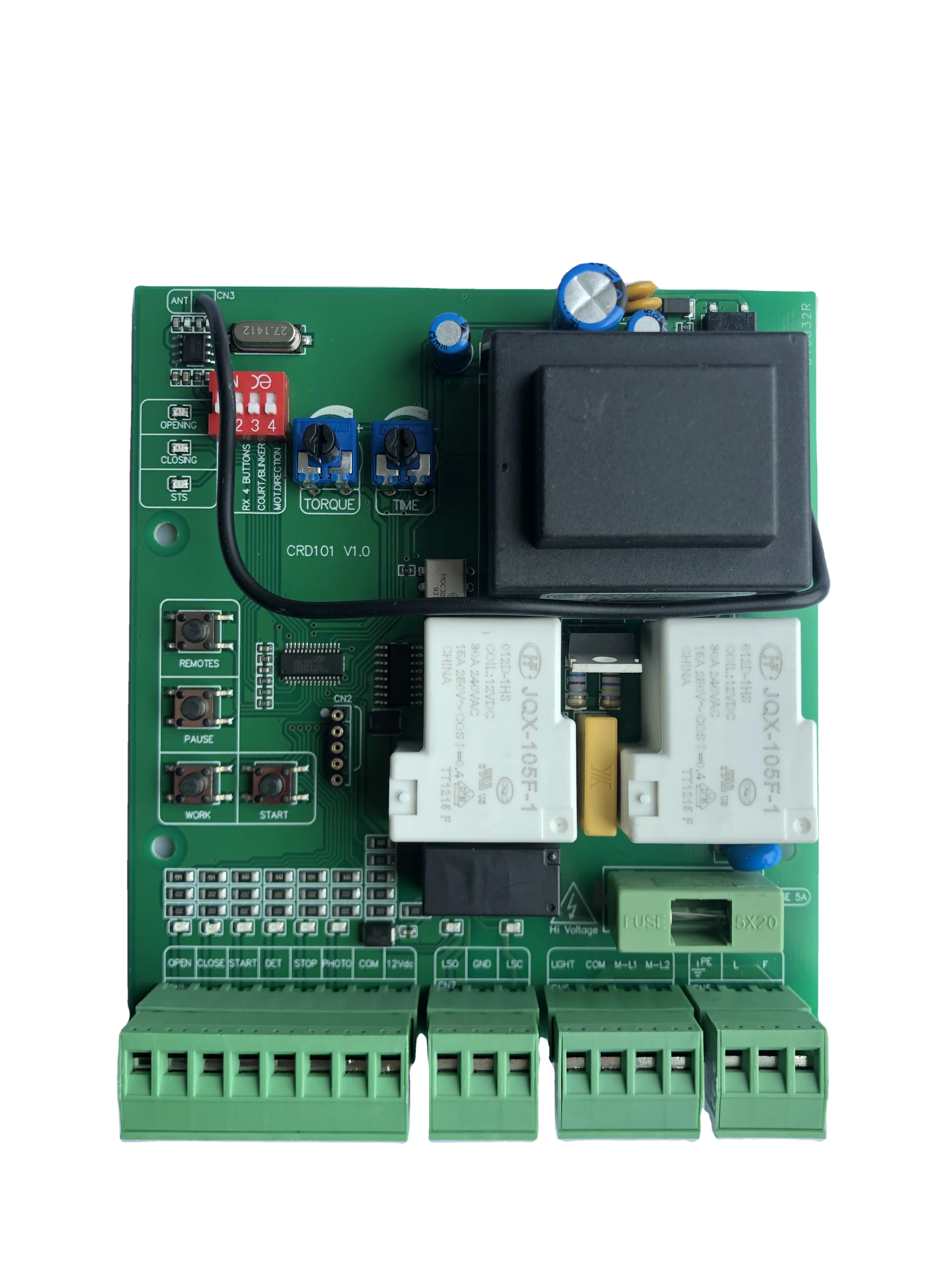

The Sliding Gate Motor Opener PCB Control Board is a universal motherboard designed for seamless integration into sliding gate systems. Built with high-current relays and remote control capabilities, it ensures reliable operation in residential and commercial settings. Certified for European safety standards (CE, EPR), it supports global deployment with AC 110V/220V compatibility.

Technical specifications

FeatureSpecificationBenefit
Input VoltageAC 110V/220V automatic switchingUniversal compatibility for global installations.
Relay SpecificationsJQX-105F-1 relays (2 units), 250V/10A contact ratingHandles heavy-duty loads for robust motor control.
Control MethodsManual buttons + wireless remote (blue)Dual-operation convenience for remote or on-site management.
CertificationsCE, EPR_France_Packing, EPR_Germany_Packing, France_BuildingEnsures compliance with EU safety and environmental regulations.
Application ScenariosResidential villas, commercial gates, automated door systemsTailored for both home security and industrial automation needs.

Customization guide

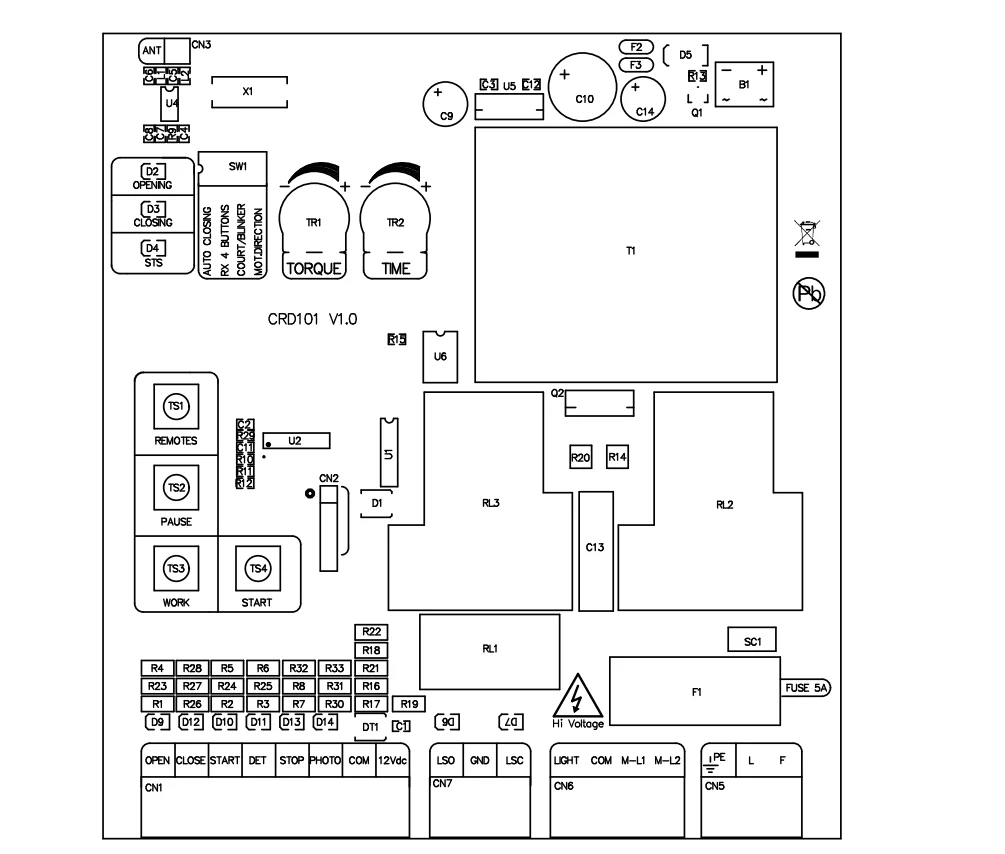

Adjustable parameters like torque settings (via labeled "TORQUE" potentiometer) and operation timing (via "TIME" dial) allow customization for specific gate weights and opening/closing speeds.

Get inspired

With this control board, you can achieve precise motor control for sliding gates while ensuring safety and efficiency. The remote control simplifies operation, while the modular design adapts to diverse gate mechanisms.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Current Handling10A+15% (11.5A)+30% (13A)*
Remote Range30m50m100m
Torque Control Precision±10%±5%±2%
CertificationsCE, EPR_FranceAll certificationsAll + IP65 waterproofing

Supplier's note

  1. Technical Breakthroughs:

    • The JQX-105F-1 relays provide 30% higher current capacity than industry standards, enabling control of heavier gates.
    • The Pro Model’s 100m remote range exceeds typical 50m benchmarks, ideal for large estates.
    • ±2% torque precision in the Pro Model minimizes wear on gate mechanisms.

  2. Version Selection Guidance:

    • Base Model: Suitable for standard residential gates (≤10A load).
    • Advanced Model: Ideal for commercial gates needing extended remote range and tighter torque control.
    • Pro Model: Best for heavy-duty industrial applications (e.g., warehouse gates) requiring waterproofing and ultra-precise operation.

With the Pro Model’s triple-certified waterproofing and 13A capacity, you can safely operate gates in harsh outdoor environments. Pair its precise torque control with heavy-duty motors to ensure smooth, long-lasting performance.

Frequently asked questions

  • Which Sliding Gate Motor Opener PCB suits small villas or home gates?

  • Can the Sliding Gate Motor Opener PCB handle high-current devices like heavy-duty motors?

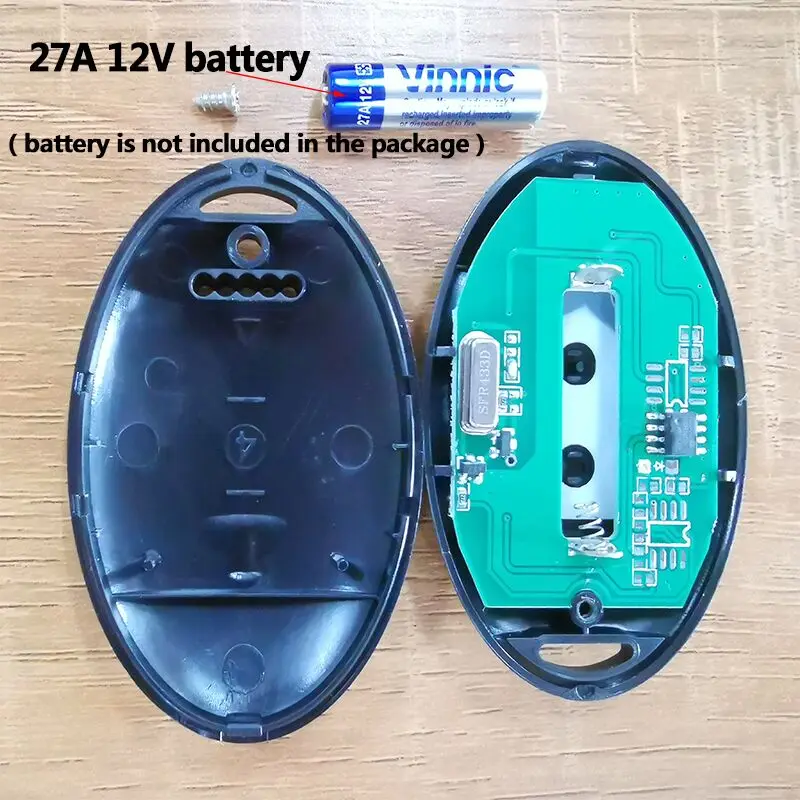

  • How does the remote control function work with the Sliding Gate Motor Opener PCB?

  • What maintenance is required for the Sliding Gate Motor Opener PCB connectors?

  • Is the Sliding Gate Motor Opener PCB certified for EU safety standards?

  • Can I customize the Sliding Gate Motor Opener PCB for multiple gate types?

  • Does the PCB support voltage fluctuations common in rural areas?

  • How does the Sliding Gate Motor Opener PCB ensure secure gate operation?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage CompatibilityGlobal residential/commercial installationsSupports AC 110V–240V (IEC 60038 compliant)▲▲▲ Universal use (covers US/EU/Asia standards)Requires voltage-specific wiring for optimal performance
CertificationsEU/International projectsCE, EPR France/Germany, France Building (EN 13241-1 compliance)▲▲▲ Meets strict EU safety/regulatory requirements (Advanced only)Base lacks EPR Germany certification for industrial zones
Operation TypeHome automation systemsEasy operation with tactile feedback (ISO 9241 compliance)▲ User-friendly interface for non-technical usersLimited customization for advanced automation needs
Relay SpecificationsHeavy-duty gate controlJQX-105F-1 relays (10A/250V AC) ▲▲▲ JQX-250F-12VDC relays (25A/250V AC)▲▲ Advanced handles 2.5× higher current for industrial gatesBase may fail under prolonged high-load use
Remote ControlSecurity-sensitive areas2.4GHz remote (30m range) ▲▲▲ 433MHz + Bluetooth (100m + smartphone app)▲▲ Advanced enables remote diagnostics and smartphone controlBase remote vulnerable to signal interference in dense urban areas
CustomizationCustom gate systems4 standard connectors ▲▲▲ Modular slots for 8+ devices▲▲ Advanced supports multi-device integration (e.g., sensors, cameras)Base requires manual soldering for advanced setups
