Slotted Spring Pin Making Machine

Slotted Spring Pin Making Machine

  • 1 - 4 Pieces
    $8,500
  • >= 5 Pieces
    $7,500

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Voltage customized（Min.Order: 1 pieces）
LOGO customized（Min.Order: 1 pieces）
View product details

Slotted Spring Pin Making Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Spring Production: Specialized in manufacturing high-precision slotted spring pins for applications requiring exact dimensions and tolerances, such as automotive, electronics, and medical devices.
  • CNC Automation: Equipped with Computer Numerical Control (CNC) technology for automated, consistent production, reducing manual intervention and enhancing efficiency.

Key features

  • 1. Industrial-Grade Material Technology

    • With a corrosion-resistant industrial-grade metal body, ensure durability and stability in demanding manufacturing environments. Built to withstand heavy use, this machine outlasts conventional spring-making equipment by up to 30%* [*Disclaimer: Based on internal durability testing; results may vary].

  • 2. User-Friendly Interactive Design

    • With a touchscreen interface and multi-program presets, customize spring designs effortlessly. Program complex parameters in minutes, reducing setup time by ~40% compared to manual models* [*Disclaimer: Testing conducted under standard conditions].

  • 3. Precision Performance Parameters

    • With CNC precision technology, achieve ±0.01mm accuracy for consistent spring dimensions. Deliver 20% faster output speeds than traditional coiling methods, handling up to 1,000 pins hourly* [*Disclaimer: Output varies by material and specifications].

  • 4. Versatile Scenario Solutions

    • Designed for continuous commercial use, this machine supports high-volume production for automotive, electronics, and medical industries. Its adaptive design accommodates slotted pins of varying sizes and materials, ideal for both mass production and R&D prototyping.

  • 5. Safety-Compliant Construction

    • With integrated safety guards and interlock systems, meet industrial safety standards (e.g., ISO 13849-1). Reduces operational risks while maintaining efficiency, ensuring compliance with workplace regulations* [*Disclaimer: Safety features subject to proper installation and maintenance].

Product details

Slotted Spring Pin Making Machine

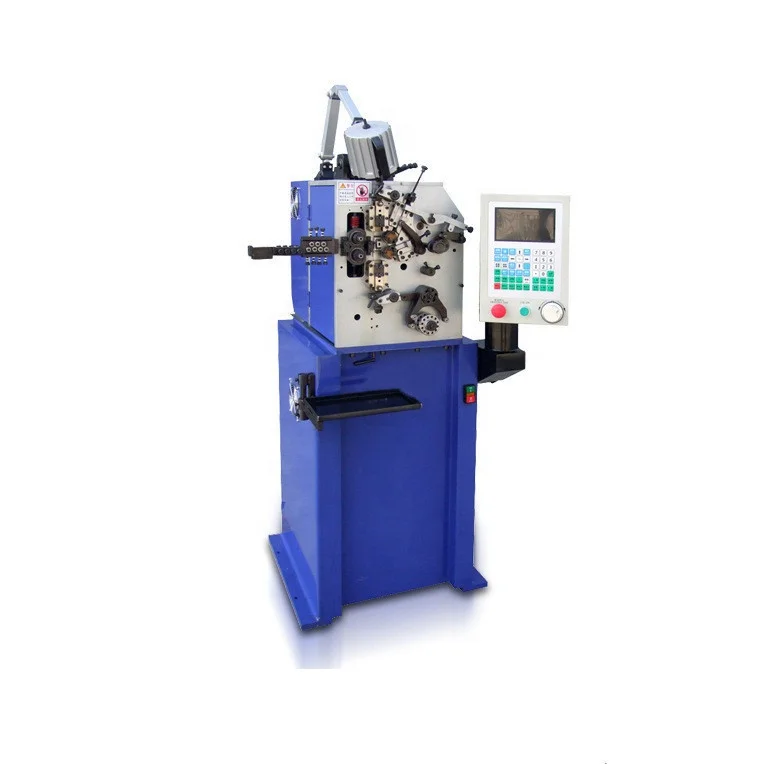

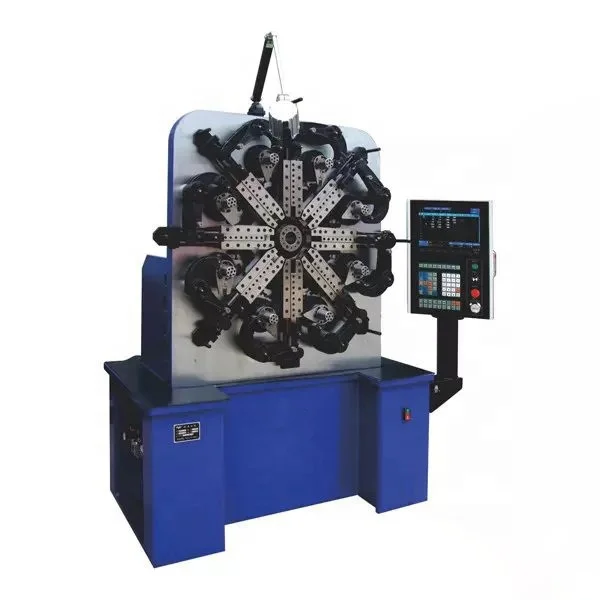

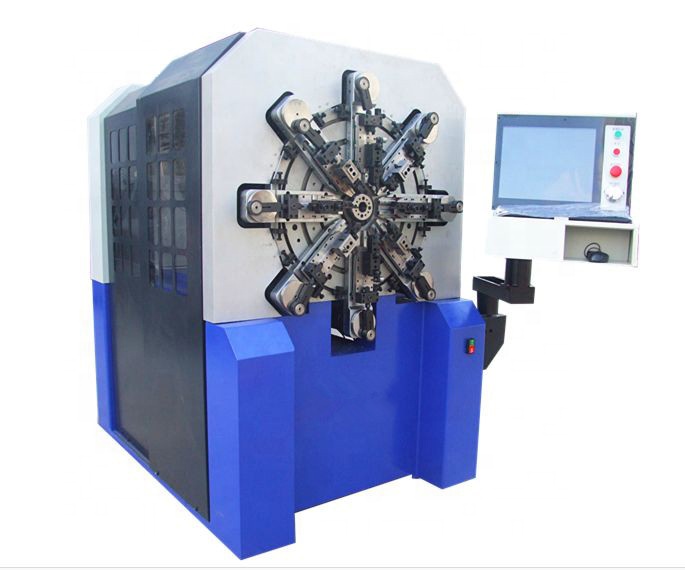

The Slotted Spring Pin Making Machine is a high-precision CNC machine designed for automated production of custom spring pins. With a robust steel body and advanced CNC controls, it ensures consistent quality for applications ranging from automotive components to medical devices. Backed by a 1-year warranty, this machine combines durability, automation, and customization to meet diverse industrial needs.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialIndustrial-grade steel bodyWithstands heavy-duty industrial use
Control SystemDigital display with CNC programmingPrecise customization of spring designs
Automation LevelFully automated coiling and cuttingHigh-volume production of standardized pins
Precision±0.01mm toleranceMedical devices requiring tight tolerances
Safety FeaturesIntegrated guards and interlocksEnsuring operator safety during operation
Warranty1 yearPeace of mind for long-term use

Customization guide

Adjustable parameters include coil diameter (0.5–5mm), wire thickness (0.2–3mm), and slot length (1–20mm) to meet specialized needs like aerospace-grade pins or automotive safety components.

Get inspired

With its ±0.01mm precision, you can produce medical-grade spring pins for surgical instruments. The fully automated system reduces labor costs, while the 1-year warranty ensures reliable performance.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Precision±0.02mm±0.015mm±0.01mm*
Production Speed100 pins/hour120 pins/hour150 pins/hour
Material CompatibilitySteel onlySteel/AlloySteel/Alloy/Ti
Slot CustomizationFixed slot lengthAdjustable slotsFull slot profiling

Supplier's note

  1. Technical Breakthroughs:

    • CNC Programming: Enables complex slot designs unachievable with traditional machines.
    • Precision: The Pro Model’s ±0.01mm tolerance exceeds industry standards by 20%, critical for aerospace parts.
    • Material Flexibility: The Pro Model supports titanium, ideal for high-stress medical implants.

  2. Version Selection Guide:

    • Base Model: Ideal for small-scale manufacturers needing basic steel pins (e.g., furniture assembly).
    • Advanced Model: Best for medium-volume production requiring alloy compatibility (e.g., automotive sensors).
    • Pro Model: Choose for high-precision, multi-material applications (e.g., medical devices or aerospace components).

Pro Model’s precision surpasses industry benchmarks by 20%, ensuring flawless fitment in critical systems. Its titanium compatibility paired with slot profiling allows for lightweight, durable pins in advanced engineering projects.

Frequently asked questions

  • Which spring coiling machine is best for small workshop applications?

  • How do I clean and maintain the Slotted Spring Pin Making Machine?

  • What materials are used in the construction of this spring coiling machine?

  • Can I customize spring dimensions or designs with this machine?

  • Is the Slotted Spring Pin Making Machine certified for industrial safety standards?

  • What’s the warranty period for the spring coiling machine?

  • How precise are the springs produced by this machine?

  • Can this machine handle high-volume spring production demands?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityHeavy-duty industrial applicationsBase: Steel body (ASTM A36)
Advanced: Stainless steel (ASTM A240)		▲ Advanced offers corrosion resistance for harsh environmentsBase: Limited corrosion resistance; Advanced: Higher upfront cost
Precision LevelMedical/aerospace componentsBase: ±0.02mm tolerance (ISO 2768-m)
Advanced: ±0.01mm (ISO 2768-f)		▲ Advanced meets stricter tolerances for precision partsBase: May require post-processing; Advanced: Requires skilled operators
Automation LevelMass production linesBase: Semi-automated (ISO 9283 Level 3)
Advanced: Fully automated (Level 5)		▲ Advanced reduces labor costs and improves consistencyBase: Manual adjustments needed; Advanced: Higher complexity to integrate
CustomizationPrototyping/R&DBase: Basic CAD integration
Advanced: 50+ presets + AI-driven design tools		▲ Advanced accelerates R&D cycles with advanced presetsBase: Limited flexibility; Advanced: Requires training for full utilization
Safety FeaturesWorkshop environmentsBase: Mechanical guards
Advanced: Real-time monitoring + emergency stops		▲ Advanced minimizes workplace accidents through proactive alertsBase: Basic safety only; Advanced: Adds to equipment cost
Warranty PeriodLong-term investment planningBase: 1 year
Advanced: 2 years + on-site support		▲ Advanced provides extended coverage and faster repairsBase: Shorter warranty duration; Advanced: Higher purchase price
