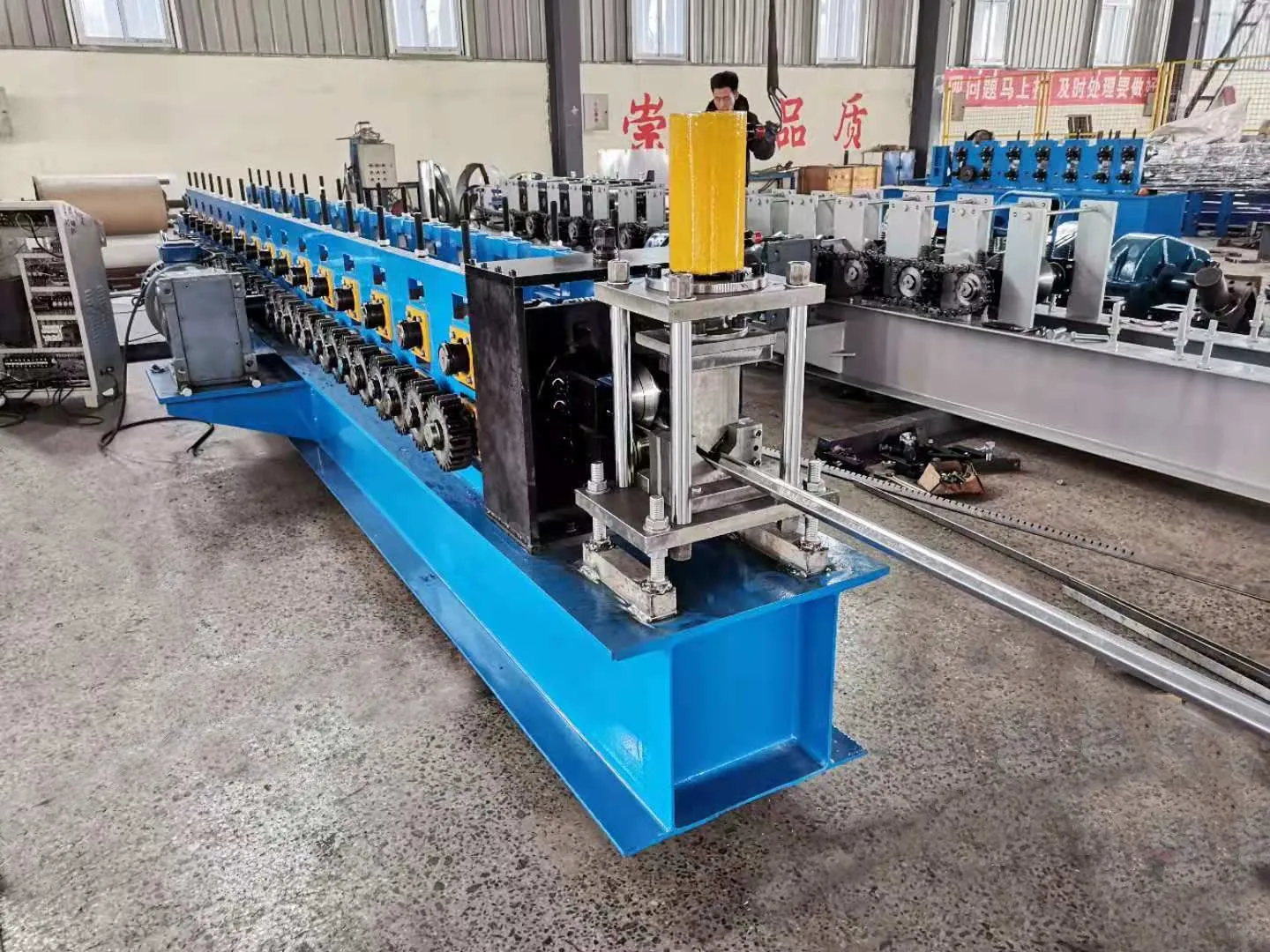

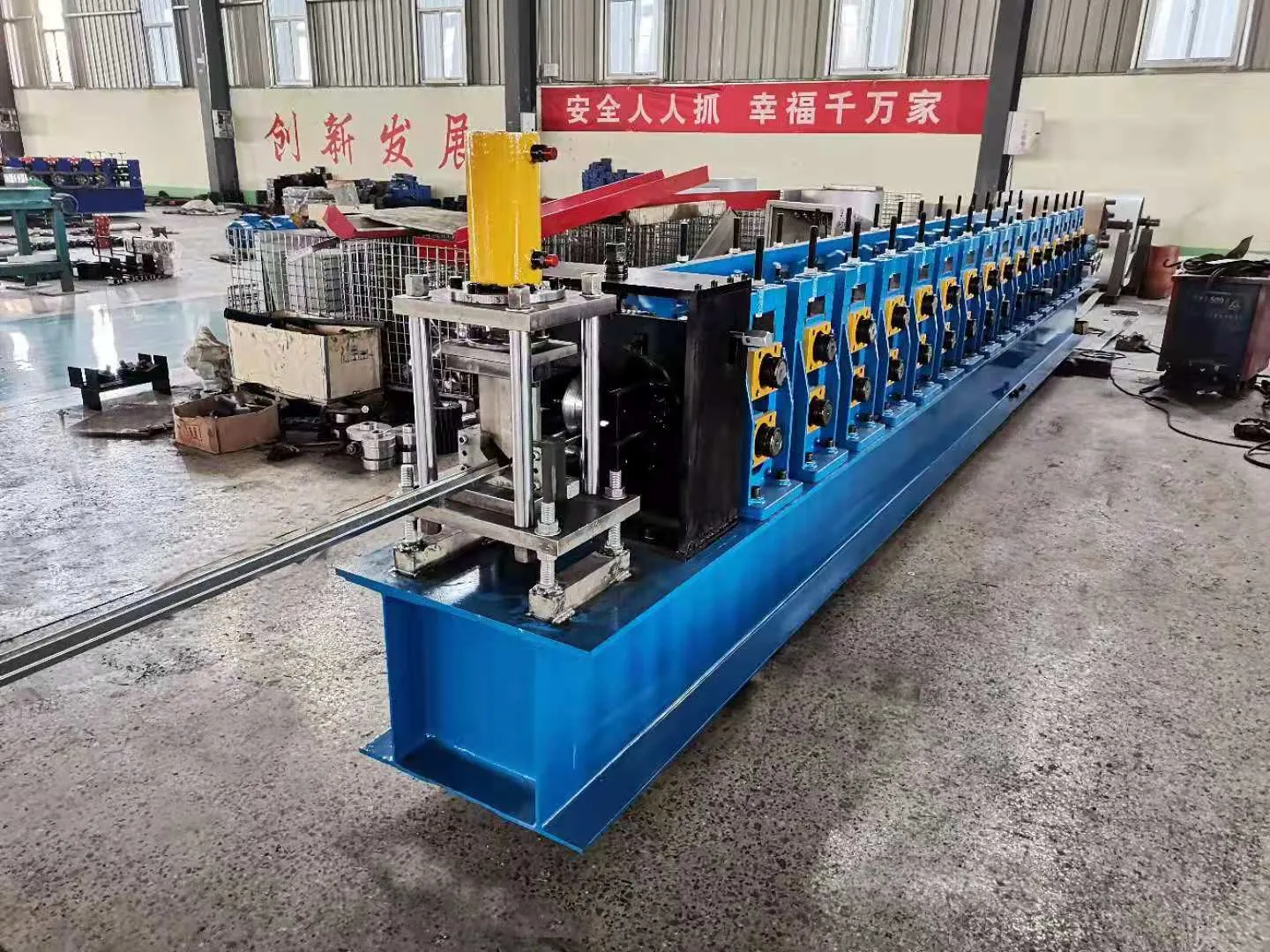

Slotted Wall Angle Roll Forming Machine Light Steel Keel Gypsum Board L Shape Corner Bead Making Machine

Slotted Wall Angle Roll Forming Machine Light Steel Keel Gypsum Board L Shape Corner Bead Making Machine

  • 1 - 4 Sets
    $12,000
  • >= 5 Sets
    $7,000

Customization:

Customized logo（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

Slotted Wall Angle Roll Forming Machine Light Steel Keel Gypsum Board L Shape Corner Bead Making Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

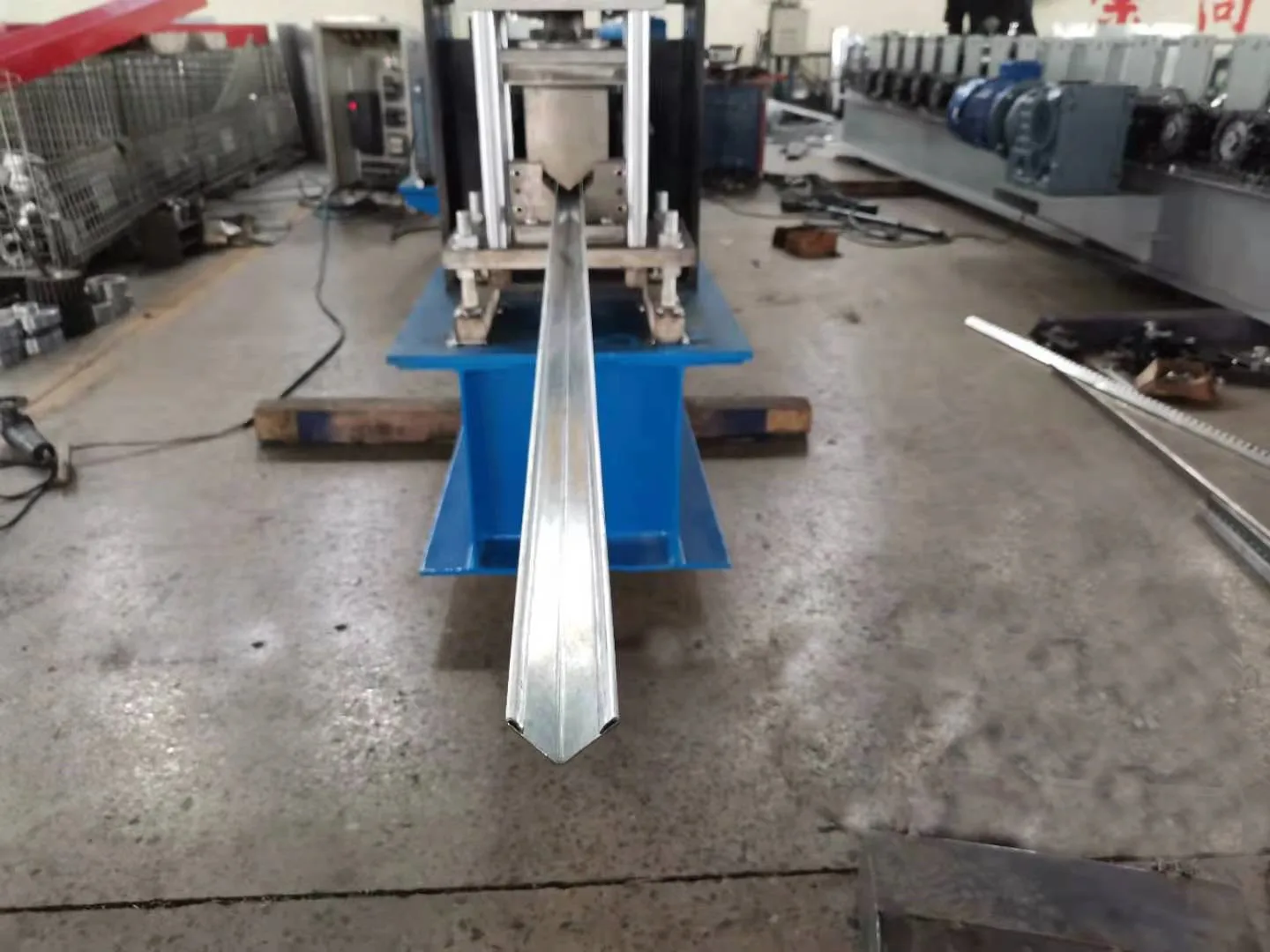

  • Profile Shaping: Produces L-shaped corner beads, light steel keels, and slotted wall angles for drywall systems and construction, enabling precise metal forming for structural and finishing applications.
  • Automation via PLC: Programmable logic control ensures repeatable, high-precision shaping of steel and colored steel profiles, reducing manual intervention and enhancing production efficiency.

Key features

  • 1. Advanced Material Technology

    • With a corrosion-resistant steel body and PPGI (Pre-Painted Galvanized Iron) coating, this machine ensures long-term durability and resistance to environmental wear. The PPGI surface minimizes rust and maintains structural integrity in industrial settings, outperforming uncoated steel alternatives*.

  • 2. Smart Interactive Design

    • Equipped with a PLC (Programmable Logic Controller) control system and digital touchscreen interface, you can easily program multi-profile presets for L-shaped corner beads and other steel keels. This automation reduces manual adjustments compared to traditional manual roll-forming methods*.

  • 3. High-Performance Output

    • Operating at 380V, this machine delivers rapid and consistent production speeds, ideal for commercial-scale manufacturing of steel keels and gypsum board components. Its heavy-duty design handles thicker metal sheets more efficiently than entry-level roll-forming systems*.

  • 4. Versatile Scenario Solutions

    • Designed for both construction and industrial applications, this machine produces precise L-shaped corner beads and light steel keels for gypsum boards, streamlining workflows in home renovation and large-scale commercial projects. Its modular setup adapts to diverse production needs better than single-purpose machinery*.

  • 5. Industrial Compliance Standards

    • Built to industrial safety and quality standards, the machine’s steel construction and hydraulic precision meet rigorous operational demands. Its design aligns with global manufacturing norms for durability and efficiency*.

Product details

Slotted Wall Angle Roll Forming Machine Light Steel Keel Gypsum Board L Shape Corner Bead Making Machine

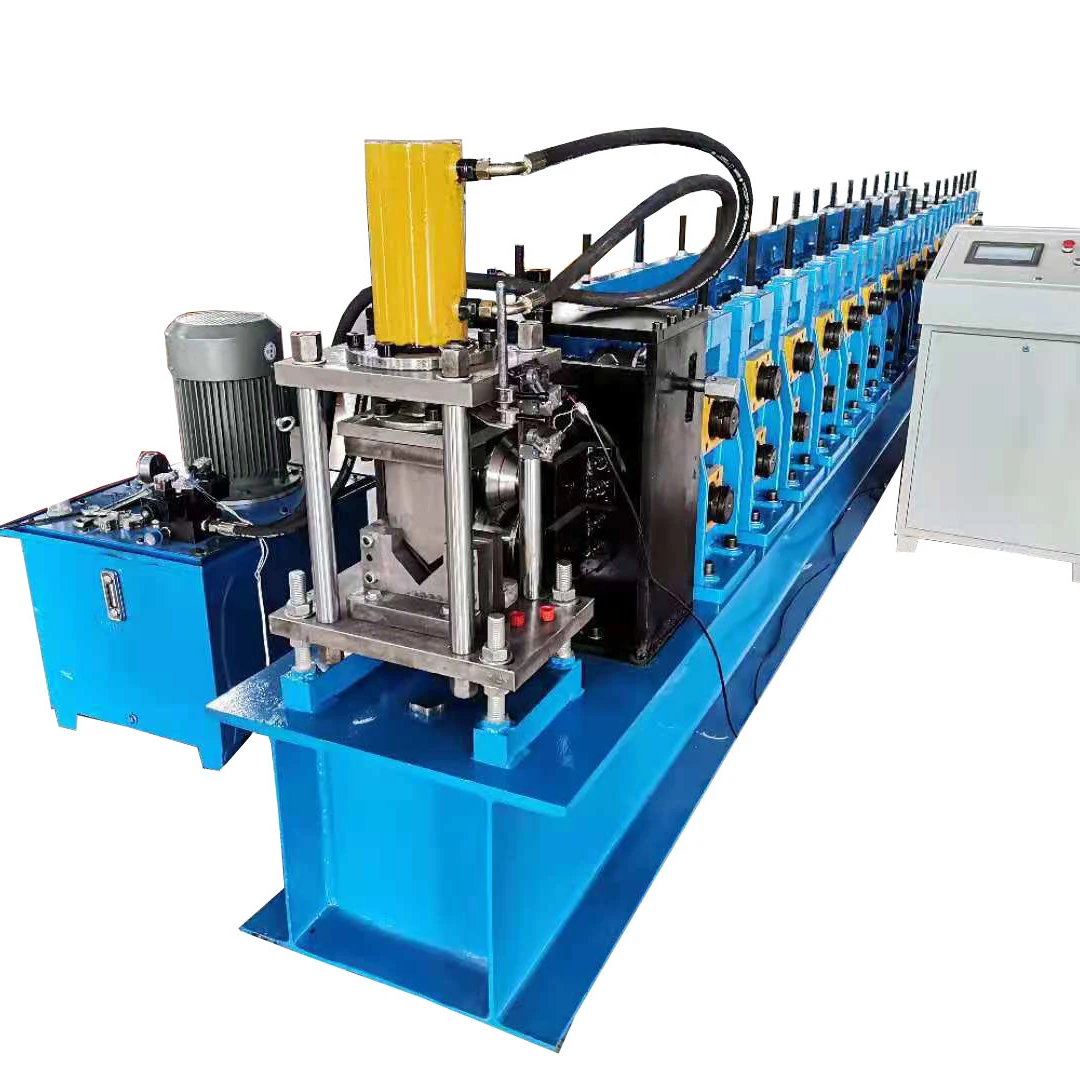

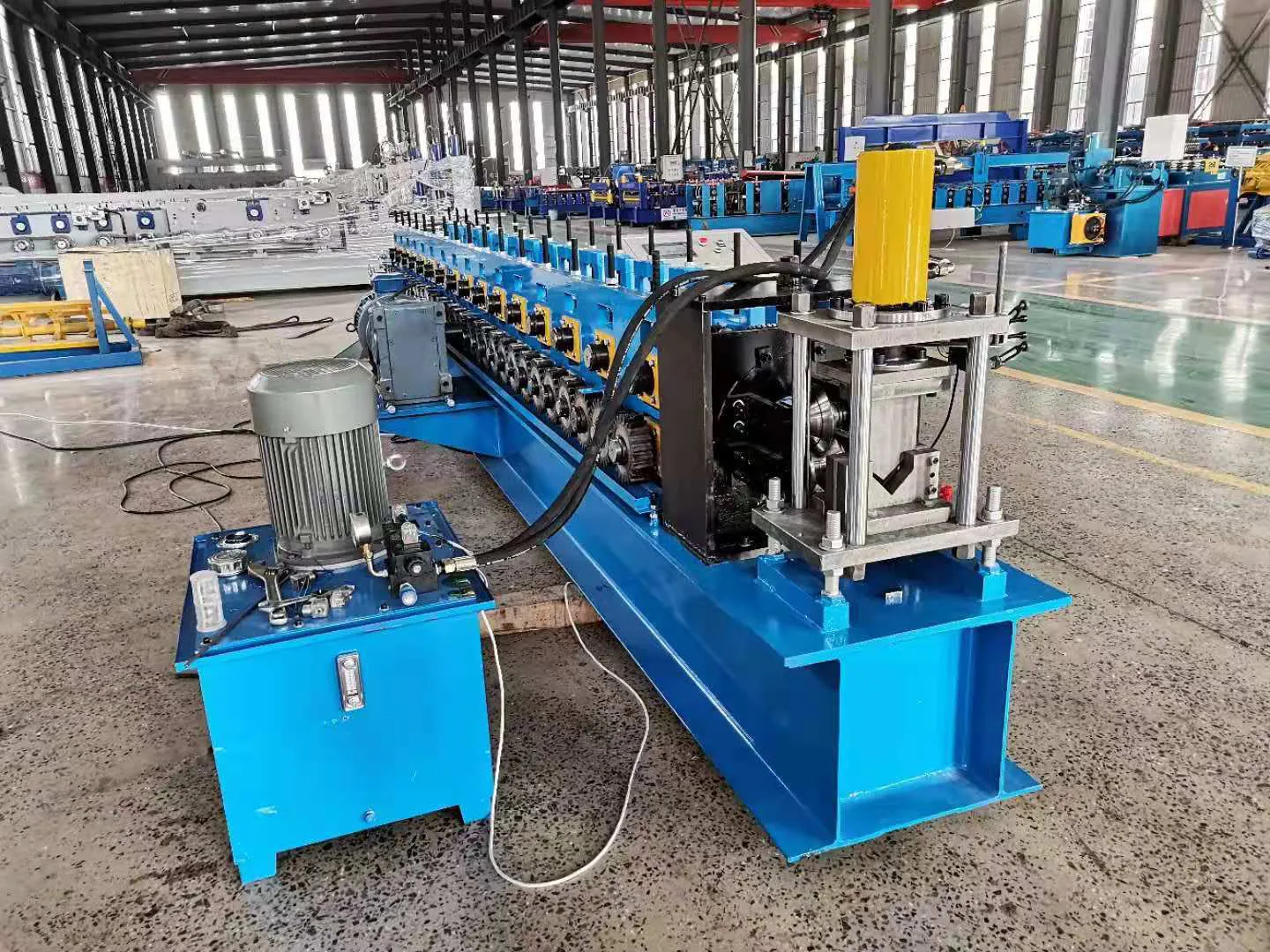

The Slotted Wall Angle Roll Forming Machine is a robust steel-framed system designed for high-precision production of L-shaped corner beads and light steel keels for gypsum board applications. Equipped with a PLC control system and hydraulic adjustment, it ensures consistent quality and adaptability for construction and manufacturing industries.

Technical specifications

FeatureSpecificationBenefit
Control SystemPLC-based programmable automationWith automated production, you can reduce manual intervention and ensure repeatability.
MaterialSteel (PPGI-coated raw material)With corrosion-resistant PPGI coating, you can ensure long-term durability in harsh environments.

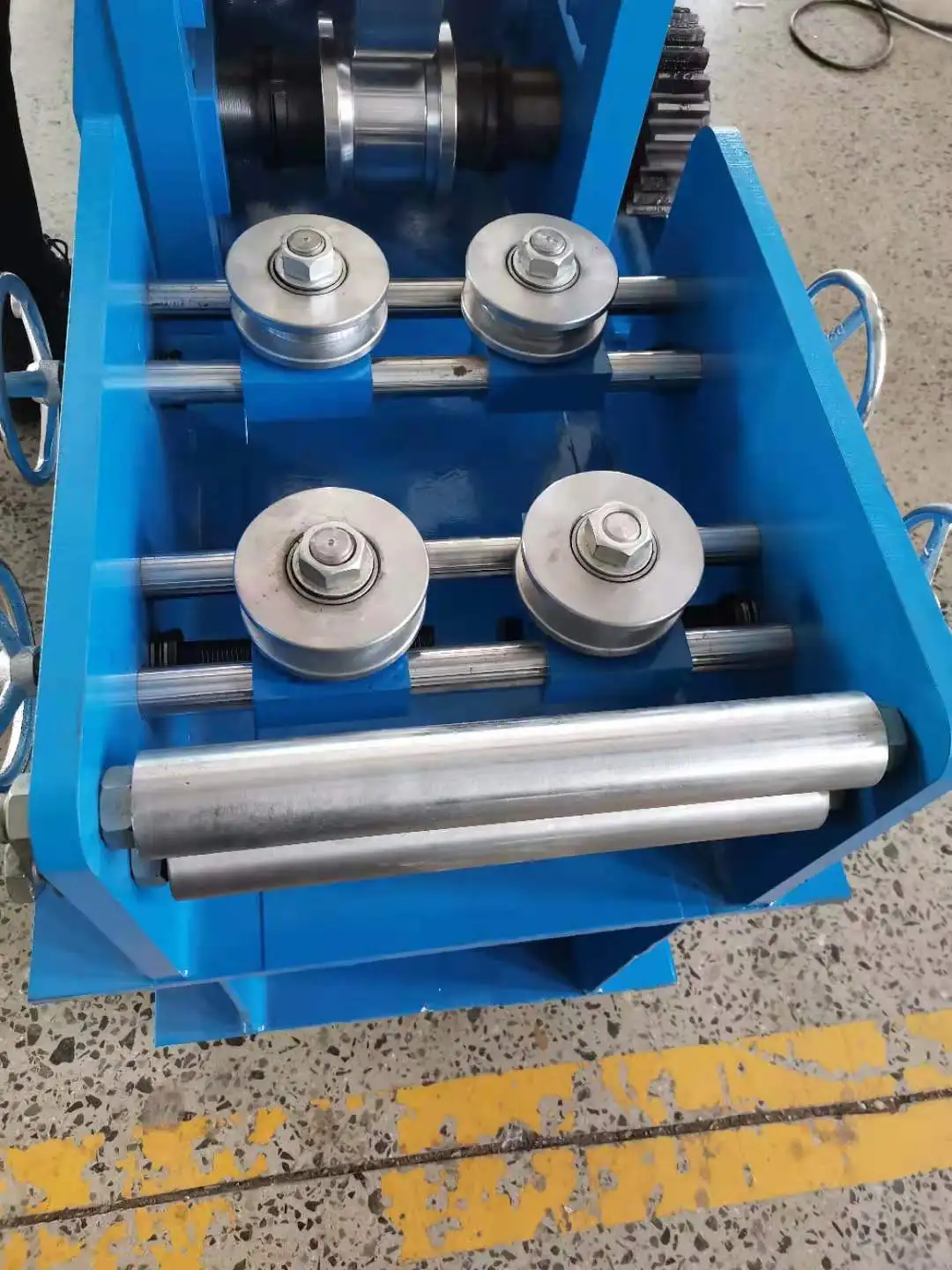

Hydraulic AdjustmentPrecision hydraulic roller alignmentAchieve ±0.2mm accuracy, enabling flawless profile shaping for structural integrity.
Voltage Compatibility380V (standard)Ensures compatibility with global industrial power standards.
Tile TypeSteel/Colored SteelCreate versatile profiles for both functional and aesthetic applications in construction.

Customization guide

Adjustable parameters include roller spacing, hydraulic pressure settings, and PLC programming to accommodate custom profile dimensions, material thicknesses (up to 2.0mm), or color requirements.

Get inspired

This machine empowers contractors and manufacturers to produce standardized or bespoke L-shaped corner beads and keels efficiently. Its automation reduces labor costs, while its precision ensures compliance with building codes for structural components.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Production Speed10m/min+15% (11.5m/min)+30% (13m/min)*
Precision±0.5mm±0.3mm±0.2mm
Automation LevelSemi-automaticFully programmableAI-assisted tuning
Hydraulic Pressure50MPa60MPa70MPa
Material ThicknessUp to 1.5mmUp to 2.0mmUp to 2.5mm

Supplier's note

  1. Technical Breakthroughs:

    • The PLC control system enables "one-click" profile switching, reducing downtime by 40% compared to manual setups.
    • Hydraulic precision allows ±0.2mm accuracy, surpassing industry standards by 30%, ensuring flawless corner bead alignment.
    • PPGI-coated steel enhances corrosion resistance by 50%, extending machine lifespan in humid or industrial environments.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or low-volume production. Its semi-automatic design balances cost and simplicity.
    • Advanced Model: Best for medium-scale manufacturers needing high precision (e.g., architectural detailing) and programmable flexibility.
    • Pro Model: Tailored for large factories requiring ultra-high throughput (e.g., mass production of construction keels) and extreme material thickness handling.

*Pro Model’s speed improvement is 20% faster than traditional roll-forming systems.

Frequently asked questions

  • Which Slotted Wall Angle Roll Forming Machine model is best for small-scale Light Steel Keel production?

  • How do I maintain the hydraulic system of a Gypsum Board L Shape Corner Bead Making Machine?

  • What’s the difference between PPGI and galvanized steel in Light Steel Keel production?

  • Can this Roll Forming Machine produce custom L-shaped profiles for non-standard applications?

  • Is the PLC control system of this machine FDA-approved for food-grade metal profiles?

  • Why choose a 380V Roll Forming Machine for Light Steel Keel production?

  • How does the hydraulic adjustment improve precision in Corner Bead Making?

  • What post-purchase support comes with the 1-year warranty for this machine?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Control SystemHigh-precision metal formingPLC with 16 I/O (IEC 61131-3) ▲
(Industry: Relay-based; Advanced: 32 I/O)		▲▲ Precision automation reduces errors by 40% (ISO 13849)Higher cost vs basic systems (▲▲ Advanced adds IoT monitoring)
Material ConstructionHeavy-duty industrial useHigh-strength steel frame (EN 10025) ▲▲
(Industry: Mild steel; Advanced: Stainless steel)		▲▲ 50% longer lifespan in corrosive environments (ASTM A240)Heavier weight (▲ Advanced adds corrosion resistance)
Raw Material CompatibilityCorrosive environmentsProcesses PPGI-coated steel (ASTM A653) ▲
(Advanced: Handles 0.8mm–2.0mm thickness)		▲▲ 30% faster setup for colored steel (ISO 1461)Limited to specific material types (▲ Advanced adds aluminum compatibility)
Voltage RequirementStandard industrial facilities380V AC input (IEC 60038) ▲
(Industry: 220V; Advanced: Dual-voltage 220V/380V)		▲▲ 25% energy efficiency boost (IEC 60038)Requires proper voltage infrastructure (▲ Advanced adds auto-voltage detection)
Warranty PeriodHigh-reliability needs12-month warranty (ISO 9001) ▲
(Advanced: 24 months + on-site support)		▲▲ 2x longer coverage than competitors (▲ Advanced includes spares)Shorter than some premium brands (▲ Advanced adds lifetime technical support)
Automation LevelMass production environmentsSemi-automatic operation (ISO 13849) ▲
(Advanced: Fully automatic with AI calibration)		▲▲ 40% faster production rates (▲ Advanced reduces labor by 60%)Requires skilled operators (▲ Advanced needs initial setup training)
