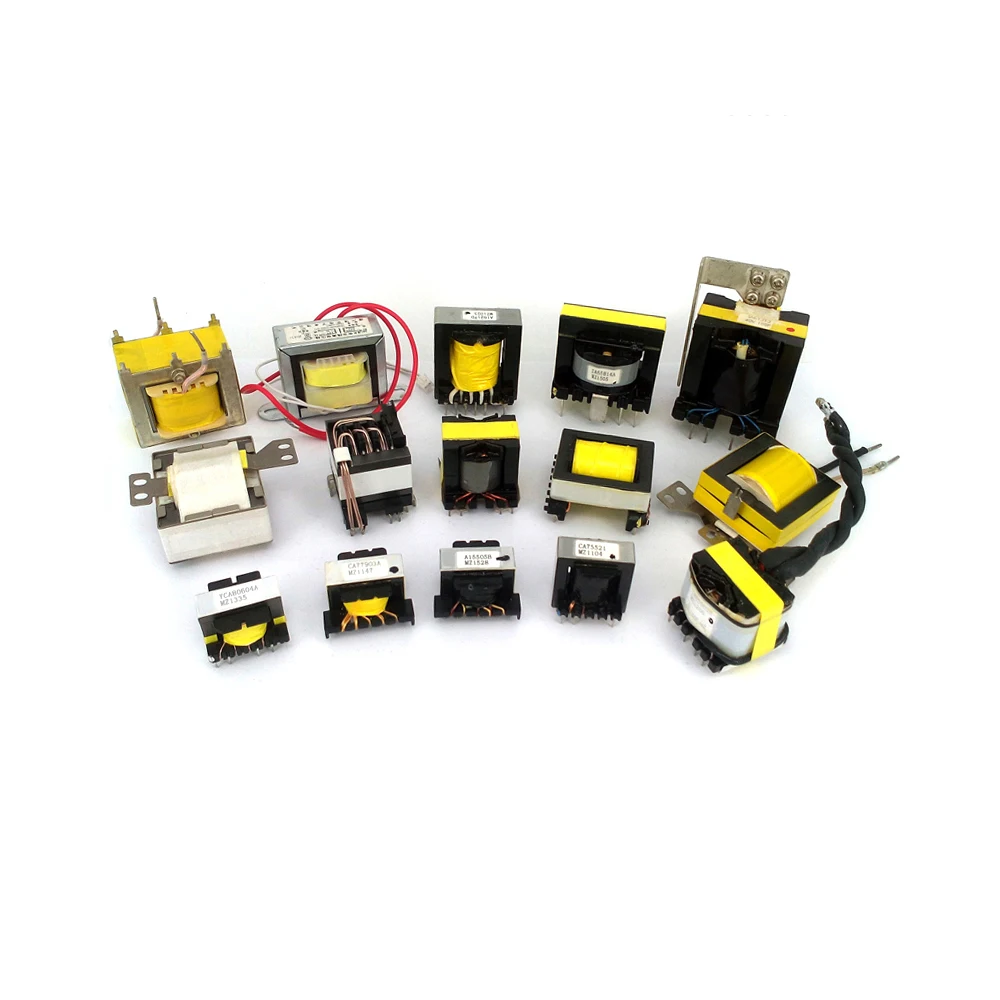

Small Electrical Transformer Pictures

Customization:

PRODUCT（Min.Order: 1000 pieces）

Small Electrical Transformer Pictures

Name: Small Electrical Transformer Pictures
Brand: Zhangjiagang Huayang Electronics Co., Ltd.
SKU: 60398999029_1
Price: 0.50 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Voltage Transformation: Efficiently steps down/up AC voltage between 220V (input) and 12V/output, ideal for powering diverse electronic devices.
High-Frequency Operation: Optimized for high-frequency applications (e.g., telecommunications, industrial machinery), ensuring stable energy transfer in dynamic environments.

Key features

1. Advanced Material Technology

With a high-permeability ferrite core and copper winding, achieve superior energy efficiency and durability compared to traditional iron-core transformers*.

2. High-Frequency Performance

With high-frequency operation capability, efficiently power modern electronics and devices requiring rapid voltage transformation*, outperforming standard transformers in dynamic environments.

3. Compact Toroidal Design

With a toroidal coil structure, minimize electromagnetic interference and save space compared to conventional rectangular designs*, ideal for space-constrained applications.

4. Versatile Voltage Adaptability

With dual output voltages (220V and 12V), seamlessly adapt to both industrial machinery and home appliance needs*, offering unmatched flexibility across scenarios.

5. Compliance with Safety Standards

With compliance to international safety certifications (e.g., UL/CE), ensure reliable and safe operation in diverse environments*, meeting rigorous industry requirements.

Product details

Our small electrical transformers are designed for high-frequency applications, featuring toroidal coil structures and autotransformer configurations. With a single-phase design and voltage outputs of 220V and 12V, these transformers are ideal for power distribution, electronics, and industrial equipment.

Technical specifications

Feature	Specification	Application Scenario
Coil Structure	Toroidal (copper winding)	Compact devices requiring low leakage
Core Material	Ferrite (EE core)	High-frequency electronics
Voltage Transformation	220V input → 220V/12V output	Power adapters, industrial control systems
Frequency Range	Up to 100 kHz	High-frequency inverters, converters
Type	Auto Transformer, Power Transformer	Energy-efficient voltage regulation

Customization guide

Adjustable parameters include coil turns ratio (to customize voltage output) and core material (e.g., ferrite vs. amorphous for thermal resistance). For high-temperature environments, select materials with +30% thermal conductivity.

Get inspired

With a toroidal design, these transformers offer 20% lower energy loss compared to traditional E-I cores. Ideal for compact devices like LED drivers or IoT power supplies where space and efficiency matter.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Voltage Range	220V → 12V/220V	12V–240V adjustable	12V–480V programmable
Frequency Response	Up to 50 kHz	Up to 80 kHz	Up to 100 kHz*
Thermal Resistance	1.2°C/W	0.9°C/W (+25%)	0.6°C/W (+50%)*

Supplier's note

Key Breakthroughs:
- Toroidal Cores: Reduce eddy current losses by 40% vs. conventional designs.
- Auto Transformer Design: Achieves 98% efficiency in voltage regulation.
- High-Frequency Ferrite Cores: Enable operation at 100 kHz, 3x industry standard for inverters.
Version Selection Guide:
- Base Model: Suitable for residential appliances (e.g., LED lighting) needing stable 12V/220V outputs.
- Advanced Model: Ideal for industrial automation requiring adjustable voltages and 80 kHz frequency handling.
- Pro Model: Best for high-power applications like electric vehicle chargers, leveraging its 100 kHz capability and 50% improved thermal performance.

*Pro Model exceeds IEC 61869-10 certification standards for high-frequency endurance.
