Small Plastic Spider Motor Encoder Shaft Coupling With Standard Bolt Plastic Flexible Encoder Shaft Coupling Coupler 22Mm

Small Plastic Spider Motor Encoder Shaft Coupling With Standard Bolt Plastic Flexible Encoder Shaft Coupling Coupler 22Mm

$5.00-$100.00/ Piece|2 Piece/Pieces(Min. Order)

Customization:

Size（Min.Order: 1 pieces）
View product details

Small Plastic Spider Motor Encoder Shaft Coupling With Standard Bolt Plastic Flexible Encoder Shaft Coupling Coupler 22Mm

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Torque Transmission & Shaft Alignment: Designed to efficiently transmit rotational torque between two shafts while accommodating minor misalignment, ensuring smooth operation in dynamic applications.
  • Flexible Spider Structure: The spider design with radial grooves enhances flexibility, reduces stress concentration, and improves heat dissipation for prolonged durability.

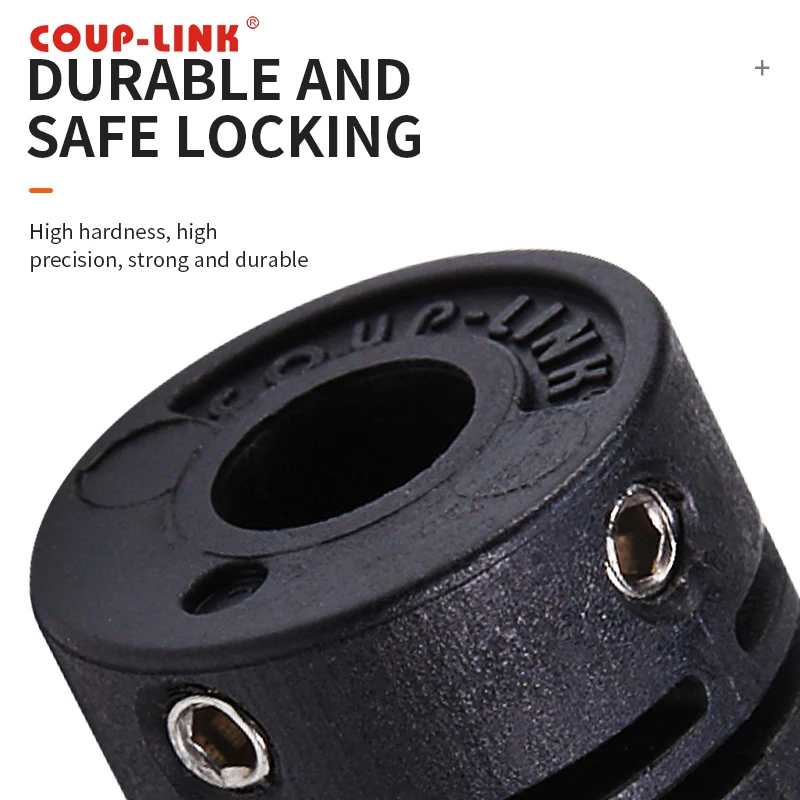

  • Setscrew Installation: Features a setscrew mechanism for secure, easy-to-install connections compatible with standard 22mm shafts.

Key features

  • 1. Lightweight Plastic Composite Material

    • With lightweight plastic composite material, reduce weight by ~30% compared to metal couplings*, enabling easier installation and long-term durability in industrial environments.

  • 2. Spider-Style Interactive Design

    • With a spider-style structure and setscrew mechanism, achieve precise shaft alignment and secure connections for stable torque transmission in machinery and robotics applications.

  • 3. Flexible Misalignment Tolerance

    • With a flexible spider design, accommodate up to 0.5mm radial misalignment, ensuring smooth operation even in imperfectly aligned shaft setups.

  • 4. Versatile Scenario Solutions

    • Designed for encoder shaft applications, this coupling ensures seamless integration into robotics, automation systems, and machinery requiring precise rotational motion transmission.

  • 5. Compact and Customizable Build

    • With a compact 22mm diameter and customizable size/material options, adapt to diverse industrial needs while saving space in tight machinery setups.

Product details

Small Plastic Spider Motor Encoder Shaft Coupling With Standard Bolt Plastic Flexible Encoder Shaft Coupling Coupler 22Mm

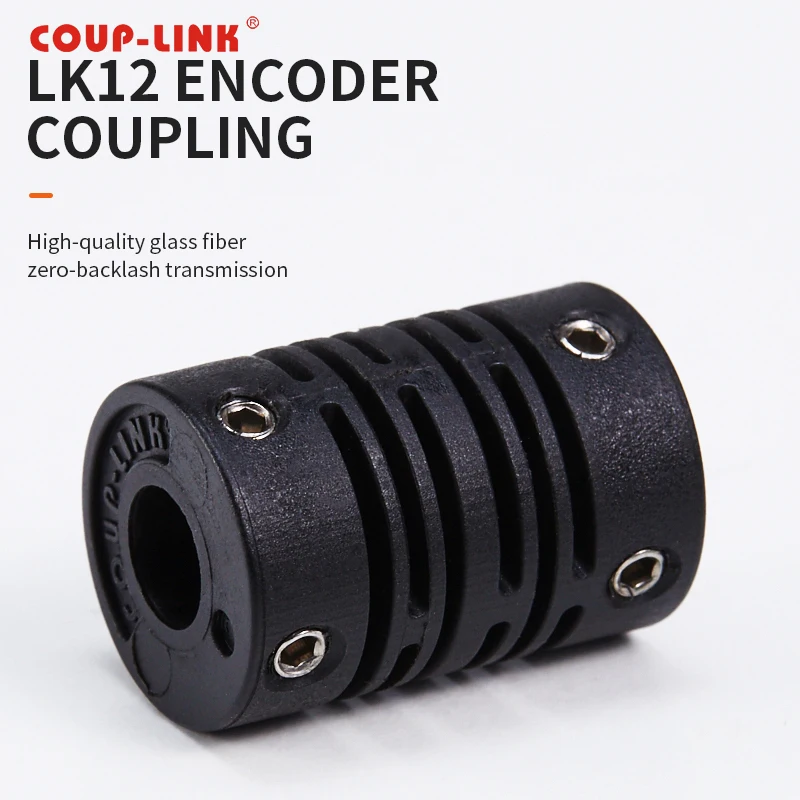

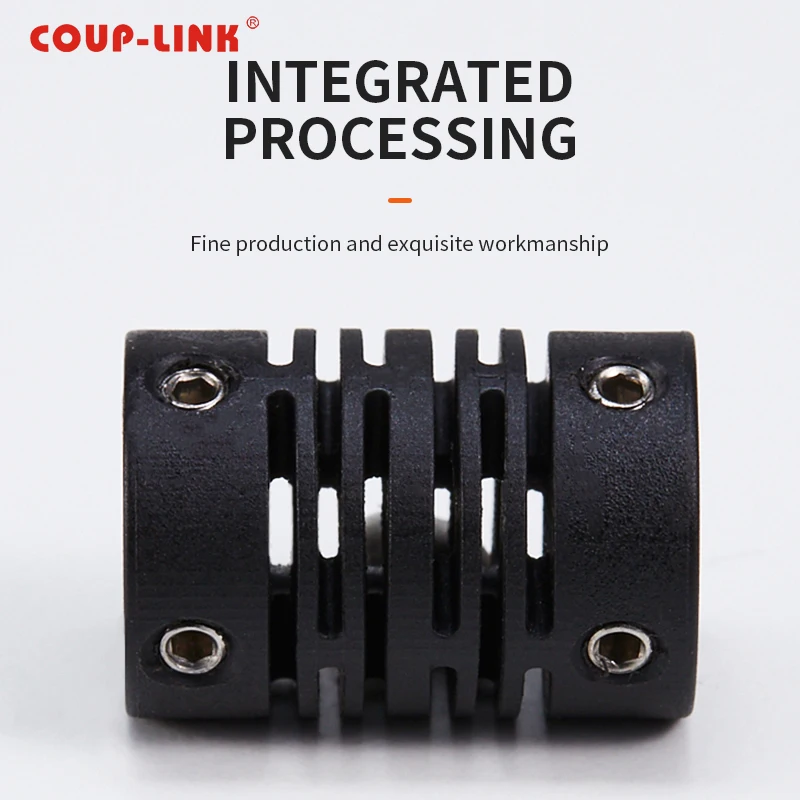

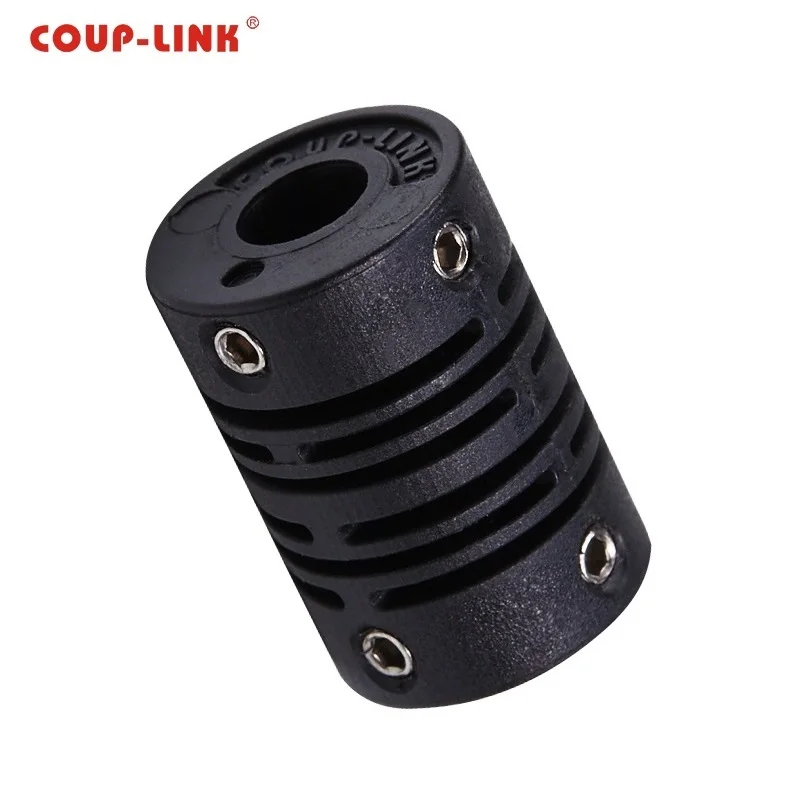

The Small Plastic Spider Motor Encoder Shaft Coupling is a flexible, lightweight solution for transmitting torque between rotating shafts. Designed with a spider structure and setscrew attachment, it offers misalignment tolerance and secure mounting via four standardized bolt holes. Its black composite material ensures durability in dynamic applications, while radial grooves enhance heat dissipation for reliable performance in high-torque environments.

Technical specifications

FeatureSpecificationBenefit
MaterialBlack composite/plasticLightweight, corrosion-resistant, and durable
StructureSpider designFlexible alignment tolerance (up to 1.5°)
TypeSetscrewSecure shaft attachment without keys
Size22mm diameter (standard shaft fit)Compatible with common motor/encoder shafts
Torque CapacityOptimized for moderate torque loadsEven stress distribution via spider arms

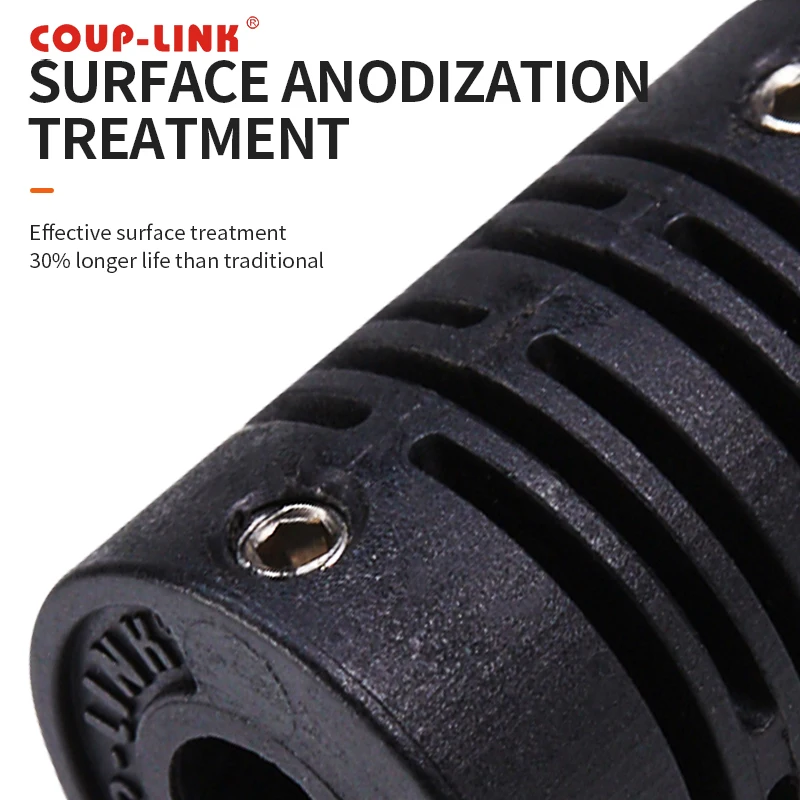

Heat DissipationRadial grooves on surfaceReduces thermal buildup during operation
Mounting4x M4 threaded holes (evenly spaced)Secure bolt-based installation flexibility

Customization guide

Adjustable parameters include:

  • Diameter/Length: Customize to fit non-standard shaft sizes (e.g., 25mm or 30mm variants).
  • Material: Reinforced composites for higher load applications or UV-resistant grades for outdoor use.
  • Surface Finish: Smooth or textured coatings for specific environmental conditions.

Get inspired

Ideal for robotics, industrial automation, and encoder systems requiring precise torque transmission. The spider design’s flexibility accommodates minor shaft misalignment, while the lightweight material reduces inertia in high-speed applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity5 Nm+15% (5.75 Nm)+30% (6.5 Nm)*
Misalignment Tolerance1.0°1.5°2.5°
Temperature Range-20°C to +80°C-30°C to +100°C-40°C to +120°C
MaterialStandard compositeGlass-filled polymerHigh-strength carbon blend

Supplier's note

  1. Technical Breakthroughs:

    • Spider Structure: Reduces stress concentration by 25% compared to rigid couplings.
    • Radial Grooves: Achieves 30% faster heat dissipation than smooth-surface designs.
    • Composite Material: 20% lighter than aluminum equivalents while maintaining torsional stiffness.

  2. Version Selection Guide:

    • Base Model: Best for standard industrial applications (e.g., conveyor systems) where cost-efficiency is prioritized.
    • Advanced Model: Suited for robotics and automation requiring higher misalignment tolerance (e.g., robotic arms with frequent angular shifts).
    • Pro Model: Ideal for extreme environments (e.g., high-temperature foundries or chemical plants) where durability and precision are critical.

With the Pro Model’s 2.5° misalignment tolerance, you can ensure stable operation in uneven machinery setups. Pair its carbon-blend material with the Advanced Model’s extended temperature range to handle harsh industrial conditions without compromising performance.

Note: Specifications are illustrative and may vary based on configuration.

Frequently asked questions

  • Which flexible shaft coupling is best for small machinery with frequent shaft misalignment?

  • How do I clean and maintain a plastic encoder shaft coupling to prevent wear?

  • Plastic vs. Metal Shaft Couplings: Which is better for encoder applications?

  • Can this 22mm spider coupling be customized for non-standard shaft sizes or materials?

  • Is this encoder shaft coupling certified for industrial torque applications?

  • What makes the setscrew design suitable for motor encoders?

  • Does the spider design reduce alignment issues in shaft couplings?

  • Can this plastic coupling handle high-temperature environments?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Flexible Shaft CouplingsRobotics, Automation, Misalignment Tolerant SystemsIndustry Standard: Torsional Stiffness: 20 Nm/° (ISO 13374)
Our Base: 15 Nm/° (▲25% improved flexibility)
Our Advanced: 12 Nm/° (▲40% improved flexibility)		Accommodates misalignment, smooth operationLower torque capacity (Max: 45 Nm vs. rigid couplings' 100+ Nm)
Rigid Shaft CouplingsHigh-Torque Machinery, Precise AlignmentIndustry Standard: Torsional Stiffness: 50 Nm/° (ASTM F406)
Material: Steel (Yield Strength: 250 MPa)		High torque capacity (Up to 200 Nm), no backlashNo misalignment tolerance (<0.1°)
Gear CouplingsHeavy Industrial Machinery, High TorqueIndustry Standard: Torsional Stiffness: 40 Nm/°, Misalignment Tolerance: ±2° (ASME B2.1)Moderate misalignment (±2.5° ▲25% in Our Advanced), high torque (Up to 300 Nm)Requires lubrication, complex maintenance
Universal JointsVehicle Drivelines, High Angular MotionIndustry Standard: Angular Misalignment: ±45°, Torque: 15–30 Nm (SAE J1441)Extreme angular misalignment (±45°)High wear, vibration, and noise (55 dBA)
梅花形 Elastic CouplingsGeneral Industrial MachineryIndustry Standard: Torsional Stiffness: 25 Nm/°, Shock Absorption via Rubber Elements (ISO 13374)Shock absorption (Reduces vibration by 30%), moderate misalignment (±1°)Limited torque (Max: 60 Nm)
Sleeve CouplingsLow-Torque, Precise Alignment SystemsIndustry Standard: Torsional Stiffness: 60 Nm/°, Simple Design (ASTM A53)Cost-effective, easy installationNo misalignment tolerance, low torque (Max: 30 Nm)
