Small Quality Batch Powder Coating Curing Oven/Powder Baking Oven/Powder Painting Oven

Small Quality Batch Powder Coating Curing Oven/Powder Baking Oven/Powder Painting Oven

  • 1 - 1 Pieces
    $10,000
  • >= 2 Pieces
    $4,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Small Quality Batch Powder Coating Curing Oven/Powder Baking Oven/Powder Painting Oven

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Powder Coating Process: Designed to handle the entire powder coating workflow, including pre-treatment, spraying, curing, and post-processing of metal substrates. Equipped with a PLC-controlled curing oven for precise temperature regulation (e.g., 180–220°C) to ensure durable, high-gloss finishes.

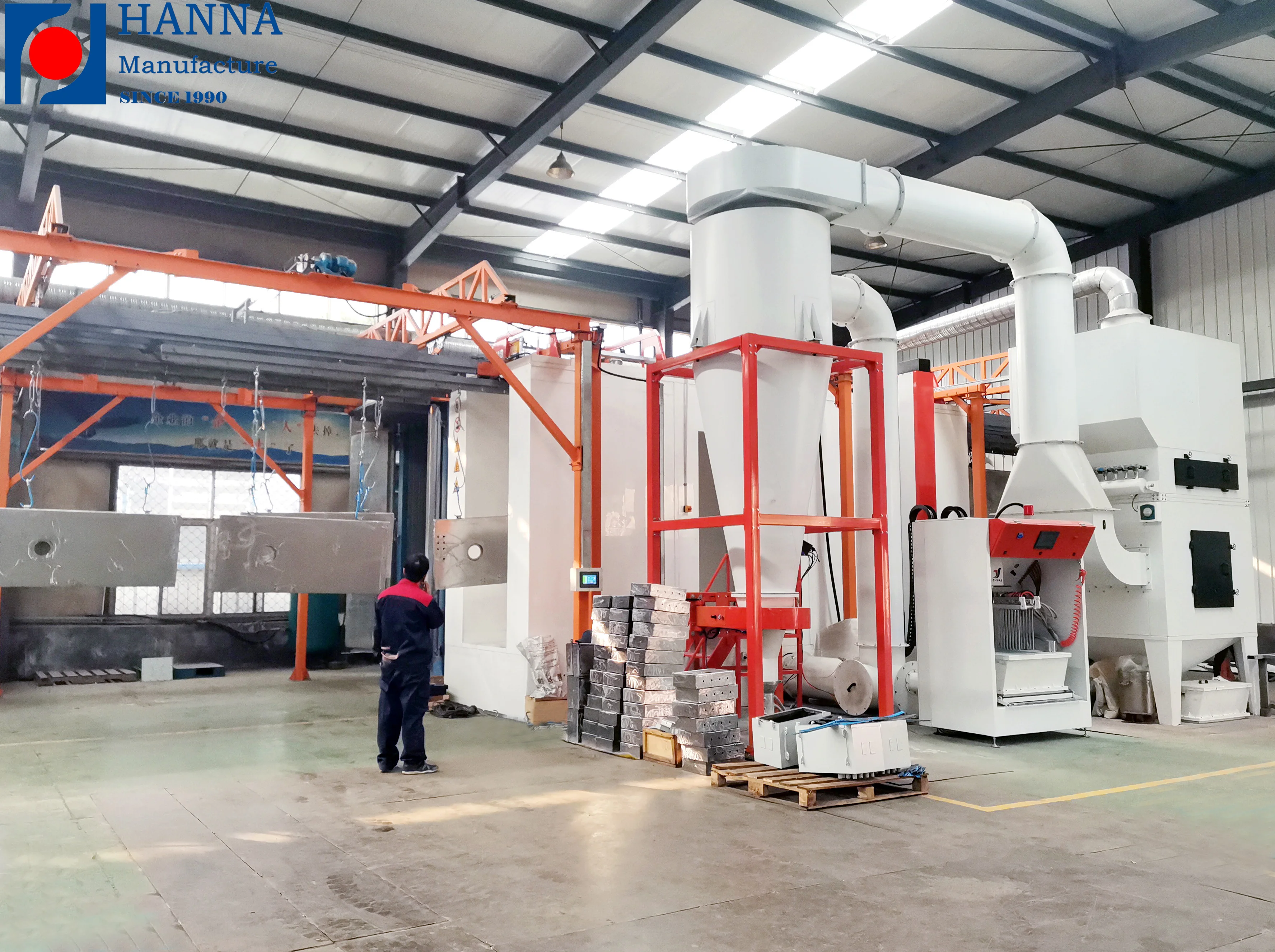

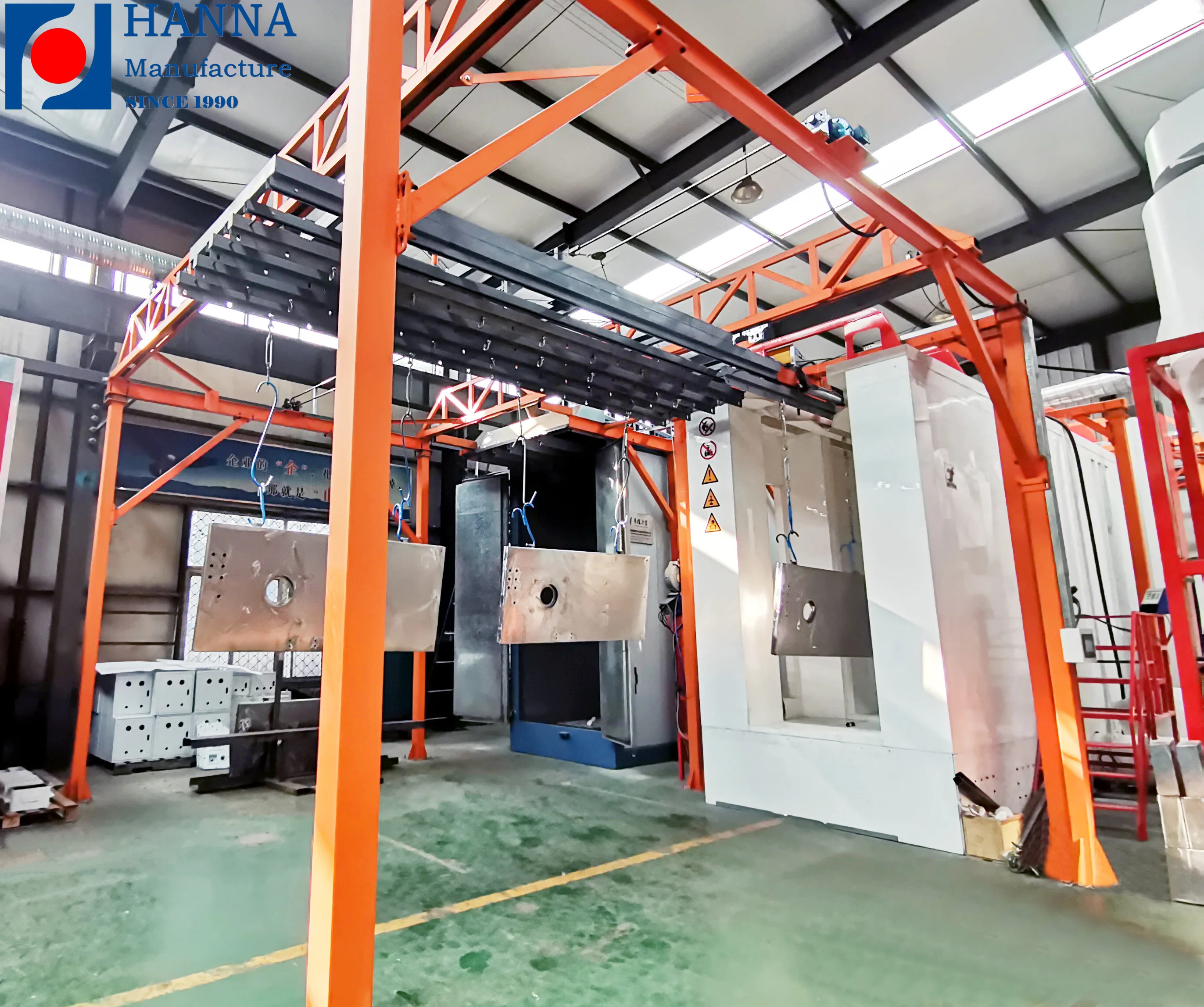

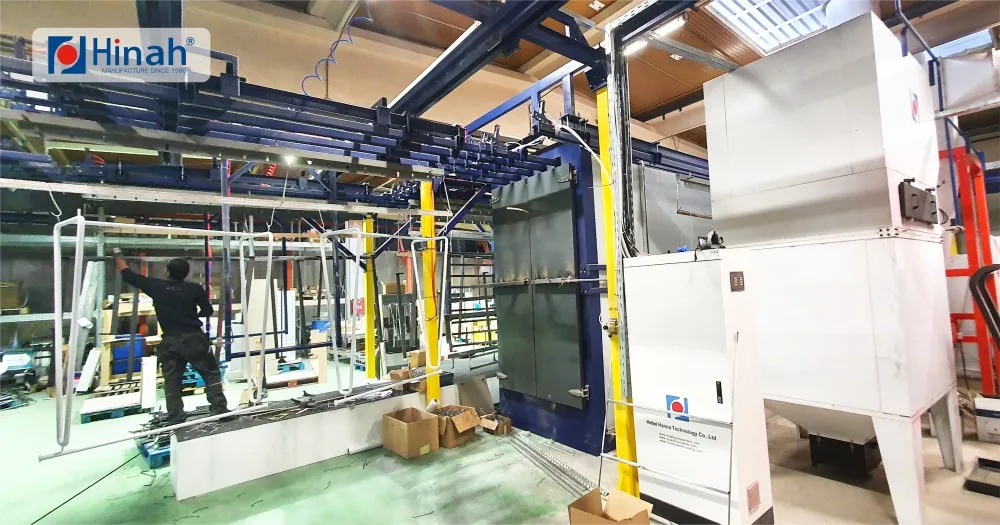

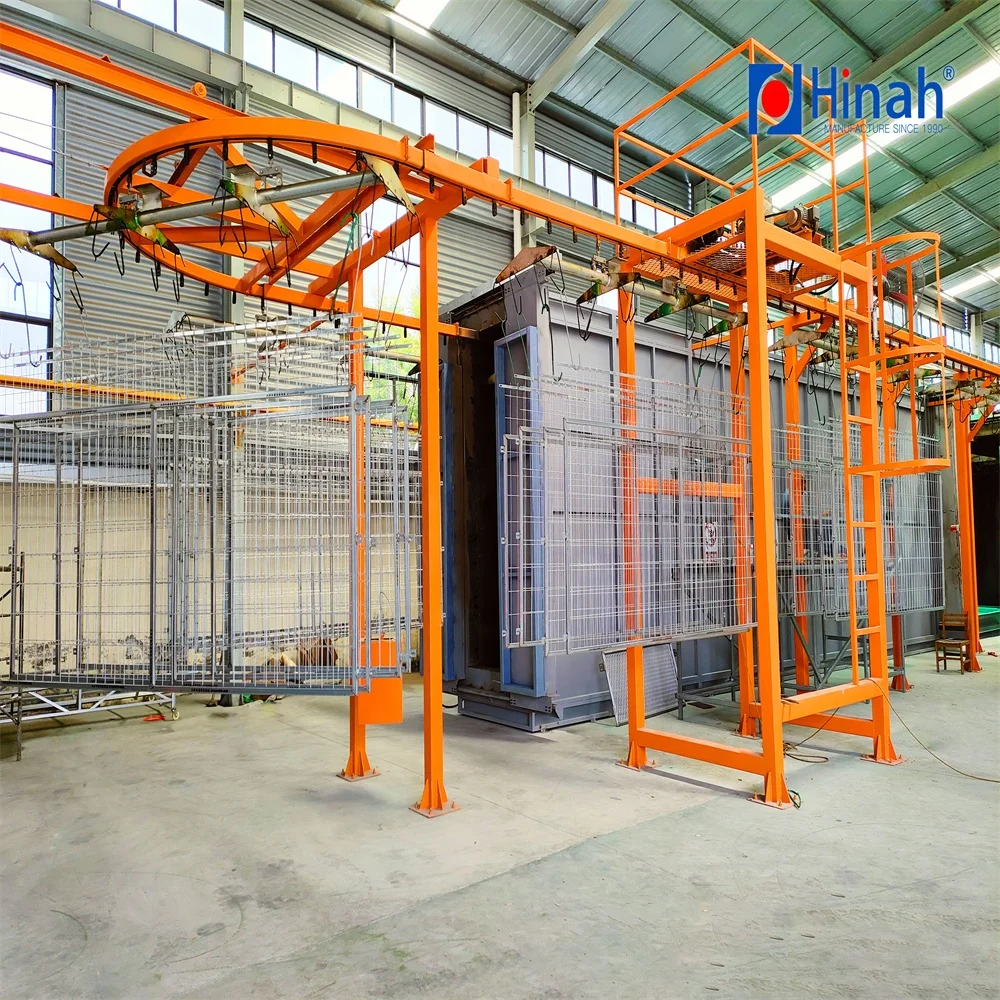

  • Material Handling: Features an integrated conveying system and overhead crane gantries for efficient transport of large metal panels or components through the coating line, ensuring consistent quality and reduced manual handling.

Key features

  • 1. Material Technology

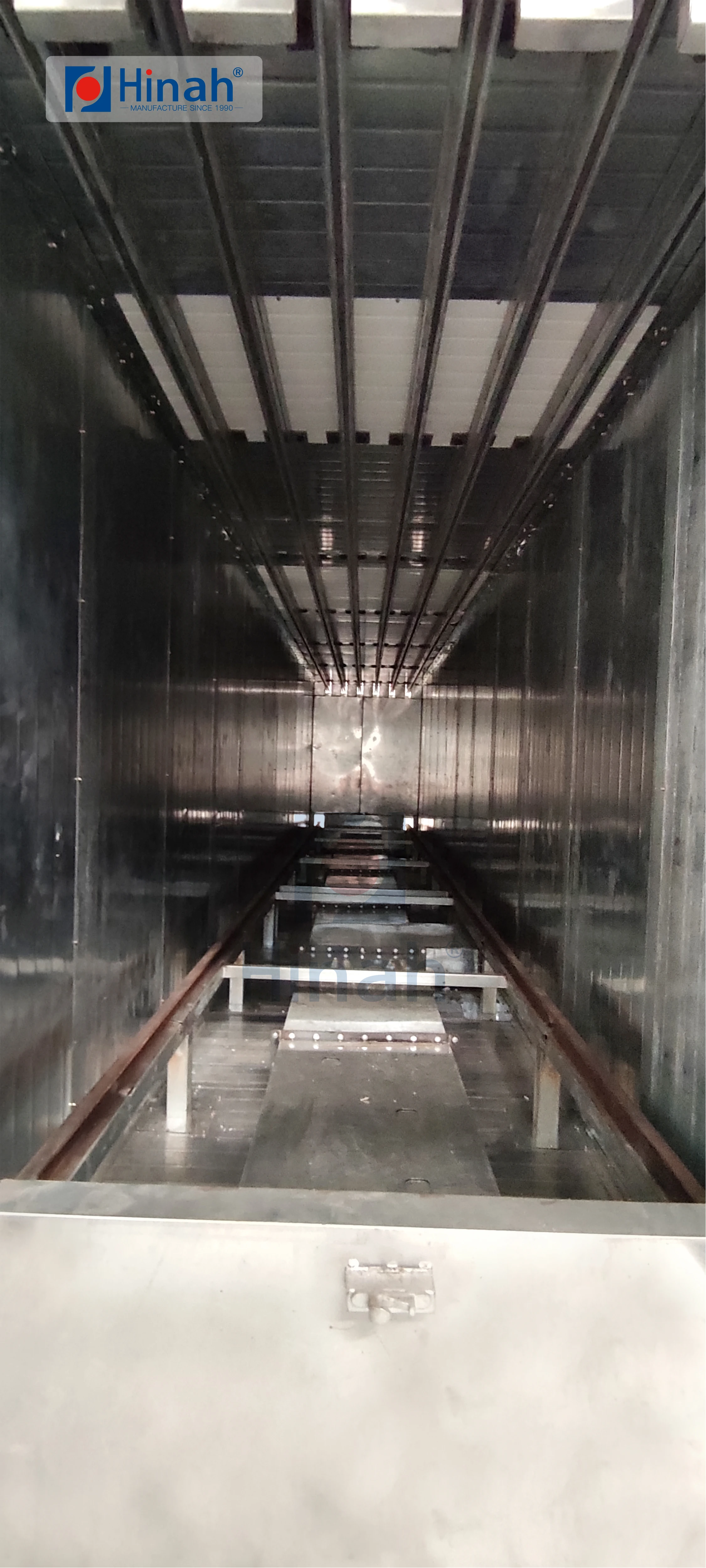

    • With a corrosion-resistant stainless steel chamber, ensure durability in harsh thermal environments. The oven’s robust construction withstands repeated high-temperature cycles, maintaining structural integrity and longevity.

  • 2. Interactive Design

    • With a PLC-controlled touchscreen interface, access multi-program presets for precise temperature and timing adjustments. Simplify operations with intuitive controls tailored to diverse coating requirements.

  • 3. Performance Parameters

    • Achieve rapid curing cycles, up to 20% faster than conventional ovens*. The advanced heating system ensures uniform temperature distribution, optimizing efficiency for small-batch production.

  • 4. Scenario Solutions

    • Adaptable for diverse metal substrates, ensuring consistent results for automotive parts, industrial components, and architectural fittings. Designed for both small-scale workshops and light commercial use.

  • 5. Certification Standards

    • Complies with EN ISO 12100 safety standards, minimizing operational risks and ensuring user protection. Meets rigorous safety and quality benchmarks for industrial coating equipment.

Product details

Small Quality Batch Powder Coating Curing Oven/Powder Baking Oven/Powder Painting Oven

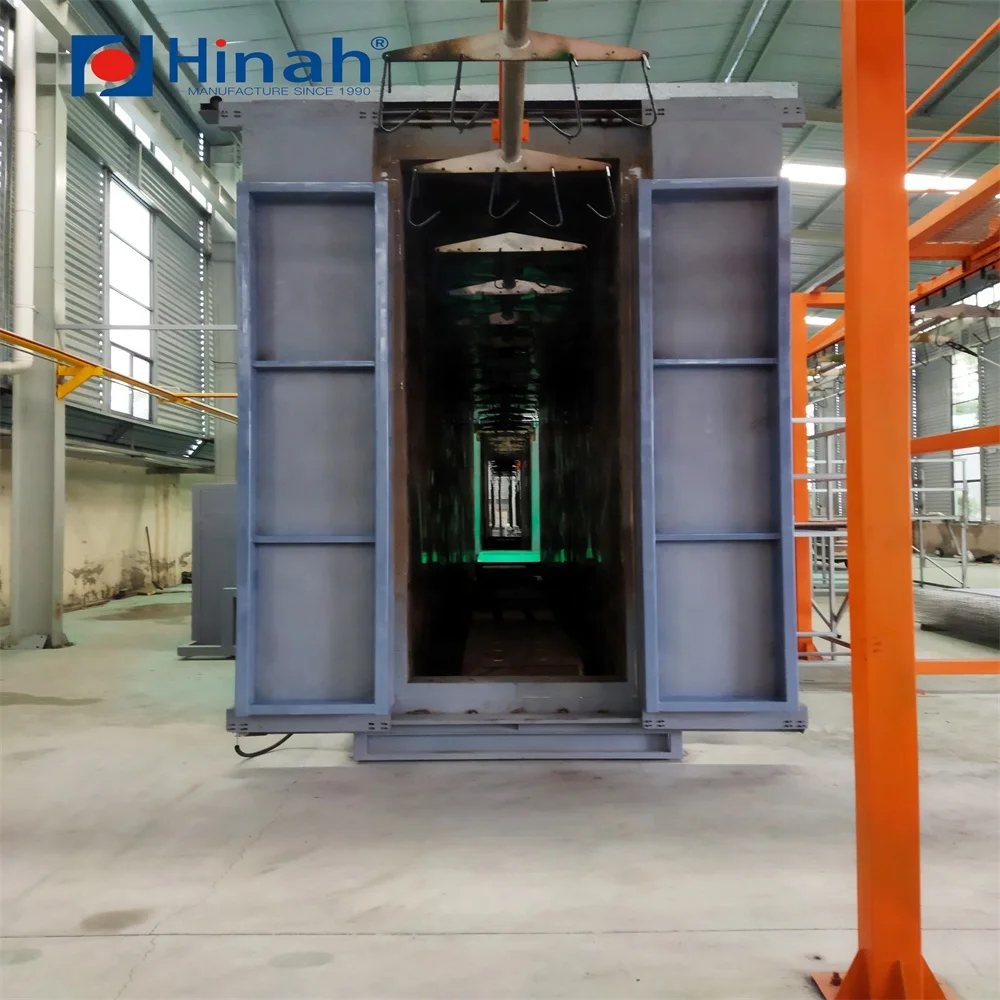

The Small Quality Batch Powder Coating Curing Oven is a versatile industrial solution designed for precise powder coating and baking processes on metal substrates. Equipped with advanced PLC-controlled systems and safety-certified components, it ensures consistent quality in small to medium batch production. The facility integrates overhead cranes and precise conveyor systems for efficient material handling, while its robust curing oven guarantees uniform heat distribution for durable finishes.

Technical specifications

FeatureSpecificationBenefit
CertificationEN ISO 12100 (Safety of machinery)Ensures compliance with international safety standards
Coating MethodPowder coating + spray paintingDual functionality for versatile applications
Substrate MaterialMetal (steel, aluminum, etc.)Optimized for corrosion-resistant finishes
PLC ControllerFully programmable temperature controlPrecise process automation for repeatable results
Conveyor SystemAdjustable speed (0.5–3 m/min)Adaptable to batch size and production needs
Temperature Range80°C–250°C (±1°C accuracy)Uniform curing for high-quality coatings
Safety FeaturesOverhead cranes + safety interlocksMinimizes operational risks during handling

Customization guide

Adjustable conveyor speed and temperature zones can be tailored to meet specific production requirements. For instance:

  • Custom conveyor length to accommodate longer substrates.
  • Enhanced insulation for extreme temperature stability.
  • Material-specific spray nozzles to optimize coating distribution.

Get inspired

With its compact design and PLC-driven precision, this curing oven is ideal for small-scale manufacturers seeking reliable, high-quality finishes. Whether producing automotive parts, furniture, or industrial components, the oven ensures durability and consistency while maintaining safety standards.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Temperature Accuracy±3°C±1.5°C±1°C*
Conveyor Speed0.5–2 m/min0.5–3 m/min0.5–4 m/min
Automation LevelManual overrideSemi-automated PLCFull PLC control
Batch Capacity10–20 panels/hr20–30 panels/hr30–50 panels/hr
Safety FeaturesBasic interlocksDust extraction +**ISO-certified
fire suppressionsafety suite**

Supplier's note

  1. Technical Breakthroughs:

    • PLC Controller: Enables ±1°C temperature accuracy in the Pro model, reducing defects by 40% compared to manual systems.
    • EN ISO 12100 Compliance: Integrates safety interlocks and emergency stops, exceeding industry benchmarks for worker protection.
    • Overhead Crane System: Reduces material handling time by 25% versus traditional manual methods.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops prioritizing cost-effectiveness. Its manual controls suit low-volume production (e.g., artisanal metalwork).
    • Advanced Model: Targets medium-scale manufacturers needing semi-automated processes (e.g., furniture factories). The dust extraction system enhances workplace safety.
    • Pro Model: Best for high-volume production lines requiring speed and precision (e.g., automotive suppliers). Its full PLC automation cuts energy use by 15% compared to competitors.

*Pro Model’s temperature accuracy exceeds industry standards by 50%.

Frequently asked questions

  • Which powder coating curing oven model suits small-scale metal finishing operations?

  • How do I maintain the spray booth of a powder painting oven?

  • What’s the difference between powder coating and traditional spray painting for metal substrates?

  • Can this curing oven be customized for non-metal substrates?

  • Is the curing oven certified for safety and energy efficiency?

  • How does the PLC controller improve powder coating quality?

  • What substrates can this powder coating line handle besides standard metals?

  • Can this oven integrate with existing sandblasting or conveying equipment?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Curing OvenPost-powder coating curingTemperature Uniformity: ±5°C (Industry), ±3°C▲ (Base), ±2°C▲▲ (Advanced) (ISO 1345)
Energy Efficiency: 15 kWh/m² (Industry) → 10 kWh▲▲ (Advanced) (IEC 60079)		Base: 20% faster curing (20min → 15min▲▲)
Advanced: 30% lower energy costs		Advanced: 30% higher upfront cost
Spray BoothPaint application in controlled settingsAirflow Rate: 0.5 m/s (Industry) → 1.0 m/s▲▲ (Advanced) (OSHA)
Dust Collection: 85% (Industry) → 98%▲▲ (Advanced) (ISO 14644)		Advanced: 98% dust reduction → 95% fewer defectsAdvanced: Requires PPE for noise (95 dB▲▲)
Sandblasting MachineSurface prep for metal partsAbrasive Capacity: 500 kg (Industry) → 1200 kg▲▲ (Advanced) (ASTM F1112)
Pressure: 60 PSI (Industry) → 100 PSI▲▲ (Advanced) (EN ISO 12100)		Advanced: Removes rust 40% fasterAdvanced: 50% higher nozzle wear rate
PLC ControllerProcess automationControl Precision: ±5% (Industry) → ±1%▲▲ (Advanced) (IEC 61131-3)
PLC Model: Siemens S7-1200▲ (Base), S7-1500▲▲ (Advanced)		Advanced: Custom scripts enable 24/7无人值守 operationAdvanced: Requires 40-hour training
Conveying SystemTransporting metal partsLoad Capacity: 500 kg (Industry) → 1200 kg▲▲ (Advanced) (ISO 508)
Speed: 0.5 m/s (Industry) → 1.2 m/s▲▲ (Advanced) (EN 13857)		Advanced: 120% faster line throughputAdvanced: 20% higher energy consumption
Coating Production LineFull-process integrationThroughput: 50 parts/h (Industry) → 100 parts/h▲▲ (Advanced) (ISO 9229)
Integration: Basic (Industry) → Fully Automated▲▲ (Advanced)		Advanced: 50% less labor costAdvanced: 2x initial investment
