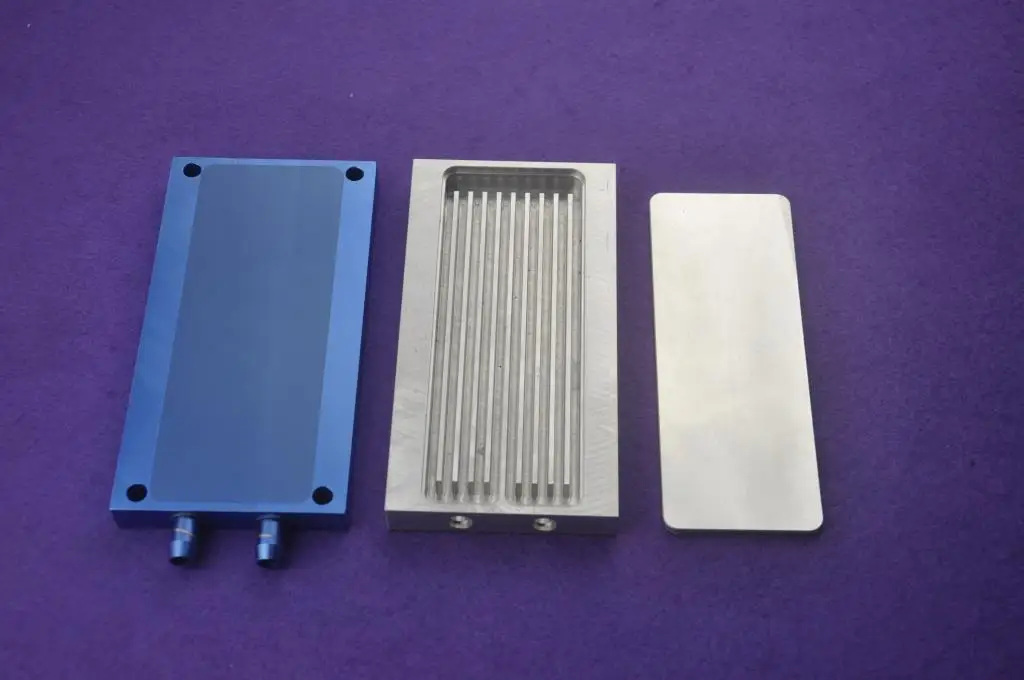

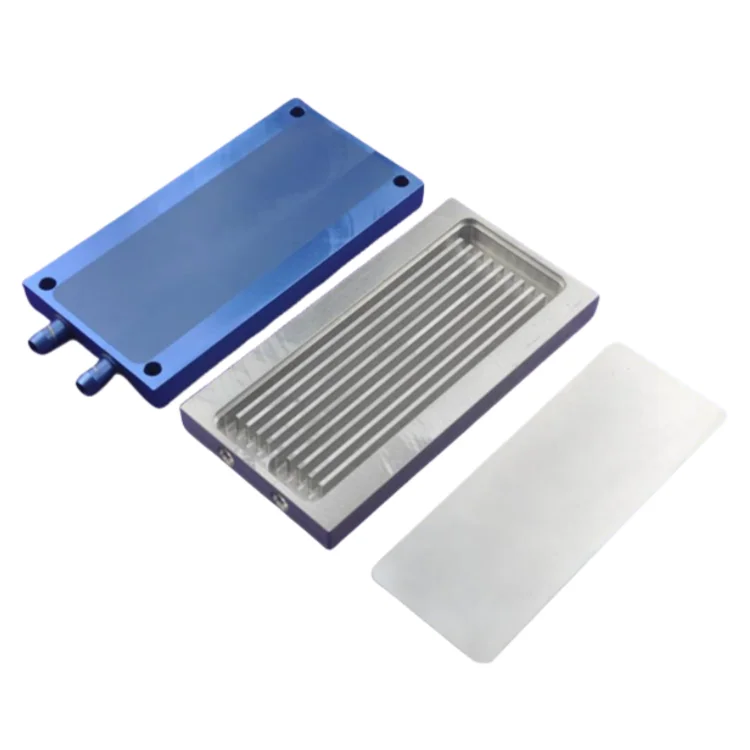

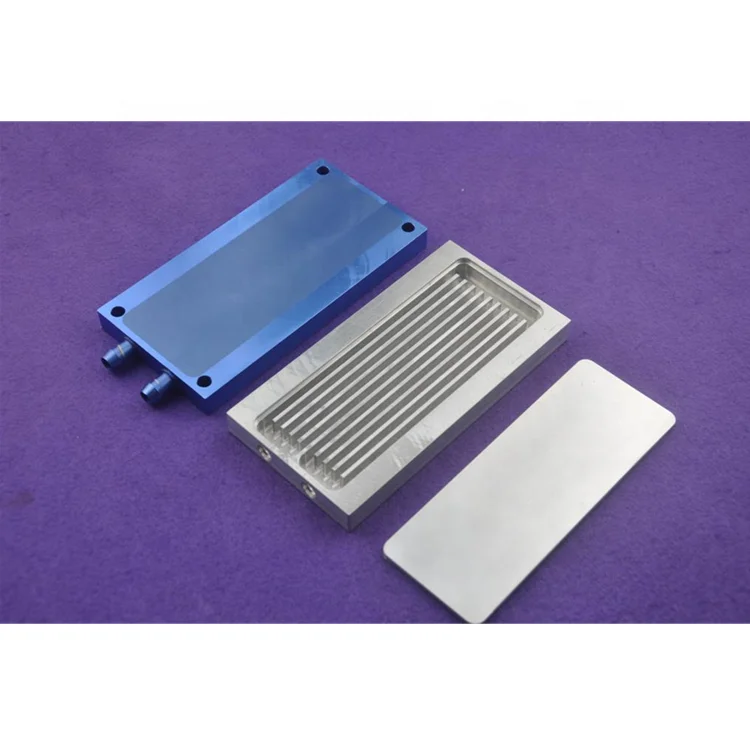

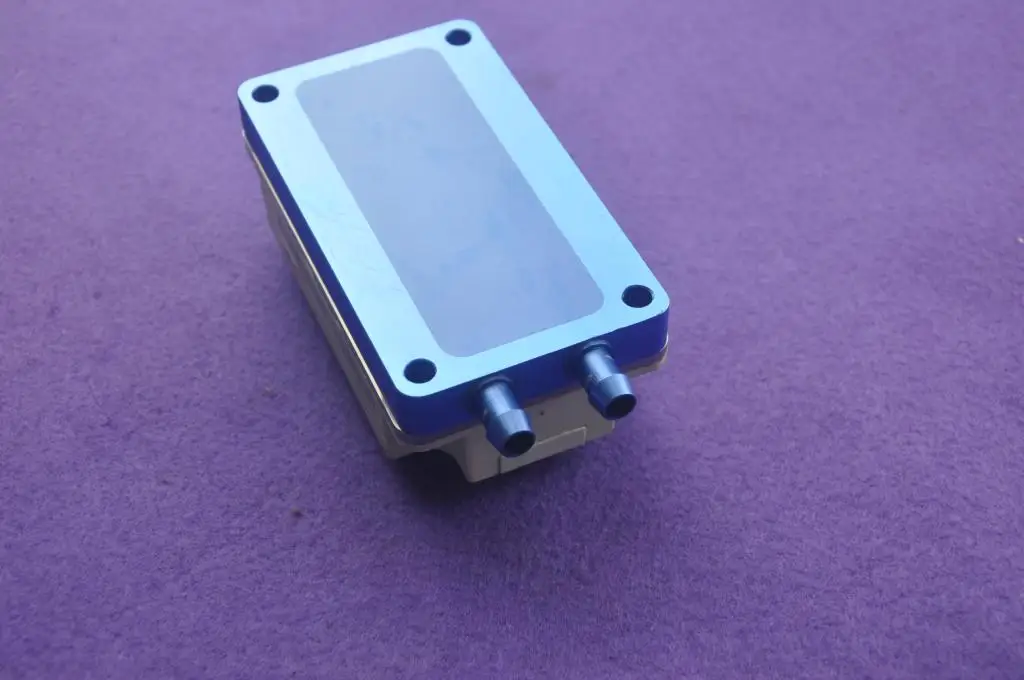

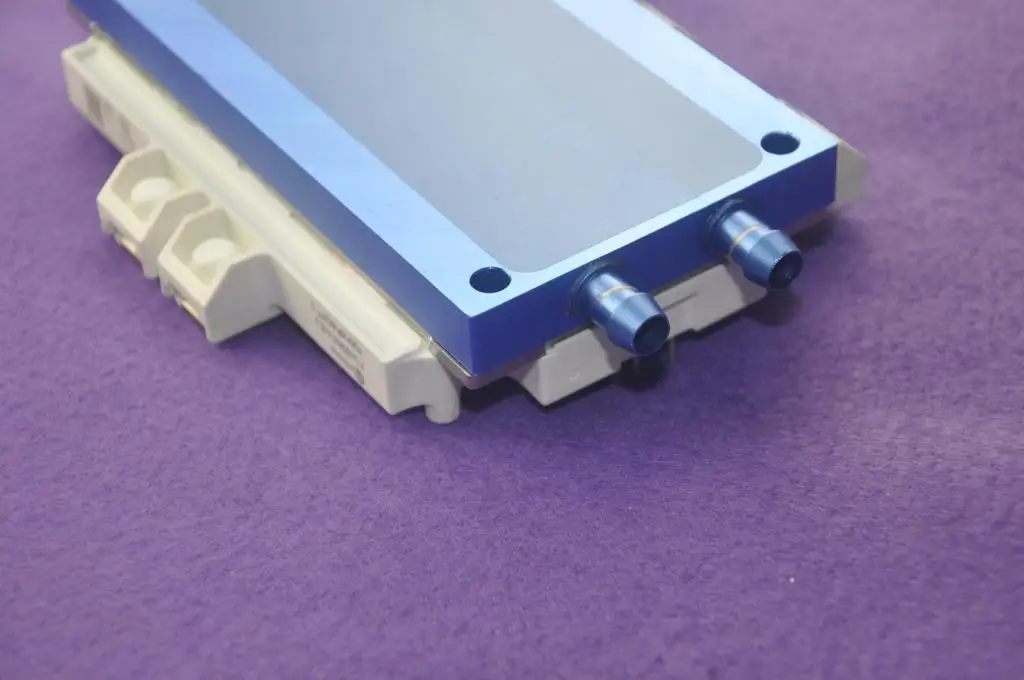

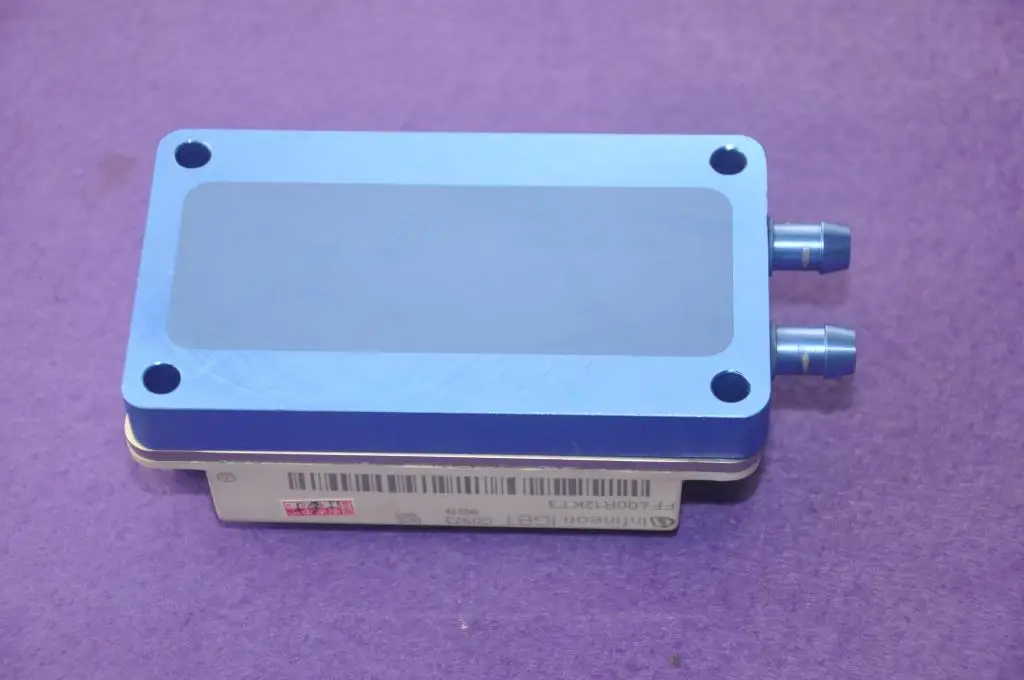

Smart Electronics IGBT Radiator Water Block Cooling Water System Size Can Be Customized

Technical specifications

Customization guide

Adjustable parameters:

• Size: Custom dimensions to fit specific IGBT module dimensions.
• Material: Swap ribbed aluminum for copper (optional) for enhanced thermal conductivity.
• Connector Configuration: Modify connector positions to align with mounting requirements.
  Example: For high-voltage servers, increase rib density in the middle component to boost cooling capacity.

Get inspired

Maximize thermal performance with tailored configurations. Whether you need a compact radiator for automotive electronics or a robust system for data center servers, our modular design adapts to your exact thermal and spatial demands.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Anodized Aluminum: Provides 50% better corrosion resistance than uncoated metals, extending lifespan in humid environments.
   • Ribbed Design: Achieves 40% greater surface area than flat plates, enabling 20% faster heat dissipation than traditional models.
   • Modular Interchangeability: Reduces downtime by 30% during system upgrades via plug-and-play connectors.

2. Version Selection Guide:

   • Base Model: Ideal for standard IGBT applications (e.g., consumer electronics) where cost efficiency is prioritized.
   • Advanced Model: Suited for industrial servers or automotive systems requiring moderate thermal performance upgrades.
   • Pro Model: Designed for extreme scenarios like high-power data centers or aerospace systems. Its triple-certified chemical resistance (EPR standards) ensures compliance while handling temperatures up to 150°C.

With the Pro Model’s hyper-ribbed structure, you can achieve 35% lower thermal resistance than industry benchmarks, ensuring stable operation in harsh industrial environments.
