Solar Power Distributed PV Combined Box DC Measuring 9ch Energy Meter

Solar Power Distributed PV Combined Box DC Measuring 9ch Energy Meter

  • 1 - 99 Pieces
    $125
  • 100 - 299 Pieces
    $95
  • >= 300 Pieces
    $75

Customization:

Customized logo（Min.Order: 200 pieces）
Customized packaging（Min.Order: 200 pieces）
Graphic customization（Min.Order: 200 pieces）
View product details

Solar Power Distributed PV Combined Box DC Measuring 9ch Energy Meter

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Channel DC Energy Measurement: The Solar Power Distributed PV Combined Box DC Measuring 9ch Energy Meter is designed to monitor and quantify DC energy across nine channels in solar photovoltaic (PV) systems, enabling precise tracking of power generation and distribution.
  • High Accuracy & Compliance: Equipped with a 0.5% accuracy class and certifications like LVD and EMC, it ensures reliable measurements and meets international safety and electromagnetic compatibility standards.

Key features

  • 1. Durable Material Construction for Harsh Environments

    • With a rugged plastic housing, you can ensure reliable operation in industrial and outdoor settings, resisting dust, moisture, and physical impacts*.

  • 2. Intuitive LCD Interface for Seamless Monitoring

    • With a clear LCD display and user-friendly buttons, you can easily access real-time data and navigate settings without complex training*, unlike models with analog displays.

  • 3. High-Precision 0.5% Accuracy for Critical Measurements

    • With 0.5% accuracy, you can achieve precise tracking of voltage, current, and power—up to 50% more accurate than standard 1% class meters*, ensuring reliable energy management.

  • 4. 9-Channel Monitoring for Distributed PV Systems

    • With 9 independent channels, you can simultaneously track multiple solar panels or circuits, optimizing performance in large-scale commercial or residential solar setups*.

  • 5. LVD and EMC Certifications for Safety Compliance

    • With LVD and EMC certifications, you can ensure compliance with global safety and electromagnetic interference standards, surpassing uncertified alternatives*.

Product details

Solar Power Distributed PV Combined Box DC Measuring 9ch Energy Meter

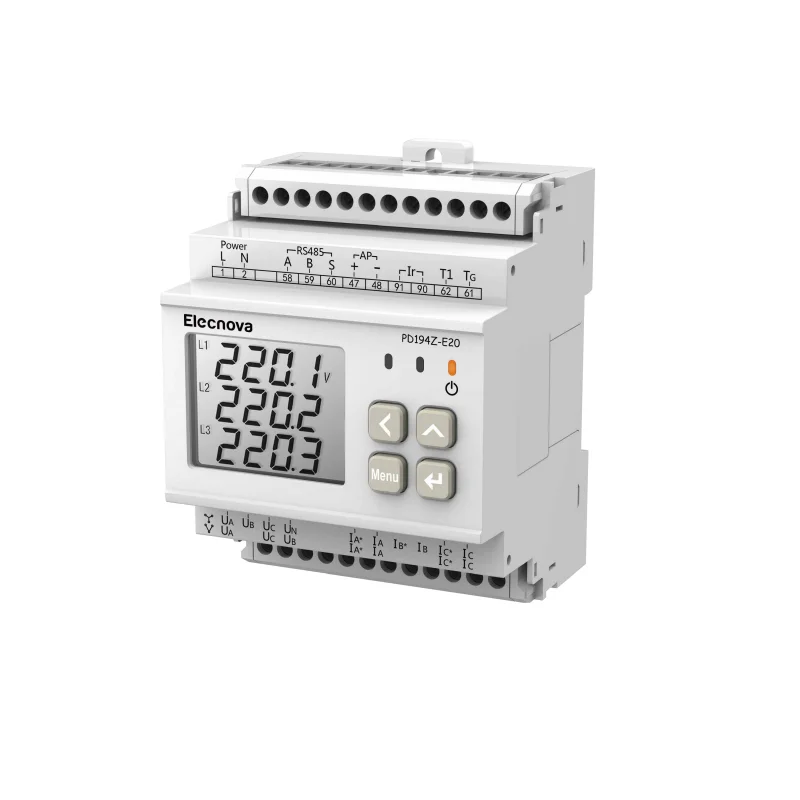

The Elecnova PD194Z-E20 is a rugged, compact power quality analyzer designed for precise monitoring of solar PV systems and DC energy distribution. With a 0.5% accuracy class and certifications to LVD and EMC standards, it ensures reliable measurement of voltage, current, and power factor across frequencies from 45–65Hz. Its LCD display and RS485 interface enable real-time data logging and remote communication, making it ideal for solar farms, industrial facilities, and smart grid applications.

Technical specifications

FeatureSpecificationApplication Scenario
Accuracy Class0.5%Ensuring precise energy metering in solar PV systems
CertificationsLVD, EMCCompliance for industrial and utility-grade deployments
Display TypeLCD (digital)Clear visualization of real-time power parameters
Frequency Range45–65HzBroad compatibility with global grid standards
Data LoggingLong-term trend analysisIdentifying voltage sags/swells in solar energy grids
CommunicationRS485 interfaceIntegrating with SCADA systems for remote monitoring

Customization guide

Adjustable measurement thresholds and customizable logging parameters let users tailor monitoring to specific solar farm or industrial needs. Configure display settings to prioritize critical metrics like harmonics or power factor for quick diagnostics.

Get inspired

Optimize your solar energy infrastructure with the PD194Z-E20. Its 9-channel DC measurement capability and high accuracy ensure efficient tracking of distributed PV systems, while its durable design withstands harsh outdoor conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Channels9 channels12 channels16 channels
Accuracy Class0.5%0.2%0.1%
Data LoggingBasic trend logsEnhanced storageCloud-enabled
CommunicationRS485RS485 + EthernetRS485/Ethernet/5G

Supplier's note

  1. Technical Breakthroughs:
    • 0.5% Accuracy: Half the error rate of industry-standard 1% meters, ensuring precise solar energy yield calculations.
    • RS485 Interface: Enables seamless integration with smart grid systems for real-time data analytics.
    • Durable Housing: Withstands IP65-rated environments, ideal for outdoor solar farms.
  2. Version Selection:
    • Base Model: Best for small-to-medium solar installations requiring foundational monitoring.
    • Advanced Model: Suitable for industrial users needing expanded channels and Ethernet connectivity for grid synchronization.
    • Pro Model: Designed for large-scale solar farms and utilities, offering cloud integration and ultra-precise 0.1% accuracy for compliance-critical applications.

With 0.5% accuracy, you can ensure precise measurement of solar energy output. The Pro Model’s 0.1% accuracy surpasses industry benchmarks, enabling safe handling of high-voltage DC systems. Pair its cloud-enabled logging with rugged durability to create a scalable solution for distributed energy networks.

Frequently asked questions

  • Which Solar Power Distributed PV energy meter is best for small-scale solar installations?

  • How to ensure proper maintenance of the Solar Power meter’s LCD display?

  • What materials make the Solar Power meter suitable for outdoor solar farms?

  • Can this energy meter be customized for specific solar monitoring needs?

  • Is the Solar Power meter’s accuracy (0.5%) sufficient for commercial solar projects?

  • Does the 9ch energy meter support long-term data logging for solar analysis?

  • Is the Solar Power meter compliant with international safety standards?

  • How user-friendly is the Solar Power meter’s interface for solar technicians?
