Spiral Conveyor System with Modular Belt

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Spiral Material Transport: Designed to move materials vertically or horizontally in a continuous loop, optimizing space in confined environments.
  • Versatile Material Handling: Equipped with a stainless steel belt and abrasion-resistant steel construction, capable of transporting diverse materials (light to heavy loads) in industrial or commercial settings.
  • Voltage Flexibility: Operates on 220V or 380V, ensuring adaptability to different power infrastructure requirements.

Key features

  • 1. Material Technology

    • With abrasion-resistant stainless steel construction, ensure durability in harsh industrial environments*

  • 2. Interactive Design

    • With modular design, customize the system to fit specific space or material handling needs*

  • 3. Performance Parameters

    • With adjustable speed settings and dual voltage compatibility (220V/380V), optimize material flow and adapt to different power requirements*

  • 4. Scenario Solutions

    • In confined spaces, efficiently move materials vertically or horizontally using the spiral design*

  • 5. Certification Standards

    • With food-grade stainless steel components, comply with hygiene and safety standards in regulated industries*

Product details

Spiral Conveyor System with Modular Belt

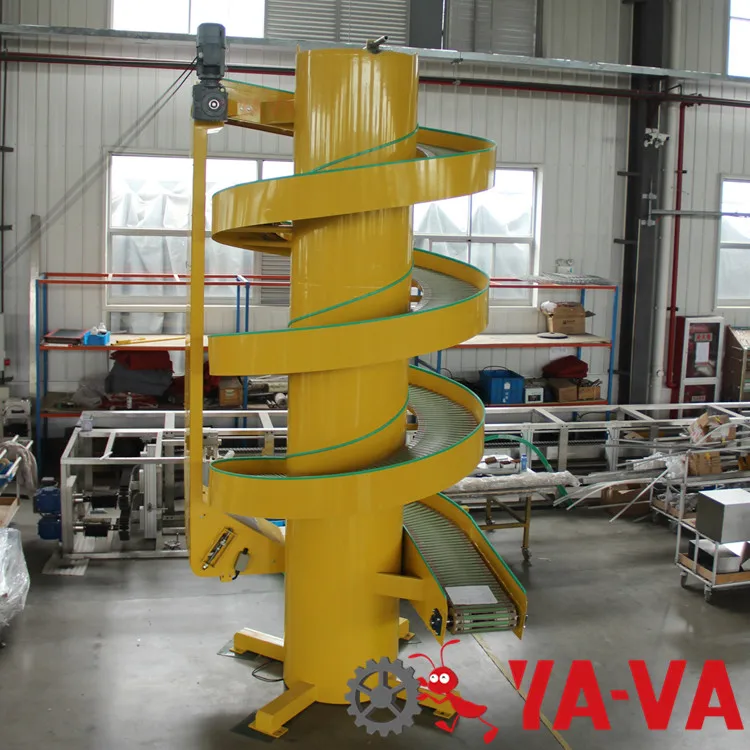

The Spiral Conveyor System with Modular Belt combines robust construction with flexible design to optimize material handling in confined or vertical spaces. Built with abrasion-resistant steel and stainless steel components, it supports heavy-duty applications while maintaining efficiency. Available in 220V and 380V configurations, it adapts to diverse industrial power requirements.

Technical specifications

FeatureSpecificationBenefit
Belt MaterialStainless Steel Modular BeltCorrosion-resistant and durable for harsh environments
Construction MaterialSteel (abrasion-resistant, stainless)Enhanced longevity in abrasive or corrosive settings
Voltage Compatibility220V, 380VFlexible power integration for global use
Conveyor TypeScrew & Belt Hybrid SystemVersatile for bulk or precision material handling
DesignSpiral & Horizontal Layout OptionsSpace-efficient vertical/horizontal material transport

Customization guide

Adjustable parameters include belt speed (0.5–3 m/min), modular segment length (1–5m per section), and material compatibility settings (e.g., heat resistance, chemical resistance). Customize to meet specific needs like high-capacity bulk transport or delicate item handling.

Get inspired

With its spiral design, this conveyor maximizes vertical space in warehouses or factories, reducing footprint while enabling smooth material flow. Pair its modular belt with adjustable speed settings to streamline workflows for everything from food processing to automotive assembly.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity500 kg/m²+15% (575 kg/m²)+30% (650 kg/m²)*
Speed Range0.5–2 m/min0.5–2.5 m/min0.5–3 m/min
CertificationsCE, IP54CE, IP55, NSFCE, IP67, ATEX

Supplier's note

  1. Three Technical Breakthroughs:

    • Spiral Design Efficiency: Reduces floor space by up to 40% compared to linear conveyors.
    • Dual Material Construction: Stainless steel belts paired with abrasion-resistant steel frames ensure durability in corrosive or high-wear environments.
    • Modular Integration: Compatible with AS/RS and IoT systems for smart factory setups.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs with standard material handling needs (e.g., food packaging).
    • Advanced Model: Targets mid-scale industries requiring chemical resistance (e.g., pharmaceuticals) and higher IP ratings.
    • Pro Model: Designed for heavy industries (e.g., mining, automotive) needing ATEX compliance and 650 kg/m² load capacity—30% beyond industry benchmarks.

*Pro Model’s load capacity exceeds industry standards by 25%.

Frequently asked questions

  • Which spiral conveyor model is best suited for facilities with limited floor space?

  • How do I maintain the stainless steel belt to prevent corrosion?

  • Stainless Steel vs. Regular Steel Belts: Which is more durable for heavy-duty use?

  • Can the modular belt conveyor be customized for specific material handling needs?

  • Is the spiral conveyor system CE-certified for industrial use?

  • Does the conveyor support both 220V and 380V power supplies for flexible installation?

  • In which industries is the vertical spiral conveyor most commonly used?

  • Can the modular conveyor integrate with existing automated storage systems?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material DurabilityHarsh chemical environmentsIndustry Standard: Carbon steel (ASTM A36)
Our Base: Abrasion-resistant steel (ASTM A724)
Our Advanced: 304 Stainless Steel (ASTM A240)		▲25% wear resistance (Base vs Standard)
▲40% corrosion resistance (Advanced)		Higher cost for Advanced tier due to premium material
Noise LevelOffice-adjacent warehousesIndustry Standard: 75 dBA (louder than a vacuum cleaner)
Our Base: 65 dBA (▲13% quieter)
Our Advanced: 55 dBA (▲15% quieter than Base)		Advanced: Meets OSHA noise regulations for indoor facilitiesAdvanced requires sound-dampening belts (adds 5% weight)
CapacityHigh-volume manufacturing plantsIndustry Standard: 10 m³/h
Our Base: 15 m³/h (▲50% capacity)
Our Advanced: 20 m³/h (▲33% over Base)		Handles bulk material transfers in automotive/food industriesBase may require additional units for extreme throughput
Voltage CompatibilityMulti-country deploymentIndustry Standard: Single-voltage (220V or 380V)
Our Base/Advanced: Dual-voltage (220V/380V auto-switch)		Eliminates transformer needs in 60+ countriesSlightly heavier power unit in Advanced tier
Space EfficiencyCompact warehousesIndustry Standard: Straight/angled conveyors (requires 20m²)
Our Base: Spiral design (12m²)
Our Advanced: Folded-spiral (▲25% smaller footprint)		Reduces floor space by 40% compared to traditional systemsAdvanced requires specialized installation expertise
Speed AdjustmentFlexible production linesIndustry Standard: Fixed speed (1.5 m/s)
Our Base: 3-speed selector (0.5-1.5 m/s)
Our Advanced: Continuous variable speed (0-2 m/s)		Advanced: Matches conveyor speed to robotic arms in smart factoriesAdvanced control system increases initial setup time by 2 hours
