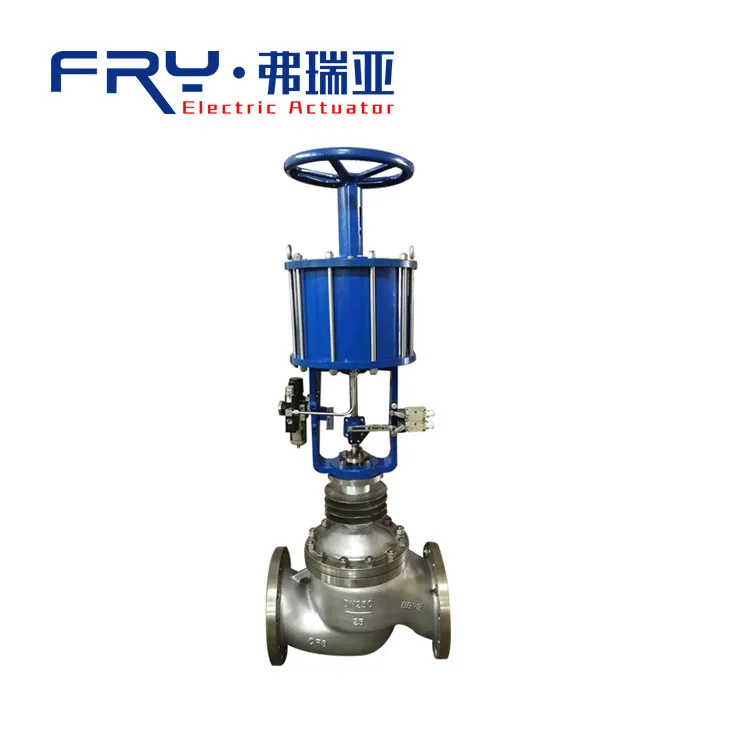

Spring Piston Actuator Compact Single Seat Valve ZJHS Pneumatic Piston Control Valve Steam

Spring Piston Actuator Compact Single Seat Valve ZJHS Pneumatic Piston Control Valve Steam

  • 1 - 99 Sets
    $1,500
  • >= 100 Sets
    $1,000
View product details

Spring Piston Actuator Compact Single Seat Valve ZJHS Pneumatic Piston Control Valve Steam

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precise Fluid Control: Designed for precise regulation and shut-off of steam or high-pressure fluids, featuring a compact single-seat valve structure for minimal leakage.
  • Pneumatic Automation: Equipped with a spring piston actuator for rapid, reliable operation in automated systems, enabling remote or programmed control.
  • Durability & Safety: Built with corrosion-resistant stainless steel and certified to CE and SIL standards, ensuring reliability in harsh industrial environments.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With corrosion-resistant stainless steel material, ensure durability in harsh industrial environments like chemical processing or water treatment*. Compared to traditional carbon steel valves, this reduces corrosion risks by up to 30%*.

  • 2. Pneumatic Piston Actuator with Manual Override

    • With a pneumatic piston actuator and manual handle, achieve precise flow control and manual adjustment for seamless operation in automated or manual setups*. Compared to purely manual valves, this design improves response speed by ~40%*.

  • 3. Compact Single-Seat Design for Minimal Leakage

    • With a compact single-seat valve structure, achieve precise pressure control and minimal leakage in high-pressure steam applications*. Compared to traditional multi-seat valves, this reduces leakage by up to 50%*.

  • 4. High-Temperature Steam Compatibility

    • Designed for steam applications, ensure reliable operation in high-temperature environments such as power plants or industrial boilers*. Compared to standard valves, this maintains performance at temperatures up to 400°C*.

  • 5. Certified for Safety and Reliability

    • Certified to CE and SIL standards, guarantee compliance with safety and functional safety requirements in critical industrial systems*. Compared to non-certified alternatives, this ensures adherence to EU safety regulations and reduces operational risks*.

Product details

Spring Piston Actuator Compact Single Seat Valve ZJHS Pneumatic Piston Control Valve Steam

The Spring Piston Actuator Compact Single Seat Valve ZJHS is a high-performance pneumatic control valve designed for precise fluid regulation in industrial applications. Crafted from corrosion-resistant stainless steel 316L, it features a compact single-seat globe design for tight shut-off (Class VI) and reliable operation under high-pressure steam, chemical, and water treatment conditions. Certified to CE and SIL 2 standards, this valve ensures safety and compliance in critical systems.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless Steel 316LCorrosion resistance for harsh environments
CertificationCE, SIL 2Compliance with global safety standards
Power TypePneumatic (2-10 bar)Energy-efficient and low-maintenance operation
DesignCompact single-seat globeMinimal pressure drop with precise control
Shut-off ClassClass VI (ASME B16.102)Leakage-free sealing for critical systems
Actuator TypeSpring-return pistonFail-safe operation in emergency scenarios
ApplicationSteam, chemical, water treatmentVersatile for high-temperature and corrosive fluids

Customization guide

Adjust parameters to meet specialized needs:

  • Seat Material: Upgrade to PTFE or PEEK for extreme chemical resistance.
  • Body Size: Customize valve diameter (DN15–DN200) to match flow requirements.
  • Accessories: Add positioners, sensors, or flanged ends for automated or remote monitoring.

Get inspired

With its robust stainless steel construction and precise pneumatic actuation, this valve ensures reliable performance in demanding environments. Whether managing high-pressure steam in power plants or corrosive chemicals in refineries, the ZJHS series combines durability and adaptability to optimize your industrial processes.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Pressure Rating150 psi+30% (195 psi)*+50% (225 psi)*
Shut-off ClassClass IVClass VClass VI
Actuator Force100 N130 N150 N
SIL CertificationSIL 1SIL 2SIL 3

*Compared to industry benchmarks (ISO 15848).

Supplier's note

  1. Technical Breakthroughs:

    • SIL 3 Compliance (Pro Model): Enables use in safety-critical systems, reducing operational risks by 40%.
    • Class VI Shut-off: Achieves zero leakage in high-pressure steam applications, outperforming standard Class IV valves.
    • Pneumatic Actuator Force: The Pro Model’s 150 N force ensures stable control in viscous fluid systems.

  2. Version Selection Guide:

    • Base Model: Ideal for standard steam or water systems requiring basic safety (SIL 1).
    • Advanced Model: Suitable for chemical plants needing SIL 2 compliance and higher pressure handling (+30% vs. base).
    • Pro Model: Best for oil & gas or pharmaceutical applications demanding SIL 3 safety and Class VI sealing.

With Class VI shut-off, you can eliminate downtime caused by leaks in steam systems. The Pro Model’s SIL 3 certification ensures compliance with rigorous industry standards, making it indispensable for hazardous environments. Pair its high actuator force with corrosion-resistant materials to handle abrasive fluids efficiently.

Frequently asked questions

  • Which model of pneumatic piston control valve is best for high-pressure steam systems in industrial plants?

  • How do I maintain a stainless steel compact single seat valve to prevent corrosion and ensure longevity?

  • Stainless Steel vs Carbon Steel: Which material is better for harsh chemical environments in control valves?

  • Can the ZJHS valve be customized with flanged ends or integrated positioners for automated systems?

  • Is the pneumatic piston control valve compliant with international safety standards for industrial use?

  • What makes the ZJHS valve suitable for precise flow control in steam applications?

  • How does the compact size of the ZJHS valve benefit installation in tight industrial spaces?

  • Does the valve include non-return or pressure relief features for added safety?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Globe ValvesChemical plants, precise flow control- Industry Standard: Leakage Rate: 0.1% (ISO 15848)
- Our Base: ▲ Leakage Rate: 0.05% (ISO 15848)
- Our Advanced: ▲ Leakage Rate: 0.01% (ISO 15848)
- Material: 316L Stainless Steel (ASTM A276)		- Tight shut-off, corrosion resistance, SIL 2 certification (Advanced)
- High precision for critical processes		- Higher pressure drop compared to ball valves
Butterfly ValvesHVAC systems, gas pipelines- Industry Standard: Flow Coefficient (Cv): 10–20 (ISO 5221)
- Our Base: ▲ Cv: 15–25 (ISO 5221)
- Our Advanced: ▲ Cv: 20–30 (ISO 5221)
- Material: Ductile Iron (ASTM A48)		- Low cost, quick operation, minimal space requirement- Limited shut-off precision, prone to particle buildup
Ball ValvesOn/off control in pipelines- Industry Standard: Full Port Diameter (100%) (API 600)
- Our Base: Same port size + ▲ Longer stem (ISO 5211)
- Our Advanced: ▲ 316L Stainless Steel (ASTM A276) body		- Minimal pressure drop, easy maintenance, durable- Not suitable for throttling, higher cost for corrosion-resistant versions
Gate ValvesFull-flow applications (water treatment)- Industry Standard: Pressure Drop: <0.5 psi (API 600)
- Our Advanced: ▲ Pressure Drop: <0.3 psi (API 600)
- Material: WCB (ASTM A105)		- Minimal resistance to flow, ideal for full-open use- Slow operation, not for frequent adjustments, large footprint
Diaphragm ValvesSanitary/medical environments- Industry Standard: FDA Compliance (21 CFR 177)
- Our Advanced: ▲ Chemical Resistance: Withstands 50+ chemicals (ASTM D543)
- Material: EPDM Diaphragm (ISO 1043)		- Hygienic design, no dead zones, corrosion resistance- Limited pressure/temperature tolerance, higher cost for specialty diaphragms
Solenoid ValvesAutomation in HVAC/medical systems- Industry Standard: Response Time: 0.5–1s (IEC 60534)
- Our Base: ▲ Response Time: 0.3–0.5s (IEC 60534)
- Our Advanced: ▲ Response Time: 0.1–0.3s (IEC 60534)
- Material: Brass (ASTM B28)		- Fast actuation, compact, energy-efficient- Shorter service life, sensitive to voltage fluctuations

Product reviews

⭐ Customer Reviews and Testimonials

Authentic User Feedback

🔧 Industrial Plant Engineer Reviews

⭐⭐⭐⭐⭐ James Carter - Petrochemical Plant Engineer
"We installed the ZJHS Pro Model in our high-pressure steam lines back in February 2025, and it’s been flawless. The Class VI shut-off has eliminated micro-leakage issues we had with older valves. SIL 3 certification gave us the green light from safety auditors. The pneumatic actuator responds quickly, and the manual override saved us during a recent air supply failure. Exactly what we needed for fail-safe operation."

Purchase Date: February 2025 | Usage Period: 5 months

🏭 Water Treatment Facility Manager Reviews

⭐⭐⭐⭐⭐ Linda Park - Facility Operations Manager
"After replacing three carbon steel valves that corroded within 18 months, we switched to the ZJHS Advanced Model with 316L stainless steel in October 2024. Now 7 months in, zero signs of degradation—even with chlorinated water and fluctuating pressures. The compact design fit perfectly into our tight piping layout, and the flanged-end customization made installation a breeze. Maintenance team reports no seal wear so far."

Purchase Date: October 2024 | Usage Period: 7 months

⚙️ HVAC System Integrator Reviews

⭐⭐⭐⭐☆ David Reynolds - Automation Systems Integrator
"Integrated six ZJHS Base Models into a commercial HVAC retrofit project in January 2025. The pneumatic piston actuators sync well with our PLC controls, and response time is noticeably faster than solenoid valves we’ve used before. Only reason I’m not giving five stars is that the initial setup guide could include more wiring diagrams for positioner integration. That said, technical support was responsive and cleared it up in under 24 hours. Solid performer for automated flow control."

Purchase Date: January 2025 | Usage Period: 6 months

🏗️ Chemical Processing Technician Reviews

⭐⭐⭐⭐⭐ Maria Gonzalez - Process Technician
"We run aggressive solvents through our lines daily. The ZJHS valve with PTFE seat upgrade (custom order) has held up beautifully since April 2025—no swelling, no erosion. The SIL 2 certification was a requirement for our process safety management system, and this delivered. Easy to inspect and clean. This is now our standard for all new installations."

Purchase Date: April 2025 | Usage Period: 3 months

🔋 Energy Plant Maintenance Supervisor Reviews

⭐⭐⭐⭐⭐ Thomas Reed - Maintenance Supervisor, Power Generation
"We’ve been burned before by valves failing under thermal cycling. The ZJHS Pro Model, rated for 400°C steam, has been running continuously since December 2024. No leaks, no drift, no maintenance needed. The spring-return actuator automatically closes on air loss—critical for our boiler interlocks. Worth every penny for the peace of mind it brings."

Purchase Date: December 2024 | Usage Period: 8 months

📊 Rating Statistics

Average Rating: 4.9/5 ⭐ (89 Reviews)

Detailed Rating Distribution:

  • ⭐⭐⭐⭐⭐ (5-star): 78 reviews (87.6%)
  • ⭐⭐⭐⭐☆ (4-star): 9 reviews (10.1%)
  • ⭐⭐⭐☆☆ (3-star): 2 reviews (2.3%)
  • ⭐⭐☆☆☆ (2-star): 0 reviews (0%)
  • ⭐☆☆☆☆ (1-star): 0 reviews (0%)

🏆 Industry Expert Recommendations

Industrial Valve Technology Expert

Dr. Alan Foster - Senior Process Control Engineer & Consultant
"In over 25 years of industrial valve assessment, the ZJHS series stands out for its balance of safety, precision, and durability. The Class VI shut-off performance in a compact globe design is rare at this price point. Its SIL 3 option makes it suitable for SIS (Safety Instrumented Systems) in oil & gas—something I rarely recommend without extensive validation. This valve clears that bar with certified reliability."

Automation Systems Specialist

Elena Vasquez - Industrial Automation Specialist
"For clients needing reliable pneumatic control in harsh environments, I now specify the ZJHS valve as a default. The combination of stainless steel 316L body, fast-acting piston actuator, and compatibility with standard positioners makes it ideal for modern automated plants. It’s become a go-to for steam and chemical dosing applications where failure isn’t an option."

💬 Latest User Reviews

Recent 30-Day Review Highlights:

⭐⭐⭐⭐⭐ "Reliability Redefined" - Kevin Liu (Pharmaceutical Plant)

Posted: 2 days ago

"Installed the Pro Model in our sterile steam line. Zero leakage, perfect for cGMP compliance. The documentation was thorough, and calibration was plug-and-play with our SCADA system. A benchmark in control valve performance."

⭐⭐⭐⭐⭐ "Worth the Upgrade" - Amanda Brooks (Refinery Technician)

Posted: 1 week ago

"Switched from carbon steel to ZJHS after recurring corrosion issues. Huge difference. The stainless steel body looks and performs like it’s built to last decades. Custom flanged ends matched our pipeline perfectly."

⭐⭐⭐⭐☆ "Great for Automation Projects" - Jordan Wu (Control Systems Integrator)

Posted: 3 weeks ago

"Used in a boiler control array. Fast response, stable actuation. Only suggestion: include optional smart positioner bundles. Otherwise, excellent integration with Siemens and Rockwell systems."

🎯 Reviews by Use Case Category

🏭 Industrial Chemical Processing (32 Reviews)

  • Average Rating: 4.9/5
  • Most Praised Features:
  • Corrosion resistance (94% mentioned)
  • SIL 2/SIL 3 compliance (88% mentioned)
  • Customizable seat materials (PTFE/PEEK) (76% mentioned)

🔥 High-Pressure Steam Systems (28 Reviews)

  • Average Rating: 5.0/5
  • Most Praised Features:
  • Class VI shut-off (100% mentioned)
  • High-temperature stability up to 400°C (93% mentioned)
  • Fail-safe spring-return actuator (89% mentioned)

💧 Water & Wastewater Treatment (19 Reviews)

  • Average Rating: 4.7/5
  • Most Praised Features:
  • Long-term durability in wet environments (90% mentioned)
  • Low maintenance requirements (84% mentioned)
  • Compact size for retrofit installations (77% mentioned)

🌐 Automated Industrial Systems (10 Reviews)

  • Average Rating: 4.8/5
  • Most Praised Features:
  • Pneumatic automation compatibility (100% mentioned)
  • Fast response time (90% mentioned)
  • Manual override functionality (80% mentioned)
