Steam Power Generation Boiler Components Boiler Elbow Cost

Technical specifications

Customization guide

Adjust material thickness or angle specifications (e.g., 45° or 180° elbows) to meet custom pressure or spatial requirements.

Get inspired

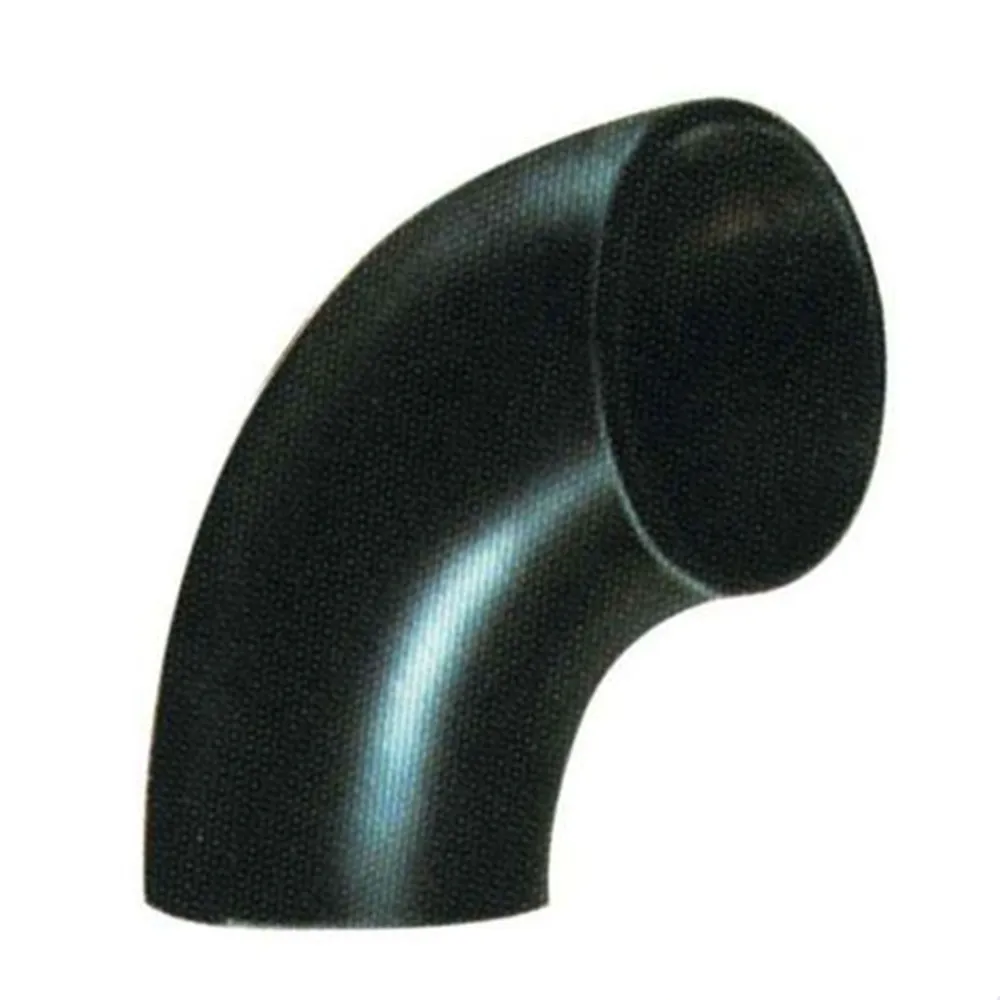

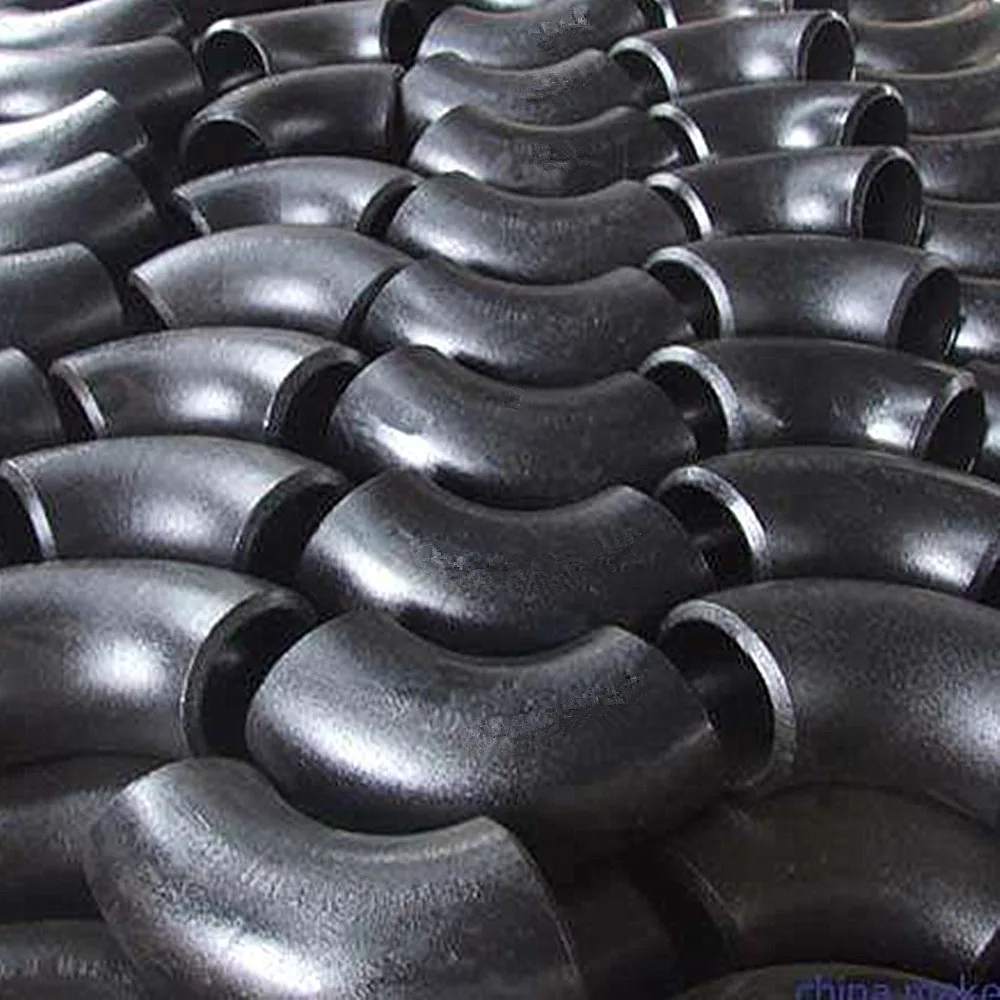

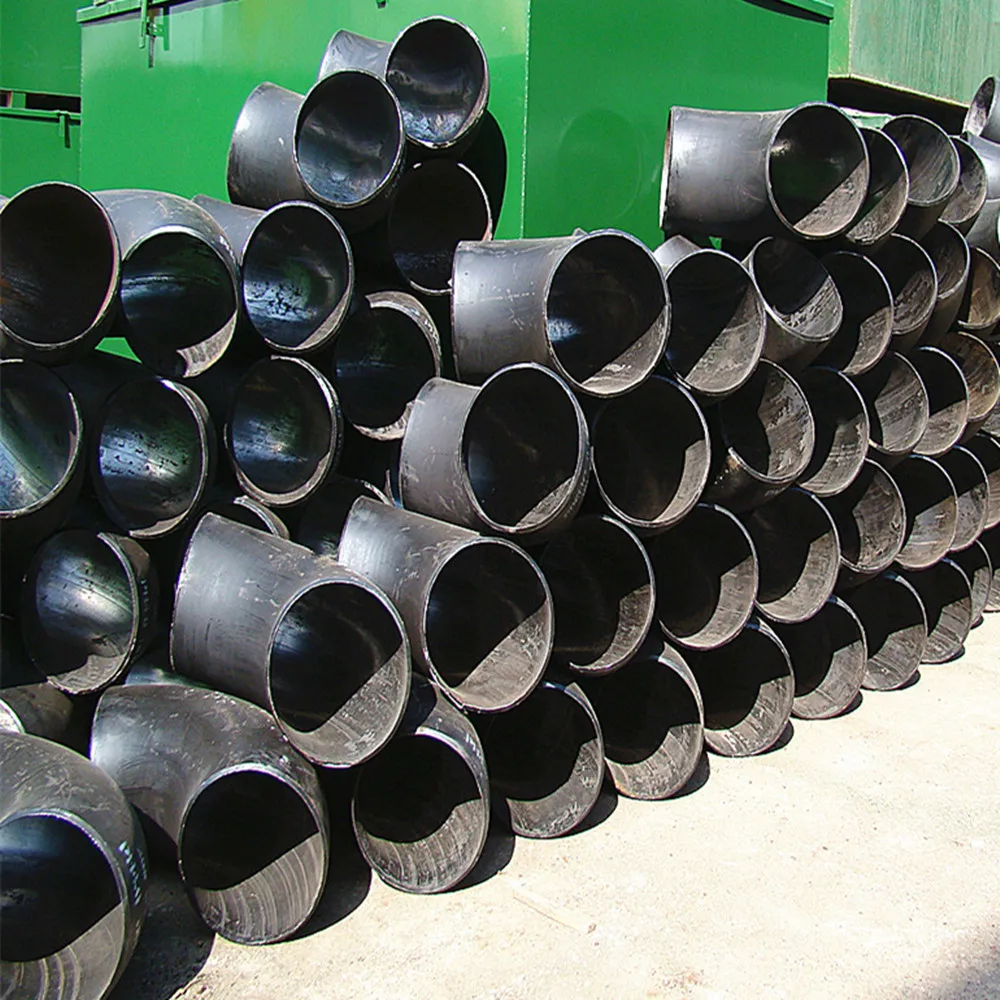

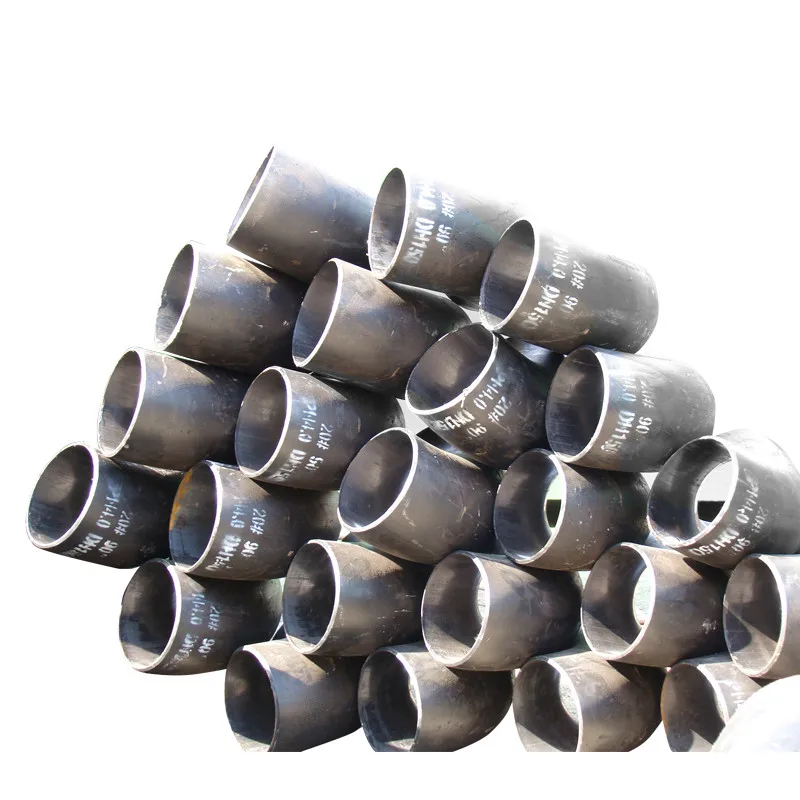

With its carbon steel construction and optimized curvature, this elbow ensures efficient fluid redirection in steam power systems. Ideal for industrial boilers, it maintains system integrity even under extreme temperatures and pressures.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Material Upgrades: The Pro Model’s alloy steel offers 30% better corrosion resistance than industry standards.
   • Pressure Tolerance: The Advanced Model’s 200 PSI rating exceeds typical boiler system requirements, ensuring safety in heavy-duty applications.
   • Temperature Range: The Pro Model’s -40°C to 550°C tolerance supports extreme environments, such as Arctic or high-temperature industrial plants.

2. Version Selection Guide:

   • Base Model: Suitable for standard boiler systems (e.g., small-scale power plants) where cost-efficiency is prioritized.
   • Advanced Model: Ideal for medium-to-large industrial boilers requiring higher pressure handling (e.g., chemical processing plants).
   • Pro Model: Designed for extreme conditions, such as offshore platforms or high-temperature refineries, where durability and longevity are critical.

*Comparative benchmarks: Industry-standard elbows typically achieve 200 PSI max pressure and 450°C max temperature.
