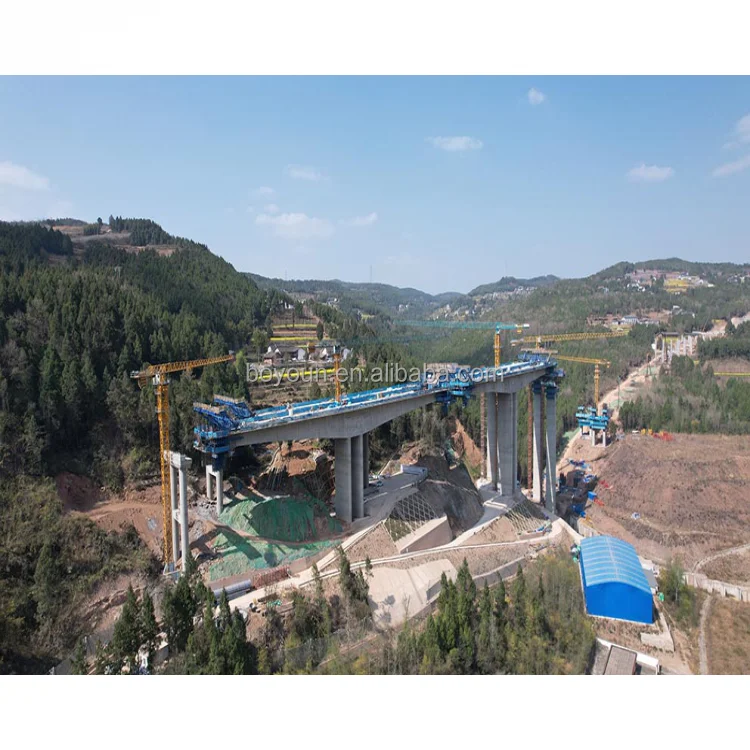

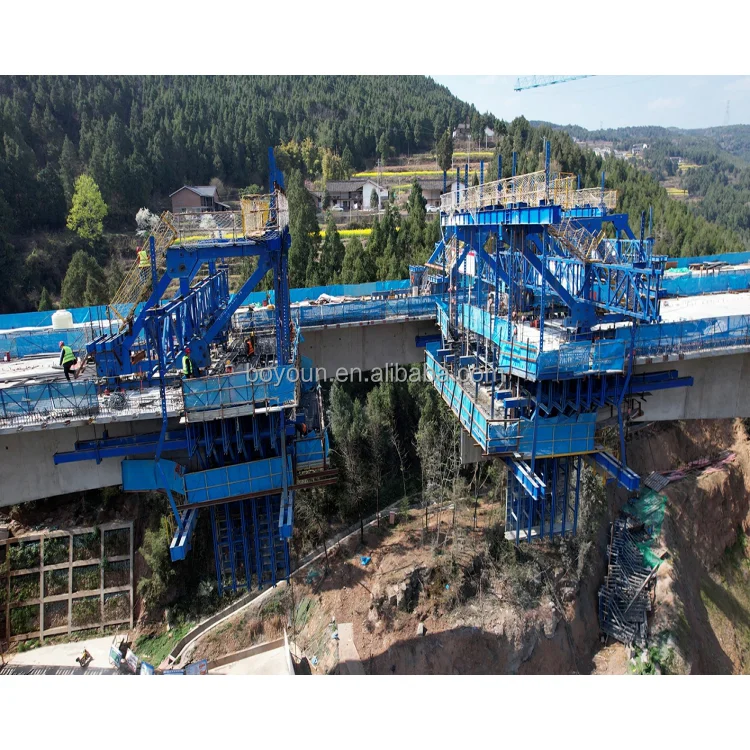

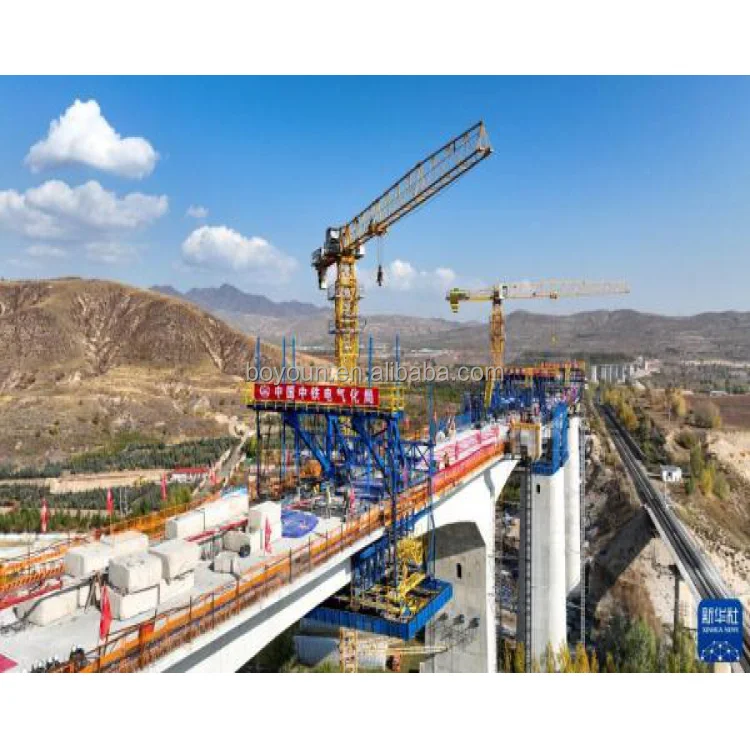

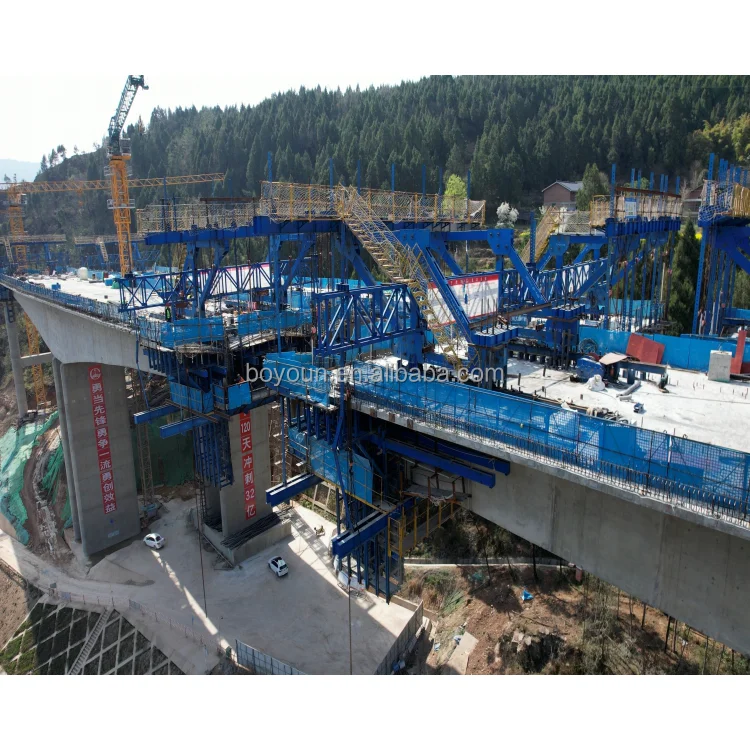

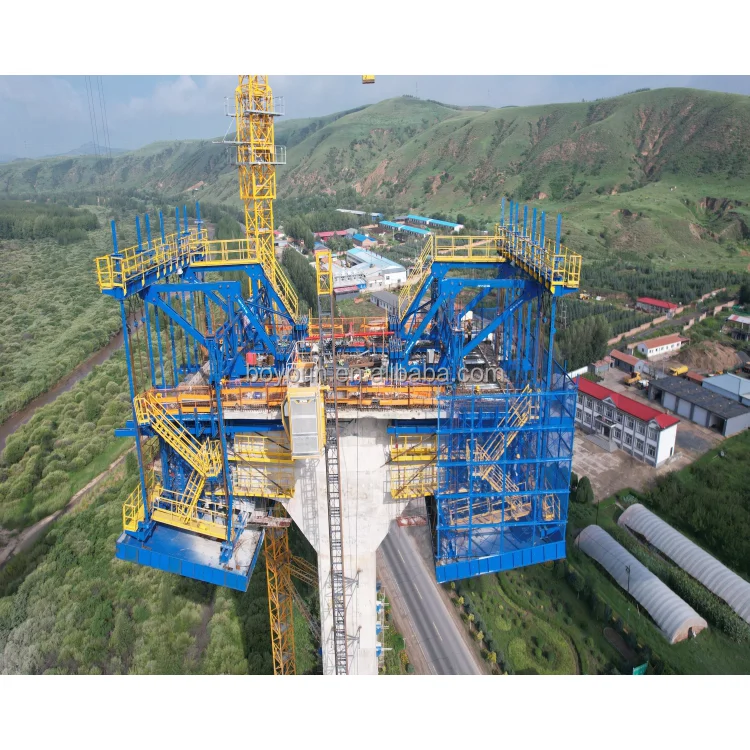

Steel Formwork for Concrete Bridge Concrete Cantilever Form Travelers Diamond Cantilever Bridge Hanging Basket

Technical specifications

Customization guide

Adjustable dimensions and modular components allow customization to fit specific bridge geometries or load requirements. With steel thickness options (4-8mm), you can tailor the formwork to meet specialized structural demands.

Get inspired

Combine the steel formwork’s rigidity with its modular design to build cantilever bridges efficiently. The diamond-patterned framework ensures stability during concrete pouring, while anti-corrosion coatings protect against harsh weather conditions.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Modular Design: Reduces assembly time by 20% compared to traditional formwork.
   • Diamond Framework: Distributes weight 25% more efficiently than flat-panel systems.
   • Real-Time Monitoring (Pro Model): Alerts teams to structural stress before critical thresholds are reached.

2. Optimal Version Selection:

   • Base Model: Ideal for standard cantilever bridge projects requiring basic load capacity and budget constraints.
   • Advanced Model: Suitable for medium-scale projects needing enhanced corrosion resistance (e.g., coastal bridges).
   • Pro Model: Best for large, complex structures (e.g., high-rise cantilever bridges) where extreme durability and real-time data are critical.

With the Pro Model’s 13 tons/m² load capacity, you can safely construct cantilever segments in high-stress zones. Pair its premium steel with anti-corrosion features to ensure longevity in marine environments. The Advanced Model’s 6mm steel strikes a balance between cost and performance for most bridge projects.
