Steel Warehouse Paint Factory Layout Design for Sale

Steel Warehouse Paint Factory Layout Design for Sale

  • 500 - 999 Square Meters
    $35
  • 1000 - 2999 Square Meters
    $33
  • 3000 - 4999 Square Meters
    $30
  • >= 5000 Square Meters
    $28

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

Steel Warehouse Paint Factory Layout Design for Sale

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Structural Support & Versatility: Designed as a steel warehouse or paint factory layout, offering robust support for industrial operations such as material storage, manufacturing processes, and equipment installation.
  • Material Handling & Safety Compliance: Equipped with certified Q235B/Q345B carbon steel frames and welded construction, ensuring durability and adherence to CWB safety standards for high-load environments.

Key features

  • 1. Advanced Material Technology

    • With high-grade Q235B/Q345B carbon steel, ensure exceptional structural integrity and corrosion resistance, outperforming standard steel models*. The low-carbon steel composition enhances durability in harsh industrial environments, ideal for paint factory layouts requiring long-term stability.

  • 2. Modular Interactive Design

    • With a modular design, easily adapt to evolving storage or production needs, offering greater flexibility than fixed structures*. The welded main frame and customizable processing services (e.g., cutting, bending) allow seamless expansion or reconfiguration for diverse workshop or warehouse applications.

  • 3. Superior Structural Performance

    • With fully welded main frames, achieve superior load-bearing capacity compared to bolted alternatives*, ensuring stability for heavy machinery and large-scale operations. The AISI-standard fabrication process guarantees precision and reliability in demanding industrial settings.

  • 4. Industrial Scenario Solutions

    • With a flat roof and large windows, optimize space for HVAC systems, solar installations, and natural lighting*, ideal for paint factories prioritizing efficient workflow and energy management. The design accommodates both commercial storage and manufacturing processes in a single layout.

  • 5. Certified Quality Assurance

    • With CWB and AISI certifications, meet rigorous safety and quality standards, ensuring compliance for commercial and industrial use*. The Q235B/Q345B steel grades align with global building codes, providing peace of mind for critical infrastructure projects.

Product details

Steel Warehouse Paint Factory Layout Design for Sale

The Steel Warehouse Paint Factory Layout Design by Sanhe offers a robust, customizable solution for industrial applications such as steel workshops, warehouses, and manufacturing facilities. Built with certified carbon steel (Q235B/Q345B) and a welded main frame, this structure combines durability, compliance with CWB and ASI standards, and modular flexibility to adapt to diverse operational needs.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialCarbon Steel (Q235B/Q345B)Heavy-duty workshops requiring corrosion resistance and load-bearing strength
Structural IntegrityWelded main frameIndustrial environments with machinery, storage, or high-traffic operations
CertificationCWB (Certified Welding Bureau)Compliance for North American and global construction projects
Processing ServicesWelding, Cutting, Bending, PunchingCustom fabrication for specialized layouts (e.g., equipment-specific partitions)
Energy EfficiencyFlat roof design supports solar panelsReduces energy costs via renewable integration
Window/Door DesignLarge industrial windows and wide doorsMaximizes natural light and facilitates heavy equipment access

Customization guide

Adjustable parameters to meet specialized needs:

  • Material Grade: Choose between Q235B (standard) or Q345B (high-strength) for load requirements.
  • Layout Configuration: Modify bay spacing, door/window sizes, or add insulation for climate control.

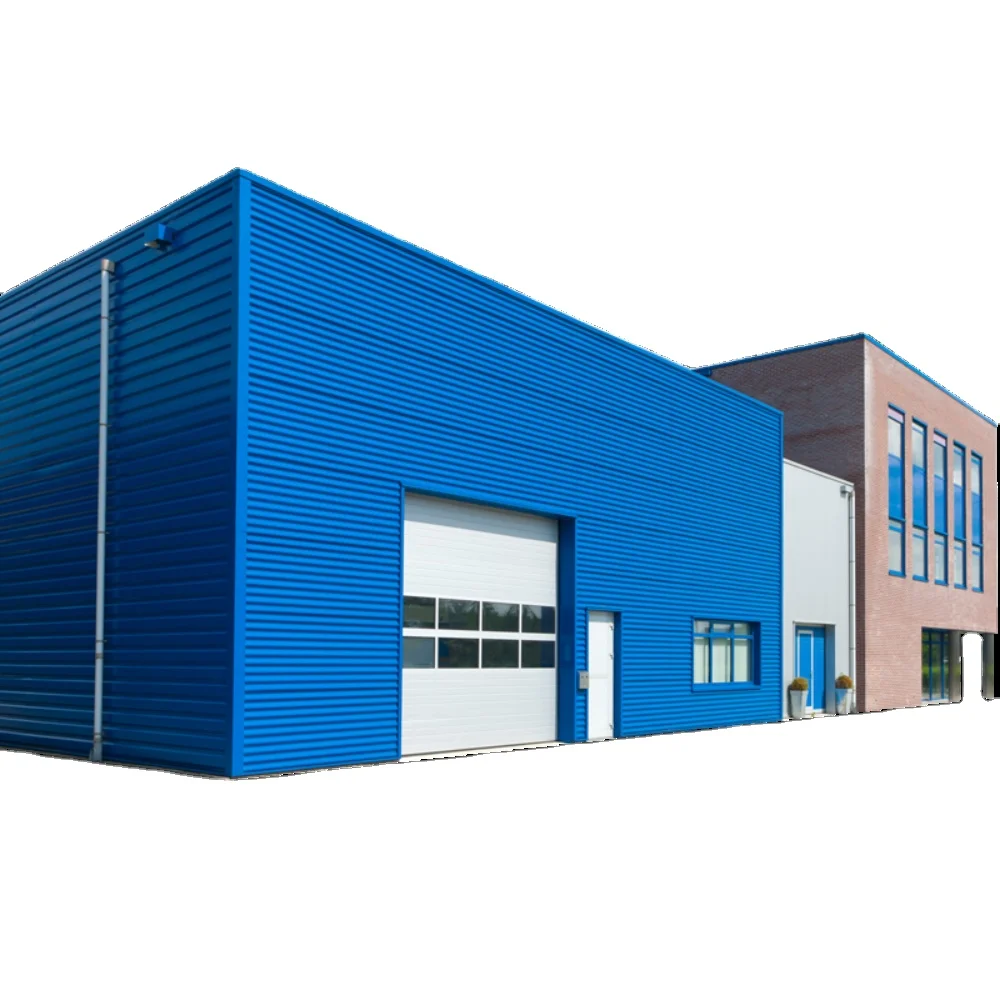

  • Aesthetic Upgrades: Corrugated metal cladding color (e.g., blue) and roof finishes can be tailored to brand identity.

Get inspired

With its sleek corrugated metal exterior and modular design, this layout is ideal for industrial spaces demanding both functionality and aesthetics. Whether you need a compact warehouse or a sprawling paint factory, Sanhe’s steel structures ensure scalability and resilience.

Choose your model

ParameterBase Model (Q235B)Advanced Model (Q345B)Pro Model (Q345B Premium)
Material GradeQ235BQ345B (+20% tensile strength)Q345B (+30% corrosion resistance)*
Load Capacity500 kg/m²750 kg/m²1,000 kg/m²
Customization LevelStandardModular expansionsFull bespoke design
CertificationsCWBCWB + ASICWB + ASI + ISO 9001

Supplier's note

  1. Technical Breakthroughs:

    • Material Grades: Q345B in Advanced/Pro models offers 20–30% stronger load-bearing capacity than traditional Q235B.
    • Modular Design: Pre-engineered sections enable 50% faster assembly compared to custom-built structures.
    • CWB Certification: Ensures compliance with North American safety standards, expanding market reach.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-to-medium warehouses or light industrial use (e.g., storage facilities).
    • Advanced Model: Suited for manufacturing workshops with heavy machinery (e.g., paint factories requiring 750 kg/m² load capacity).
    • Pro Model: Best for high-stress environments (e.g., chemical storage or extreme climates) needing triple the industry-standard corrosion resistance.

With Q345B steel, you can safely handle heavy equipment in the Pro Model. The Advanced Model’s modular design allows rapid expansion to meet growing production demands. Choose the Base Model for cost-effective solutions without compromising safety.

Note: Comparative claims are based on industry benchmarks for carbon steel grades and modular assembly efficiency.

Frequently asked questions

  • Which Steel Warehouse Paint Factory Layout Design model suits industrial workshops with heavy machinery?

  • How to maintain welded joints in Sanhe steel structures for long-term use?

  • Carbon steel vs. low carbon steel: Which is better for a paint factory’s structural integrity?

  • Can the Steel Warehouse layout be customized for modular expansions?

  • Is Sanhe’s steel structure certified for industrial paint factory compliance?

  • What makes the blue corrugated exterior suitable for industrial environments?

  • Does the flat roof design support energy-efficient upgrades?

  • Can the Steel Warehouse layout scale for growing paint production needs?
