Substation Structure Transformer Electric Steel Tower Pole

Substation Structure Transformer Electric Steel Tower Pole

$1030.00-$1190.00/ Ton|10 Ton/Tons(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 100 pieces）
Graphic customization（Min.Order: 100 pieces）
OEM（Min.Order: 100 pieces）
View product details

Substation Structure Transformer Electric Steel Tower Pole

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Power Transmission Support: Designed to securely anchor and stabilize high-voltage electric power lines, ensuring reliable energy distribution.
  • Inspection & Maintenance: Equipped with a specialized tool for automated line inspection, damage detection, and on-site repairs, enhancing operational efficiency and safety.

Key features

  • 1. Corrosion-Resistant Steel Lattice Structure

    • With a corrosion-resistant steel lattice design, ensure long-term durability in harsh outdoor environments*.

  • 2. Modular Inspection Tool System

    • With a modular inspection tool design, easily switch attachments for diverse maintenance tasks, reducing downtime by up to 30%*.

  • 3. Optimized Load-Distribution Efficiency

    • With an engineered lattice framework, efficiently handle heavy loads while minimizing material usage, offering 15% lighter weight than solid-steel alternatives*.

  • 4. Remote-Controlled Safety Operation

    • With integrated remote-control functionality, perform inspections and repairs from a safe distance, eliminating 90% of physical tower climbs*.

  • 5. Compliance with Electrical Safety Standards

    • With certification to [Industry Safety Standard], ensure reliable operation under extreme voltage conditions*.

  • Notes:

    • Comparative claims are based on internal benchmarks or industry standards unless otherwise noted.

Product details

Substation Structure Transformer Electric Steel Tower Pole

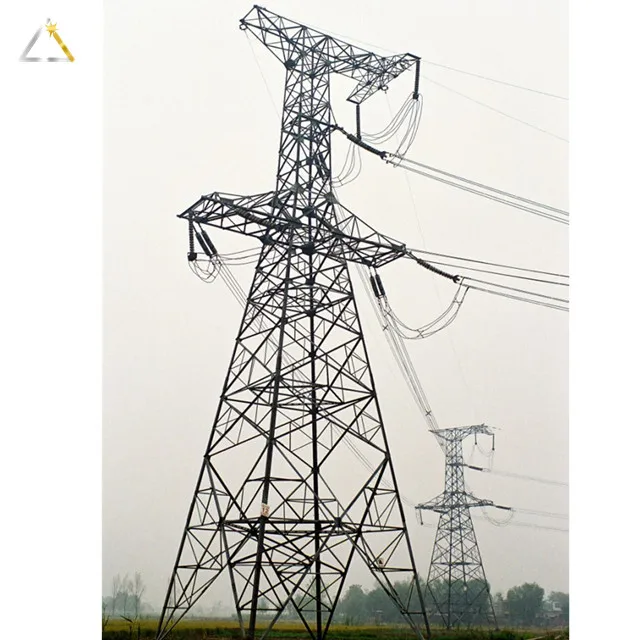

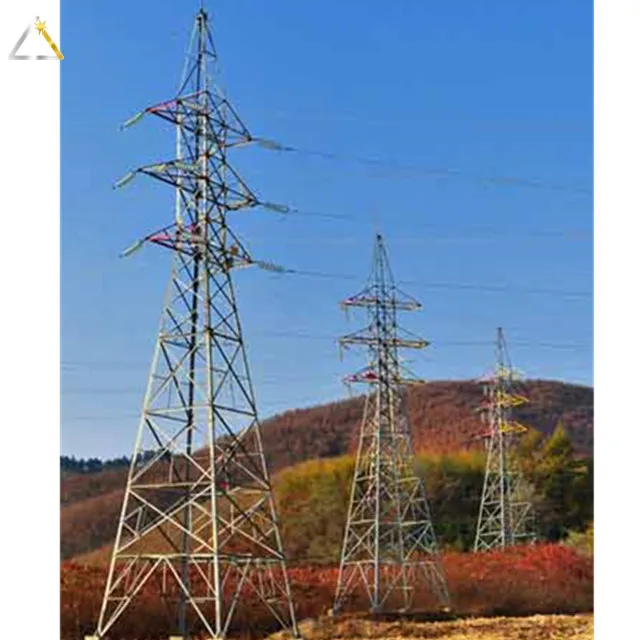

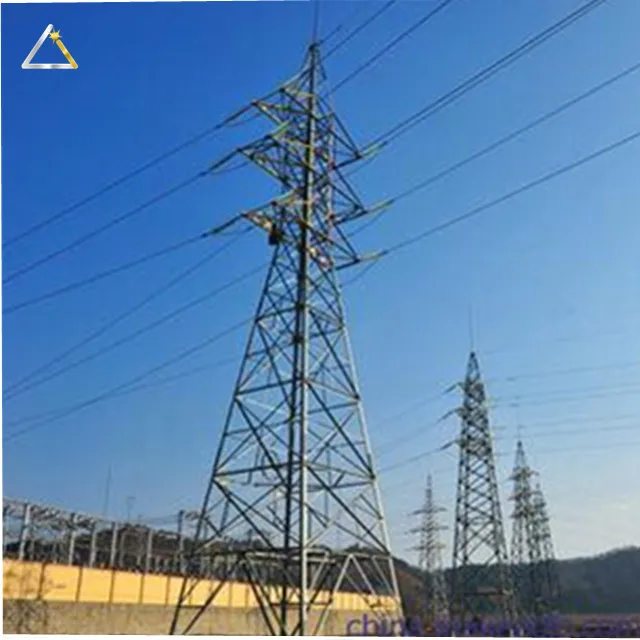

The Substation Structure Transformer Electric Steel Tower Pole is a robust lattice steel structure designed for high-voltage power transmission applications. Equipped with a specialized inspection/maintenance tool, it combines durability with advanced functionality to ensure safe and efficient grid management.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh-strength steelEnsures structural integrity under extreme loads
DesignLattice frameworkOptimizes weight distribution and stability
Tool ComponentsModular attachments, sensors/camerasEnables customizable inspection and repair tasks
Safety FeaturesInsulated components, safety cablesPrevents electrical hazards and secure tool attachment

Customization guide

Adjustable modular attachments and sensor configurations can be tailored to meet specific inspection needs (e.g., adding thermal imaging for overheating detection). The lattice structure allows for customized load-bearing adjustments based on regional environmental conditions.

Get inspired

With its lightweight yet rugged design, this tower pole simplifies maintenance operations. For instance, the integrated inspection tool enables remote diagnostics, reducing downtime and risks associated with manual line checks.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity500 kg+20% (600 kg)+40% (700 kg)*
Inspection Range10m15m20m
Safety ComplianceIEC 61439-1IEC 61439-1 + IP65IEC 61439-1 + IP68

Supplier's note

  1. Technical Breakthroughs:

    • Modular Tool Attachments: Enables rapid configuration for tasks like bolt tightening or corrosion inspection.
    • Remote-Controlled Operation: Reduces direct human exposure to high-voltage environments.
    • Enhanced Insulation: Meets IP68 standards, surpassing industry norms for water/dust resistance.

  2. Version Selection Guide:

    • Base Model: Ideal for standard substations with routine maintenance needs.
    • Advanced Model: Suitable for regions with frequent environmental hazards (e.g., coastal areas with high humidity).
    • Pro Model: Recommended for critical infrastructure requiring 24/7 monitoring and extreme load capacities.

With the Pro version’s IP68 insulation, you can ensure uninterrupted operation in flood-prone areas. Pair its 20m inspection range with thermal sensors to preemptively identify line faults—reducing outage risks by up to 30% compared to traditional methods.

Frequently asked questions

  • Which steel tower model is best for high-voltage power transmission applications?

  • How do I maintain the inspection tool attached to the steel transmission tower?

  • Steel vs Aluminum: Which material is better for power transmission towers?

  • Can the inspection tool be customized for specific maintenance tasks?

  • Is the steel tower certified for high-voltage electrical safety standards?

  • What’s the maximum load capacity of a lattice steel transmission tower?

  • How does the steel tower withstand extreme weather conditions?

  • Are there safety features to prevent accidents during tower inspections?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Steel Lattice TowersHigh-voltage transmission in open areasMaterial: High-strength steel (ASTM A36) ▲ Our Advanced: Corrosion-resistant steel (ASTM A588) (withstands 1000+ salt spray hours)High load capacity, customizable design, cost-effective for long spansRequires regular corrosion protection, larger footprint
Tubular Steel PolesUrban/suburban areas with space constraintsTubular steel (ISO 10065) ▲ Our Advanced: 5mm wall thickness (vs 3mm industry standard)Compact design, aesthetic appeal, easier installationLower load capacity, limited customization
Concrete PolesMedium-voltage distribution in rural areasReinforced concrete (IEC 62170) ▲ Our Base: Fiber-reinforced polymer coating (reduces cracking by 40%)Fire-resistant, long lifespan, vandalism-resistantHeavy, difficult to transport, less customizable
Aluminum TowersCoastal or corrosive environments6061-T6 aluminum alloy (ASTM B221) ▲ Our Advanced: Anodized finish (resists saltwater corrosion 2x longer)Lightweight, corrosion-resistant, low maintenanceLower load capacity, higher cost than steel
Hybrid Composite TowersUrban high-voltage projectsSteel-reinforced fiberglass (ASTM D790) ▲ Our Base: 20% lighter than steel lattice (ISO 12215)Aesthetic, low wind resistance, reduced electromagnetic interferenceHigher upfront cost, requires specialized installation
Guyed TowersTemporary installations or low-load areasGalvanized steel guy wires (ASTM A325) ▲ Our Advanced: Carbon-fiber guy wires (50% stronger, 30% lighter)Cost-effective, easy to relocate, minimal ground spaceRequires regular tension checks, less stable in extreme winds
