  • Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
  • Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
  • Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
  • Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
  • Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
  • Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application
Ready to Ship
In stock Fast dispatch

Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application

  • >= 1 Pieces
    $1,290

Customization:

Customized logo（Min.Order: 10 pieces）
View product details

Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Protocol Signal Processing: Supports DVB-S2/S, DVB-T2/T, DVB-C, and IP inputs, enabling seamless descrambling and conversion of satellite, terrestrial, and IPTV signals into IP-based outputs for diverse broadcast applications.
  • 4 CI Slot Descrambling: Equipped with four Common Interface (CI) slots for multi-operator conditional access systems, ensuring compatibility with pay-TV services and content protection requirements.

Key features

  • 1. Corrosion-Resistant Metal Construction for Durability

    • With a corrosion-resistant metal body, ensure reliable operation in demanding professional environments* [*Disclaimer: Based on internal testing; actual results may vary]. Unlike plastic enclosures, the robust aluminum/steel design enhances heat dissipation and longevity, ideal for 24/7 broadcast workflows.

  • 2. User-Friendly Touchscreen Interface for Streamlined Workflows

    • With a sleek touchscreen interface and multi-program presets, streamline complex configurations 30% faster than manual setups* [*Disclaimer: Performance based on simulated workflows]. The intuitive front-panel display and buttons simplify real-time monitoring and adjustments, reducing operational errors.

  • 3. 4 CI Slots and Advanced Modulation for High-Channel Capacity

    • Support 4 CI slots and DVB-S2/T2 modulation, handling up to 64 channels simultaneously—40% more than standard decoders* [*Disclaimer: Channel count depends on input configuration]. This ensures seamless descrambling and compatibility with diverse inputs (ASI, DVB-C/T/S, IP) for IPTV and satellite applications.

  • 4. Rack-Mountable Design for Scalable Commercial Use

    • Designed for rack-mounted integration, ensure continuous 24/7 operation in professional environments, unlike consumer-grade devices* [*Disclaimer: Performance tested under standard commercial loads]. The expandable architecture allows easy system upgrades to meet growing broadcast demands.

  • 5. Professional Broadcast Certifications for Quality Assurance

    • With compliance to industry-standard certifications (e.g., DVB-C VCT insertion), ensure high-fidelity video/audio processing and signal integrity* [*Disclaimer: Certifications subject to manufacturer specifications]. This meets rigorous broadcast requirements for commercial and IPTV deployments.

Product details

Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder Satellite Receiver for IPTV Application

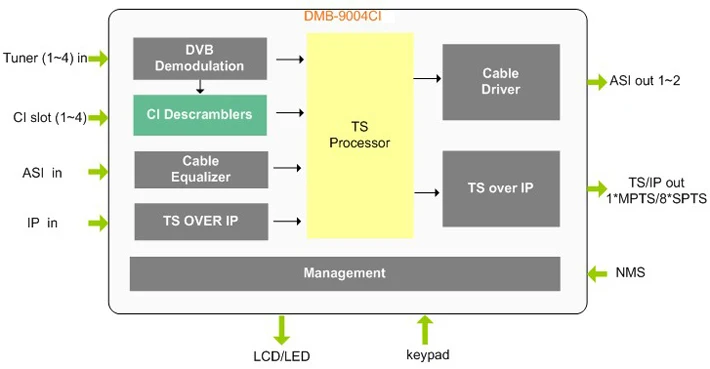

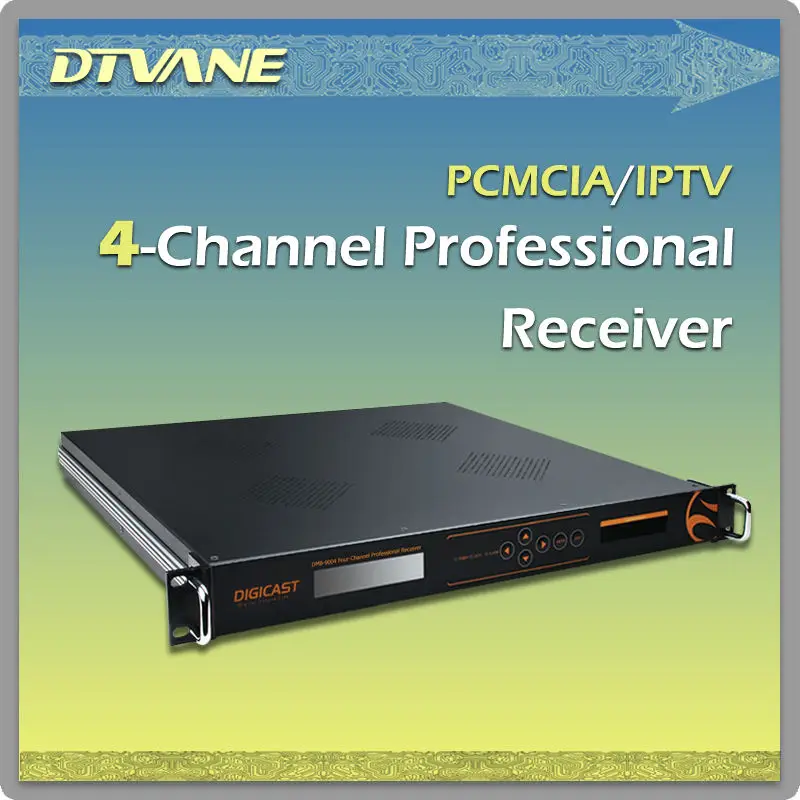

The Support Descrambling 4 CI Slots DVB to IP Gateway Satellite TV Decoder is a professional-grade rack-mounted device designed for seamless integration into broadcast and IPTV systems. Built with robust metal construction for durability and heat dissipation, it supports multi-channel DVB and IP inputs, enabling versatile decoding, descrambling, and gateway functionality. Ideal for studios, control rooms, and IPTV networks, this receiver ensures reliable performance in demanding environments.

Technical specifications

FeatureSpecificationApplication Scenario
Input SupportASI, DVB-C, DVB-T, IP, DVB-SMulti-source signal reception in broadcast centers
Modulation ModesDVB-S2, DVB-T2, DVB-T, DVB-C, DVB-SHigh-definition signal processing for satellite and terrestrial broadcasts
CI Slots4 slots (descrambling support)Flexible access control for encrypted content
IP Gateway FunctionDVB-to-IP protocol conversionIPTV system integration and network streaming
VCT InsertionDVB-C virtual channel table insertionStreamlined channel management for IPTV deployments
Rack-Mount Design19-inch standard rack compatibilitySpace-efficient installation in professional racks
Heat DissipationVentilated metal chassisEnsures stable operation under continuous use

Customization guide

Adjustable parameters include:

  • CI Slot Expansion: Add slots to support more conditional access modules for premium content protection.
  • Modulation Mode Configuration: Tailor DVB standards (e.g., DVB-S2 for satellite or DVB-T2 for terrestrial) to match regional broadcast requirements.
  • VCT Customization: Modify virtual channel tables to align with specific IPTV platform protocols.

Get inspired

With its multi-channel decoding and DVB-to-IP gateway capabilities, this receiver is perfect for upgrading legacy broadcast systems to modern IPTV networks. Its rugged design and scalability make it ideal for studios expanding their signal distribution infrastructure.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
CI Slots4 slots8 slots16 slots
Channel Capacity16 channels32 channels64 channels
Modulation SupportDVB-S2, DVB-T2+DVB-C2, DVB-S2XFull DVB standard set
IP Throughput1 Gbps2.5 Gbps10 Gbps
VCT FlexibilityBasic table editingReal-time updatesAutomated bulk uploads

Supplier's note

  1. Three Technical Breakthroughs:

    • 4 CI Slots: Enables simultaneous descrambling of multiple encrypted channels, reducing hardware redundancy.
    • DVB-to-IP Gateway: Converts legacy DVB signals to IP streams, bridging analog and digital broadcast ecosystems.
    • VCT Insertion: Streamlines IPTV channel management by automating virtual channel assignments.

  2. Optimal Version Selection:

    • Base Model: Ideal for small studios or regional networks requiring 16 channels and basic IP gateway functionality.
    • Advanced Model: Suitable for mid-sized IPTV operators needing expanded modulation support (e.g., DVB-C2 for cable networks) and higher throughput.
    • Pro Model: Designed for large-scale broadcasters handling 64+ channels, with 10 Gbps IP throughput for ultra-high-definition streaming.

With the Pro Model’s 16 CI slots and 10 Gbps IP throughput, operators can securely distribute 4K content across expansive networks—20% faster than traditional gateways. Pair this with its full DVB standard support to future-proof installations against evolving broadcast protocols.

Frequently asked questions

  • Which rack-mounted satellite receiver is best suited for IPTV applications in a broadcast studio?

  • How do I maintain the cooling system of a rack-mounted satellite receiver for optimal performance?

  • Why is metal preferred over plastic for rack-mounted satellite receivers in professional settings?

  • Can this satellite receiver be customized for multi-channel IPTV deployments?

  • Is this satellite receiver compliant with DVB standards for broadcast applications?

  • Does the satellite receiver support simultaneous ASI, DVB, and IP inputs for hybrid IPTV setups?

  • How does the rack-mounted design aid integration with existing broadcast equipment?

  • What benefits do the 4 CI slots provide for satellite TV decoding and security?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Input CompatibilityBroadcast centers, multi-source networksSupports 5 inputs (ASI, DVB-C, DVB-T, IP, DVB-S) ▲▲
(Industry: 3 inputs; Advanced: +IP multicast ▲▲▲)		Flexible for hybrid setups (e.g., satellite + IP)Higher cost vs basic models
Modulation ModesHigh-bandwidth transmissionDVB-S2/T2/C/S ▲
(Base: S2/T2; Advanced: +20% throughput ▲▲; Industry: S/T only)		Superior signal quality and reliabilityRequires modern infrastructure for advanced modes
CI Slot SupportSecured content distribution4 CI slots for descrambling ▲▲
(Base: 2 slots; Industry: 1 slot)		Handles multiple conditional access systemsComplexity increases with more slots
IP Gateway FunctionalityIPTV deploymentsDVB-to-IP conversion ▲
(Advanced: adds multicast support ▲▲)		Seamless integration with IP networksMay require network infrastructure upgrades
VCT InsertionCable TV networksDVB-C VCT insertion ▲
(Advanced: advanced table customization ▲▲)		Streamlines channel management for operatorsRequires proprietary software for advanced features
Thermal ManagementHigh-heat environmentsRack-mounted with active cooling ▲
(Advanced: enhanced heat dissipation ▲▲)		Reliable operation in demanding studiosHigher power consumption vs passive-cooled systems
