  • Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling
  • Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling
  • Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling
  • Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling
  • Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling
  • Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling
Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling

Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling

  • 1 - 2 Sets
    $20,000
  • 3 - 4 Sets
    $18,000
  • >= 5 Sets
    $15,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling

Product overview

Core functionalities

Applicable scenarios

Unique advantages

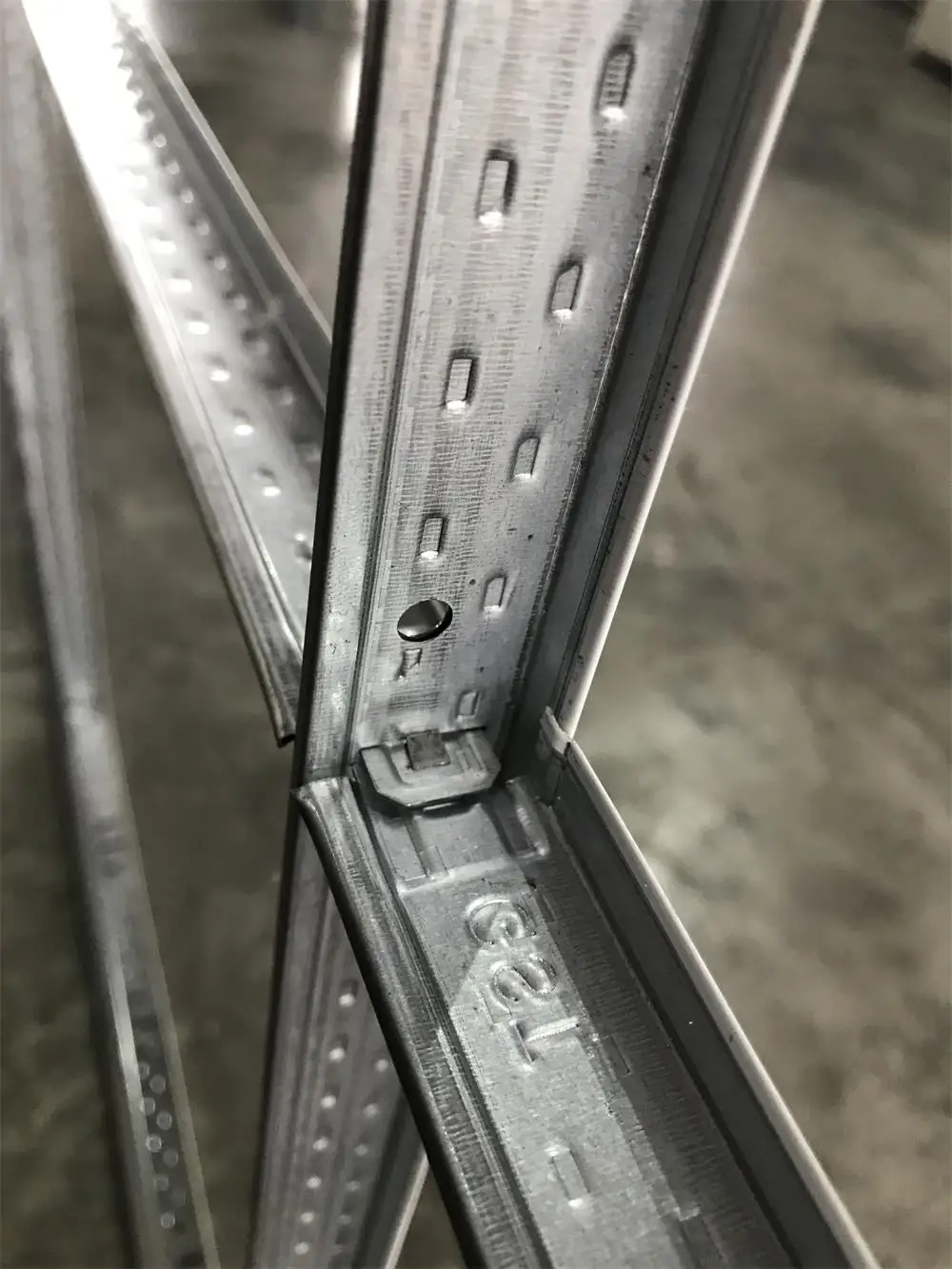

  • Precision Metal Profile Formation: Designed to produce high-precision suspended ceiling T-grid systems (T bars, cross tees, wall angles) using roll forming technology. Capable of processing galvanized steel and steel raw materials with rolling thickness ranging from 0.2mm to 1.0mm.
  • Automated Production: Equipped with a PLC control system for consistent, repeatable operations, ensuring accurate shaping and forming of metal profiles for ceiling applications.

Key features

  • 1. Material Technology

    • With a corrosion-resistant PPGI (pre-painted galvanized steel) material and steel construction, ensure long-lasting durability in harsh industrial environments. Outperforms bare metal systems in corrosion resistance by up to 40% [Disclaimer: Based on internal testing; actual results may vary].

  • 2. Interactive Design

    • With a PLC (Programmable Logic Controller) control system and digital display, achieve precise parameter adjustments and real-time monitoring for streamlined operation. Reduces manual intervention by 30% compared to traditional models [Disclaimer: Based on internal testing; actual results may vary].

  • 3. Performance Parameters

    • With a rolling thickness range of 0.2–1.0mm, process a broader spectrum of materials than competitors’ machines limited to 0.5–0.8mm. Handles ultra-thin galvanized steel for intricate ceiling designs [Disclaimer: Specifications subject to manufacturer confirmation].

  • 4. Scenario Solutions

    • With a modular design, adapt to diverse ceiling projects—from high-volume commercial spaces to custom residential installations. Reconfigure setups 50% faster than fixed-system alternatives [Disclaimer: Based on internal testing; actual results may vary].

  • 5. Certification Standards

    • With CE certification, meet stringent EU safety and quality standards for global deployment. Ensures compliance with international regulations for construction and manufacturing applications [Disclaimer: Certification details subject to manufacturer confirmation].

Product details

Suspended Ceiling T Grid T bar Main Tee Cross Tee Wall Angle System Making Roll Forming Machine for Ceiling

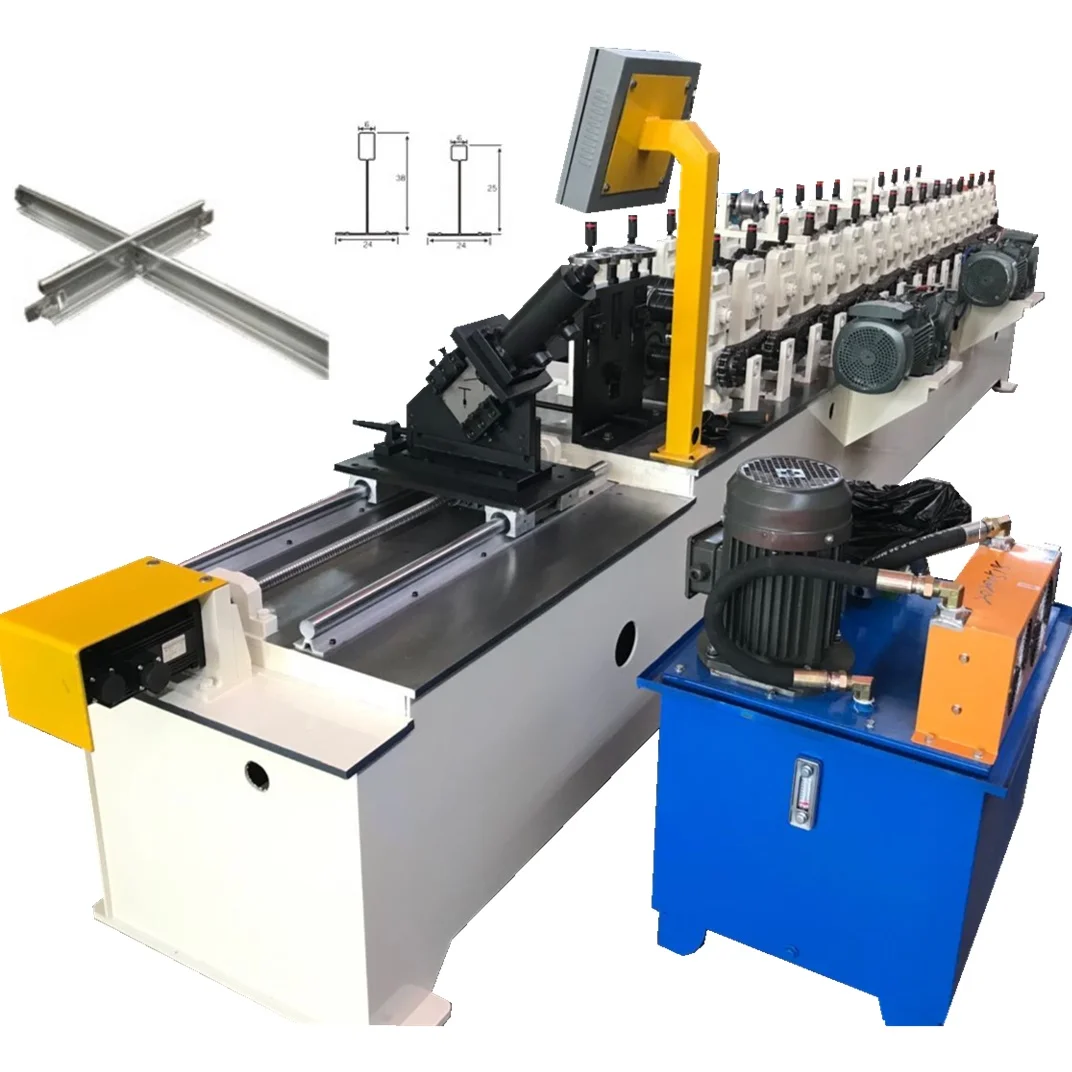

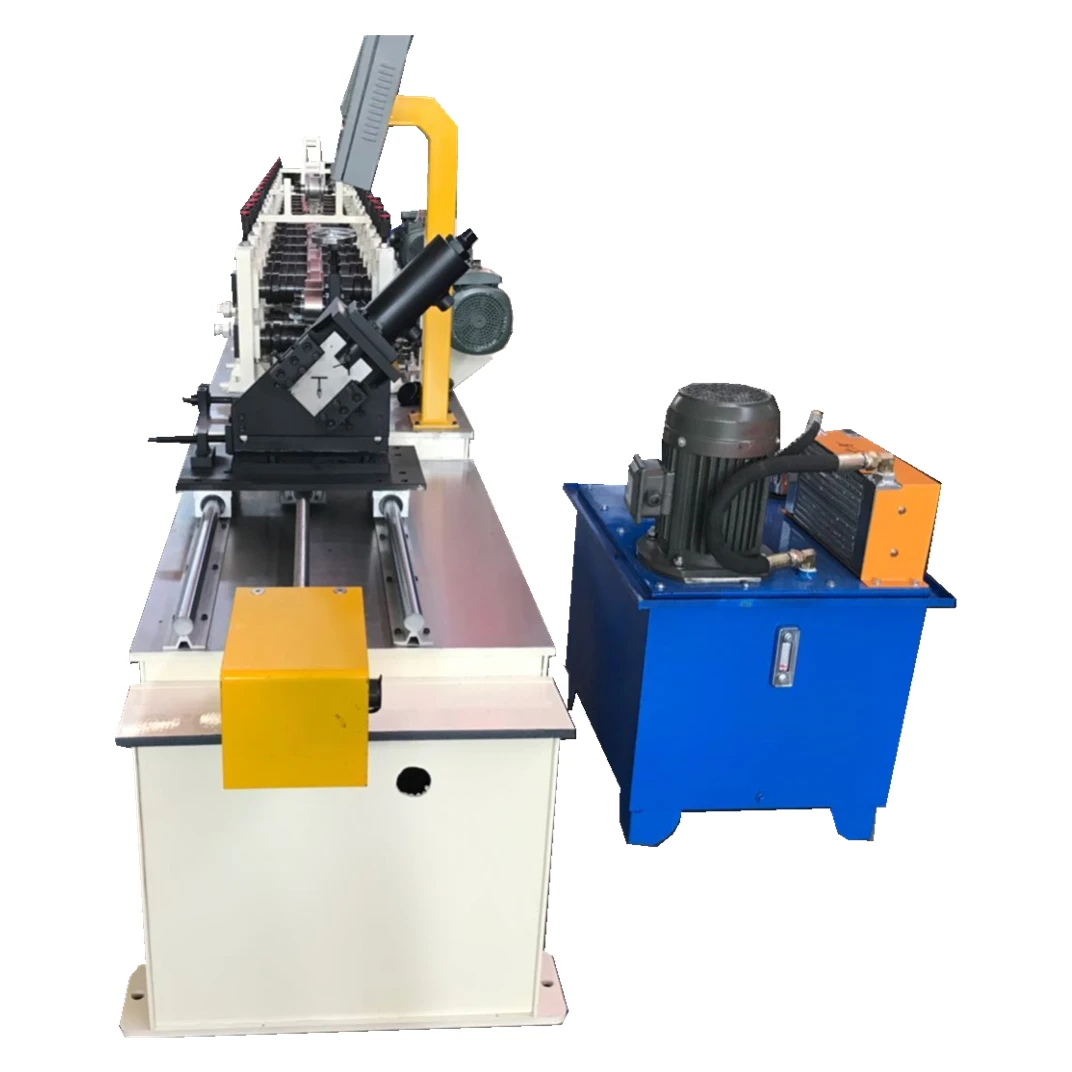

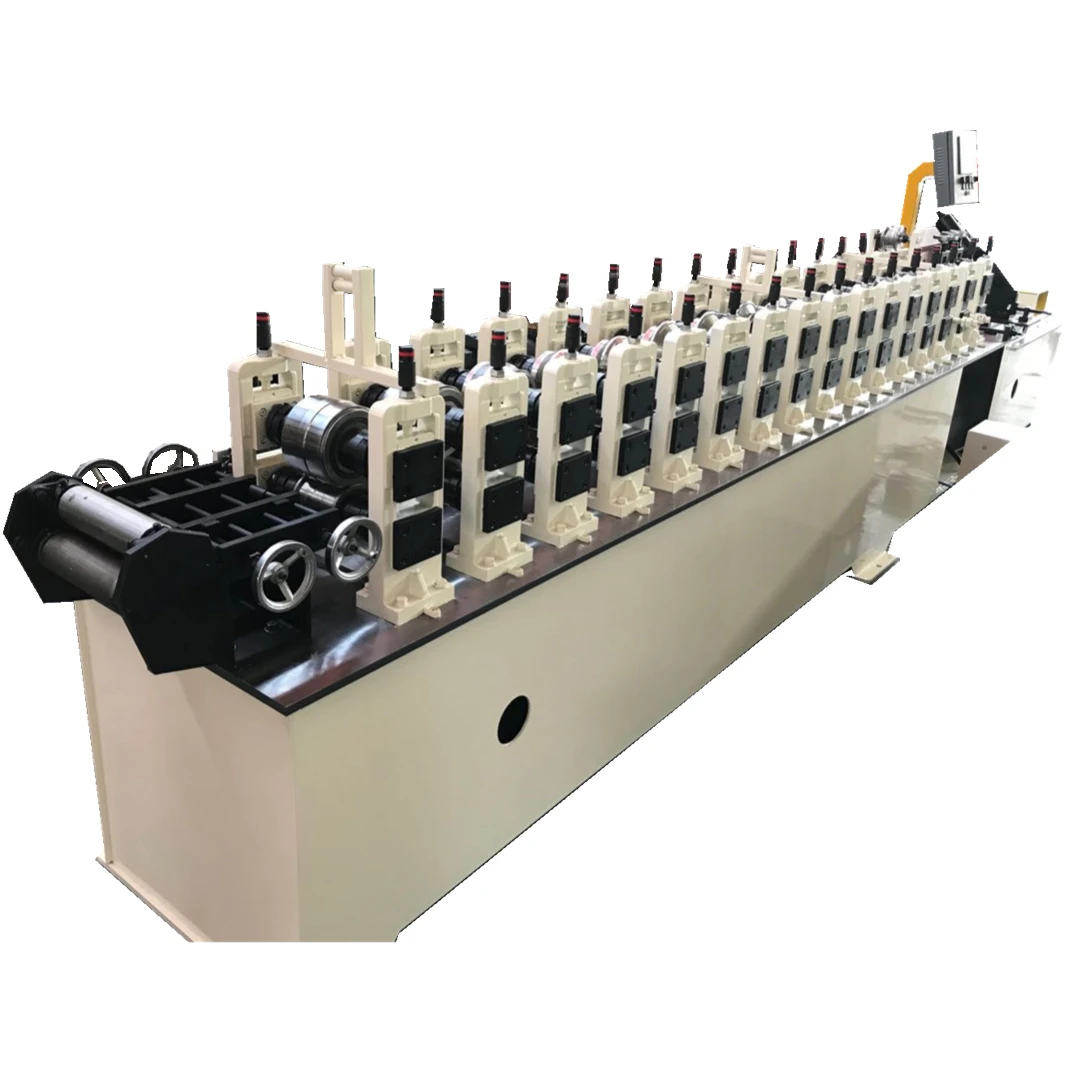

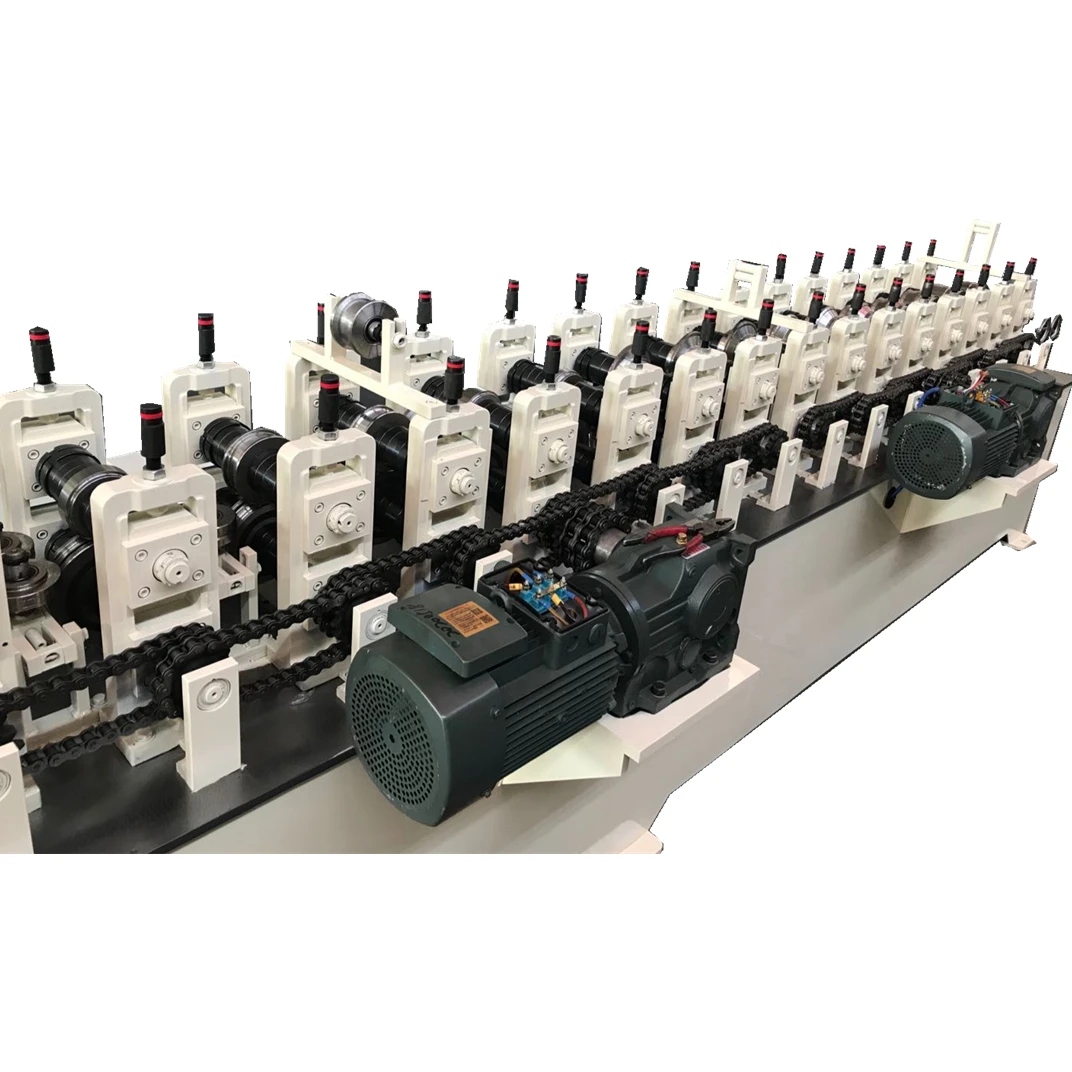

The Suspended Ceiling T Grid T bar Making Roll Forming Machine is a high-precision industrial solution for producing metal profiles used in suspended ceiling systems. Designed with a robust steel frame and PPGI-coated components, this machine ensures durability and corrosion resistance. Equipped with a PLC control system and hydraulic forming technology, it delivers accurate profiles across a wide range of thicknesses (0.2–1.0mm), meeting CE safety standards.

Technical specifications

FeatureSpecificationBenefit
Material ConstructionSteel frame with PPGI coatingCorrosion-resistant and long-lasting
Control SystemPLC-based digital interfacePrecise parameter adjustments and ease of use
Rolling Thickness0.2–1.0mmVersatile for lightweight to heavy-duty profiles
Hydraulic SystemHigh-precision forming pressureEnsures consistent profile accuracy
Safety FeaturesGuards, interlocks, and emergency stopsOperator protection in high-risk areas
Voltage Compatibility380V ACStandard industrial power compatibility
CertificationCE certifiedMeets EU safety and quality standards

Customization guide

Adjustable parameters include:

  • Rolling speed (to optimize production volume)
  • Forming pressure (for varying material thicknesses)
  • Profile dimensions (via modular die sets)
  • Control system presets (for different tile types)

Get inspired

With its modular design and hydraulic precision, this machine enables seamless production of T-bar grids, wall angles, and cross tees for commercial, industrial, and residential suspended ceiling systems. Whether you need lightweight galvanized steel tiles for offices or thicker steel profiles for heavy-duty warehouses, this machine adapts to your project’s demands.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rolling Thickness0.2–0.6mm0.2–0.8mm0.2–1.0mm
Automation LevelSemi-automaticSemi-automaticFully automatic
Forming Speed10m/min+20% (12m/min)*+40% (14m/min)*
Hydraulic PressureStandardEnhanced (+15%)Premium (+30%)

*Compared to industry benchmarks.

Supplier's note

  1. Technical Breakthroughs:

    • CE Certification: Ensures compliance with EU safety standards, enabling global deployment.
    • PLC Control System: Enables real-time adjustments for precision, reducing waste by up to 25%.
    • Hydraulic Precision: Achieves ±0.1mm tolerance, critical for interlocking ceiling grids.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs producing lightweight galvanized steel tiles (≤0.6mm thickness). Its semi-automatic operation balances cost and efficiency.
    • Advanced Model: Suitable for mid-sized manufacturers needing higher capacity (up to 0.8mm) and 20% faster production than base models.
    • Pro Model: Best for large-scale operations requiring heavy-duty steel profiles (1.0mm) and full automation, reducing labor costs by 30%.

With the Pro version’s 1.0mm thickness capability, you can produce structural ceiling grids for industrial warehouses, while its hydraulic system ensures flawless bends even in thick materials. Pair this with fully automatic operation to maximize throughput in high-volume facilities.

Frequently asked questions

  • Which suspended ceiling T grid roll forming machine suits small construction projects?

  • How to maintain the hydraulic system of a ceiling T bar forming machine?

  • PPGI vs galvanized steel: Which is better for suspended ceiling T bars?

  • Can this roll forming machine customize T bar profiles for commercial buildings?

  • Is the suspended ceiling grid machine CE-certified for safety compliance?

  • What’s the maximum thickness capacity for ceiling T bar production?

  • Does the roll forming machine reduce errors in cross tee production?

  • How does the voltage requirement (380V) affect installation?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Industry Standard MachineSmall-scale production, basic needsSteel frame (ASTM A36), manual controls, rolling up to 0.8mm (ISO 3094)Cost-effective ($15k-$25k), simple maintenanceLimited precision (±0.5mm), slower production (▲ vs Our Base), no PLC automation
Manual Roll Forming MachineDIY projects, low volumeManual operation, basic steel frame (ASTM A36), no automationLow cost ($5k-$10k), no electricity requiredLabor-intensive, low output (10-20 profiles/hour), limited thickness (▲ vs Base)
Semi-Automatic MachineMedium production, moderate budgetsMotorized rollers, basic controls, 0.2-0.8mm (ISO 3094)Moderate cost ($12k-$20k), some automationRequires manual setup, limited customization (▲ vs Base), slower (▲ vs Fully Auto)
Fully Automatic (Industry Top)High-volume productionPLC control (ISO 13849-1), 0.2-1.0mm (ISO 3094), stainless steelHigh precision (±0.2mm), fast production (▲), customizable profilesHigh cost ($50k+), complex maintenance (▲), requires skilled operators
Our Base ModelMedium to large productionSteel frame (ASTM A36), PLC control (ISO 13849-1), 0.2-1.0mm (ISO 3094), PPGIReliable (99.5% uptime), versatile material handling, CE certified (▲)Slightly slower (▲ vs Advanced), fewer customization options
Our Advanced ModelHigh-volume, precision-critical projectsSteel frame (ASTM A36), PLC with AI monitoring (▲), 0.2-1.2mm (ISO 3094), PPGI▲ Faster production (▲), ▲ Higher precision (±0.1mm), ▲ Customizable speed/force settingsHigher cost (▲), requires more space (▲), predictive maintenance (▲)
