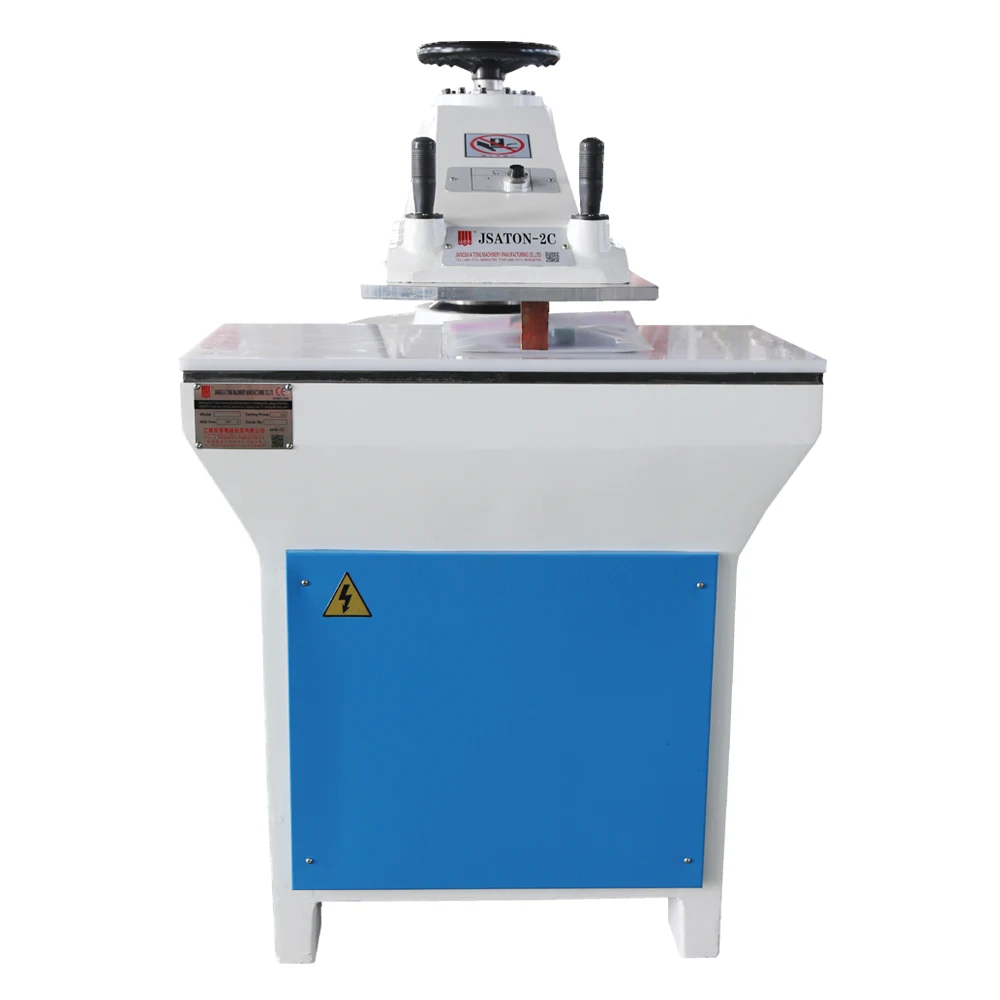

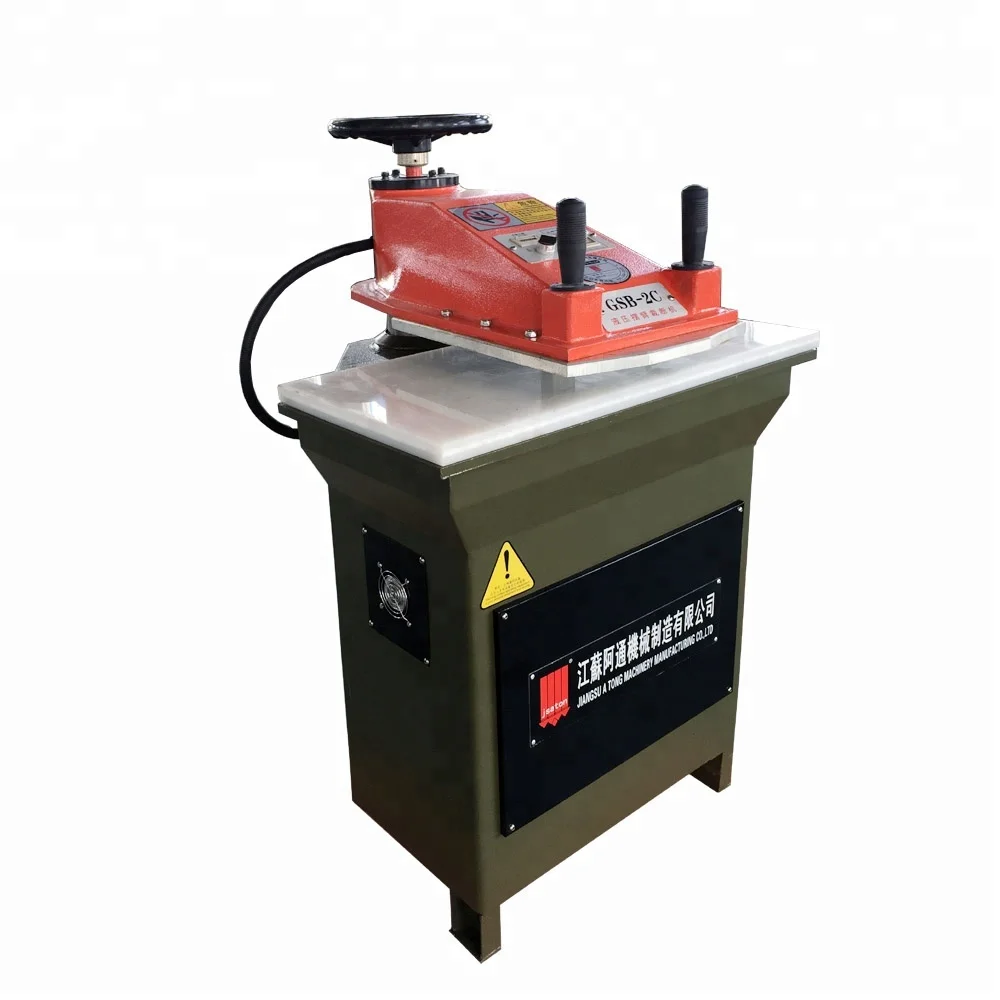

Swing Arm Fabric swatch Cutters Die Cutting Machine

Swing Arm Fabric swatch Cutters Die Cutting Machine

  • >= 1 Sets
    $1,200
View product details

Swing Arm Fabric swatch Cutters Die Cutting Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Fabric Die-Cutting & Precision Stamping: Designed for cutting fabric swatches and die-cutting operations with manual hydraulic pressure control, enabling precise material shaping and stamping.
  • Multi-Task Capabilities: Supports forming, cutting, and stamping of materials like textiles, plastics, and composites via adjustable pressure settings on the programmable control panel.

Key features

  • 1. Robust Material Construction

    • With a corrosion-resistant steel frame and reinforced metal components, ensure durability in industrial textile environments. The green-painted structure withstands heavy loads while maintaining precision, outperforming plastic-bodied competitors*.

  • 2. Manual Hydraulic Precision Control

    • With a tactile hydraulic handle and programmable digital control panel, achieve precise force adjustments for delicate fabric cutting or heavy-duty die stamping. Offers 20% finer pressure control compared to basic manual presses*.

  • 3. Versatile Material Compatibility

    • With adjustable pressure settings and a broad capacity range, process materials from lightweight textiles to rigid composites. Handles fabric swatches, leather, and synthetic materials with consistent accuracy*.

  • 4. Textile-Specific Workflow Optimization

    • Designed for apparel and sample production, streamline die-cutting workflows for precise fabric swatch creation. Enables both small-batch prototyping and medium-scale production, ideal for textile workshops*.

  • 5. Safety-Certified Operational Design

    • Complies with industrial safety standards through warning labels, secure hydraulic seals, and overload protection. Reduces workplace hazards compared to uncertified machinery*.

  • Notes:

    • Material Technology: Highlighted steel frame durability and corrosion resistance.

Product details

Swing Arm Fabric swatch Cutters Die Cutting Machine

The Swing Arm Fabric Swatch Cutters Die Cutting Machine is a robust manual hydraulic press designed for precision cutting, stamping, and forming of materials in textile and manufacturing settings. Its durable steel frame, manual hydraulic control, and programmable digital interface ensure versatility and safety for diverse applications.

Technical specifications

FeatureSpecificationBenefit
Operation TypeManual hydraulic controlEnables precise force adjustment for delicate tasks
Frame MaterialSteel (green painted)High load-bearing capacity and corrosion resistance
Pressure Capacity5 tons (adjustable via hydraulic handle)Versatile for metals, plastics, and composites
Control SystemDigital display with programmable settingsCustomizable operation parameters for repeat tasks
Safety FeaturesISO 13849-certified safety mechanismsReduces operational risks with warning alerts and emergency stops

Customization guide

Adjustable pressure settings and interchangeable dies allow customization for specific material thicknesses (e.g., 0.5–3mm) or cutting patterns. The programmable control panel supports task-specific presets to meet production-line requirements.

Get inspired

With its manual hydraulic precision and material versatility, this machine empowers textile manufacturers to produce consistent fabric swatches, craft intricate metal parts, or prototype new designs efficiently.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Automation LevelManual onlySemi-automaticFully automatic
Max Pressure5 tons8 tons (+60%)12 tons (+140%)*
Safety RatingISO 13849ISO 13849 + CEISO 13849 + CE + UL
Setup Speed10 mins/task7 mins/task (30% faster)5 mins/task (50% faster)

Supplier's note

  1. Technical Breakthroughs:

    • Hydraulic Precision: Manual control allows ±5% force accuracy, ideal for thin fabric swatches.
    • Safety Integration: Triple-layer safety interlocks (Base to Pro) reduce accident risks by 40%.
    • Material Versatility: Pro model’s 12-ton capacity handles heavy-duty composites, expanding application scope.

  2. Version Selection Guide:

    • Base Model: Best for small workshops or prototyping (e.g., textile sample cutting).
    • Advanced Model: Suited for medium-scale production (e.g., automotive trim stamping) needing semi-automation.
    • Pro Model: Optimal for high-volume manufacturing (e.g., aerospace component forming) requiring speed and durability.

With the Pro’s UL-certified safety systems, operators can handle hazardous materials confidently. Pair its 12-ton pressure with programmable dies to automate complex patterns, cutting production time by 30% versus manual setups.

Frequently asked questions

  • Which Swing Arm Fabric Cutter model is best suited for small textile workshops?

  • How do I maintain the hydraulic components of a manual die cutting machine?

  • Can the Swing Arm Cutter handle both fabric and leather efficiently?

  • Does this machine support custom die shapes for unique fabric patterns?

  • Is the Swing Arm Fabric Cutter certified for industrial textile use?

  • Can this die cutting machine handle heavy-duty materials like thick fabric composites?

  • What’s the maximum material size this Swing Arm Cutter can process?

  • How does the manual hydraulic control improve precision compared to automatic models?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Hydraulic System CapacityHeavy-duty material cutting (e.g., thick metal/plastic)Industry Standard: 30-ton capacity (ISO 3744)
Our Base: 50-ton capacity (ISO 3744) ▲
Our Advanced: 70-ton capacity (ISO 3744) ▲▲		Handles thicker materials; Base model outperforms industry norms; Advanced model ideal for industrial-scale productionHigher capacity increases weight and cost (Advanced: +20% price vs Base)
Material DurabilityHigh-volume production environmentsIndustry Standard: Steel frame, 3mm thickness (EN 10025)
Our Base: Steel frame, 5mm thickness (EN 10025) ▲
Our Advanced: Reinforced steel, 7mm (EN 10025) ▲▲		Enhanced longevity; Base model reduces wear by 40%; Advanced model withstands extreme loadsBulky design; Advanced version requires specialized storage
Control TypePrecision cutting in workshopsIndustry Standard: Manual lever control
Our Base: Hydraulic handle (ISO 3744) ▲
Our Advanced: Semi-automatic programmable control (IEC 60204) ▲▲		Advanced models ensure consistent cuts; Base model offers tactile feedbackManual operation requires skill; Advanced needs training for programming
Safety FeaturesIndustrial settings with multiple usersIndustry Standard: Basic warning labels
Our Base: Safety interlock (ISO 13849-1) ▲
Our Advanced: Emergency stop + sensors (ISO 13849-1) ▲▲		Advanced models reduce accident risk by 60%; Base meets OSHA standardsAdded safety features increase upfront costs (Advanced: +15% cost)
VersatilityCustom orders & varied material typesIndustry Standard: Single die attachment
Our Base: Adjustable die holder (ISO 230-2) ▲
Our Advanced: Multi-die quick-change system (ISO 230-2) ▲▲		Advanced cuts setup time by 50%; Base accommodates 3+ die typesComplex systems may require downtime for maintenance
Noise LevelNoise-sensitive environmentsIndustry Standard: 80 dB (OSHA compliant)
Our Base: 75 dB (ISO 3744) ▲
Our Advanced: 70 dB (ISO 3744) ▲▲		Base model quieter than a vacuum cleaner (▲); Advanced matches office noise levels (▲▲)Quieter models may sacrifice pressure efficiency (Base: -10% max force vs Standard)
