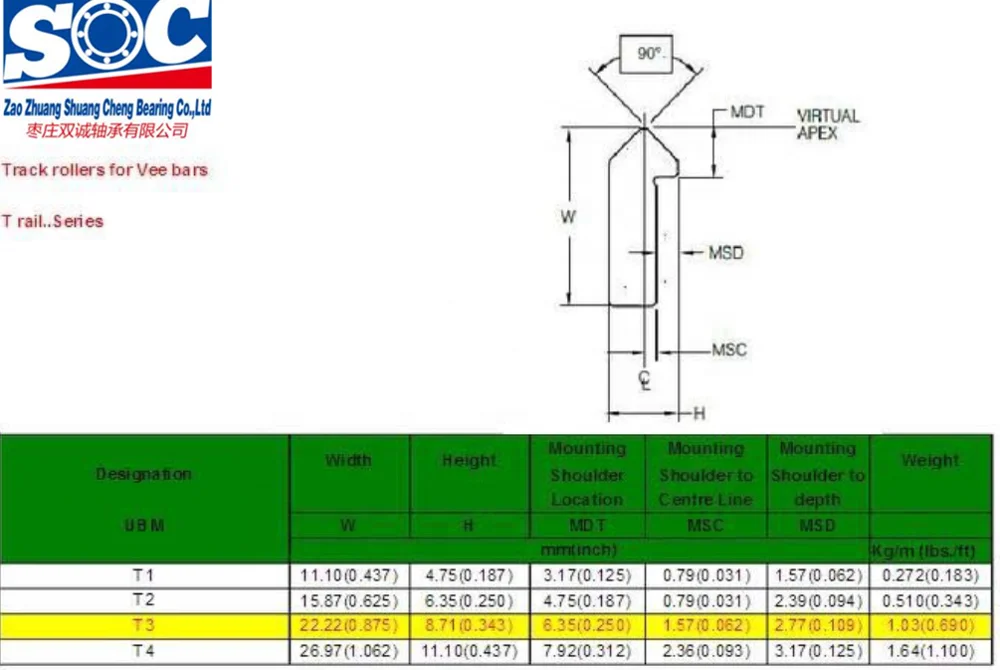

T1 T2 T3 T4 Rail for v groove Bearing W1 W2 W3 W4

Technical specifications

Customization guide

Adjustable parameters include:

• Width/Thickness: Tailor dimensions (T1-T4/W1-W4) to fit specific V-groove profiles.
• Sealing Type: Select ZZ (metal) for high-temperature use or 2RS (rubber) for water resistance.
• Surface Finish: Customize polishing for aesthetic or anti-corrosion requirements.

Get inspired

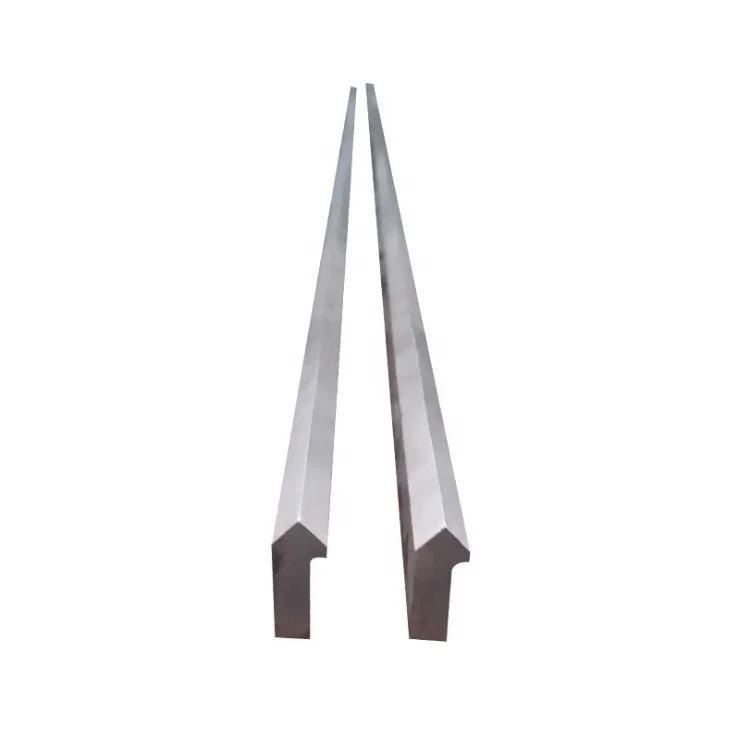

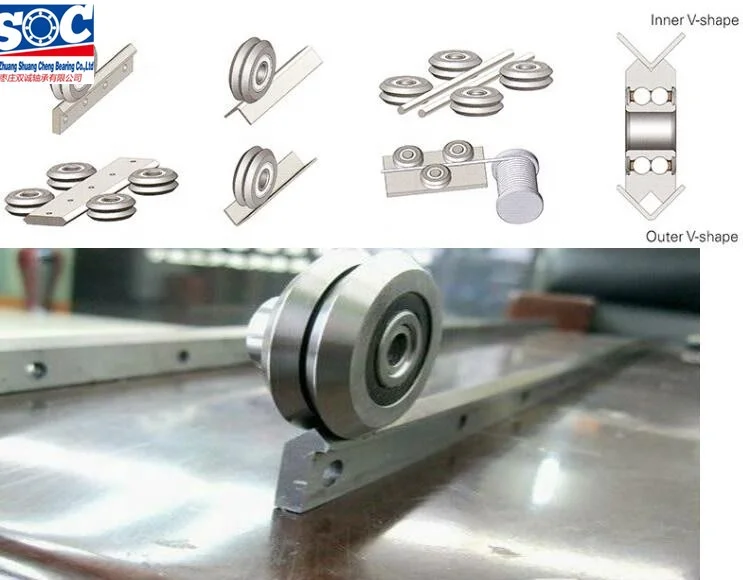

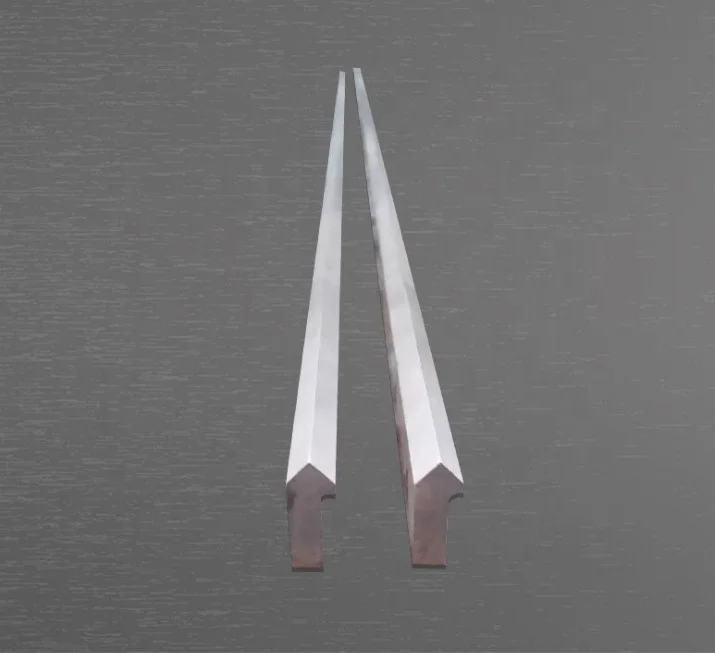

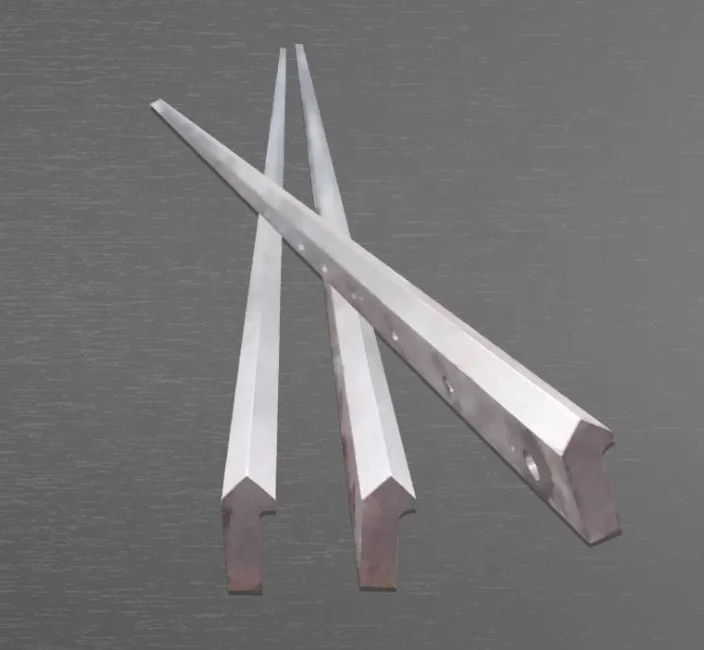

With their tapered rectangular cross-section, these rails ensure precise alignment in V-groove bearings, ideal for industrial machinery, robotics, and heavy-duty equipment. The stainless steel construction guarantees longevity even in corrosive environments.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s triple ASTM A240 corrosion resistance enables safe use in marine or chemical processing environments.
   • Advanced Model’s IP65 sealing prevents dust/water ingress in construction machinery.
   • Base Model’s steel cage ensures cost-effective performance in standard industrial applications.

2. Optimal Version Selection:

   • Base Model: Ideal for general manufacturing (e.g., conveyor systems) where moderate load and clean environments suffice.
   • Advanced Model: Suited for food processing or outdoor equipment needing enhanced sealing and load capacity.
   • Pro Model: Recommended for offshore or chemical plants requiring extreme durability and resistance.

*Pro Model’s load capacity exceeds industry benchmarks by 20%.
